AUTOBOX Automatic Case Erector Machine – 16 Cases per Minute – Siemens PLC

AUTOBOX automatic case erector machine

This AUTOBOX automatic case erector is a highly efficient packaging machine designed to assist manufacturers in streamlining their packing operations. With a maximum speed of 16 cases per minute, this machine assembles and seals boxes swiftly and precisely, supporting lower labour costs and increased productivity.

A notable advantage of the AUTOBOX automatic case erector is its compatibility with both Suitable for use with Bopp tape and paper tape. This versatility allows businesses to use different tape types or switch between them as required.

The machine offers a high degree of customisation and can be tailored to suit various carton sizes (custom builds are available; please enquire for lead times). The standard AUTOBOX automatic case erector processes cartons with L 250–530mm × W 150–400mm × H 225–600mm (after folding and sealing the bottom flaps). The machine can also be configured for 60 or 72-mm tape to meet specific requirements.

The AUTOBOX case erector is available with either a sloping or horizontal worktable. The sloping worktable holds approximately 80 cases, whereas the horizontal worktable stores up to 150 boxes. The storage capacity depends on the thickness of the board used.

This machine operates on a 1P 220V 50/60 Hz 400W power supply and requires an air pressure of 6Kgf/cm2. The IP54 rated protective power supply ensures safe operation in a range of environments. The automatic case erector has a noise output of 75 dB, supporting a quieter workplace.

To guarantee quality and dependability, the AUTOBOX case erector incorporates electrical and pneumatic components from trusted brands such as Siemens, Schneider, Delta, P + F, Airtac, and SMC components. This ensures the machine is robust, durable, and consistently reliable in operation.

In summary, the AUTOBOX automatic case erector machine is a practical solution for businesses seeking to efficiently assemble and seal corrugated cartons. With its adaptable features, intuitive design, and premium components, the AUTOBOX automatic case erector is a dependable and effective choice for improving packaging processes and reducing operational costs.

AUTOBOX case erector demonstration video



Benefits of the AUTOBOX automatic case erector

• Compatible with both Bopp tape and paper tape
• Suitable for cartons measuring L 250–530mm x W 150–400mm x H 225–600mm (after the bottom flap has been folded and sealed)
• The horizontal worktable accommodates up to 150 double-walled cases
• Operates on 1P 220V 50/60 HZ 400W and requires an air supply of 6Kgf/cm2
• IP54 rated protective power supply
• Produces a noise level of 75 dB, supporting a quieter workplace
• Fitted with premium components from established brands including Siemens, Schneider, Delta, P + F, Airtac, and SMC
• Optimise packaging operations and help lower operational expenses

Technical details for the AUTOBOX automatic case erector

The AUTOBOX case erector is a flexible solution compatible with Bopp tape or 48mm paper tape, and can be adapted for use with 60mm or 72mm tape. Its speed can be set between 0–16 cases per minute (depending on carton size). It is designed for cartons sized L 250–530mm x W 150–400mm x H 225–600mm (after folding and sealing the bottom flap) or H 150–400mm (after folding and sealing both top and bottom flaps). The AUTOBOX case erector is available with a horizontal worktable (capacity for approximately 150 double-walled cases) or a sloping worktable (capacity for around 80 double-walled cases). The machine has a gross weight of 1000 kg and a net weight of 950 kg, and features an IP54 rated power supply. The AUTOBOX case erector runs on 1P 220V 50/60 HZ 400W and needs an air supply of 6Kgf/cm2. It can be tailored for various carton sizes and is built with high-quality electrical and pneumatic components from trusted brands such as Siemens, Schneider, Delta, P + F, Airtac, and SMC.

Reference drawing of carton sizes suitable for the AUTOBOX case erector:

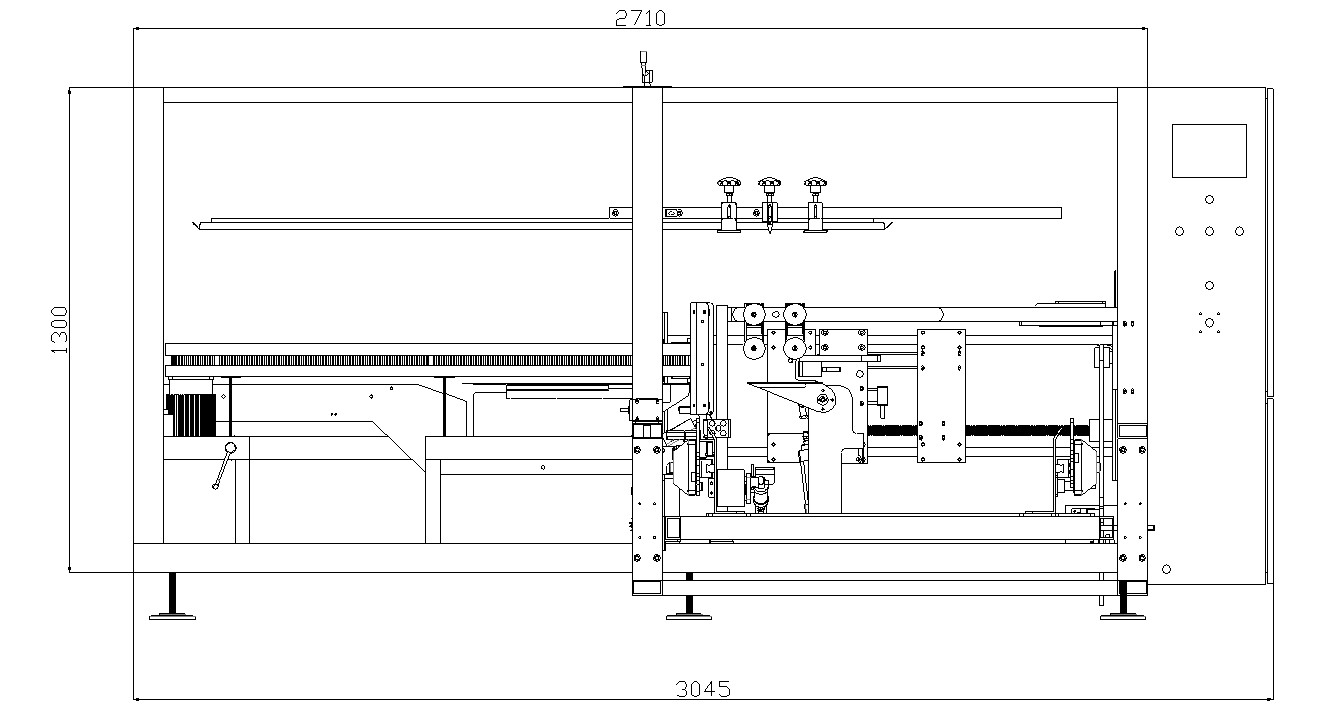

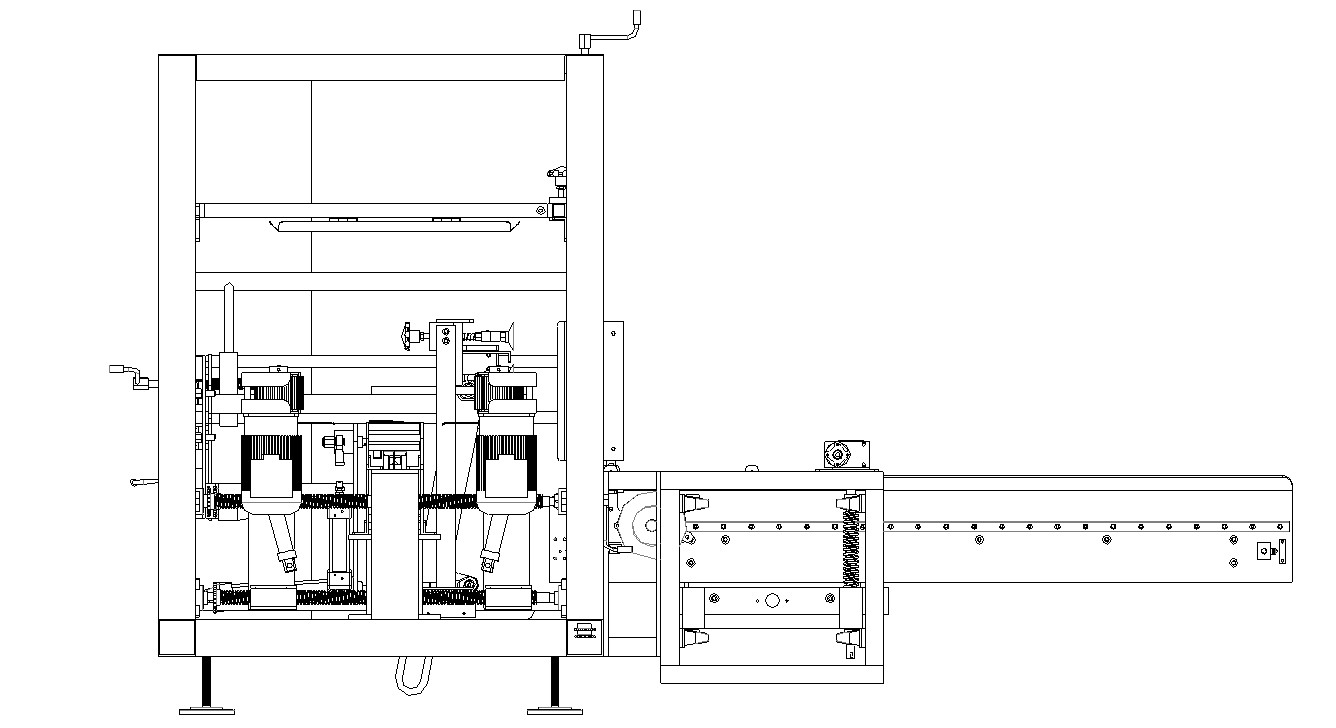

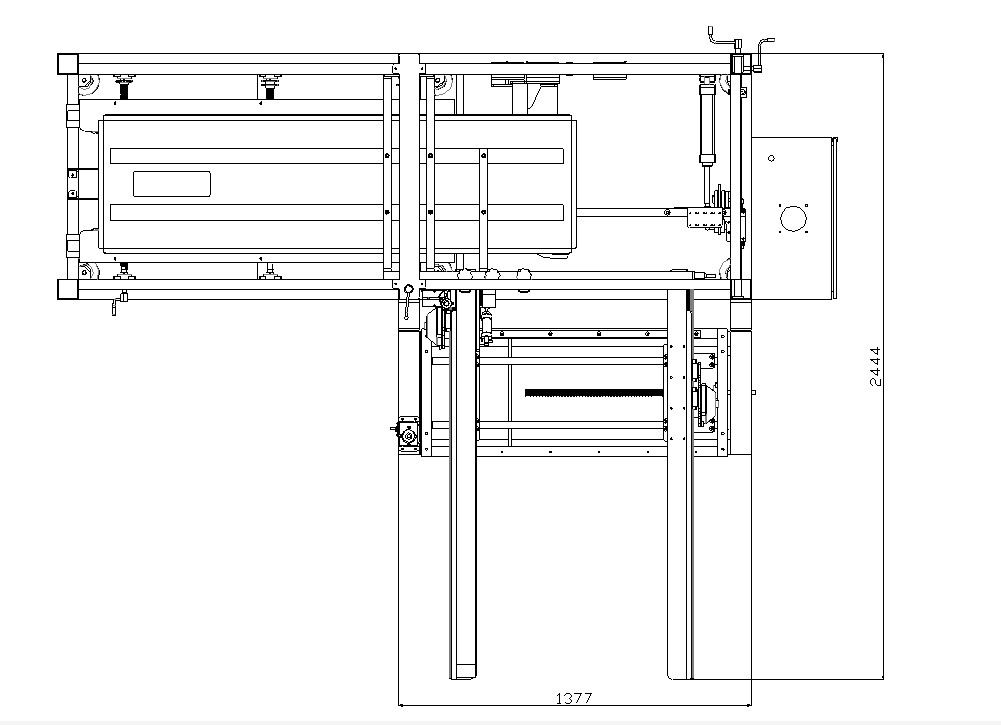

Diagram showing the layout of the AUTOBOX case erector with a horizontal worktable:

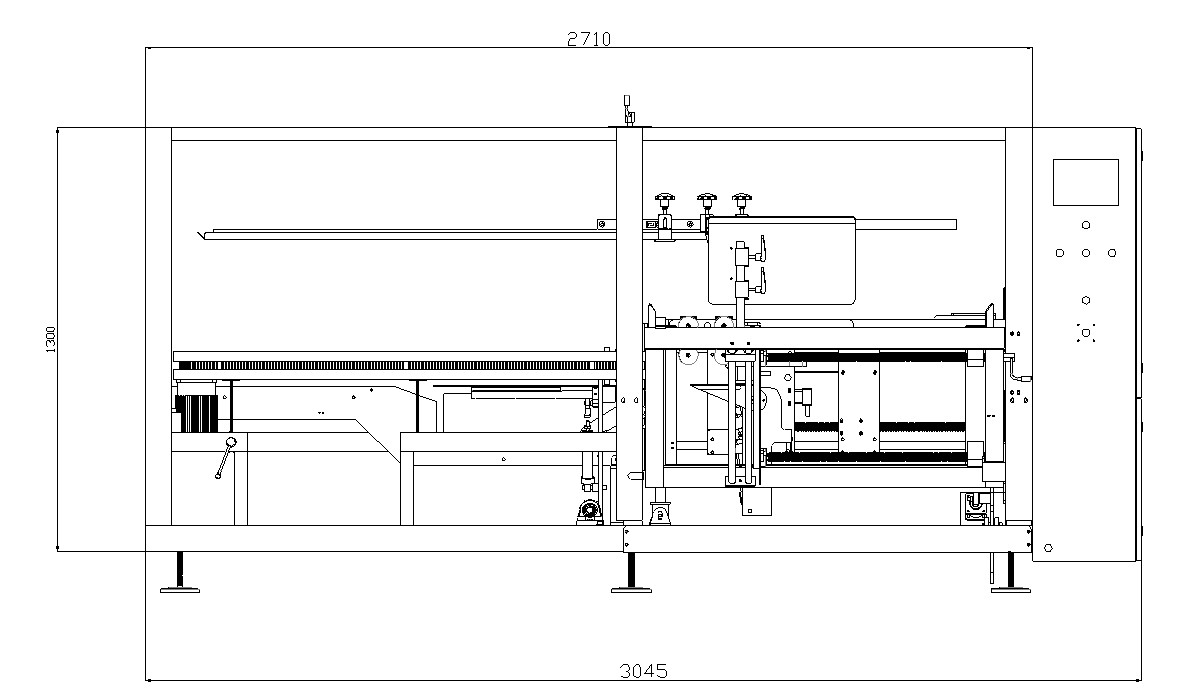

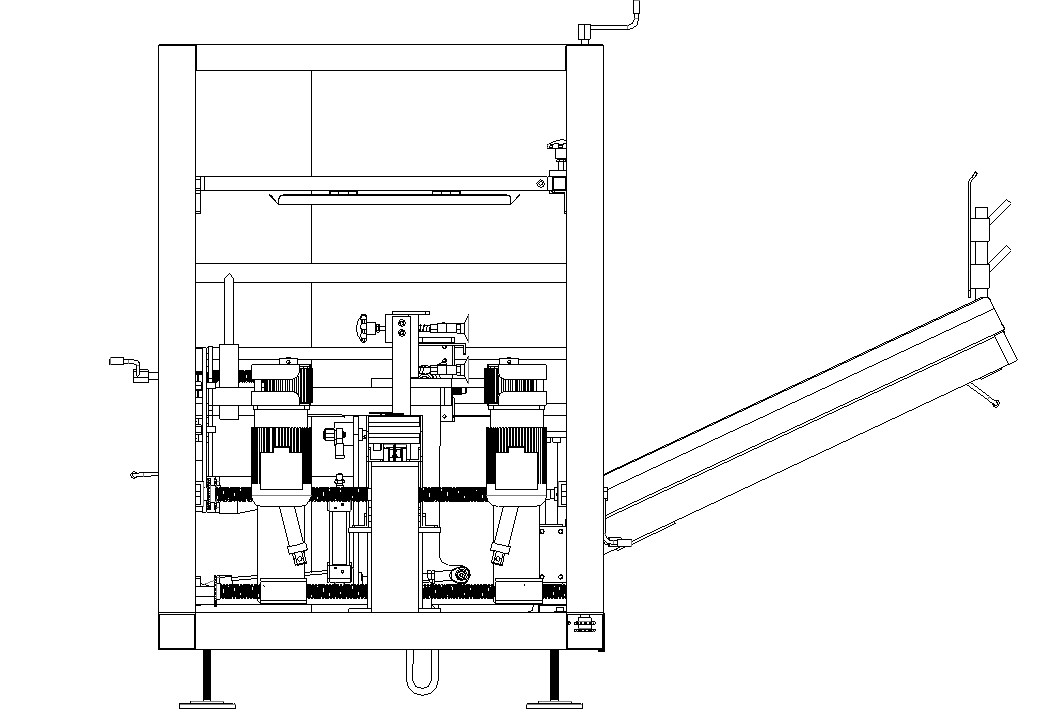

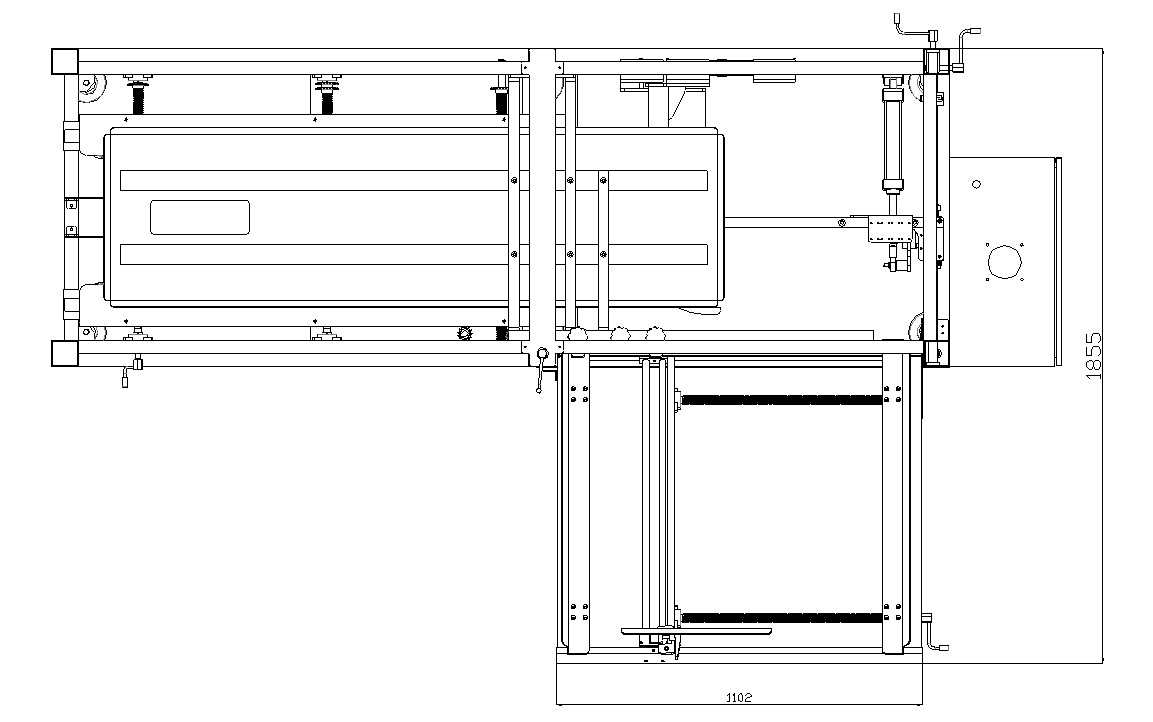

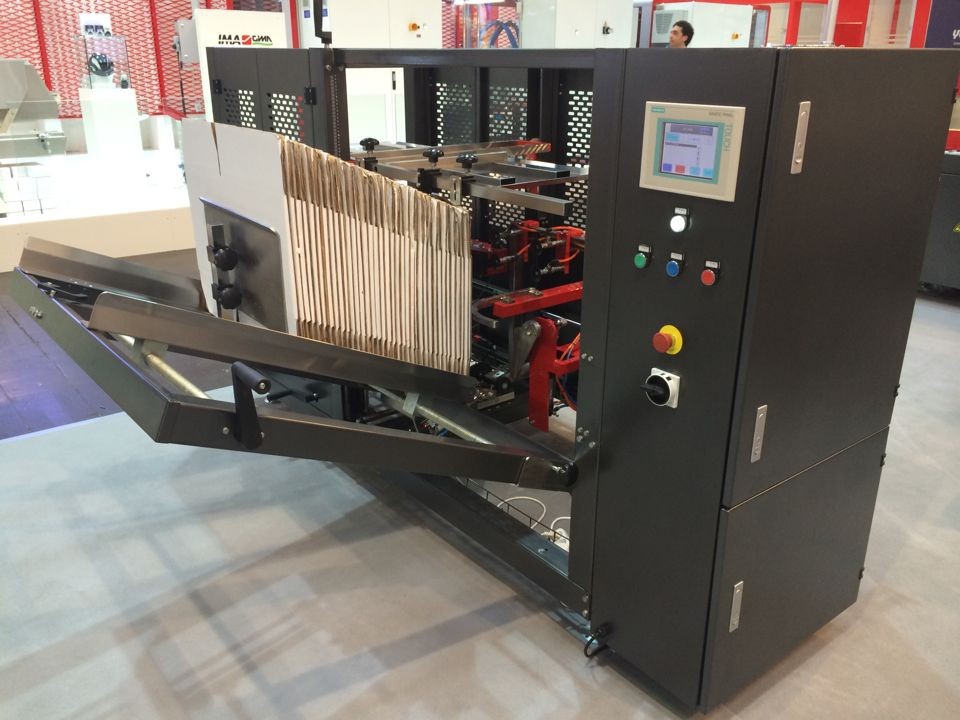

Diagram showing the layout of the AUTOBOX case erector with an inclined worktable:

Orientation of the carton in relation to the AUTOBOX machine

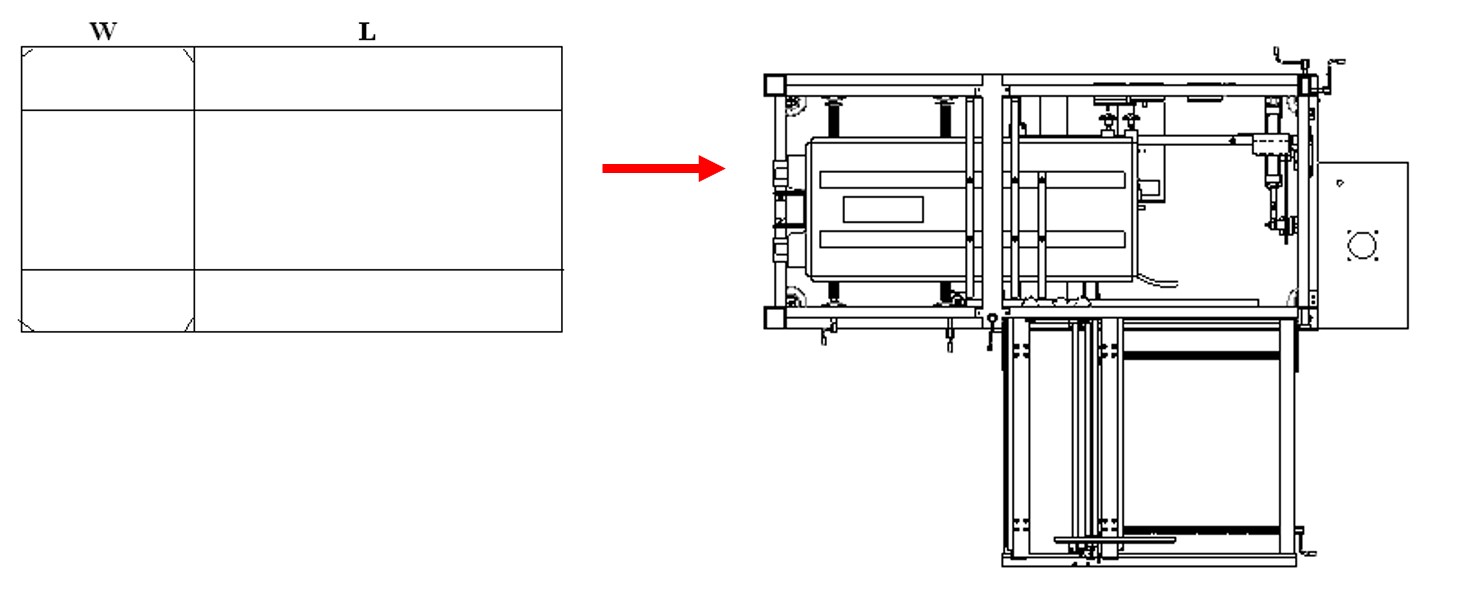

A. Cartons enter from the right and exit to the left (standard configuration for the AUTOBOX case erector)

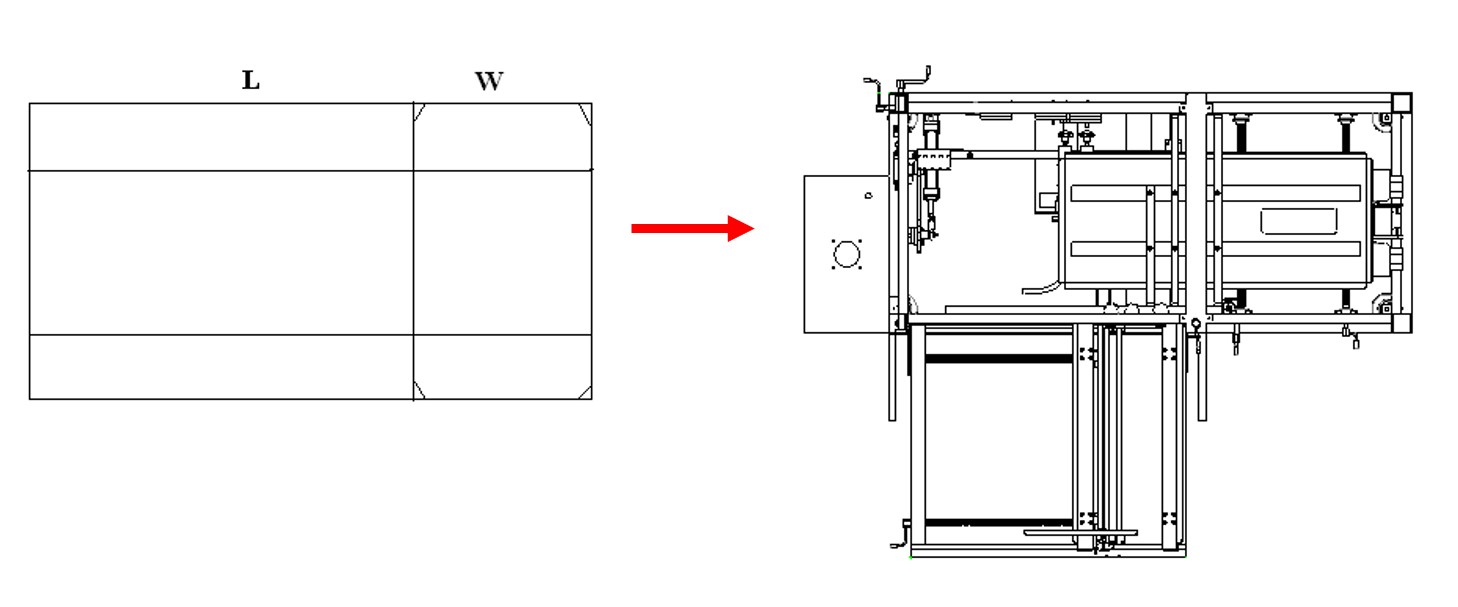

B. Cartons enter from the left and exit to the right (AUTOBOX case erector – Customised option)

Operating sequence of the AUTOBOX case erector

1. Set the machine parameters to match the dimensions of the carton
2. Place the carton board onto the machine’s frame
3. The machine draws in the carton – folds the front and rear flaps – folds the side flaps – seals the base with tape

Key characteristics of the AUTOBOX automatic case erector

The AUTOBOX automatic case erector is designed to form cartons automatically and seal the base using BOPP tape or kraft paper.

The machine feeds flat-packed boxes into the mechanism, forms them, and seals the base with adhesive tape. The completed box is then ready for use.

This equipment is suitable for a wide range of sectors, including domestic appliances, textiles, food, general goods, pharmaceuticals, chemicals, ceramics, and heating appliances.
