How paper banding works on these machines

On these machines, paper banding means placing a single band of paper or OPP film around a bundle or stack. The band is tensioned up to 5 kg and sealed automatically.

The frame or arch of the paper banding machine determines the maximum bundle size you can strap. For example, the ECOBAND-S has a 220 × 170 mm frame, while the ECOBAND-B4620 and ECOBAND-A both feature a 460 × 200 mm arch.

To operate these machines, place the bundle inside the frame of the ECOBAND-S or under the arch of the ECOBAND-B4620 or ECOBAND-A. The ECOBAND-A uses a belt to move the product under the arch, with a top press to hold it steady as the band is applied. This arrangement keeps stacks aligned and prevents shifting during banding, which is especially useful for light or uneven items on a packing line.

The machine feeds the band around the bundle and tensions it up to 5 kg. Set the tension using a test bundle: it should be tight enough to hold the stack together, but not so tight that it damages the edges of soft or printed items. Excessive tension may crush corners or leave marks, while too little tension can cause the band to slip and the bundle to separate during handling.

Bundles must fit within the frame or arch and be at least as wide as the minimum object size for each machine: 30 mm for the ECOBAND-S, 50 mm for the ECOBAND-A, and the ECOBAND-B4620 can handle items from 30 × 10 mm. Each cycle applies one band. For a second band in a different position, move or rotate the bundle and repeat the cycle. Bands are supplied on rolls fitted to the machine. The ECOBAND-B4620 can use an external dispenser column for larger rolls up to 380 mm diameter, reducing roll changes in busy operations.

Choosing a paper banding machine for your packing line

The ECOBAND-S is a compact desktop paper banding machine for 12 mm paper or OPP band, with a 220 × 170 mm frame. The ECOBAND-B4620 is a table model for 30 mm band (20 mm optional), with a 460 × 200 mm arch and an external dispenser for large paper banding rolls.

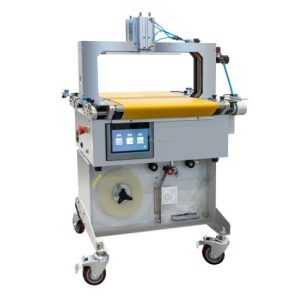

The ECOBAND-A is a paper banding machine on its own stand, suitable for 20 or 30 mm band, and features a belt to move the product under the arch and a top press. All three machines operate on a single-phase supply.

Begin by selecting the band width. The ECOBAND-S uses a 12 mm band, ideal for small stacks and bundles such as packs of cards or leaflets. The ECOBAND-B4620 uses a 30 mm band as standard, with a 20 mm option, for larger and wider packs. The ECOBAND-A accepts 20 or 30 mm band, suitable for medium and larger bundles.

The maximum bundle size depends on the frame or arch. The ECOBAND-S has a 220 × 170 mm frame, while the ECOBAND-B4620 and ECOBAND-A both have a 460 × 200 mm arch. The ECOBAND-B4620 can handle packages up to 473 × 206 mm and supports goods up to 30 kg on the machine. If your bundles are near these limits, measure them before choosing a model. For example, on a production floor with mixed carton sizes, the larger arch of the ECOBAND-B4620 or ECOBAND-A offers greater flexibility.

The machine’s position affects workflow. The ECOBAND-S is a table-top model with a working height of 215 mm, suitable for manual packing stations. The ECOBAND-B4620 is also a table machine, with its dispenser column, and a working height of 245 mm. The ECOBAND-A stands on its own castor-mounted stand at 600 mm, with a belt and top press. Output is 26 bands per minute for the ECOBAND-S and ECOBAND-B4620, and 20 per minute for the ECOBAND-A. Actual output depends on operator speed. The ECOBAND-A features a touch screen for settings and a resettable production counter, useful for tracking daily output in a warehouse.

ECOBAND-S, ECOBAND-B4620 and ECOBAND-A: a comparison

Below is a comparison table for the ECOBAND-S, ECOBAND-B4620 and ECOBAND-A. It lists the band width, frame or arch size, output, and other key details for each model.

To use the comparison table, start with the band width and frame or arch size, as these determine which bundles you can process. Next, check the minimum object size and the roll core size: the ECOBAND-S and ECOBAND-B4620 use a 40 mm core, while the ECOBAND-A uses a 76 mm core. The table also shows whether the machine is table-mounted or on its own stand. These details help you select the right machine for your packing line, whether you need to band small stacks on a table or larger bundles on a stand with a belt.

Widths and types of paper banding rolls for each machine

You will find both paper band and OPP band in our shop. The ECOBAND-S uses 12 mm band with a 40 mm core, the ECOBAND-B4620 is supplied as standard for 30 mm band with a 40 mm spool core, and the ECOBAND-A takes either 20 mm or 30 mm band with a 76 mm core. The 12 mm OPP band is suitable for the ECOBAND-S.

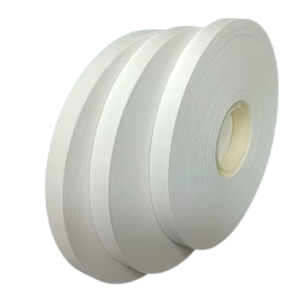

Paper banding rolls in our range are available in 12 mm width, 150 m per roll, with a 40 mm core and 100 rolls per box. The 30 mm paper band is also 150 m per roll, with 56 rolls in a box. OPP band comes in 12 mm width, 150 m per roll, 100 rolls per box, and in 30 mm width, 150 m per roll, with 40 rolls per box. The 12 mm paper and OPP bands fit the ECOBAND-S, while the 30 mm paper and OPP bands are standard for the ECOBAND-B4620.

It is important that the roll core matches the machine holder: 40 mm for the ECOBAND-S and ECOBAND-B4620, and 76 mm for the ECOBAND-A. If the core size is incorrect, the roll will not sit properly and the band will not feed. On the ECOBAND-S and ECOBAND-B4620, the roll can be up to 160 mm in diameter. The ECOBAND-B4620 also has an external dispenser for rolls up to 380 mm, reducing the number of roll changes during longer runs.

Keep paper band dry in its box until use, as moisture weakens the paper. Store boxes of band off the floor and away from damp areas in the warehouse. Order the band at the same time as the machine, in the correct width and core size, so you can start banding straight away. This prevents delays when setting up a new packing line.

Paper strapping for packaging

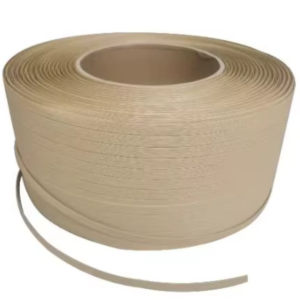

Paper strapping is available in 9 mm, 12 mm or 15 mm widths for light to medium duty use, such as bundling lightweight items and cartons. It will lose strength if it becomes wet.

In a warehouse packing dry goods, a 12 mm paper strap can be used to hold small cartons together for internal movement. Always keep the strap dry: if it becomes wet, it may break during handling.

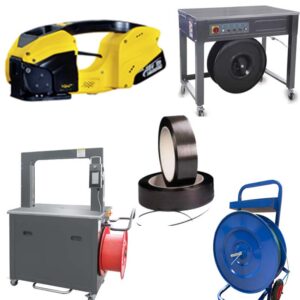

Banding and paper strapping are designed to hold a bundle together, not to secure heavy pallet loads. For that, plastic or metal strapping is required.

When to use banding for paper strapping

Paper strapping is ideal for holding stacks or bundles with a gentle, even tension. A paper banding machine such as the ECOBAND-S, ECOBAND-B4620 or ECOBAND-A applies up to 5 kg of tension. This is sufficient to keep soft, printed or stacked items together without causing damage. Typical applications include stacks of printed materials, envelopes, leaflets, trays or boxes, and bundles of produce.

Paper strapping is not suitable for heavy pallet loads. For those, plastic or metal strapping is used. Banding with paper or OPP film is intended for light to medium duty, such as keeping bundles together during handling, but not for securing heavy goods for pallet transport.

For example, in a print shop, stacks of brochures are banded for delivery; on a packing line, trays of small boxes are held together with a single band for easier handling.

In practice, you may need to adjust the tension for different products. For instance, a stack of envelopes may require less tension than a bundle of plastic trays. Always check the first few bundles after changing product or band to ensure the tension is set correctly. This helps avoid errors that could result in damaged items or loose bundles on the production line.

Paper or OPP band: recycling and product visibility

Paper strapping with a paper band can be recycled with cartons or other paper materials. OPP band is a plastic film. If you use a clear OPP band, the product underneath remains visible. Both types of band are compatible with the ECOBAND-S, ECOBAND-B4620 and ECOBAND-A, provided the width and core size match the machine.

Paper loses strength if it becomes wet, so paper strapping is best for dry goods and dry storage. OPP band does not lose strength when exposed to moisture. Choose paper band for items destined for paper recycling, and OPP band when you need a clear film or moisture resistance.

When deciding between them, consider the end use and storage conditions: paper band for goods that will be recycled with cartons, OPP band when the product must remain visible or may be exposed to damp air in storage or transport, such as trays of food on a humid packing line.

Factors affecting the cost of a banding machine

The cost of a banding machine depends on the band width it accepts, the frame or arch size, the output in bands per minute, and the construction: whether it is a desktop model, a table machine with a dispenser column, or a freestanding machine with a belt and top press. The current price is shown on each product card.

The main ongoing expense is the band itself, which is supplied by the box: 100 rolls of 12 mm paper band, 56 rolls of 30 mm paper band, or 100 rolls of 12 mm OPP band. Each product card has a Get offer button for a quotation, for example if you require a machine with a supply of band, and an Add to inquiry button to group several products into one request. This helps you plan your purchase and stock for your packaging line.

What to check before buying paper strapping

Before purchasing a paper strapping machine, check the size of the largest and smallest bundles you need to band. The bundle must fit through the frame or arch and be at least as wide as the machine’s minimum object width. For example, the ECOBAND-S requires a minimum object width of 30 mm.

Check the band width, whether you need paper or OPP band, and how many bundles per minute you need to process. Decide if you prefer a table machine or a freestanding model. All three machines operate on a single-phase supply. The comparison table above shows which model matches your requirements.

Test the machine settings on your own bundles with the band you intend to use. Adjust the tension on a test bundle: it should be enough to hold the stack, but not so high that it damages the edges. For example, in a warehouse packing printed brochures, start with a lower tension to avoid marks, increasing it only if the bundles do not stay together.

Problems can occur if the bundle is too large for the frame or arch, or if the band width does not match the machine. If the band is too narrow or too wide for the holder, it will not feed properly. If the tension is set too high, soft products may be damaged. If it is too low, bundles may come apart during handling. Check these points before running a full batch to avoid wasting material and time.

Questions about paper strapping

Which band is suitable for each banding machine?

The ECOBAND-S uses 12 mm band with a 40 mm core. ECOBAND-B4620 is designed for 30 mm band as standard (20 mm optional) with a 40 mm core. ECOBAND-A takes 20 mm or 30 mm band with a 76 mm core.

Can these machines use both paper and OPP band?

All three models, ECOBAND-S, ECOBAND-B4620 and ECOBAND-A, can use either paper band or OPP band, provided the width and core size are correct.

How many bundles per minute can these machines handle?

ECOBAND-S and ECOBAND-B4620 can process up to 26 bands per minute. ECOBAND-A can process up to 20 bands per minute.

What is the maximum bundle size I can strap?

The maximum bundle size depends on the frame or arch. ECOBAND-S has a 220 x 170 mm frame. ECOBAND-B4620 and ECOBAND-A have a 460 x 200 mm arch.
