ECOBAND-S Banding Machine for Paper & OPP, 12mm

ECOBAND-S compact banding machine for paper and OPP bands

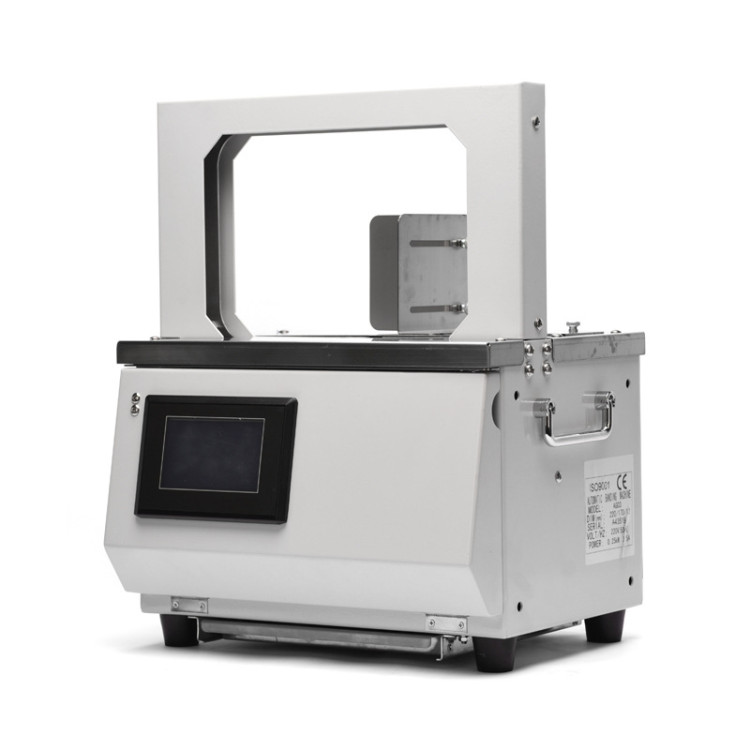

The ECOBAND-S is a compact banding machine designed for use on a packing table. Simply place your stack or pack inside the frame and the machine automatically applies, tightens, seals and cuts the band. This is the smallest banding machine in our range, weighing 18 kg and occupying a similar footprint to a desktop printer.

The frame opening measures 220 × 170 mm and the minimum product width is 30 mm, making it ideal for leaflets, folded print, food packs, small boxes and bundles of components, but not suitable for pallets or large cartons.

The machine operates with a 12 mm wide paper or OPP band, 0.12 mm thick, supplied on rolls with a 40 mm core and a maximum outer diameter of 160 mm. Paper bands are natural, printable and can be recycled with paper waste, while OPP film bands keep the contents visible.

The ECOBAND-S can apply 26 bands per minute and the band tension is adjustable up to 5 kg, allowing you to secure delicate stacks without damaging them. All settings are managed via the touch screen. The machine plugs into a standard socket: 110 V or 220 V, 50–60 Hz, 0.25 kW.

Typical applications for the ECOBAND-S

The ECOBAND-S is widely used in the printing, pharmaceutical, food, logistics and retail sectors for bundling small or delicate products. Common items include leaflets, folded print, labels, envelopes, business cards, premium print, banknotes, medicine packs, CDs and small boxes. It is ideal for environments where gentle handling is essential and where products need to remain visible or grouped for sale or further processing.

This banding machine is typically positioned at the end of a packing table or beside a guillotine or folding machine. It is used to bundle counted sets, group products for retail, or prepare items for further handling. Banding is an alternative to rubber bands, shrink wrap or blister packs, helping to reduce packaging waste and maintain a tidy product appearance.

Technical details

ECOBAND-S banding machine demonstration video

▶

How the banding machine improves your packing process

• Fits neatly on your packing bench. 380 × 280 × 415 mm, weighing 18 kg, with the table surface 215 mm above the bench, no stand, no conveyor, no need for compressed air.
• Minimal material per bundle. Uses a 12 mm band rather than a strap, carton or film: keeps the stack secure and the product visible.
• Paper or OPP film bands. Choose paper for a natural appearance and easy recycling, or OPP film when a stronger, transparent band is required.
• 26 bands per minute. Quick enough for continuous use at the packing bench.
• Consistent tension every cycle. Set once on the touchscreen, up to 5 kg.
• All settings displayed. Adjustments are made via the touch screen, enabling a new operator to take over the banding machine within minutes.

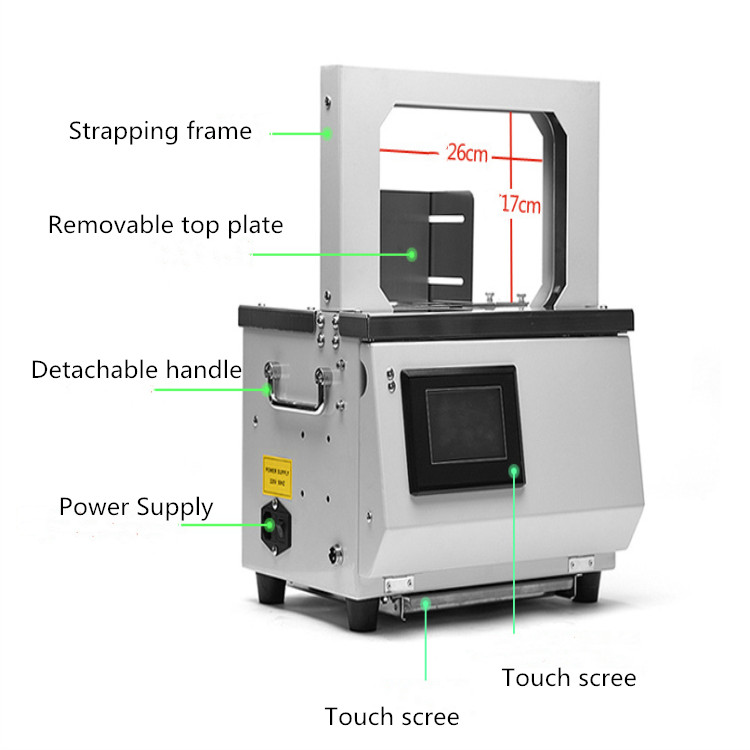

Frame, band and controls

• Fully automatic banding with 12 mm paper or OPP band
• Frame aperture: 220 × 170 mm
• Minimum pack width: 30 mm
• Up to 26 bands per minute
• Adjustable band tension up to 5 kg
• Band thickness 0.12 mm, coil core 40 mm, maximum outer diameter 160 mm

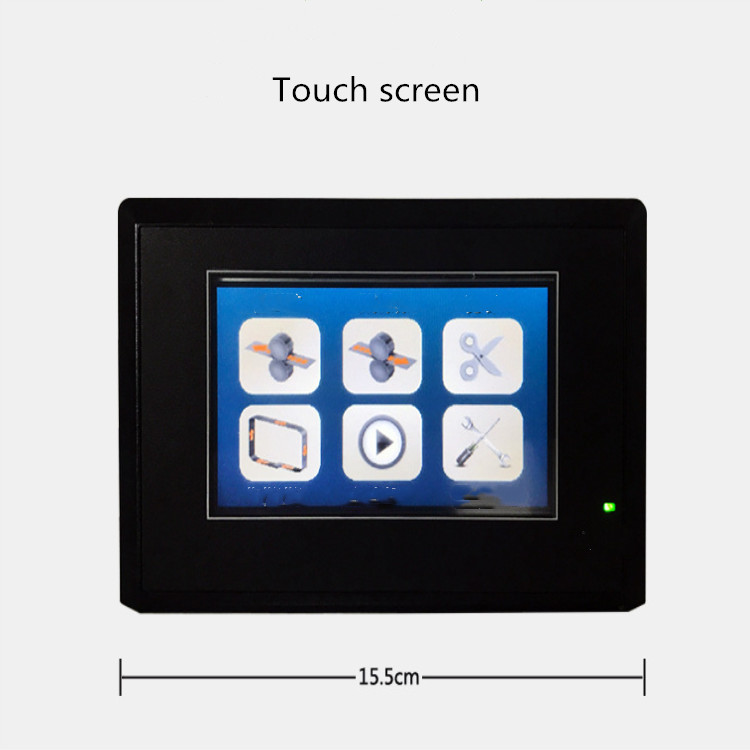

• Touch screen for complete control
• Table height: 215 mm
• Machine dimensions: 380 × 280 × 415 mm, weight 18 kg
• Suitable for 110 V or 220 V, 50–60 Hz, 0.25 kW

How to use the ECOBAND-S banding machine

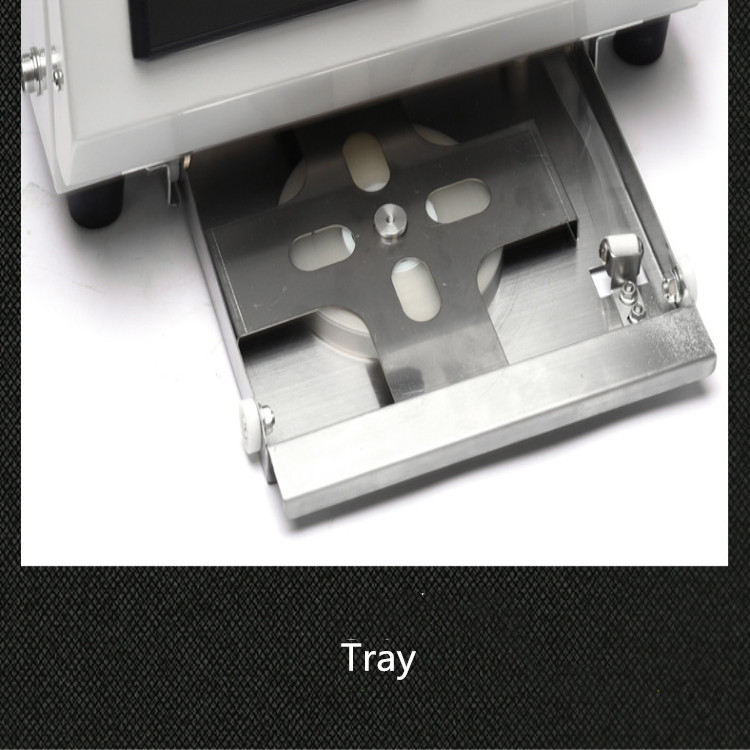

1. Place a 12 mm wide paper or OPP band coil on the holder and feed the band into the banding machine.
2. Switch on the banding machine and use the touch screen to set band tension and other parameters.
3. Position the stack or pack in the frame, ensuring it is against the guide.
4. Start the cycle: the banding machine applies the band, tensions, heat-seals and cuts it.
5. Remove the banded pack and insert the next item.

Settings and maintenance

• Band tension. Set via the touch screen, up to 5 kg: use a lower setting for lighter or softer packs, higher for firm stacks.
• Band. Accepts paper or OPP film, 12 mm wide and 0.12 mm thick; coil core 40 mm, maximum outer diameter 160 mm.
• Weld. The band is heat-sealed. If the band separates, first check the band quality and weld temperature.
• Maintenance. Always switch off the banding machine before maintenance. Keep the band path and frame clear of paper dust and film debris.

Operating the ECOBAND-S banding machine

The operator places the stack or pack in the frame, aligning it with the guide. The touch screen makes it simple to switch between jobs and to train new users quickly.

Before you order a banding machine

The price is displayed above. Several factors determine if this machine is right for your products: please review them before requesting a quotation, or send us your details and we will discuss them with you.

• Product size. The frame opening measures 220 × 170 mm, with a minimum pack width of 30 mm. Let us know your pack dimensions and we will confirm their suitability.
• Band. Accepts paper or OPP film, 12 mm wide and 0.12 mm thick, on reels with a 40 mm core and a maximum outer diameter of 160 mm.
• Speed. Processes up to 26 bands per minute.
• Power. Operates on 110 V or 220 V, 50–60 Hz, 0.25 kW. Standard mains socket required, no compressed air needed.
• Space. Machine dimensions: 380 × 280 × 415 mm, weight: 18 kg. Packed size: 440 × 340 × 550 mm, 28 kg.

Banding machine: selection and integration

Before selecting the banding machine, ensure your products fit within the frame opening and that the chosen banding material is appropriate for your needs. For particularly soft or uneven stacks, test the band tension to prevent damage or slippage. If integrating into a production line, check the available bench space and workflow for loading and unloading items.

Frequent issues include using bands that are too wide or thick, overloading the frame, or applying excessive tension to fragile items. To minimise stoppages, keep a stock of suitable bands and clean the machine regularly.
