Cord Strap Dispenser Cart HC2 for 200mm Core

HC2 dispenser cart for cord and PP strap

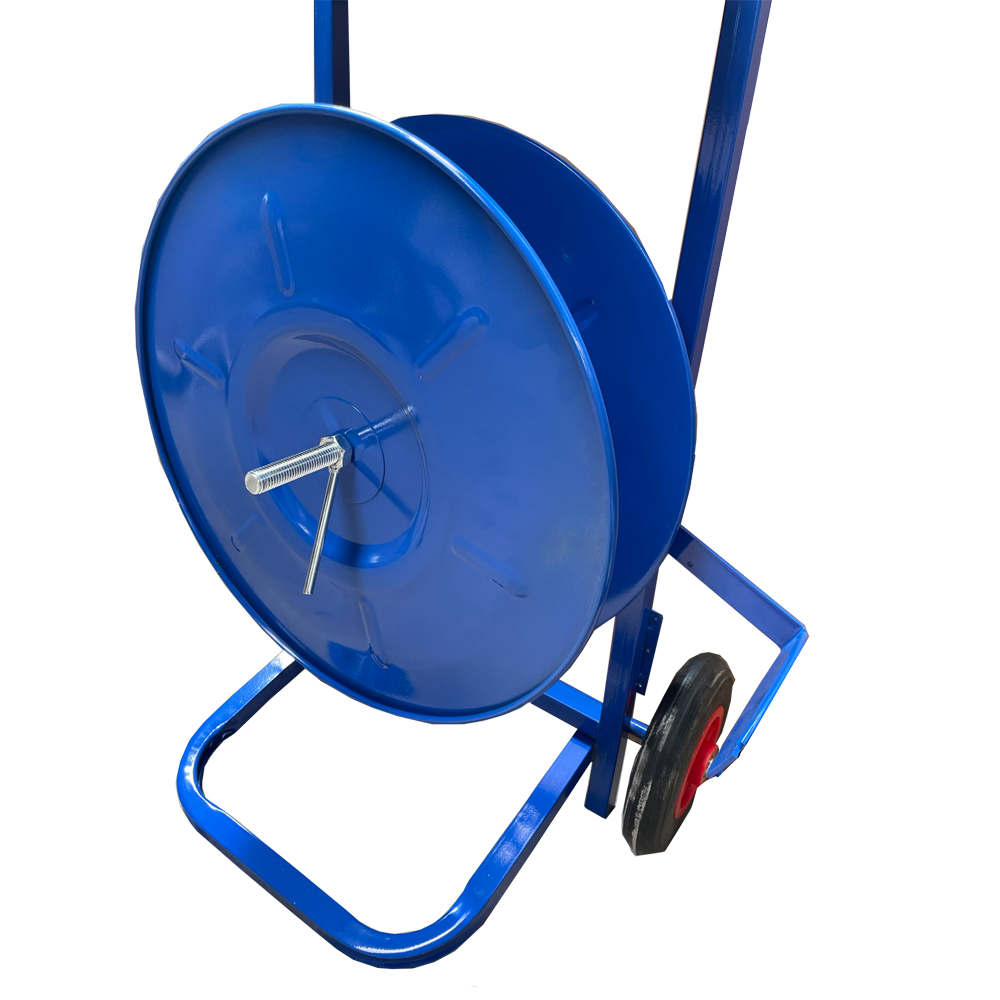

The HC2 is a dispenser cart designed for cord (composite) and PP strap on a 200 mm core. The coil is placed on the cart, allowing the strap to be dispensed as required, preventing the coil from rolling away or the strap from becoming tangled.

A brake mechanism ensures the coil stops unwinding when the operator ceases pulling, so the strap does not spill out in loops.

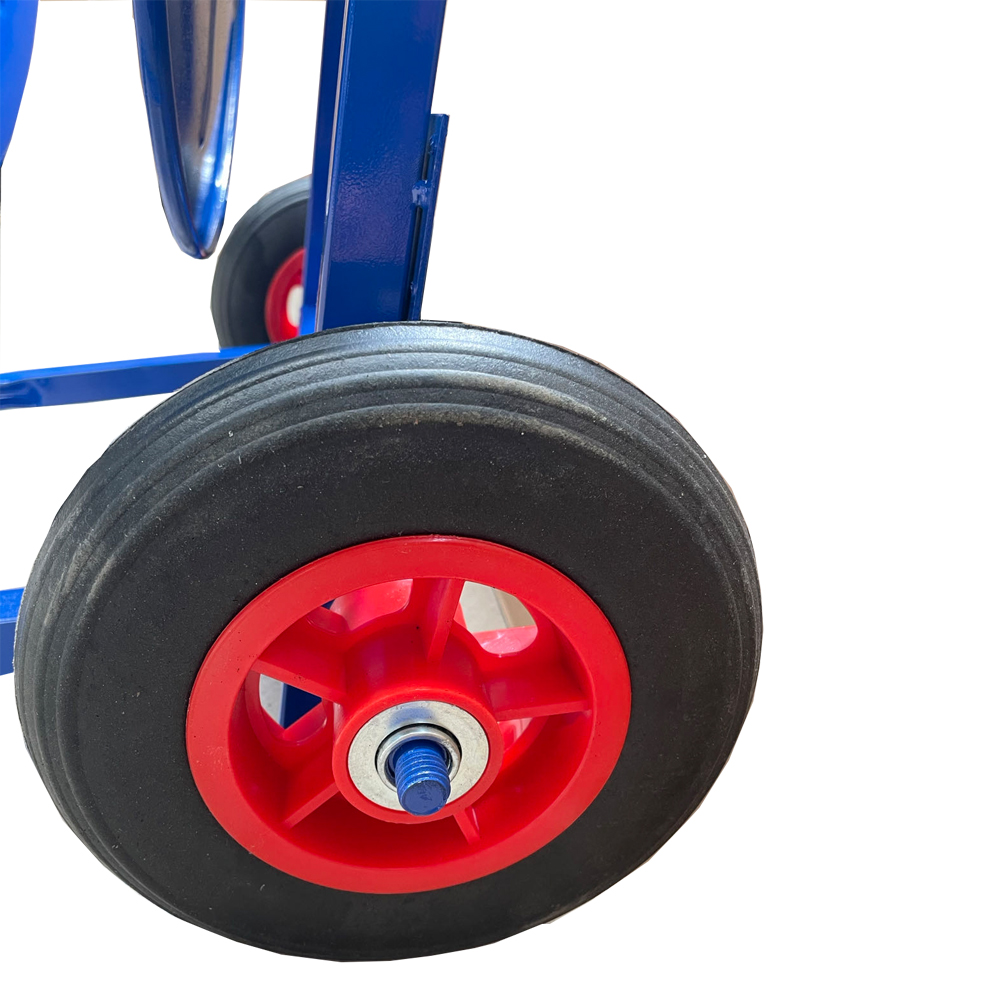

The cart is fitted with wheels and a handle, making it easy to move the coil alongside pallets during strapping. It features a tray for holding the tensioner, seals and cutter.

The cart accommodates coils weighing up to 50 kg and measures approximately 550 × 400 × 1050 mm. The cart itself weighs around 6 kg.

HC2 dispenser cart in packaging operations

The HC2 dispenser cart is used in warehouses, distribution centres and manufacturing sites where cord or PP strap is applied to secure loads for storage or onward movement. It is suitable for strapping pallets, crates, bundles and other goods that need to be securely unitised. The cart supports workflows where the operator moves along rows of pallets or workstations, keeping both strap and tools conveniently to hand.

The cart is also employed in logistics and despatch areas for preparing loads, as well as on production lines where products are strapped for internal handling or onward movement.

Technical specifications

Purpose of the dispenser cart

• The coil stays with you. Fitted with wheels and a handle, the strap remains close by the pallet at all times.
• No trailing loops. The brake prevents the coil from unwinding when you stop pulling.
• Tools within reach. Includes a tray (370 × 200 × 100 mm) for your tensioner, seals and cutter.
• Designed for 200 mm cores. Cord and PP strap with a 200 mm core fit directly onto the cart.
• Handles up to 50 kg. Suitable for a full coil of cord or PP strap.
• Lightweight. Weighs around 6 kg, simple to manoeuvre.

Included with your purchase

• Dispenser cart for cord (composite) and PP strap
• For coils with a 200 mm core
• Brake to prevent the coil from over-running
• Wheels and handle
• Tool tray 370 × 200 × 100 mm
• Carries up to 50 kg
• Dimensions approx. 550 × 400 × 1050 mm, weight approx. 6 kg

Instructions for use

1. Place the coil onto the holder of the cart.
2. Feed the strap end from the coil in the direction you will pull.
3. Move the cart to the pallet and pull off the length of strap required.
4. Store the tensioner, seals and cutter in the tray.
5. When you stop pulling, the brake secures the coil.

Care and handling

• Core size. The cart is intended for 200 mm cores; for other sizes, use a different cart.
• Load. Maximum load is 50 kg per cart.
• Brake. The brake prevents the coil from spinning; check it still holds when the coil is nearly empty.
• Storage. Store the cart and strap indoors in a dry place.
• Moving it. Use the handle to push or pull the cart.

Selecting the HC2 dispenser cart

Before choosing the HC2 dispenser cart, ensure that both the strap type and the coil’s core diameter are suitable for this model. Using a coil with a different core size or exceeding the weight limit may cause problems in use. Think about your working environment: check the floor surface where the cart will be used. If you need to move the cart frequently or over longer distances, its light construction and wheels make it easy to handle, but make sure the route is clear of obstacles.

Typical errors include using the cart with the wrong strap, failing to check the brake, or overloading the tool tray. To prevent tangling or the strap coming loose, always feed the strap in the correct direction and check the brake is working. For best performance, keep the cart and strap dry and regularly inspect moving parts.

Before you buy

The price is listed on this page. Dispenser carts are selected to match the strap used, so please check the following before purchase:

• Your strap. Cord (composite) or PP strap with a 200 mm core.
• Coil weight. Maximum 50 kg.
• Tools. The tray holds the tensioner, seals and cutter.
• Collection. Supplied in a carton, gross weight approximately 7 kg. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer
