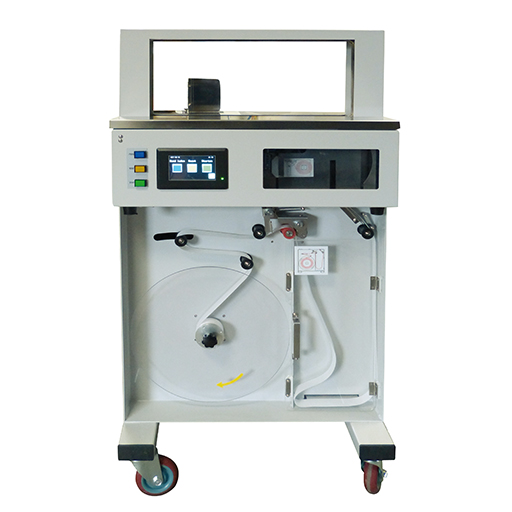

    ECOBAND-B4620 Paper & OPP strapping tool

    ECOBAND-B4620 Paper & OPP strapping machineThe ECOBAND-B4620 strapping machine offers straightforward and dependable operation, using 30 mm wide, 150 metre long paper or polypropylene strapping. The arch of the ECOBAND-B4620 paper and OPP strapping machine measures 460 mm in width and 200 mm in height, with a maximum packing speed of 26 cycles per minute. The largest box size accommodated is 473 mm × 206 mm, while the smallest is 30 mm × 10 mm. Band tension can be adjusted using the upper knurled nut or via the “Tension” setting on the touchscreen. The ECOBAND-B4620 allows for both manual operation (with pedal) and automatic strapping using a sensor.
    In addition to its established use in graphic arts, bookbinding and paper processing, the ECOBAND-B4620 paper strapping machine is well suited for creating multipacks or combining several products for promotional purposes. The ECOBAND-B4620 Paper & OPP strapping machine is a practical packaging solution for the printing or textile sectors, enabling efficient banding with minimal effort.

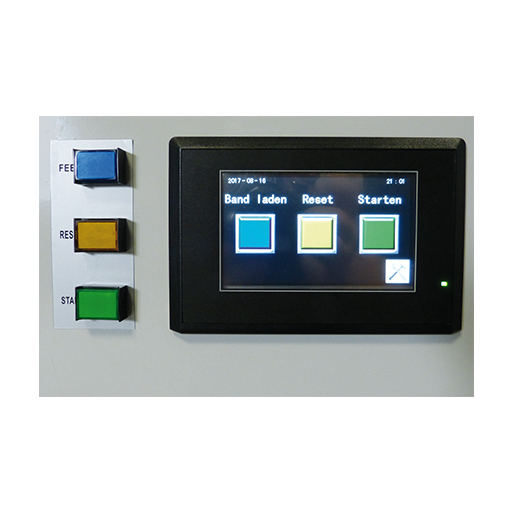

    ECOBAND-B4620 Paper & OPP strapping machine touchscreenFeatures of the ECOBAND-B4620 Paper & OPP strapping machine

    • Microelectronic circuit control for dependable operation
    • Supports both manual (via pedal) and fully automatic (via sensor) strapping modes
    • Tension and strap width can be adjusted to suit various requirements
    • The entire machine has a tidy and attractive appearance

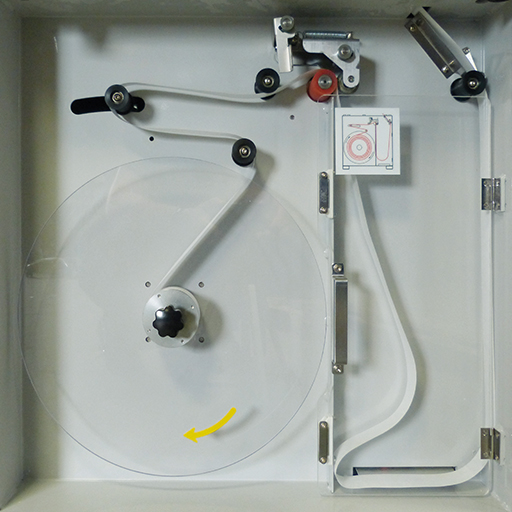

    • Generous tape magazine enables extended operation between refills
    • Commissioning is straightforward and rapid
    • User-friendly control panel
    • CE compliant, with integrated power failure protection
    • Safety voltage: DC 24V
    • Operation via touch screen and buttons
    • Parameters can be adjusted on the touch screen, with six language options
    • Maximum box size: 473mm × 206mm; minimum box size: 30mm × 10mm



    ECOBAND-B4620 Paper & OPP strapping machineFeatures of the ECOBAND-B4620 Paper & OPP strapping machine

    • This fully automatic Opp strapping machine offers straightforward and rapid operation
    • Band standby time can be set, ensuring each strap is applied within the chosen interval to support higher output
    • Compatible with both paper tape and OPP film strap
    • The machine is ready for use immediately, significantly enhancing operational efficiency
    • Automatically adjusts to secure the strap
    • Designed for bundling items
    • Operated by hand or foot switch
    • Ideal for banding paper or foil materials
    • High-capacity magazine
    • Broad contact area suitable for delicate materials

    Technical details

    • Dimensions: L650 × W360 × H1140 mm
    • Maximum box size: 473mm × 206mm; minimum box size: 30mm × 10mm
    • Overall machine height: 1140 mm
    • Total weight: 85 kg
    • Operating speed: 26 cycles per minute
    • Optional features extras: magazine, foot pedal

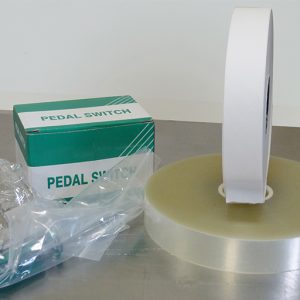

    ECOBAND-B4620 Paper & OPP strapping machine with paper and OPP strapECOBAND-B4620 Paper & OPP strapping machine in operation

    This banding machine is fully automatic and highly adaptable, making it possible to bundle products or assemble small packaging units. The machine is straightforward to operate and efficient to use. It is especially appropriate for businesses in printing and textile processing, as the strapping applies only gentle tension. Banding machines are used in a wide range of sectors, including pharmaceuticals, printing, graphics, dairy, currency handling, cleaning, detergents, cosmetics, beverages, dairy products, hair care, tea, vegetables, fruit, fish, meat, snacks, rice, and flour.





    ECOBAND-B4620 Paper & OPP strapping machine technical details

    Model ECOBAND-B Paper & OPP strapping machine
    Power supply AC110-120/200-240V,50/60Hz,1Ph,0.25kW,2.5A
    Strapping speed 26 cycles per minute
    Strapping tension Up to 5 kg (adjustable)
    Arch dimensions W460 mm x H200 mm (standard)
    Table height 245mm
    Compatible strap Paper / OPP film
    Recommended strap width standard 30 mm
    Compatible strap reel internal diameter: Φ 40 mm, external diameter: Φ 160 mm
    (Maximum external diameter <Φ380mm for use with external dispenser)
    Machine dimensions L650 × W360 × H1140 mm
    Packed dimensions L680 × W470 × H1290 mm
    Weight N.W:85 kg; G.W:100 kg
    Optional features 1. Arch dimensions 2. Band dimensions 3. External dispenser



    ECOBAND-B4620 Paper & OPP strapping machine demonstration video

    Additional information

    Weight 100 kg
    Dimensions 0.68 × 0.42 × 1.22 m
    Parameter Specification
    Model

    ECOBAND-B Paper & OPP strapping machine

    Power source

    AC110-120/200-240V,50/60Hz,1Ph,0.25kW,2.5A

    Packing speed

    26 cycles/min

    Strapping tension

    ≤5kg(adjustable)

    Arch size

    W460mm x H200mm(standard)

    Working table height

    245mm

    Suitable band

    Paper /OPP film

    Suitable band width

    standard 30mm

    Suitable band spool

    inner dia.:Φ 40mm,outer dia.:Φ  160mm

    (Max. outer dia.<Φ380mm for external dispenser)

    Machine size

    L650 × W360 × H1140 mm

    Shipping size

    L680 × W470 × H1290 mm

    Weight

    N.W:85 kg; G.W:100 kg

    Optional

    1.arch size   2.band size    3.external dispenser

    Which strapping materials are compatible with the ECOBAND-B4620?

    It is suitable for both paper tape and OPP film strapping.

    What is the top strapping speed of this machine?

    The machine achieves up to 26 strapping cycles per minute.

    What are the largest and smallest box sizes the machine can process?

    It can process boxes up to 473 mm × 206 mm and as small as 30 mm × 10 mm.

    How do you adjust the strapping tension on the ECOBAND-B4620?

    Strapping tension is adjustable up to 5 kg: the main setting is with the upper knurled nut, and fine adjustments are made using the Tension option on the touchscreen.

    Are there any safety mechanisms for power cuts on this machine?

    Yes, it features power cut protection to safeguard against operational disruptions.

    Which languages can be selected on the machine’s touch screen interface?

    The touch screen offers six language options for straightforward operation.

    What is the total height of the ECOBAND-B4620?

    The machine stands at 1140mm in height, including its base.

    Does this strapping machine meet any recognised safety or quality certifications?

    Yes, it carries CE certification, confirming adherence to European safety requirements.

    How do you operate and set up the machine?

    Operation is managed through a touch screen and physical buttons, making parameter adjustment straightforward.

    Summary

    • A fully automated OPP strapping machine offers straightforward and efficient operation
    • Compatible with both paper tape and OPP film strap
    • Packing speed reaches 26 cycles per minute
    • Strapping tension adjustable up to 5 kg
    • Arch dimensions: W460 mm × H200 mm
    • Maximum box size: 473 mm × 206 mm; minimum box size: 30 mm × 10 mm
    • CE compliant, equipped with power failure protection
    • Touchscreen and button controls
    • Settings adjustable via touchscreen, supporting 6 languages
    • Height of machine: 1140 mm
