Auto strapping machine – AUTOMA for PP strap 11-12 mm, thickness 0.6-1.0 mm, frame 1000×800 mm

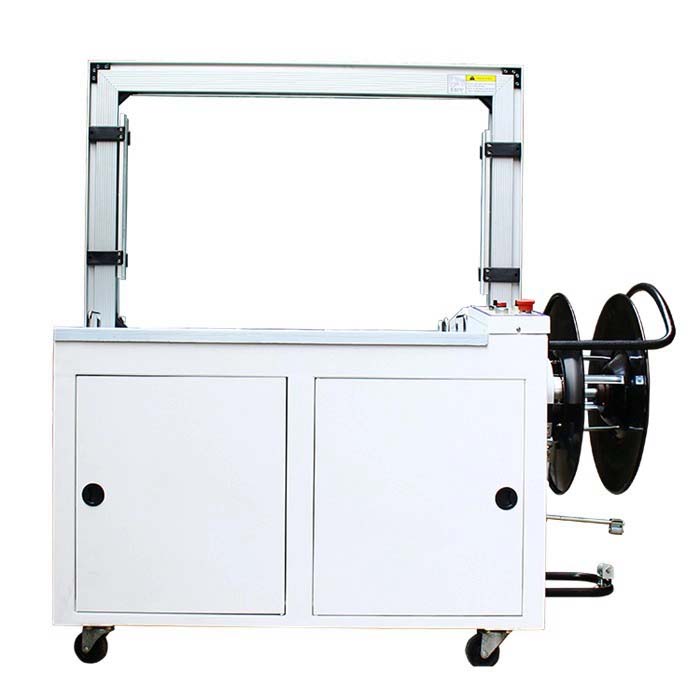

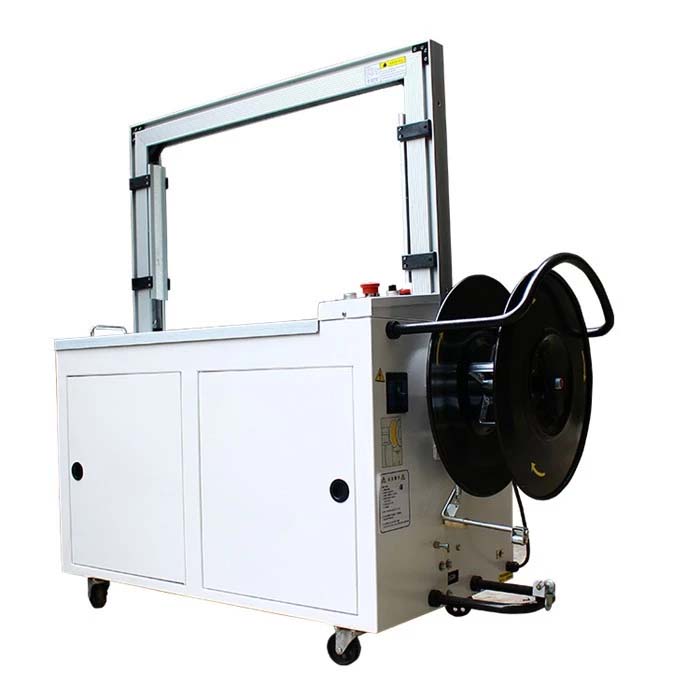

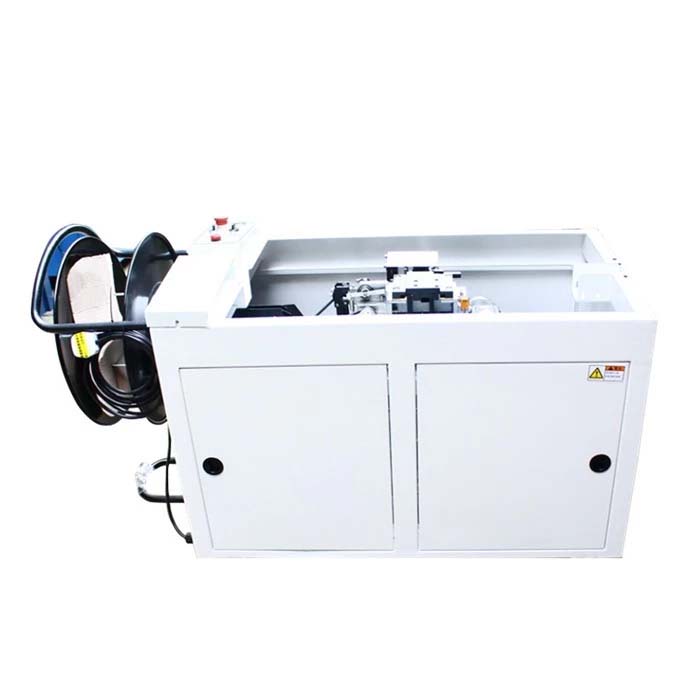

AUTOMA automatic strapping machine for PP strap

The AUTOMA is an automatic strapping machine: the operator places the item on the table, initiates the cycle using either the ball switch or foot pedal, and the machine automatically feeds the strap around the item, tensions it, seals it, and trims the strap. Both hands remain on the package, so a carton can be rotated for a second strap without interruption.

Designed for use with PP strap 11–12 mm wide and 0.6–1.0 mm thick, on reels 160 mm wide with a core diameter of 200–210 mm and an outer diameter of 400–500 mm. The machine itself accepts strap widths from 9 to 12 mm, so you can adjust the width if your packaging requirements change.

The arch measures 1000 × 800 mm and is made from aluminium alloy, which is the specified size for this model and determines the maximum package size. The minimum package size is 80 × 80 mm, with a minimum length of 200 mm. The table height is 750 mm and supports loads up to 80 kg.

Capable of up to 30 straps per minute, with adjustable tension from 0 to 90 kg, this machine is suitable for both lightweight cartons and heavy crates. The weld is positioned beneath the package, covering at least 90% of the strap width, with a placement tolerance of no more than 2 mm.

Typical applications for the AUTOMA automatic strapping machine

The AUTOMA automatic strapping machine is employed in packing lines where secure sealing and bundling are required. Common uses include closing and reinforcing cartons, crates, bundles of printed materials, wooden boxes, and paper-wrapped goods. It is widely used at the end of production or packing lines in sectors such as food, pharmaceuticals, hardware, printing, and logistics.

Items are placed on the table beneath the arch, enabling quick and consistent strapping of batches or individual pieces. Operators typically use the machine for medium to high throughput where uniform strap positioning and tension are essential.

Technical details

How the strapping machine supports your packing process

• Both hands free to handle the package. Start the cycle with the ball switch or foot pedal, so the operator can hold and rotate the carton rather than operating a switch.
• Up to 30 straps per minute. Designed for continuous use at the end of a production line, not for occasional strapping.
• Adjustable tension from 0 to 90 kg. Set once so that lightweight cartons are not damaged and heavier parcels remain secure.
• Arch size: 1000 × 800 mm. This larger-than-standard arch accommodates cartons, crates and bundles that would not fit through a smaller frame.
• Seal positioned beneath the package. Ensures at least 90% coverage of the strap surface, keeping the strap in place within a 2 mm margin.
• Quiet operation for packing areas. Noise level below 75 dB(A), runs on single-phase 220 V, 1.0 kW, requires no compressed air or three-phase supply.

Arch, controls and safety

• Automatic strapping with PP strap 11–12 mm wide (machine accepts 9–12 mm)
• Strap thickness 0.6–1.0 mm, tensile strength up to 150 kg
• Arch dimensions 1000 × 800 mm, made from aluminium alloy
• Processes up to 30 straps per minute
• Tension adjustable between 0 and 90 kg
• Seal beneath the package, adhesion covers at least 90% of the strap, position accuracy within 2 mm

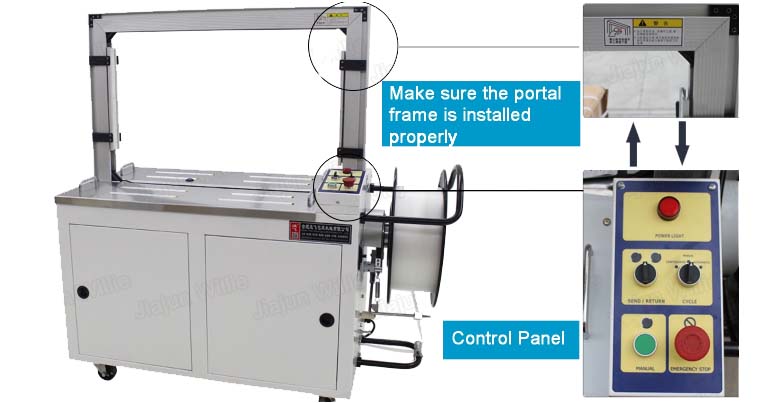

• Ball switch and foot pedal, continuous strapping mode
• Minimum package size 80 × 80 mm, length from 200 mm
• Table height 750 mm, supports loads up to 80 kg
• Strap reel 160 mm wide, core diameter 200–210 mm, outer diameter 400–500 mm

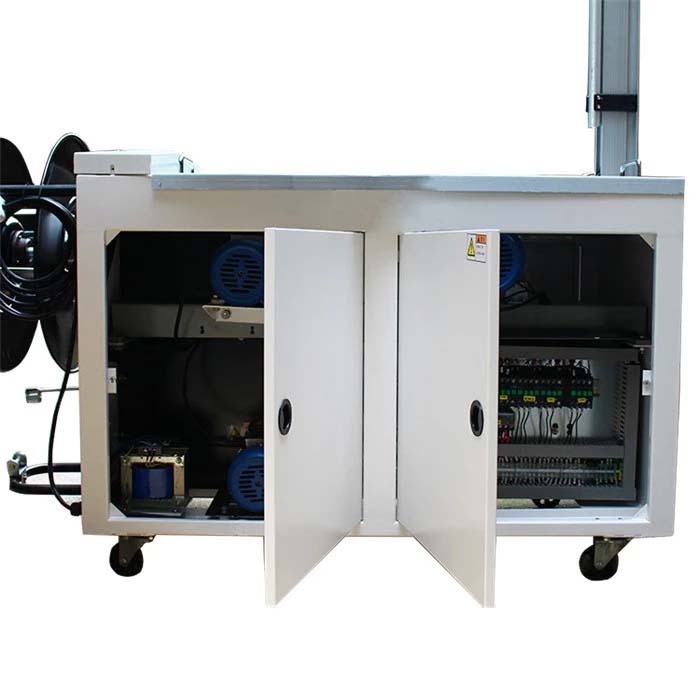

• Controlled by PC board, fitted with braked castors
• 220 V, 50/60 Hz, 1.0 kW, 10 A; noise level below 75 dB(A)

How to use the AUTOMA strapping machine

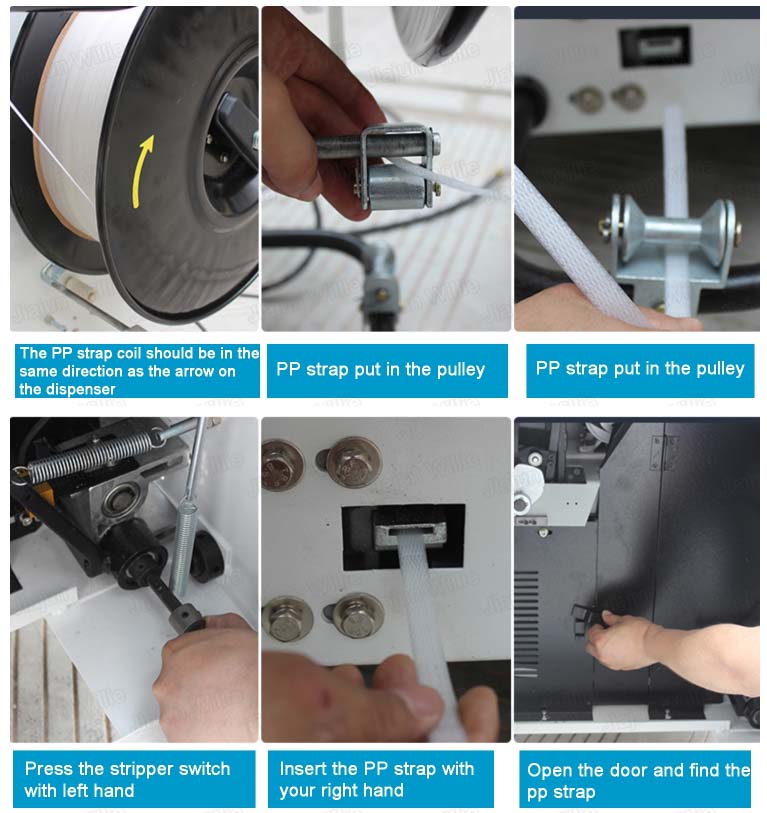

1. Place the strap reel on the holder beneath the table and feed the strap into the machine.
2. Switch on the machine and allow the sealing unit to reach operating temperature.
3. Adjust the tension setting on the control panel: use a lower setting for cartons, higher for heavier items.
4. Position the package on the table under the arch and start the cycle using either the ball switch or foot pedal.
5. The machine applies the strap, tightens it, seals it underneath and trims the strap. Rotate the package and repeat for a second strap if needed.

Settings and maintenance

• Tension setting. Adjustable from 0 to 90 kg via the control panel, allowing both lightweight cartons and heavy crates to be secured with the same machine.
• Strap. Uses PP strap 11–12 mm wide and 0.6–1.0 mm thick; accepts 9–12 mm. Reels 160 mm wide, core diameter 200–210 mm, outer diameter 400–500 mm.
• Weld. The weld is formed beneath the package. If the strap separates, first check the temperature setting and the quality of the strap; the weld should secure at least 90% of the strap’s surface area.
• Working conditions. Designed for use between 0 and 40 °C, with humidity up to 90%. Operates at a noise level below 75 dB(A).
• Maintenance. Always switch off the machine before carrying out any work. Keep the strap channel and arch clear of dust and strap fragments, and inspect the strap guide and cutter regularly.

Points to consider when selecting and using the AUTOMA strapping machine

Before choosing the AUTOMA strapping machine, review the dimensions and weight of your typical packages to confirm they fit within the arch and table specifications. Assess the type and quality of PP strap you intend to use, as both thickness and width influence weld strength and strap tension. For use in a packing line, ensure the table height aligns with your conveyor or workbench.

Before purchasing a strapping machine

The price is displayed on this page. Several factors determine if this machine is suitable for your packing requirements: please check these before requesting a quotation, or send your details to us and we will review them with you.

• Package size. The arch measures 1000 × 800 mm, setting the maximum package size; the minimum is 80 × 80 mm, with a minimum length of 200 mm.
• Strap. For use with PP strap, 11–12 mm wide and 0.6–1.0 mm thick, supplied on reels with an internal diameter of 200–210 mm.
• Speed. Capable of up to 30 strapping cycles per minute.
• Power. 220 V, 50/60 Hz, 1.0 kW, 10 A. Connects to a standard single-phase socket.
• Space. The machine’s dimensions are 1380 × 620 × 1450 mm, with a weight of 180 kg. Shipping dimensions: the arch is supplied separately; packed size is 1500 × 700 × 1050 mm, volume 1.1 m³, gross weight 220 kg. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.
