ECOBAND-A Banding Machine on Stand for Paper or OPP Band 20/30 mm – Frame 460 × 200 mm

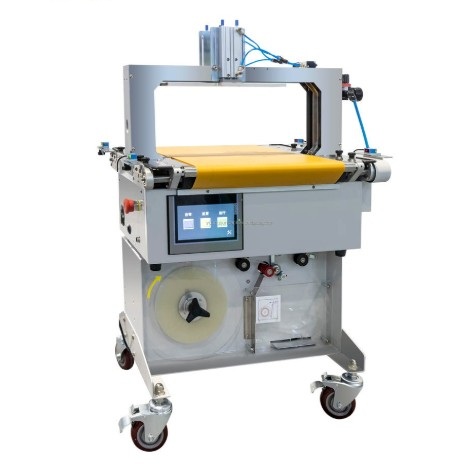

ECOBAND-A banding machine with stand for paper or OPP banding tape

The ECOBAND-A is an automatic banding machine mounted on a stand. It applies a narrow band of paper or OPP film around a bundle or pack, tensions it, seals, and cuts the band. A belt conveyor on the table moves the product beneath the frame, while a top press secures it during banding.

This machine uses banding material 20 mm or 30 mm wide and 0.12 mm thick, supplied on rolls with a 76 mm core and a maximum outer diameter of 300 mm. The frame opening measures 460 × 200 mm, and products must be at least 50 mm wide.

It can apply up to 20 bands per minute, with band tension adjustable up to 5 kg to secure bundles without damage. All settings are managed via the touch screen. The internal control operates at a safe 24 V DC, monitors all ports, and includes a resettable production counter for tracking banding cycles.

The machine is supported by its own frame with castors, with the table positioned at a working height of 600 mm, and operates on single-phase power, 110–120 V or 200–240 V, 50/60 Hz, 0.4 kW. It is suitable for use wherever products are secured with a band rather than a strap or film, such as printed materials, food packs, boxes, and trays.

ECOBAND-A banding machine for production and logistics applications

The ECOBAND-A is widely employed in printing houses, food production, logistics hubs and light assembly environments. It is designed for banding bundles of leaflets, brochures, greetings cards, food trays, confectionery packaging, small cartons and grouped retail items. This machine is suitable both for presenting goods directly to customers and for securing products for in-house movement or storage. Commonly, it is set up at the end of a packing line or beside a manual packing bench, and can be relocated between work areas as required.

The banding action is gentle enough for sensitive printed products and food packs, while the adjustable tension ensures firm bundling of heavier or more rigid goods. In logistics settings, the machine assists in grouping smaller cartons or irregularly shaped items for easier handling.

Technical details

How the banding machine supports your packaging process

• Minimal use of materials. A slim paper or OPP band secures the bundle, without the need for strapping or stretch film.
• Paper or film options. Choose a paper band for a natural appearance and easy recycling with paper waste, or OPP film when product visibility is required.
• Consistent tension for every bundle. Set the required tension once on the touch screen, up to 5 kg.
• Hands remain free. The conveyor moves the item beneath the frame, while the top press secures it during banding.
• Up to 20 bands per minute. Suitable for continuous operation at a packing bench or at the end of a production line.
• Simple to relocate. The stand is fitted with castors, allowing the machine to be moved easily between workstations.

Operation, feeding and safety features

• Automatic banding using paper or OPP film bands, 20 or 30 mm wide
• Frame opening measures 460 × 200 mm; suitable for products from 50 mm wide
• Table conveyor feeds the product beneath the frame
• Top press secures the product during the banding process
• Band tension can be set up to 5 kg
• Touch screen control for all settings
• 24 V DC control voltage within the unit
• Detection of each item and a resettable production counter
• Stand on castors, working height 600 mm
• Single phase, 110–120 V or 200–240 V, 50/60 Hz, 0.4 kW

Operating the ECOBAND-A banding machine

1. Position a roll of paper or OPP band, either 20 or 30 mm wide, onto the roll holder at the front of the stand and feed the band into the machine.
2. Power on the machine and adjust the band tension and other settings using the touch screen.
3. Place your item onto the belt; the belt will transport it beneath the frame.
4. The top press secures the item while the machine applies the band, tensions it, seals it, and trims the band.
5. Remove the banded item. The counter displayed on the screen records each band applied.

Operator responsibilities and workflow integration

To fit into your process, the ECOBAND-A may be operated as a stand-alone unit or incorporated into a semi-automatic line. It is typically placed after folding, stacking or filling operations.

Adjustments and upkeep

• Band tension. Set via the touch screen, up to 5 kg: use a lower setting for delicate or lightweight items, and a higher setting for solid bundles.
• Band. Suitable for paper or OPP film, 20 or 30 mm wide and 0.12 mm thick; rolls require a 76 mm core and may have an outer diameter up to 300 mm.
• Production counter. Counts the number of bands applied and can be reset, for example at the start of a shift or a new job.
• Maintenance. Always switch off the machine before carrying out any work. Keep the band path and frame clear of paper dust and film remnants, and inspect the belt regularly.

Points to consider before purchasing a banding machine

The price is displayed on this page. Several factors determine whether this machine is suitable for your items: please review them before requesting a quotation, or send your details to us and we will discuss them with you.

• Product size. The frame opening measures 460 × 200 mm and items must be at least 50 mm wide. Please provide the dimensions of your packs and we will confirm their compatibility.
• Band. Accepts paper or OPP film, 20 or 30 mm wide, 0.12 mm thick, on rolls with a 76 mm core and an outer diameter up to 300 mm.
• Speed. Capable of up to 20 bands per minute.
• Power. Single phase, 110–120 V or 200–240 V, 50/60 Hz, 0.4 kW, 2.5 A.
• Space and shipping. The machine dimensions are 570 × 750 × 1080 mm and it weighs 110 kg; shipping dimensions: 620 × 800 × 1130 mm, 130 kg.
