Battery Powered Friction Weld Strapping Tool Signode BXT3 9-19mm (3/8″, 3/4″)

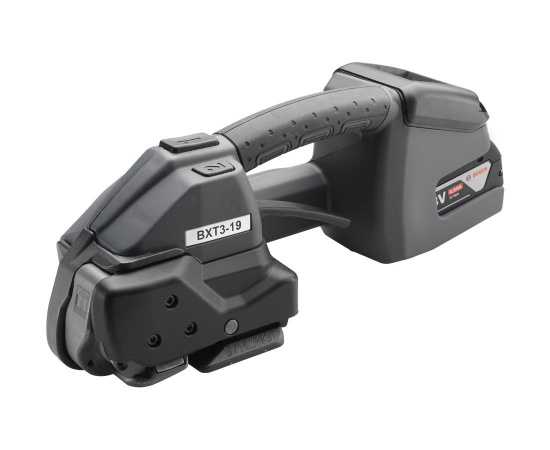

Signode BXT3 9-19mm (3/8″, 3/4″) Battery Powered Strapping Tool

The Signode BXT3 represents the latest advancement in the renowned Signode BXT2 range of battery-powered combination strapping tools for 9-19 mm PP and PET plastic strapping. This tool series has been developed to improve both ease of use and operational speed. It is suitable for use with both polyester and polypropylene strap. The tool is capable of applying an adjustable tension of up to 4500N (1000 lbs). This new poly strapping tool is equipped with Bosch Hypercharge Technology, which further boosts your output. It assists with battery recharging up to 80% within just 15 minutes. The BXT series of next-generation battery powered strapping tools introduces several innovative features for manual strapping, setting new standards in the industry. The BXT3 is engineered to endure the demanding conditions of daily industrial use for many years.

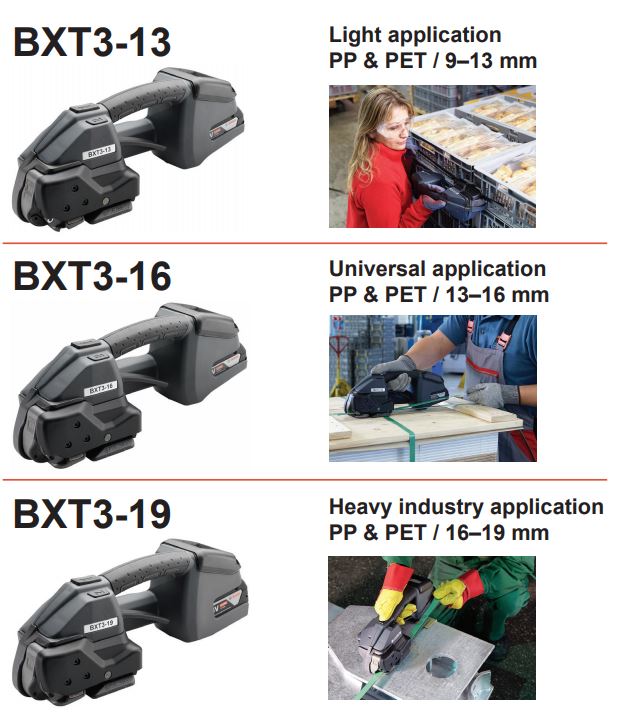

The Signode BXT3 battery strapping tool can be used with a range of strap widths:

● BXT3-13: 9–10 mm, 12–13 mm (3/8″, 1/2″)
● BXT3-16: 12–13 mm, 15–16 mm (1/2″, 5/8″)
● BXT3-19: 15–16 mm, 18–19 mm (5/8″, 3/4″)

What is the price of the Signode BXT3

The SIGNODE BXT3 battery strapping tool is among the leading battery-powered strapping tools available. Its price remains competitive despite its high specification and advanced features. Manufactured from robust hard plastic and utilising the latest welding technology, the Signode BXT3 also features a large digital display and is supplied with both battery and charger.

Key features of the Signode BXT3 battery strapping tool:

• Electronically controlled strapping cycle
• Strap positioning indicator
• Adjustable welding duration
• Quick access to preferred strapping function
• Ergonomically designed with a new battery cover to extend service life
• Reduced number of wear components for cost-effective maintenance
• Enhanced efficiency delivers up to 800 cycles per battery charge
• Locking function ensures uniform results every time
• User-friendly – Digital tool HMI interface with touchpad controls and new highlights for straightforward operation and less training required.
• Reliable packaging process – Favourite cycle settings for repeatable processes – a global innovation!
• Precise load securing – actual strap tension applied to the load is shown on the display – a first for a handheld tool!
• Simple packaging of delicate goods – Single-finger control of strap tension speed by finger pressure, making it easy to position load protection and similar tasks during strapping
  – another global innovation!
• Lightweight – ideally balanced tool for comfortable use in all situations, both vertically and horizontally, with no operator fatigue.
• Proven, high-quality tool and components – Swiss manufactured for dependability, durability and minimal lifetime running costs.
• The robust, shock-resistant housing ensures a long service life and provides optimum protection for the battery.

Technical details for the Signode BXT3 battery strapping tool:

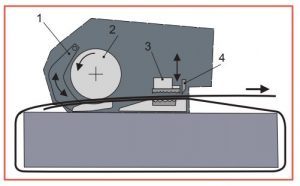

How the Signode BXT3 battery strapping tool operates:

The rocker lever is used to open the tensioning mechanism, allowing the straps to be inserted.
The straps are held between the rocker’s toothplate (1) and the tension wheel (2).
Tension is applied as the tension wheel (2) rotates anti-clockwise.
The straps are joined in the welding unit (3) by means of friction welding.
The upper strap is trimmed by the blade (4).

The Signode BXT3 offers a choice of three operating modes:

• Semi-automatic (default/factory setting)

  • The tension button (see Section 3.1) must be held down until the selected tension is reached. The tool then automatically welds the straps and trims the upper strap. Welding can also be started manually at any time by pressing the welding button.

• Fully automatic

  • The tension button (see Section 3.1) only needs a brief press (touch) to start the tensioning process. When the set tension is reached, the tool automatically welds the straps and cuts the upper strap. This mode is ideal for processing large volumes.

• Manual

  • The tension button (see Section 3.1) is held down until the required strap tension is achieved. The welding button (see Section 3.1) is then briefly pressed to weld the straps and cut the upper strap. This mode is suitable for goods with varying (soft or hard) packaging.

and between two tension settings:

• Standard tension for PET strapping
• Gentle tension for PP strapping (The tension wheel starts slowly to help prevent excessive dirt and debris from accumulating inside the tool.)

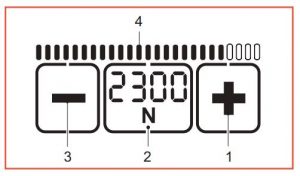

Adjusting the strap tension on the Signode BXT3 battery strapping tool

The selected tension is shown continuously when the tool is ready for use.
► Press the “Tension force” button (2).
– The set tension flashes for 5 seconds.
– The + (1) and – (3) buttons are displayed.
– Unused displays are hidden.
► Press the + (1) or – (3) button until the required tension is shown.
– The status bar (4) indicates the set tension in relation to the maximum possible value.
► To save: Press the “Tension force” button (2) again or wait 5 seconds.
● To switch between “N” and “lbf” display: Hold the flashing “Tension force” button (2) for two seconds.
● Each button press is confirmed by an audible signal.
● The tension is displayed continuously when the tool is in use.
● Setting gentle tension
