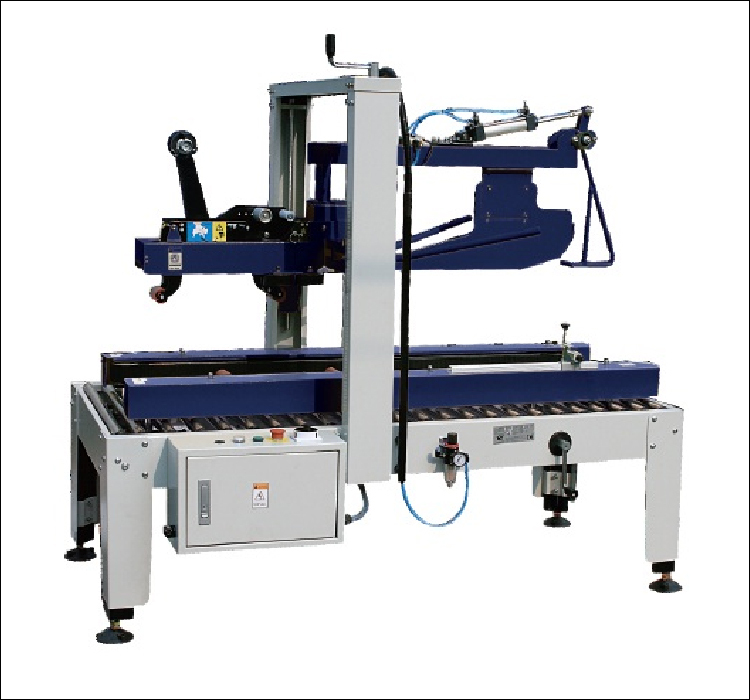

    TOP TAPE Automatic Carton Taping Machine

    Automatic carton closing machines using adhesive tape significantly accelerate the packing of boxes, cartons, and similar packages. The automatic carton sealer applies tape to both the top and bottom of each box, streamlining the packaging process and increasing the number of boxes packed per minute. This automatic box closing machine with adhesive tape is straightforward to operate and does not require specialist training. Compatible with adhesive tapes between 48mm and 72mm wide, and suitable for boxes or packages with lengths from 280 to 550mm, widths from 120 to 480mm, and heights from 120 to 480mm. The carton sealing machine is designed for sealing both the top and bottom of cartons. The table height can be adjusted between 550mm and 750mm.



    Key features of the TOP TAPE Automatic Carton Sealing Machine

    • Automatically folds the upper carton flaps
    • Automatically transports and seals both the top and bottom of cartons
    • Suitable for integration with a fully automated production line
    • Side belt drive system
    • Manual adjustment required for carton width and height



    TOP TAPE Carton Taping Machine technical details:

    · Includes side belt drive
    · Suitable for heavy items

    Model TOP TAPE Carton Taping Machine
    Electrical supply 1p 110V/220V 50Hz/60Hz 400W
    Sealing speed 19 metres per minute
    Carton dimensions L(280~550)mm × W(120~480)mm × H(120~480)mm
    Tape width 48-72mm (Kraft or BOPP tape)
    Air pressure 4-6 kgf/cm²
    Table height 550-750mm (height adjustable)
    Electrical components Motor: Taiwan “Luson”
    Contactor & Pushbutton switch: France “Schneider”
    Pneumatic parts: Taiwan “Airtac”
    Sealing tape Kraft tape, BOPP tape
    Noise level ≤75dB(A)
    Condition Humidity ≤90%, temperature 0-40°C
    Lubrication Standard lubrication oil for general use
    Machine dimensions L(1650)×W(836)×H(1400)mm
    Shipping dimensions L(2100)×W(1100)×H(1500)mm
    G.W/N.W 230kg/180kg
    Performance Manual placement, with automatic back-folding of the top fin, and timely automatic transport; no operator supervision required. Designed to integrate with a fully automated production line.

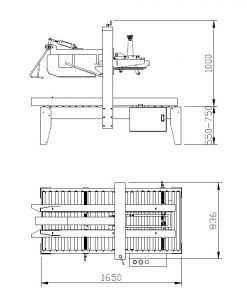

    Worktable measurements for the Automatic Box Taping Machine

    Automatic case sealer TOP TAPE table dimensions, table size

    Purpose of the TOP TAPE Box Taping Machine

    Carton flaps are folded automatically before the machine seals both the upper and lower sides of the carton. The carton should be centred within the machine for correct sealing of the top and base. The taping head accommodates adhesive tapes from 48mm to 72mm wide, and can be tailored to customer requirements. To ensure correct operation, please consider the carton’s length, width, height, and weight. The machine’s carton size specifications are as follows, and can be customised if needed: Length: (280–550)mm × Width: (120–480)mm × Height: (120–480)mm



    Operating principle of the Carton Sealer with Box Taping Machine

    1. Connect to the mains power; the indicator light will illuminate. Attach the air supply.
    2. Press the START control; the machine will activate and the conveyor belts will begin to move.
    3. Without folding the carton flaps, place the carton onto the belt area; the belts will automatically convey the carton forward.
    4. As the carton advances, the machine folds the top flaps automatically, applies tape to seal the carton, and the completed carton is conveyed out by the belts.
    5. The upper and lower rollers press the top and base of the cartons, enabling automatic sealing.
    6. Once sealing is complete, the blade automatically trims the adhesive tape.



    Demonstration video of the Automatic Box Taping Machine

    Additional information

    Weight 220.0 kg
    Dimensions 2 × 1.2 × 1.9 m
    Parameter Specification
    Model

    TOP TAPE Box Taping Machine

    Power supply

    1p 110V/220V 50Hz/60Hz 400W

    Sealing speed

    19 meter/min

    Carton size

    L(280~550)mm × W(120~480)mm × H(120~480)mm

    Tape size

    48-72mm (Kraft or BOPP tape)

    Air pressure

    4-6 kgf/cm2

    Table height

    550-750mm (adjustable)

    Electronic components

    Motor: Taiwan "Luson" Contactor & Pushbutton switch: France "Schneider" Pneumatic components: Taiwan "Airtac"

    Sealing tape

    Kraft tape, BOPP tape

    Noise

    ≤75dB(A)

    Condition

    Humidity≤90%, temperature 0-40℃

    Lubrication

    General application lubrication oil

    Machine size

    L(1650)×W(836)×H(1400)mm

    Shipping size

    L(2100)×W(1100)×H(1500)mm

    G.W/N.W

    230kg/180kg

    Performance

    Manual position, top fin back-folding automatically, transport in due time automatically, don’t need to take care by the person, it adapts to connect with the fully automatic production line.

    Which tape widths are suitable for use with the TOP TAPE Automatic Box Taping Machine?

    This machine is compatible with adhesive tapes ranging from 48mm to 72mm in width, including both Kraft and BOPP tapes.

    Does this machine automatically seal both the top and bottom of cartons?

    Yes, it automatically folds the top flaps and seals both the upper and lower sides of cartons at the same time.

    What carton dimensions can the machine accommodate?

    It is suitable for sealing cartons with lengths from 280 to 550mm, widths from 120 to 480mm, and heights from 120 to 480mm.

    Can the table height be altered to accommodate different production line configurations?

    Indeed, the table height can be set anywhere between 550 mm and 750 mm to suit a range of conveyor heights.

    How quickly does this carton sealer apply tape?

    This machine seals at a rate of 19 metres per minute, making it appropriate for medium to high output operations.

    Is it possible to incorporate the TOP TAPE Automatic Box Taping Machine into a fully automated production line?

    Yes, it is engineered for straightforward integration with fully automatic production lines, supporting efficient packaging processes.

    Can this machine be used with both Kraft and BOPP tape types?

    Yes, it is suitable for use with both Kraft paper tape and BOPP plastic tape.

    Which carton types is this machine most appropriate for?

    This machine is well suited to standard cardboard cartons typically found in industrial packaging applications.

    Does the operator need to fold the carton flaps by hand before sealing?

    No, the machine automatically folds the upper flaps of the carton prior to taping.

    Is this machine intended for demanding industrial use?

    Yes, it is constructed for industrial settings, offering dependable and consistent sealing of cartons.

    Summary

    • TOP TAPE Automatic Carton Taping and Sealing Machine, 48-72mm, compatible with Kraft or BOPP tape
    • Automatically folds the upper flaps of cartons
    • Simultaneously transports and seals both the top and bottom of cartons automatically
    • Designed for integration into fully automated production lines
    • Compatible with adhesive tape widths from 48mm to 72mm
    • Table height adjustable between 550mm and 750mm
    • Carton size range: Length (280–550)mm × Width (120–480)mm × Height (120–480)mm
    • Sealing speed: 19 metres per minute
