AUTOBOX10 Automatic Case Erector – 10–15 Cases per Minute

AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector is a highly developed automatic case erector machine created to simplify and automate the process of forming cartons in industrial packaging settings. It plays an essential part in contemporary production lines by reliably erecting cartons for packing, which improves operational productivity and reduces the need for manual handling. This equipment is intended for industrial users who require steady, rapid carton erection with minimal operator involvement.

This automatic case erector utilises a sturdy servo-driven system together with pneumatic elements to deliver accurate carton handling and forming. The unit’s dimensions are approximately 2020mm long, 2080mm wide, and 1396mm high, and it has a weight of 530 kilograms. AUTOBOX10 accommodates carton sizes accommodates lengths ranging from 200mm up to 500mm, widths between 200mm and 400mm, as well as heights from 150mm to 350mm, with the sum of length and width not exceeding 900mm and half the width plus height not more than 550mm. The machine achieves a rate of 10 to 15 cartons per minute, providing an effective balance between output and precision. It is compatible with 50mm or 60mm tape widths for sealing, with a 75mm tape option available if required. The working table height is set at 650mm to suit most conveyor systems.

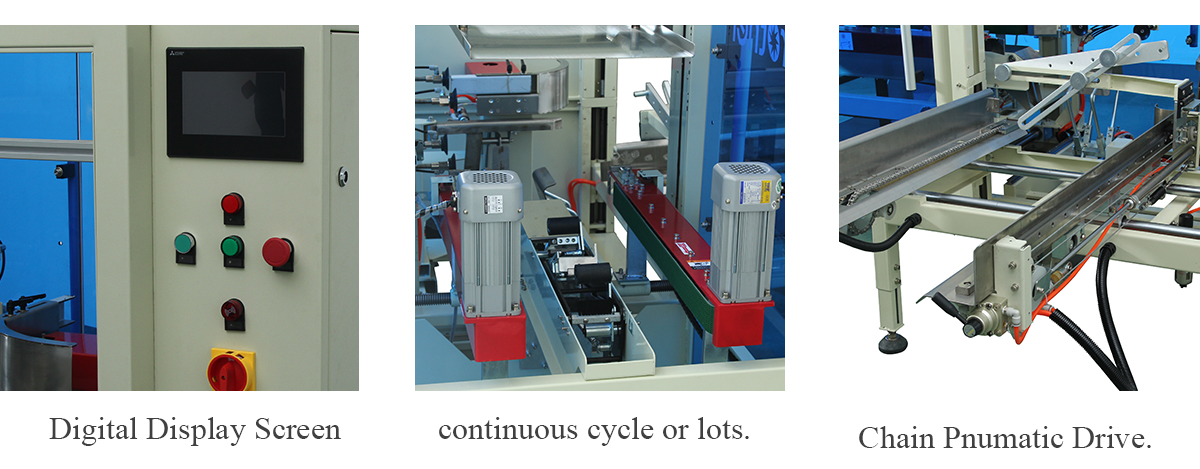

Designed for accuracy and dependability, the AUTOBOX10 features a touchscreen control panel for straightforward automation, including servo position programming and carton size selection. This allows for swift changeovers and tailored carton handling routines, meeting a variety of packaging needs. Automated resetting and servo zeroing functions maintain system accuracy before each cycle, helping to avoid mistakes and limit downtime.

In summary, the AUTOBOX10 automatic case erector is intended for businesses seeking to enhance packaging precision, speed, and safety. The use of advanced servo technology and pneumatic controls enables the machine to form cartons with consistent square or rectangular profiles, reducing the risk of product damage and improving the quality of packaging.

AUTOBOX10 automatic case erector demonstration video

▶

AUTOBOX10 automatic case erector technical details

Key Features and Advantages of the AUTOBOX10 automatic case erector

• SERVO motor-driven carton forming system delivers precise management of carton opening, ensuring reliable and uniform assembly of both square and rectangular cartons.

• Pneumatic controls provide smooth feeding, sealing, and removal of cartons without causing distortion or harm.

• Built-in touchscreen interface offers straightforward operation in both automatic and manual settings, making it user-friendly for both operators and maintenance staff.

• Servo position teaching and carton size configuration allow for rapid changes to accommodate different carton dimensions, supporting varied packaging needs and minimising downtime during changeovers.

• Pressure-regulating solenoid valves and adjustable air pressure for the cylinder inlets and outlets provide enhanced control over the force and speed of carton forming, ensuring stable processing with cartons of varying material thicknesses.

• Always disconnect the power before carrying out maintenance. If someone becomes trapped by a moving part, immediately switch off the power before assisting them.

• Thanks to its compact size and modular construction, easy integration into existing packaging lines.

• Taken together, these attributes enhance packing precision, minimise material waste, reduce staffing costs, and promote a safer workplace, making the AUTOBOX10 well-suited for medium to large packaging operations.

Return on Investment and Process Efficiency for AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector offers significant value to industrial packaging operations by lowering manual labour expenses and boosting the speed and uniformity of packaging. The automated carton erection process reduces the likelihood of human error, resulting in fewer damaged cartons and less material wastage. With a capacity of handles up to 15 cases per minute, AUTOBOX10 increases packaging line throughput, supporting higher production volumes.

Additionally, the precise servo-driven system delivers consistent and accurate carton forming, which minimises downtime caused by misaligned or incorrectly formed cartons. This reliability ensures better coordination with upstream and downstream equipment, maximising overall line efficiency. Businesses also benefit from reduced training needs thanks to the intuitive touchscreen interface and straightforward operation.

Automated carton size adjustment and servo position programming help to reduce changeover times between different carton formats, further improving flexibility and productivity. Maintenance and adjustment downtime is kept to a minimum due to integrated monitoring and pressure control features. As a result, AUTOBOX10 supports quicker returns through operational cost reductions, enhanced quality, and increased packaging output.

Operating Instructions for AUTOBOX10 automatic case erector

1. Connect the AUTOBOX10 unit to a reliable mains supply and compressed air line.

2. For safety, always ensure the power is off before making any adjustments to the equipment.

3. To start, carry out the automatic servo reset-to-zero procedure to return the system to its home position, which helps prevent errors at startup.

4. Choose the carton size number that matches the cartons you wish to process; the system can retain up to ten different carton size settings.

5. Operate the touchscreen to set the servo positions for the conveyor centre and carton pick-up point, ensuring accurate alignment of the suction cups.

6. Activate automatic mode via the touchscreen to start the complete cycle: picking up a flat carton, folding the front and back flaps, folding the side flaps, transferring the carton onto the conveyor, and preparing for the next operation.

7. Manual step-by-step modes are available for troubleshooting or operator instruction.

8. Check the number of cartons erected on the display and reset the counter as required to maintain uninterrupted production.

9. Always follow all safety instructions; only qualified staff should carry out mechanical or pneumatic adjustments.

10. Carry out regular calibration of suction cups, forming position rods, and carton guides to maintain top machine performance and reliable carton handling.

Applications and Key Benefits of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector has been engineered for a wide range of industries requiring automated carton erecting solutions, such as food and drink, pharmaceuticals, electronics, consumer goods, and agricultural packaging. Businesses aiming to increase packaging line efficiency and achieve consistent results will find this machine well-suited for medium to high output requirements.

AUTOBOX10 distinguishes itself from other machines by offering a blend of servo motor accuracy and pneumatic adaptability, enabling reliable handling of a broader selection of carton sizes. The intuitive touchscreen with position teaching makes setup straightforward and allows for rapid changes between different carton formats.

Its robust mechanical design addresses typical problems such as carton distortion and jams, which are common in less sophisticated equipment. Pressure regulation and air speed adjustment systems ensure the carton forming process is responsive to varying material thicknesses and box designs. These features contribute to increased operational uptime and reduced maintenance frequency.

Additionally, the modular build enables customers to specify custom tape widths (50mm, 60mm, or optional 75mm), supporting integration into tailored packaging processes. Business purchasers benefit from the sturdy construction, built-in safety features, and straightforward integration, making AUTOBOX10 a strong contender in its class.

Design, Adjustment and Maintenance of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector features features a space-saving design with a footprint just over two metres in both length and width, with a height of around 1.4 metres, facilitating straightforward installation within existing packaging lines. The working table is set at an ergonomic height of 650mm aligns with most conveyors, simplifying product transfer.

Machine adjustments include belt width, carton carrier width, bracket height, pressure box guide plate height, moulding position rods, suction cups, and carton push rods. These mechanical settings allow precise adaptation to different carton sizes and materials. Only qualified personnel should alter pneumatic valve or solenoid pressures to preserve system reliability.

Maintenance consists of regular cleaning, lubricating moving components, checking pneumatic pressure, and inspecting suction cups and belts for signs of wear. The design allows for easy access during servicing, and the operator manual details adjustment steps and safety instructions.

Planned maintenance helps prevent unexpected stoppages and ensures consistent product quality by keeping the machine within its ideal operating range. The touchscreen interface also provides manual debugging modes to support technicians in quickly identifying faults.

Performance and Features of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector runs at a steady pace of Processes between 10 and 15 cases per minute, offering a balance between speed and dependability. The servo-driven forming system manages carton pickup, flap folding, and ejection with high accuracy, reducing the risk of deformation or damage. Pneumatic components control carton feeding and alignment, adapting to carton thickness for smooth operation.

The equipment is suitable for cartons from small to moderately large sizes, with adjustable guides and suction cup placement to securely grip even the widest flaps. The pressure-regulating solenoid valve keeps air pressure steady (around 0.5 mpa), which is essential for reliable forming and suction.

Cylinder movement speed and pressure can be set using dedicated controls, giving flexibility for different packaging materials. The servo position teaching feature automates width changes, speeding up changeovers and ensuring consistent cycles.

AUTOBOX10 is designed for large-scale packaging operations, providing a dependable solution that reduces interruptions and maintains both high output and carton quality.

Safety and Longevity of AUTOBOX10 automatic case erector

Operator safety is central to the design of the AUTOBOX10 automatic case erector. Always switch off the power before carrying out maintenance, and in the event of a person becoming trapped by a moving part, turn off the power immediately before assisting them.

The machine’s controls prevent automatic operation unless both the cylinder and servo origin indicators confirm the system has been correctly reset, helping to avoid unintended starts.

Long-lasting performance is achieved by using industrial-grade materials for all mechanical and wear parts, including belts, suction cups, and pressure plates. The machine is built for continuous use in standard industrial settings and is resistant to operational wear.

To uphold warranty and extend product life, servicing should be carried out by authorised personnel and operator manuals must be followed. Unauthorised alterations are not supported and may affect machine safety.

Environmental Considerations of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector helps meet sustainability targets by minimising packaging material waste through precise and consistent carton forming. This accuracy lowers the rate of rejected cartons and product damage, reducing overall material usage.

By automating carton erection, the machine also cuts down on human error and energy loss linked to inefficient manual packing. The pneumatic systems are engineered for controlled air pressure to maximise energy efficiency.

The modular design of the machine makes it straightforward to dismantle and recycle components at the end of its service life. Businesses can incorporate AUTOBOX10 into wider packaging systems aimed at reducing environmental impact.

AUTOBOX10 automatic case erector

The AUTOBOX10 automatic case erector is a sound investment in efficient, dependable, and safe carton forming technology for industrial packaging needs. With advanced servo controls, precise pneumatic adjustments, and an intuitive touchscreen interface, AUTOBOX10 delivers outstanding performance to boost productivity and packaging standards.

To obtain this solution and enhance your packaging line, customers may add the AUTOBOX10 automatic case erector to their basket or request a tailored quotation. Our specialists are available to advise on configuration options to suit your operational needs and support smooth integration.

Purchasing the AUTOBOX10 automatic case erector provides a tangible return on investment by reducing labour costs, increasing output, and minimising material waste — an excellent choice for progressive businesses.
