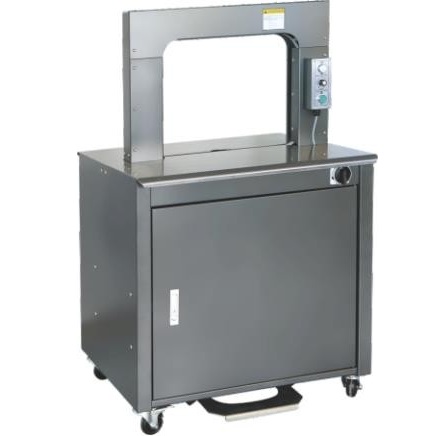

HIPO PRO XS Automatic Strapping Machine – PP Strap 5-6mm – 650W x 500H mm

HIPO PRO XS Automatic strapping tool

The HIPO PRO XS Automatic strapping machine offers a professional packaging solution, designed to boost productivity in industrial settings where dependable bundling and secure load retention are essential. This model automates the application of polypropylene (PP) straps to cartons, boxes, printed products, and other packaged items. Integrating this machine into your production or logistics workflow reduces manual handling and delivers consistent strapping results. The Automatic strapping machine operates at speeds of up to 50 straps per minute, making it ideal for businesses with moderate to high packaging demands. The worktable height of 850 mm is optimised for ergonomic use, and the sturdy arch accommodates packages up to 650 × 500 mm as standard. With tension adjustable up to 45 kg, the machine provides secure strapping for a wide range of uses. Powered by AC 220V single-phase with a power draw of 0.6 kW, the unit ensures reliable and energy-efficient operation. Noise emissions are restricted to ≤75 dB(A), supporting compliance with workplace noise regulations. This machine is particularly well-suited for logistics, warehousing, print shops, and manufacturing environments where accuracy, reliability, and reduced cycle times are required. The minimum package size is 80 × 60 mm. The maximum package size is determined by the arch: 650 × 500 mm.

FAQ for HIPO PRO XS Automatic strapping tool

1. What types of items can the Automatic strapping machine process?
The Automatic strapping machine is suitable for cartons, boxes, newspapers, printed products, and light to medium-weight packages up to around 80 kg. The standard arch size of 650 × 500 mm accommodates a variety of package sizes, with custom options available for specific needs.

2. Which strap materials and sizes are suitable for the Automatic strapping machine?
The machine is intended for use with polypropylene (PP) straps in widths of 5 mm or 6 mm and thicknesses between 0.5 mm or 0.8 mm. Strap reel core diameters are 200–210 mm (internal) and 400–450 mm (external).

3. What is the operating speed of the Automatic strapping tool?
The machine delivers up to 50 straps per minute, making it well-suited to operations requiring rapid throughput and efficiency.

4. What is the maximum strap tension?
The tension can be set anywhere between 0 and 45 kg, making it suitable for securing both lighter and moderately heavy consignments.

5. What are the electrical requirements for the automatic strapping machine?
The machine requires AC 220V, 50/60 Hz, single phase and has a rated power usage of 0.6 kW (4A).

6. What safety features are included in the automatic strapping machine?
Safety features comprise protective panels, prominent warnings for hot surfaces, electrical earthing, and an emergency stop function. Operators should not wear loose clothing and must keep hands away from the strapping area during operation.

7. How durable is the machine and what is its expected lifespan?
The machine features a sturdy iron arch and a reinforced chassis, designed for ongoing use in industrial settings. With regular servicing and lubrication, it delivers reliable performance and a long operational life.

8. How straightforward is it to use the automatic strapping machine?
The machine is equipped with an intuitive PCB control panel, a foot-operated switch, and automatic strap feeding. Strapping can be started manually, by foot pedal, or automatically with sensors.

9. What maintenance does the machine require?
Regular care involves lubricating cams and rollers weekly, checking proximity sensors, cleaning the strap guides, and replacing components such as springs or heater plates as needed. These procedures are simple and help maintain reliability.

10. Can the automatic strapping machine be tailored for particular applications?
Yes, the arch dimensions can be specified, and users can adjust strap tension, heater plate temperature, and cooling duration. This versatility enables use across various packaging lines and product ranges.

Technical details for HIPO PRO XS automatic strapping machine

Return on Investment for HIPO PRO XS Automatic strapping tool

The HIPO PRO XS Automatic strapping machine delivers a return on investment by reducing manual handling, ensuring uniform packaging standards, and lowering the risk of product damage during transportation. Automation of the strapping process shortens cycle times and enables staff to concentrate on higher-value activities. With a throughput of up to 50 straps per minute, the machine can replace several manual operators, resulting in tangible savings on labour costs. Consistent strap tension helps maintain stable loads, reducing the chance of claims for damaged goods and minimising supply chain interruptions. Maintenance schedules are streamlined and spare parts are standardised, reducing the overall cost of ownership. The ability to use PP strap in 5 mm and 6 mm widths provides flexibility and helps optimise strap usage. Businesses adopting this equipment often see a rapid payback period, as packaging output and efficiency are significantly improved compared to semi-automatic or manual methods.

Main Features and Advantages of HIPO PRO XS Automatic strapping tool

The HIPO PRO XS Automatic strapping machine incorporates technical improvements that directly support industrial packaging requirements. Features such as PCB microchip management, integrated reel holder, and automatic strap ejection provide smooth operation and reduce downtime. The front foot-bar switch and sensor-driven automation allow for either manual or fully automatic operation, depending on production needs. Consistent strap positioning and secure sealing are achieved with hot-melt adhesion technology. The control panel allows users to adjust tension, cooling duration, and heater plate temperature to suit specific packaging tasks. The machine operates at a noise level of ≤75 dB(A), supporting compliance with workplace safety standards. In summary, this equipment reduces process variation, enhances cycle efficiency, and delivers reliable packaging results that improve supply chain performance.

Instructions for HIPO PRO XS Automatic strapping tool

Operating the HIPO PRO XS Automatic strapping machine is simple and requires only basic instruction. Begin by fitting the PP strap reel, ensuring it follows the indicated direction. Thread the strap through the accumulator and arch, then switch on the power and set parameters such as strap tension, heater plate temperature, and cooling time to match the package. Strapping can be started using the strapping and cutting control button, the foot-bar switch, or via automatic sensor activation. Position items centrally on the table for best results. The machine will automatically tension, cut, and seal the strap, readying it for the next item. For safety, keep hands away from the arch and check all power connections before use. This straightforward process ensures reliable and efficient packaging for industrial applications.

Applications for HIPO PRO XS Automatic strapping tool

This Automatic strapping machine is ideal for sectors where high packaging throughput and reliability are required. Common uses include manufacturing sites processing consumer products, warehouses needing secure carton bundling, logistics operations where load stability is vital, and the print industry for strapping newspapers, magazines, or printed materials. E-commerce fulfilment and retail distribution centres will also benefit from its rapid cycle speed and dependable operation. With adjustable strap width and tension, the machine suits a wide range of products and packaging settings, making it a flexible choice for businesses of varying sizes.

Design and Suitability of HIPO PRO XS Automatic strapping tool

The HIPO PRO XS Automatic strapping machine is constructed with a robust design to ensure dependable operation in continuous industrial settings. Its arch frame, made from premium iron, provides stability and allows for bespoke arch sizes to accommodate varying package dimensions. With overall measurements of L1170 × W585 × H1450 mm, this machine fits seamlessly into most production environments, while the standard table height of 850 mm promotes comfortable working conditions. The machine is suitable for PP straps in 5 mm and 6 mm widths, enabling users to select the most appropriate material for their products. A built-in reel system streamlines strap changes and minimises downtime. Altogether, the design delivers lasting reliability, straightforward integration, and flexibility for a broad spectrum of industrial applications.

Performance and Features of HIPO PRO XS Automatic strapping tool

The HIPO PRO XS Automatic strapping machine stands out for its rapid operation, accuracy, and flexibility. Capable of processing up to 50 cycles per minute, it is well-suited to high-throughput industrial settings. Strap tension can be set anywhere from 0 to 45 kg, ensuring secure bundling for both lighter and heavier items. The hot-melt sealing system provides a bond with a minimum adhesion area of 90%, guaranteeing consistent strap strength. Features such as sensor-guided feeding and automatic threading reduce manual intervention and support smooth workflow. The combination of fast cycle times, adjustable settings, and dependable sealing makes this machine ideal for managing large volumes whilst maintaining high packaging standards.

Safety and Longevity of HIPO PRO XS Automatic strapping tool

Safety is a key consideration in the HIPO PRO XS Automatic strapping machine’s design. Protective features include guards over moving parts, clear labelling of hot surfaces, and an earthing system for electrical protection. Operators should adhere to safety guidelines, such as wearing suitable attire and avoiding contact with heated elements during use. The machine’s durability is ensured by reinforced parts, robust motors, and a solid frame. With regular upkeep and cleaning, it is built for a long operational life, providing consistent results in demanding conditions. Noise output is limited to ≤75 dB(A), supporting a safer and compliant workplace.

Adjustments and Servicing of HIPO PRO XS Automatic strapping tool

The HIPO PRO XS Automatic strapping machine offers a range of adjustable settings to tailor its function to different packaging requirements. Users can set strap tension using a dedicated control, alter strap length within the accumulator, and fine-tune heater plate temperature and cooling duration for optimal sealing. Routine servicing, such as lubricating moving parts and checking proximity sensors, maintains reliable operation and minimises unexpected stoppages. The design features accessible components for straightforward maintenance, and standardised spare parts like compression springs, heater plates, and proximity sensors are readily available. Following regular maintenance routines helps prolong the machine’s service life and maintain packaging standards.

Environmental Considerations of HIPO PRO XS Automatic strapping tool

The HIPO PRO XS Automatic strapping machine supports environmentally conscious packaging by maximising strap efficiency and reducing excess use. Accurate tensioning and sealing help avoid unnecessary material consumption. The use of polypropylene straps, which are recyclable, supports the sustainability objectives of many organisations. With an energy consumption of just 0.6 kW, the machine is energy efficient. Additionally, its ability to reduce the risk of product damage in transit further cuts waste throughout the supply chain. By choosing this equipment, businesses can improve operational efficiency while supporting sustainability and responsible resource use.

Order HIPO PRO XS Automatic strapping tool

The HIPO PRO XS Automatic strapping machine provides a dependable industrial solution for companies seeking consistent and efficient strapping. Its use in logistics, manufacturing, and distribution enhances productivity, lowers running costs, and ensures uniform packaging results. Businesses looking to upgrade their packaging processes can obtain this equipment directly through our website. To proceed, click ADD TO BASKET for immediate purchase, or choose GET OFFER to request a personalised quotation tailored to your needs. The machine’s technical dependability and long-term savings make it a sound investment for any operation aiming to streamline packaging.
