DOZE400TB Commercial Vacuum Sealer 400 mm – 20m³/h

DOZE400TB commercial vacuum sealer

The DOZE400TB commercial vacuum sealer is a precisely manufactured industrial vacuum packaging machine developed to prolong product shelf life and improve packaging productivity in commercial and industrial settings. This benchtop vacuum sealer is ideal for businesses in food production, pharmaceuticals, electronics, and other industries where airtight packaging is essential for maintaining product quality and integrity. With a durable vacuum pump rated at 20 m³/h and a double sealing bar of 400 mm by 10 mm, the machine enables efficient air removal and strong sealing. The vacuum chamber, measuring 440 mm by 420 mm by 75 mm, offers ample space for packing a range of product sizes. The overall dimensions of the machine are approximately 560 mm by 500 mm by 460 mm, allowing for flexible positioning within production environments.

With its programmable control panel, the DOZE400TB allows up to 10 user-defined programmes for vacuum, sealing, and cooling times, making it suitable for a wide range of packaging needs. This is the standard vacuum model without gas flushing; gas flushing is available on a different model in the same series. The machine is compatible with various packaging materials, such as barrier films, laminated aluminium-foil bags, and flexible packaging films, providing versatility for different packaging tasks. Operator safety is prioritised, with an emergency stop button and an earthed electrical system to maintain safe operation. The DOZE400TB commercial vacuum sealer is therefore a dependable and economical packaging solution that optimises shelf life and minimises waste, well suited for continuous use in demanding industrial settings.

DOZE400TB commercial vacuum sealer video



Technical details of DOZE400TB commercial vacuum sealer

Frequently Asked Questions about DOZE400TB commercial vacuum sealer

1. What are the internal chamber dimensions and sealing bar measurements for the DOZE400TB commercial vacuum sealer?

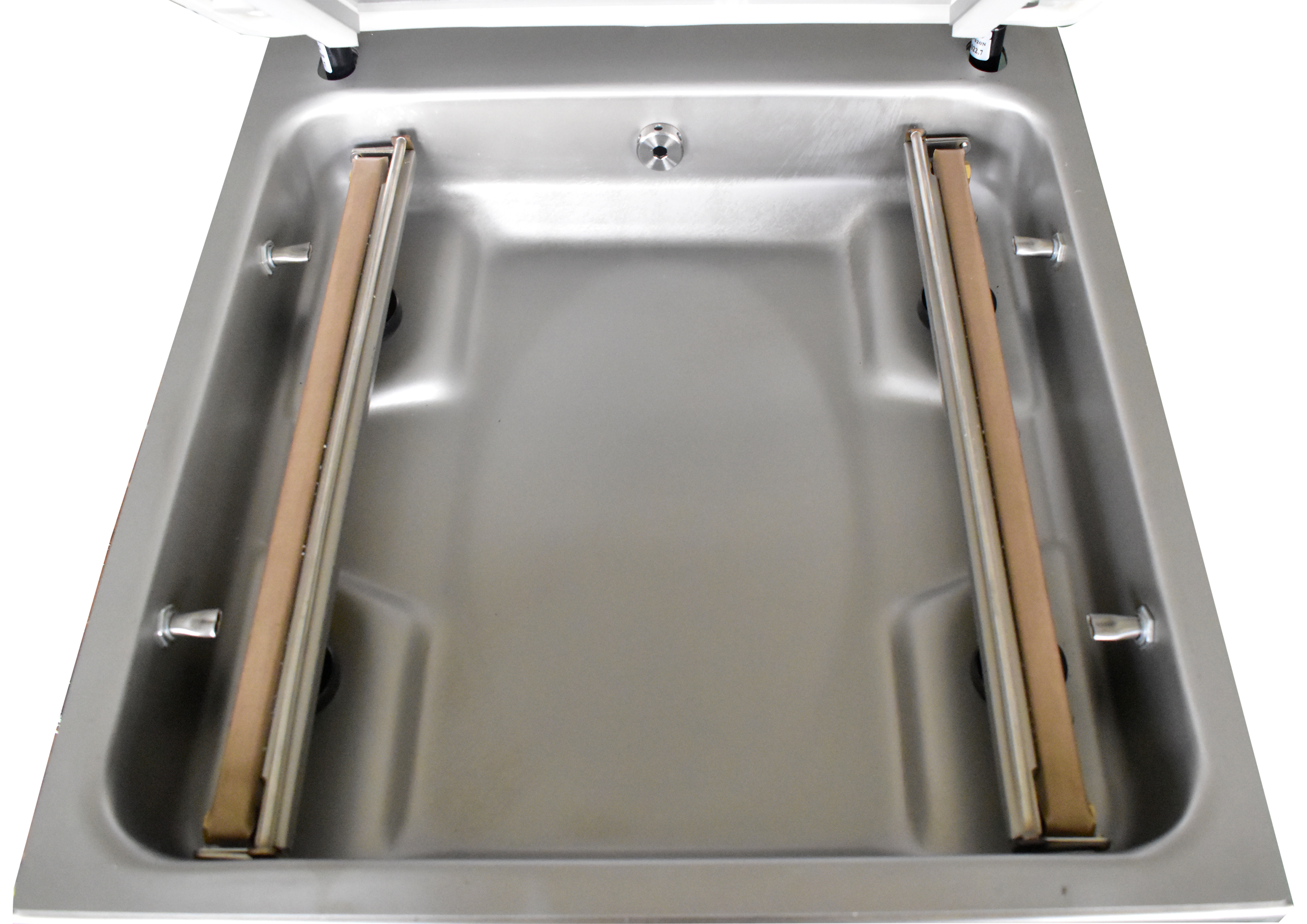

   The vacuum chamber is 440 mm x 420 mm x 75 mm. It is fitted with a twin sealing bar measuring 400 mm x 10 mm, offering generous space and reliable sealing for a range of packaging applications.

2. What are the vacuum pump output and electrical consumption of the DOZE400TB commercial vacuum sealer?
   The vacuum pump delivers 20 m³ per hour. The unit runs on a single-phase 220V supply with a typical consumption of around 0.9 kW, ensuring both performance and energy efficiency.

3. Does the DOZE400TB commercial vacuum sealer offer gas flush or nitrogen injection during vacuum packing?
   No, this is the standard vacuum version VM400TE/B, designed for vacuum-only packing; gas flush is available on a separate model within the same range.

4. Which packaging films and bags can be used with the DOZE400TB commercial vacuum sealer?
   This machine is suitable for use with barrier films, laminated aluminium-foil bags, and a range of flexible packaging films that provide complete gas barrier protection during vacuum sealing.

5. How can I set and fine-tune the vacuum, sealing, and cooling times on the DOZE400TB commercial vacuum sealer?
   These settings are easily managed via the programmable control panel. The panel allows you to store up to 10 custom programmes, so vacuum, sealing, and cooling times can be tailored for different products.

6. Is the DOZE400TB commercial vacuum sealer appropriate for vacuum sealing liquids, powders, and solid goods?
   Yes, it is designed to handle a broad spectrum of items including liquids, powders, solids, pastes, and seeds, making it versatile for different industries.

7. What safety features are included with the DOZE400TB commercial vacuum sealer, such as emergency stop and electrical protection?
   The machine is fitted with an emergency stop button that instantly stops operation and opens the vacuum lid. It is also equipped with grounded electrical protection for safe operation in industrial environments.

8. What maintenance does the DOZE400TB commercial vacuum sealer require, and which spare parts should be kept available?
   Regular maintenance includes monitoring the oil level in the vacuum pump, and replacing heating elements and Teflon strips as needed, since these parts wear out over time. It is advisable to keep these components in stock to avoid unnecessary downtime.

9. What is the typical service life of the heating element and sealing bars in the DOZE400TB commercial vacuum sealer, and how straightforward is their replacement?
   The heating elements and sealing bars are robust but will eventually wear out due to repeated heating cycles. They are engineered for simple replacement without the need for specialist tools, helping to keep downtime to a minimum.

10. Does vacuum sealing with the DOZE400TB commercial vacuum sealer increase the shelf life of food products, and is refrigeration still necessary after sealing?
    Vacuum sealing can extend the shelf life of food products by between three and five times, depending on storage conditions. However, it does not replace refrigeration, and perishable goods should still be kept refrigerated to ensure safety and quality.

ROI – Efficiency Improvements with DOZE400TB commercial vacuum sealer

Incorporating the DOZE400TB commercial vacuum sealer into your packaging process greatly enhances operational efficiency. Its fast vacuum and sealing cycles shorten the packaging time per item, allowing for increased output while maintaining vacuum integrity. Automated programmable controls reduce manual handling, lower the risk of mistakes, and enable swift transitions between product types. With ten programme memories, settings for each product are retained, resulting in quicker changeovers and reduced waste. The robust construction and easy maintenance help to decrease downtime and repair expenses. Overall, businesses gain from lower labour costs, better preservation of products, as well as improved product appearance, all contributing to a positive return on investment.

Main Features and Advantages of DOZE400TB commercial vacuum sealer

The DOZE400TB features fitted with a powerful vacuum pump to ensure rapid and thorough air removal from packaging, and features two sealing bars for strong and reliable seals. Adjustable vacuum cycle settings allow businesses to adapt packaging for different products, providing maximum versatility. It operates exclusively under vacuum, which helps protect sensitive goods from oxygen exposure. Safety measures such as an emergency stop button and electrical grounding safeguard users. Its ability to work with various bag types including foil and laminated films allows for broad usage. Together, these features lower running costs, extend product shelf life, as well as enhance packaging standards, supporting businesses in boosting productivity and customer satisfaction.

Operating Instructions for DOZE400TB commercial vacuum sealer

1. Fill the vacuum pump with the specified vacuum oil before starting operation.
2. Switch on the power supply.
3. Use the control panel to select or programme the required vacuum, sealing, and cooling times.
4. Insert the product into a suitable vacuum bag.
5. Place the open end of the bag onto the sealing bar inside the vacuum chamber.
6. Firmly close the vacuum chamber lid to begin the vacuum process.
7. The machine will automatically remove air from the chamber.
8. The machine then seals the bag securely.
9. The seal is set by cooling the sealed area.
10. Once the cycle has finished, the lid opens automatically.
11. Consistent checks and following safety guidelines help maintain efficient operation and increase the service life of the equipment.

Applications for the DOZE400TB commercial vacuum sealer

The DOZE400TB commercial vacuum sealer offers well suited for food producers, pharmaceutical firms, electronics manufacturers, and specialists in chemicals or metals who need airtight packaging. It is particularly appropriate for medium to large-scale operations seeking dependable vacuum packaging that improves product preservation, minimises spoilage, and supports stock management. Businesses packaging liquids, powders, solids, or fragile goods will find this sealer flexible and effective across a range of industrial settings.

Design and Suitability of the DOZE400TB commercial vacuum sealer

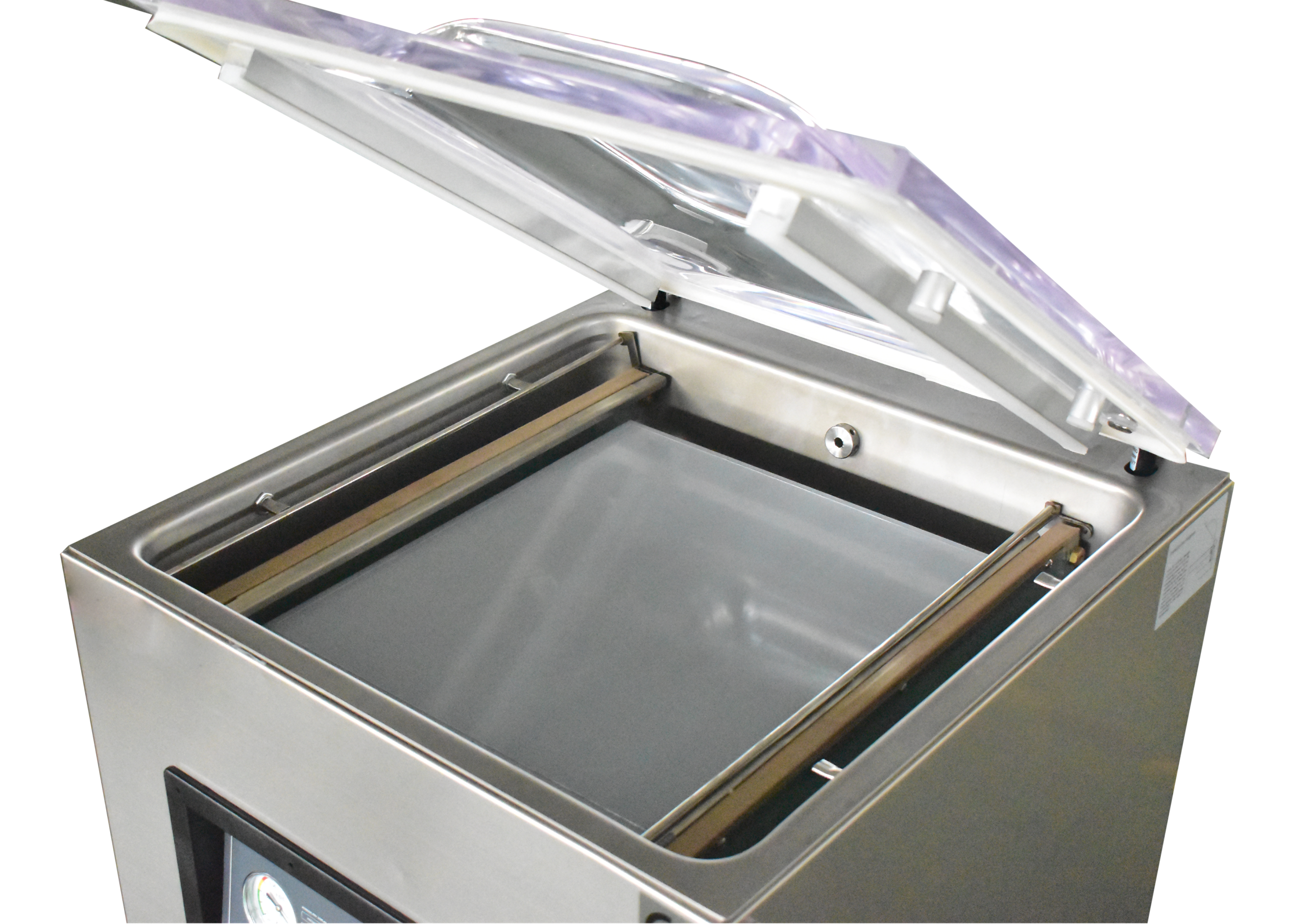

With a compact, tabletop design, the DOZE400TB integrates easily into production areas without requiring much space. The vacuum chamber measures 440 x 420 x 75 mm, accommodating a wide variety of product sizes, and its two sealing bars are suitable for many bag widths and materials. Built from durable stainless steel with a clear acrylic lid, the machine is robust and allows easy visual inspection during sealing. This construction supports use with complex film laminates and foil bags, offering flexibility for different packaging needs.

Performance and Features of the DOZE400TB commercial vacuum sealer

The vacuum pump in this sealer provides a capacity of 20 m³/h, ensuring fast air removal and delivering strong vacuum levels efficiently. The twin sealing bars deliver improved sealing force and even heat application for secure, leak-resistant seals. The programmable control panel allows adjustment of vacuum and sealing times to suit different products, enhancing packaging quality. Ten memory settings further support consistent results for various materials, from thin PE bags to aluminium-laminated types.

Safety and Reliability of the DOZE400TB commercial vacuum sealer

Safety measures include a clearly marked emergency stop button for immediate shutdown, and a reliable earthing system to guard against electrical risks. The vacuum chamber seals automatically to protect the operator during use. Key components such as heating elements and sealing bars are engineered for longevity in continuous industrial operation, with straightforward access for servicing and part replacement. These features support safe, dependable use even in demanding production environments.

Settings and Maintenance for the DOZE400TB commercial vacuum sealer

The DOZE400TB allows you to adjust vacuum time, sealing duration, and cooling period, all set via an intuitive control panel with memory functions. Regular upkeep includes checking oil levels in the vacuum pump, replacing heating elements and Teflon strips as needed, as well as examining sealing bars for signs of wear. Proper maintenance of these parts helps ensure long machine life, steady performance, and minimises the risk of downtime, supporting ongoing productivity.

Environmental Considerations for the DOZE400TB commercial vacuum sealer

By prolonging the shelf life of perishable items, the DOZE400TB commercial vacuum sealer helps reduce food waste and packaging spoilage. Its compatibility with recyclable barrier films and bags encourages sustainable packaging choices. The efficient vacuum system keeps energy use low per cycle, supporting environmentally responsible operations. Businesses using this sealer can strengthen their sustainability profile while meeting operational targets.

Purchase DOZE400TB commercial vacuum sealer

The DOZE400TB commercial vacuum sealer is a valuable asset for improving efficiency and maintaining product standards assurance. With its advanced capabilities, dependable operation, and versatile construction, it stands out as the preferred solution for businesses seeking to enhance their packaging operations. To proceed with your purchase, please select the ADD TO CART button or request a tailored quotation by clicking GET OFFER. Using the DOZE400TB will help optimise your packaging workflow, minimise material wastage, and prolong the freshness of your goods, making it an essential addition to your operations.
