Shrink Machine F7060 – Minimum Product Size: 100×100×30mm, Maximum: 700×600×300mm

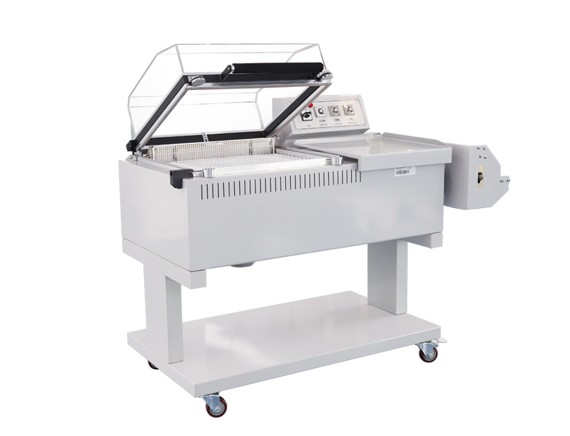

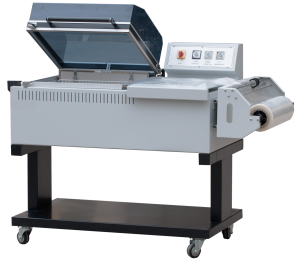

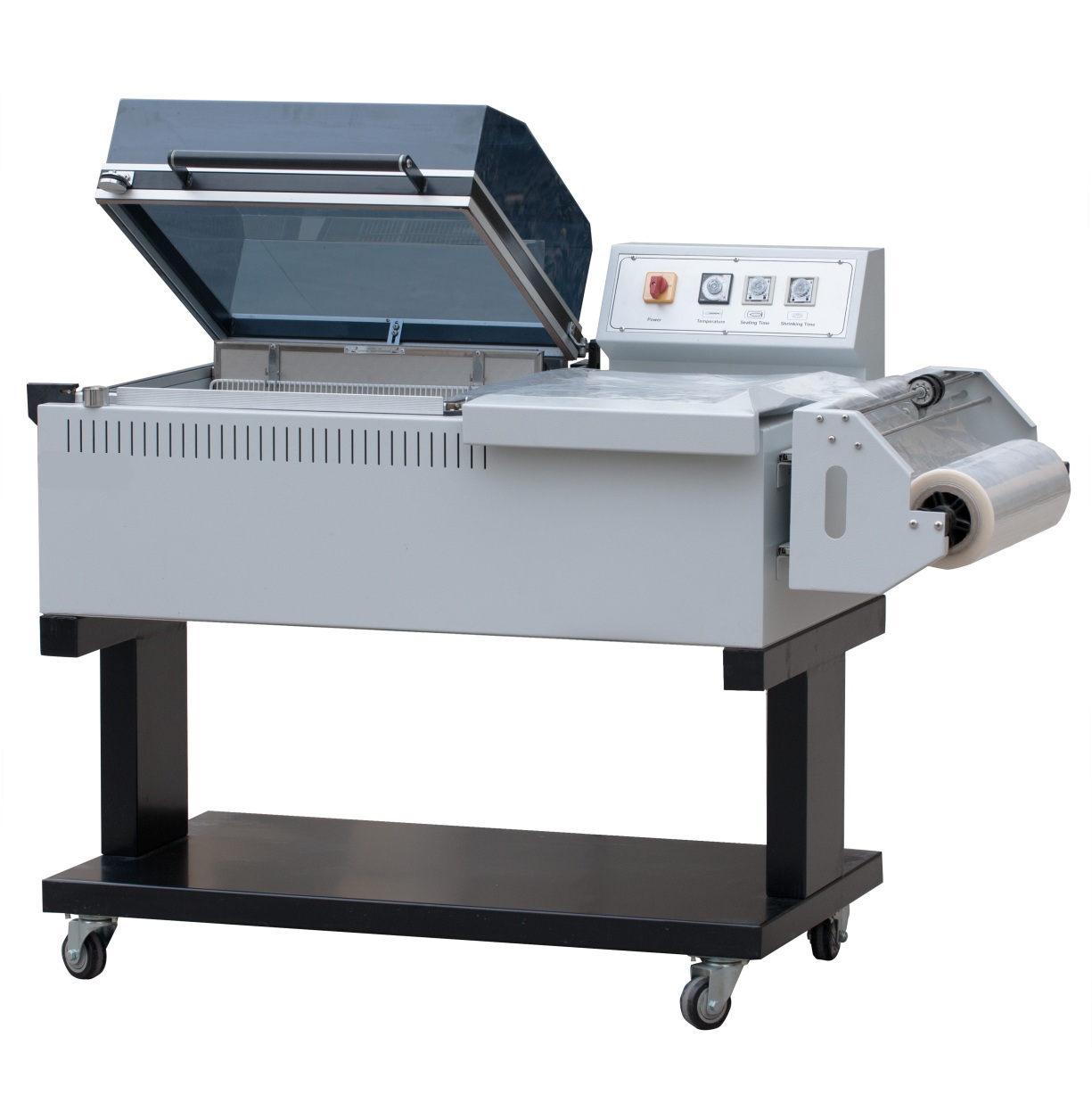

Heat Shrink Machine F7060

The F7060 heat shrink machine is an advanced industrial packaging system that combines sealing and shrinking in one compact unit. It offers businesses an automated packaging process, removing the need for manual bagging and ensuring uniform results for a broad range of uses. This machine is well suited to sectors requiring dependable packaging, including food processing, publishing, logistics, retail supply, and manufacturing. Featuring a maximum sealing area of 700 x 600 mm and capacity for items up to 650 mm in length, it meets the needs of medium and large-scale packaging operations. The power rating is 5.0 kW, supporting continuous use while maintaining energy efficiency. Designed for 110V or 220–240V/50–60Hz mains supply, it achieves a throughput of 500–800 units per hour. The robust 1720 x 950 x 1100 mm frame as well as a 165 kg weight ensure both stability and ease of movement within production settings. Its dual sealing and shrinking functions safeguard products from dust, damp, and damage, enhancing appearance and prolonging shelf life. The F7060 heat shrink machine is therefore a dependable choice for companies seeking improved productivity, cost savings, and consistent packaging standards.

Heat Shrink Machine F7060 demonstration video

▶

Frequently asked questions about the Heat Shrink Machine F7060

1. Which films are compatible with the heat shrink machine?
   The Heat Shrink Machine F7060 works with suitable for use with PVC and POF shrink films. These materials offer secure sealing, high clarity, and durability. POF films are especially appropriate for food and consumer products due to their non-toxic nature.
2. What is the largest package size the heat shrink machine can handle?
   The Heat Shrink Machine F7060 accepts packages up to W+H < 650 mm, W < 580 mm, L < 650 mm, H < 150 mm. This makes it suitable for a range of medium and larger products in different sectors.
3. How efficient is the heat shrink machine in operation?
   The Heat Shrink Machine F7060 is capable of processing 500 to 800 items per hour. Actual throughput will depend on product size, film used, and operator efficiency, but the machine delivers steady performance in industrial environments.
4. What are the electrical requirements for the heat shrink machine?
   The Heat Shrink Machine F7060 runs on a 110V or 220–240V, 50–60Hz supply. It has a 5.0 kW power rating, providing reliable heating and sealing for ongoing use.
5. Is the heat shrink machine safe for operators?
   The Heat Shrink Machine F7060 features a protective sealing hood, safety interlocks, and warning indicators to prevent operation when the cover is open. These measures help to minimise risks associated with high-temperature sealing and cutting.
6. How robust is the heat shrink machine F7060?
   The F7060 heat shrink machine features a 1720 x 950 x 1100 mm frame and a total weight of 165 kg, providing excellent structural integrity. Key elements such as the nickel chrome cutter as well as a stainless steel heating tube contribute to its longevity and dependable operation.
7. Which sectors commonly utilise the heat shrink machine?
   The F7060 heat shrink machine is frequently used in ideal for applications in food and beverage, publishing, logistics, retail packaging, consumer goods, and manufacturing sectors. It is ideal for businesses seeking efficient and consistent packaging processes.
8. What maintenance does the heat shrink machine require?
   The F7060 heat shrink machine should have the sealing blade and shrink chamber cleaned daily, with inspections for lubrication and parts checks every six months. Components such as blades or heating tubes should be replaced as necessary. Regular upkeep supports reliable long-term use.
9. What return on investment can be expected from the heat shrink machine?
   The F7060 heat shrink machine helps to lower labour expenses, boost output, and enhance packaging standards. By removing inefficiencies from manual packaging and minimising product damage, businesses benefit from clear cost savings and improved productivity.
10. How can the heat shrink machine F7060 be obtained?
    The F7060 heat shrink machine may be purchased directly by selecting Add to Basket for standard orders, or by requesting a tailored quotation via Get Offer. This allows organisations to order according to standard needs or bespoke requirements.

Technical Details of Heat Shrink Machine F7060

Return on Investment for Heat Shrink Machine F7060

The F7060 heat shrink machine helps maximise return on investment by reducing reliance on manual labour and boosting productivity. Manual packaging is often slow and inconsistent, leading to higher costs and unnecessary waste. With this equipment, businesses can process 500 to 800 packages per hour, enabling quicker handling of goods. Automation of sealing and shrinking reduces the need for extra staff, directly cutting labour expenses. Consistent packaging quality also means fewer damaged items and better protection during storage and transport. By extending shelf life and ensuring a professional finish, companies can strengthen their market position. The machine’s low energy use relative to output further cuts running costs, while its robust build and long service life mean less frequent replacement or repair. Adopting this solution allows businesses to benefit from greater efficiency, fewer mistakes, and the ability to manage larger order volumes without increasing workforce numbers.

Main Features and Advantages of Heat Shrink Machine F7060

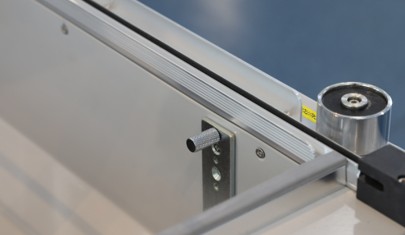

The F7060 heat shrink machine offers a compact footprint with industrial-level performance. Notable features include a clear sealing cover for real-time monitoring of the sealing and shrinking process, allowing for precise adjustments. The machine uses a nickel chrome cutting blade that resists sticking and heat, preventing charring and smoke during use. A stainless steel heating element with built-in heat sinks ensures rapid heating and a long working life. The adjustable maximum product storage height allows for accurate sealing alignment with different product sizes, resulting in improved packaging outcomes. These technical advantages provide benefits such as uniform packaging quality, reduced film wastage, and less downtime. For businesses, this means higher output, better safety, and reliable long-term operation.

Operating Instructions for Heat Shrink Machine F7060

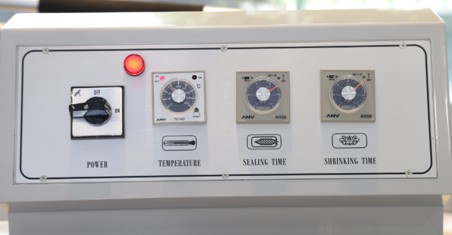

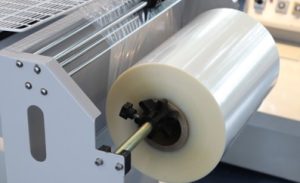

Using the F7060 heat shrink machine involves a straightforward sequence. The operator first switches on the power and sets the shrinking temperature adjustable from 100°C to 150°C, depending on the type and thickness of film. The sealing and cutting cycle adjustable between 0.4 and 0.6 seconds for precise film cutting without damaging the blade. Shrink film is loaded onto the storage rack and guided through the punching device, then laid across the sealing area. With the product placed between the film layers, the operator lowers the protective cover, activating the electromagnetic sealing mechanism. The blade seals the film, and hot air from the built-in fan shrinks the film tightly around the product. Once the cycle is complete, the cover lifts automatically and the operator removes the finished item. This method ensures consistent results while maintaining safety and efficiency.

Applications for Heat Shrink Machine F7060

The F7060 heat shrink machine is ideal for a range of industries needing secure and attractive packaging. It is commonly used for food and drink packaging, printed materials, publishing, gift packaging, consumer electronics, and logistics. Its compatibility with both PVC and POF shrink films offers flexibility for different products. Businesses aiming to streamline warehouse processes or enhance product display in retail settings benefit from its compact build and dependable performance. The machine is especially suitable for medium and large firms handling high daily volumes where efficiency and uniformity are essential. Its ability to accommodate products of various shapes and sizes makes it versatile across multiple sectors.

Construction and Suitability of Heat Shrink Machine F7060

The F7060 heat shrink machine features a 1720 x 950 x 1100 mm frame and has a weight of 165 kg, offering a combination of strength and manoeuvrability. Its design brings together sealing and shrinking chambers in a single compact unit, reducing the space needed. The machine works with suitable for use with PVC and POF shrink films, allowing businesses to choose the best material for their needs. Adjustable product storage height ensures accurate alignment for different item sizes, supporting a variety of packaging tasks. The transparent cover allows operators to visually check the process and make quick adjustments if necessary. With a sealing area up to 700 x 600 mm, the machine is suitable for medium and large products without the need for separate equipment.

Output and Features of Heat Shrink Machine F7060

The F7060 heat shrink machine delivers high output, processing 500–800 units per hour with reliable consistency. Its nickel chrome cutting blades work without charring, ensuring dependable operation during extended shifts. The stainless steel heating element maintains steady heat, reducing downtime between cycles. Adjustable settings for sealing and shrinking allow adaptation to different films and product thicknesses. Features such as quick heat-up, even sealing pressure, and uniform shrinkage ensure that items are securely wrapped, protecting them from dust, moisture, and external harm. These qualities make the F7060 a strong and efficient option for businesses seeking sustained productivity.

Safety and Robustness of Heat Shrink Machine F7060

The F7060 heat shrink machine meets current safety requirements, reducing operational hazards. A protective sealing hood prevents accidental contact with the heated blade, lowering the risk of injury. Warning indicators and safety switches ensure the blade only operates when the cover is correctly closed. The unit is engineered for continuous use without overheating, thanks to its robust stainless steel heating system. Its build quality resists mechanical wear, extending its service life. The durable construction allows businesses to rely on consistent results with minimal servicing or part changes. This provides both operator safety and lasting dependability, which are crucial for industrial packaging.

Adjustment and Servicing of Heat Shrink Machine F7060

Regular upkeep is vital for maintaining the long-term efficiency of the F7060 heat shrink machine. Daily care includes wiping the work surface, shrink chamber, and sealing blade with a dry cotton cloth to avoid film residue build-up. Every six months, a full inspection should be carried out, including lubricating motor parts and checking the sealing blade and Teflon cloth. Worn sealing blades, Teflon strips, or heating elements should be replaced after prolonged use. The machine is designed for easy adjustment of temperature, sealing time, and shrink time, ensuring accurate operation for different films. Following maintenance routines reduces downtime and increases productivity, giving businesses a dependable long-term solution.

Order Heat Shrink Machine F7060

The F7060 heat shrink machine is a robust industrial solution for improving packaging processes with reliable performance, efficiency, and lower running costs. It is a preferred option for businesses looking to enhance product appearance, safeguard goods, and maintain a competitive edge in demanding sectors. To purchase this machine, use Add to Basket for a straightforward order or request a tailored quote by selecting Get Offer. This allows businesses to obtain solutions that match their specific operational needs. With its proven reliability, sturdy build, and measurable efficiency improvements, the F7060 represents a sound investment in industrial packaging.
