Box Wrapping Machine P409

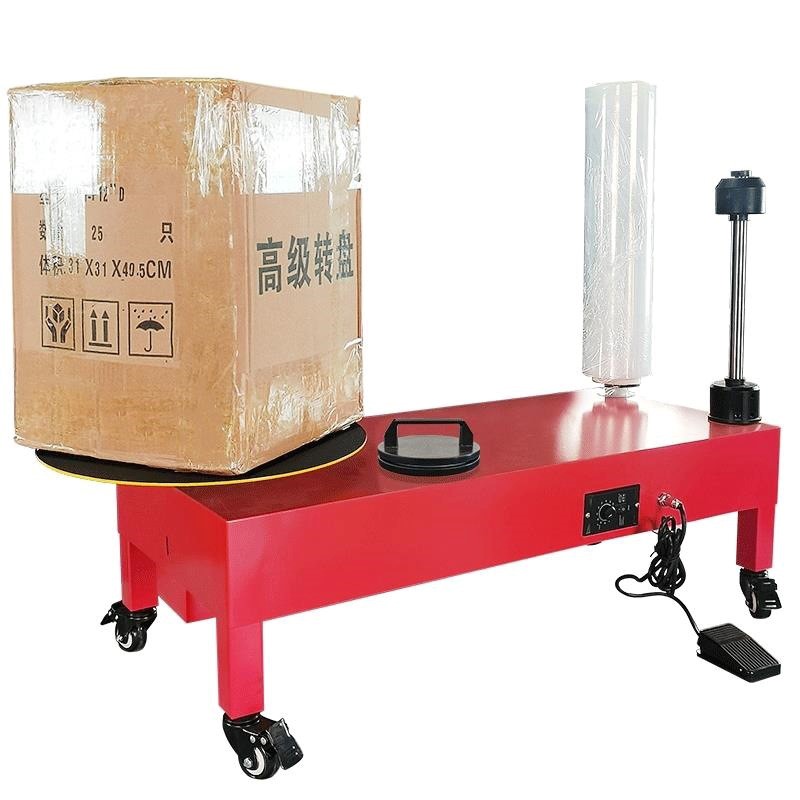

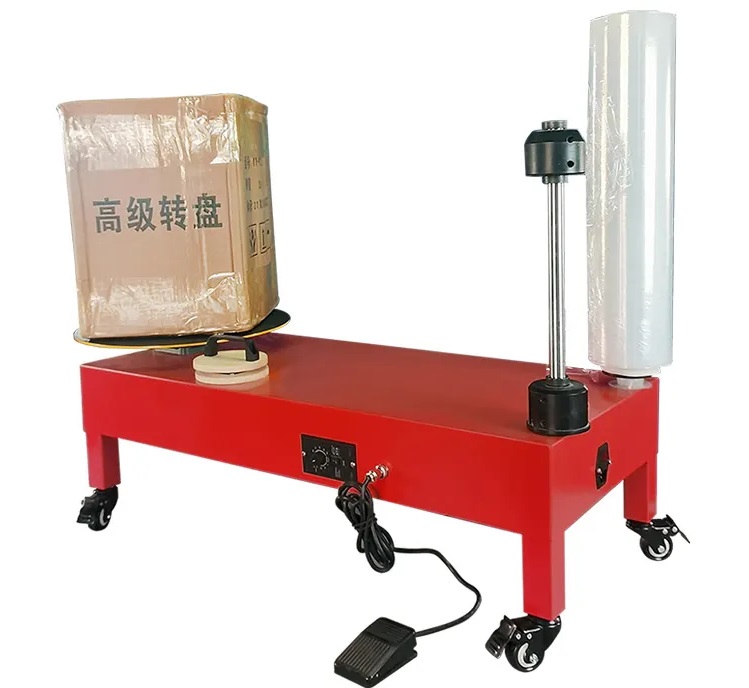

P409 box wrapping machine

The P409 is a box wrapping machine where the carton rotates on the turntable and draws stretch film from a roll on the shaft, ensuring an even and secure wrap in just a few turns.

The turntable measures 600 mm in diameter, features a rubberised surface, and supports loads up to 70 kg. Rotation speed reaches 30 rpm, adjustable via a control knob, and the table is operated using a foot pedal.

The film roll is mounted on a vertical shaft, with a height of 450 mm for smaller cartons or 850 mm for taller ones.

This machine plugs into a standard 220 V socket and uses 25 W of power. It is fitted with four lockable castors, measures 1070 mm in length and weighs 30 kg.

P409 box wrapping machine in packaging operations

The P409 is ideal for warehouses, e-commerce fulfilment, logistics centres and production lines where individual cartons or small batches require wrapping for storage or dispatch. It is suitable for packing items such as electronics, books, spare parts, textiles and boxed consumer goods. The machine integrates into manual or semi-automatic packing stations and is commonly positioned near packing benches or dispatch points. Its compact footprint and lockable castors make it easy to relocate between work areas as required.

The P409 is intended for cartons and rectangular parcels that stand securely on the turntable. It is not suitable for unstable, loose or highly irregular items. The operator wraps one box at a time, making it appropriate for small to medium packing runs or for re-packing returned items.

Technical specifications

P409 box wrapping machine demonstration video

▶

How the box wrapping machine works

• Consistent wrapping. The carton rotates, applying the film evenly at a steady tension throughout.
• Hands remain free. Use the foot pedal to control the turntable, so both hands can guide the film and the carton.
• Suitable for various sizes. Choose between 450 mm and 850 mm shaft heights for low or tall cartons.

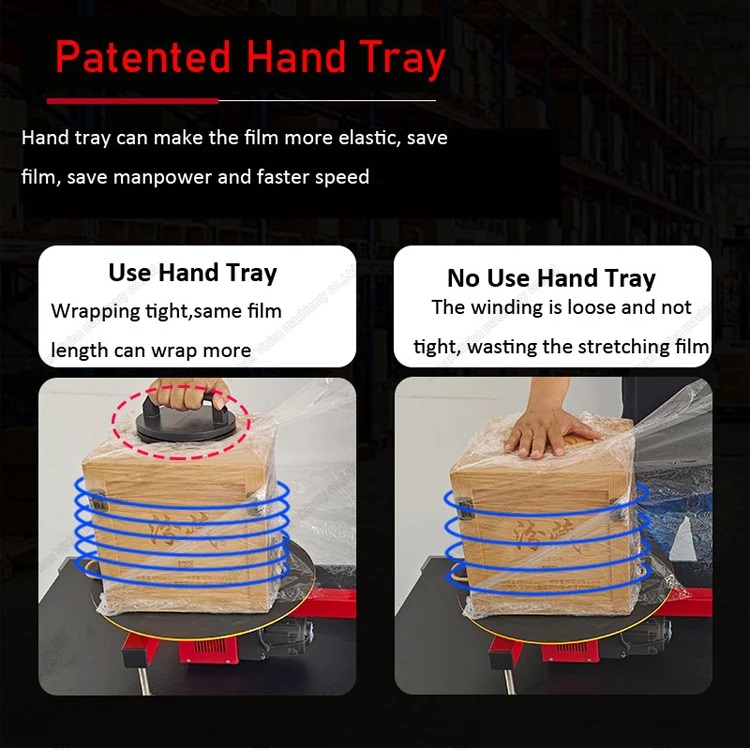

• Carton held securely. The table’s rubber surface and a hand grip keep the carton stable as it turns.
• Easy to position. 220 V, 25 W, and fitted with wheels for moving to your packing area.
• CE compliant. Manufactured to Machinery Directive 2006/42/EC and EN 415-10 standards.

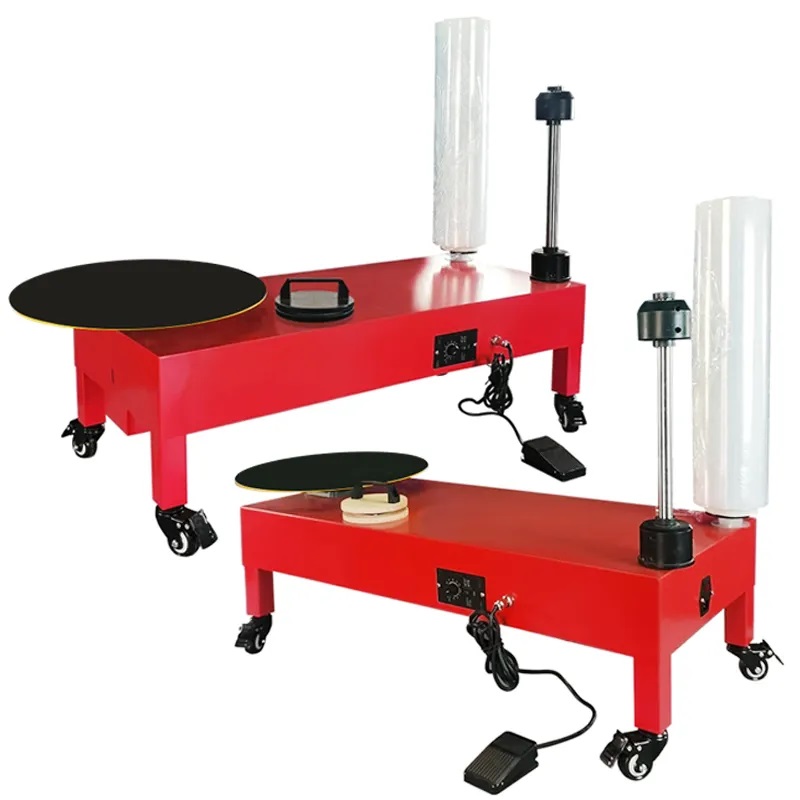

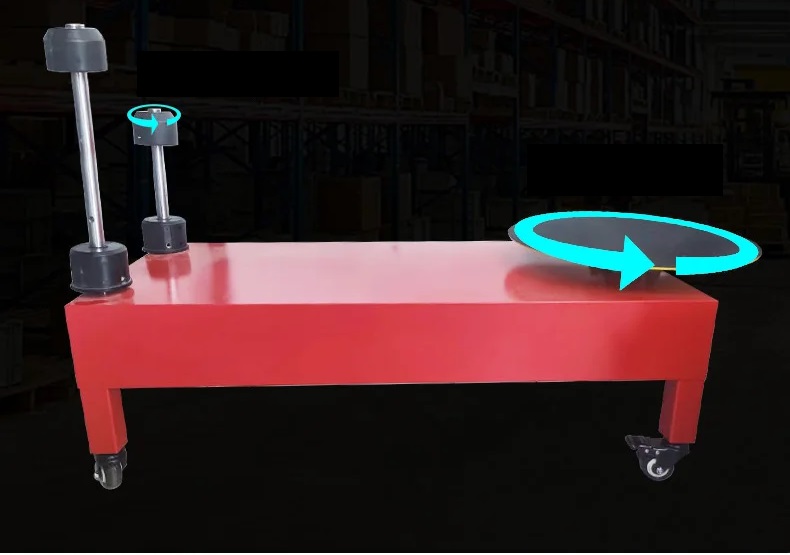

Turntable, film shaft and foot pedal

• Box wrapping machine with 600 mm diameter turntable
• Carries up to 70 kg
• Variable speed up to 30 rpm, adjusted by dial
• Foot pedal for start and stop
• Film shaft height: 450 mm or 850 mm
• Compatible with PE stretch film
• Turntable with rubber top, plus hand grip

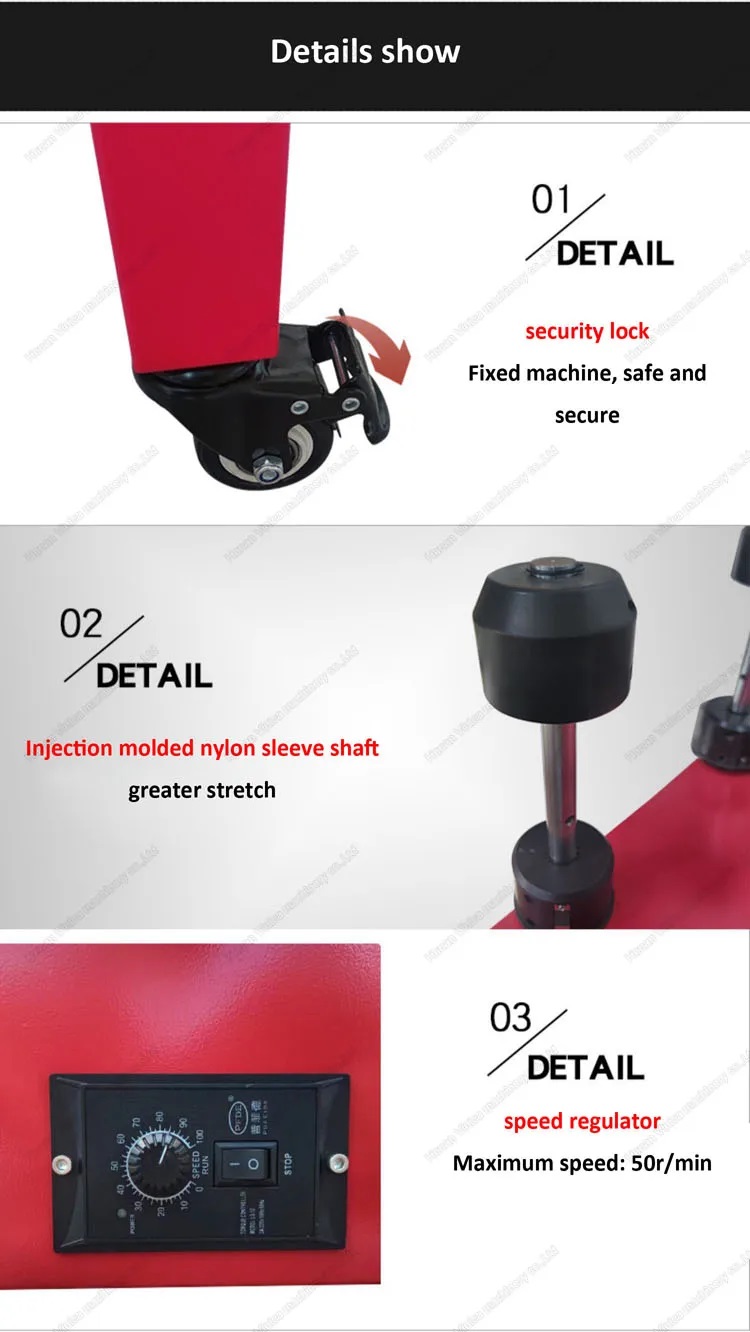

• Four wheels, all lockable
• 220 V, 50–60 Hz, 25 W
• Machine size: 1070 × 420 × 260 mm, weight: 30 kg

Operating the P409

1. Place the film roll onto the shaft and secure the film end to the box.
2. Position the box in the centre of the turntable and hold it steady with the hand grip.
3. Adjust the speed using the control knob.
4. Step on the foot switch: the turntable rotates and the film wraps around the box.
5. Press the switch again to stop, cut the film, and remove the wrapped box.

Installation and maintenance

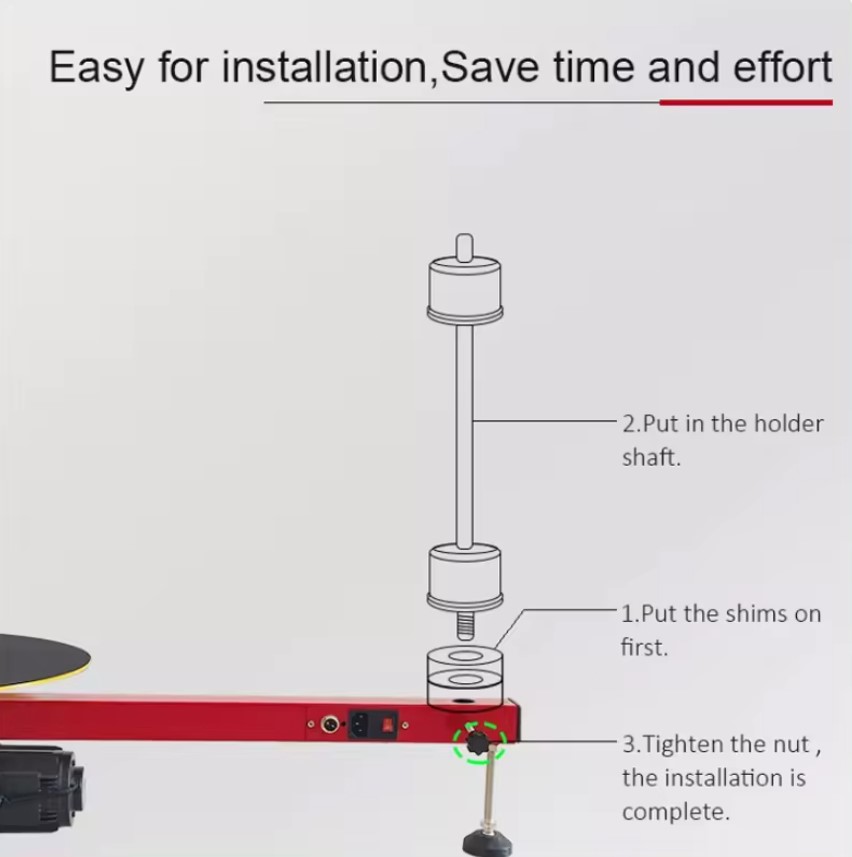

• Assembly. Attach the four castors, the film shaft, the turntable and the foot switch; the machine is then ready for use.
• Shaft height. Use the 450 mm shaft for shorter boxes and the 850 mm shaft for taller ones.
• Speed. Begin slowly with light or tall boxes, and increase the speed once they are stable.
• Weight. Do not exceed 70 kg on the turntable.
• Stability. Lock the castors before starting to wrap.
• Maintenance. Keep the rubber surface of the turntable clean to prevent boxes from slipping.

Before purchasing

The price is listed on this page. Please check the following before purchasing:

• Your boxes. Maximum 70 kg; turntable diameter 600 mm.
• Height. Film shaft 450 or 850 mm, suitable for low or tall boxes.
• Film. PE stretch film supplied on a roll compatible with the shaft.
• Power supply. Standard 220 V socket, 25 W.
• Space required. Allow approximately 1070 × 420 mm floor area, plus space to move around the box.

P409 box wrapping machine: choosing and integrating

Typical errors include using film rolls that are too large or too tight for the shaft, wrapping unstable or overhanging boxes, or operating the machine on an uneven floor. To prevent film snapping or uneven wrapping, ensure the film tension is correct and the box is centred and held securely.
