AUTO&FOLD-5050 Automatic Box Taper for Kraft/BOPP Tape – Automatic Height & Width Adjustment with Top-Flap Closure

AUTO&FOLD-5050 automatic carton sealing machine with self-adjustment for each carton

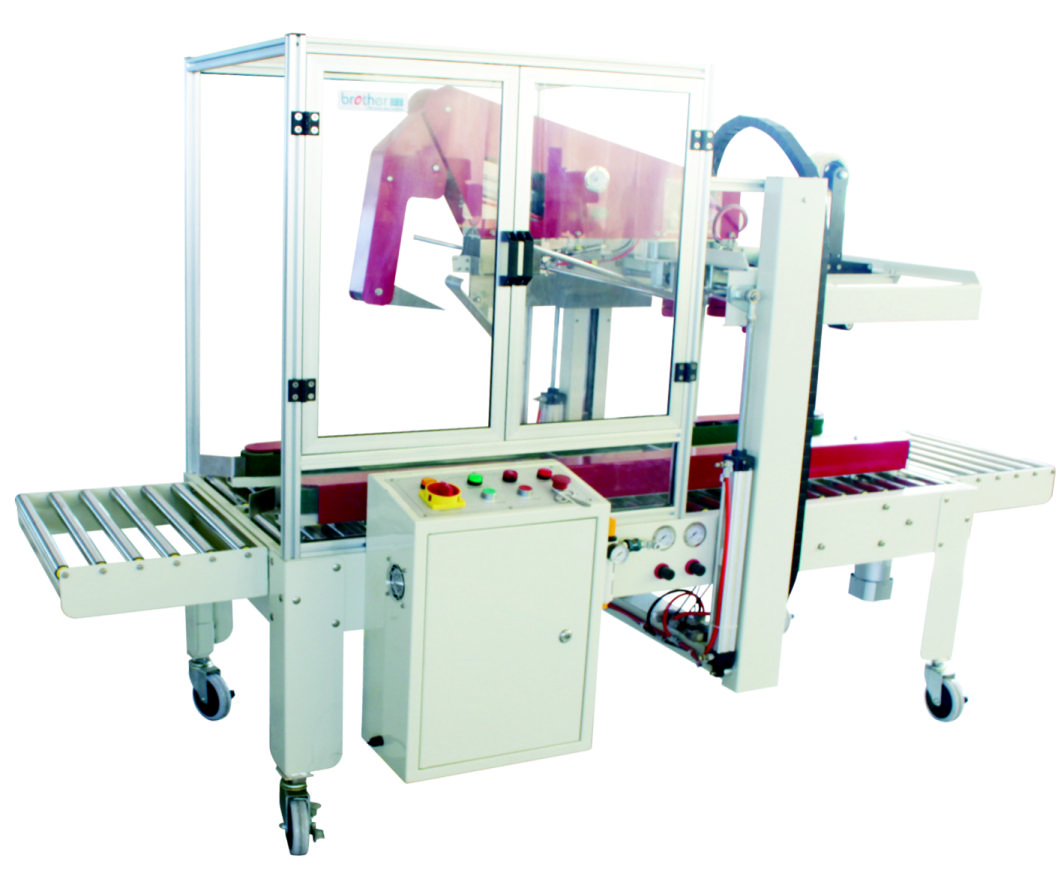

The AUTO&FOLD-5050 is an automatic carton sealing machine that automatically sets itself to the dimensions of each carton: pneumatic cylinders move the side belts to the correct width and lower the upper tape head to the appropriate height. The machine folds the front, rear and both side flaps, then seals the top and bottom in a single operation, with the side belts transporting the carton through at 16 m/min.

It handles cartons from L200 × W150 × H150 mm up to L600 × W500 × H500 mm and is compatible with Kraft or BOPP adhesive tape 48–60 mm wide. As the width and height adjust to each carton, different sizes can be processed consecutively.

The machine operates on single-phase 220 V, 50–60 Hz and consumes 200 W; the size adjustment and flap folding functions are powered by compressed air at 6 bar (6 kg/cm²) with a usage of 100 Nl/min. A safety enclosure with doors covers the folding section, and the control panel includes start and stop controls, an emergency stop and pressure gauges.

It seals cartons at the end of a packing bench or in-line after a case erector and conveyor. The working height can be set between 600 and 850 mm, allowing alignment with upstream and downstream conveyors.

Where the AUTO&FOLD-5050 automatic box taper is used

The AUTO&FOLD-5050 is suitable for use in distribution centres, e-commerce fulfilment, contract packing, electronics, food and drink, pharmaceuticals, printing and logistics. It is ideal for operations where carton dimensions change regularly and where reliable, hands-free sealing is required. Typical applications include sealing shipping cartons after picking and packing, closing product cases for storage or onward movement, and preparing mixed-size consignments for palletising or conveyor handling.

Technical details

How automatic size adjustment benefits your packing process

• No manual resetting for different sizes. Width and height are automatically set for each box, allowing mixed sizes to be processed continuously without stopping to adjust by hand.
• Flaps folded automatically. The mechanism closes the front, rear and side flaps before the box reaches the taping units.
• Seals top and bottom in a single operation. Both upper and lower tape heads apply tape to each side of the box simultaneously.
• Protects the box. Cylinder pressure can be regulated, ensuring lightweight boxes are not damaged.
• Integrates with your line. Adjustable working height from 600–850 mm and automatic infeed enable operation after a case erector or conveyor.
• Standard electrical supply. Operates on single-phase 220 V, 200 W; all other functions use compressed air.

Controls, pneumatic system and safety features

• Automatic adjustment of width and height using pneumatic cylinders
• Automatic flap folding: front, rear, then side flaps
• Top and bottom tape heads with adjustable tape leg
• Side belt drives, 16 m/min
• Pressure regulators for lifting cylinder, side belts and flap folding unit
• Micro switch for setting carton length to control rear-flap folding
• Control panel featuring start and stop buttons, emergency stop, and pressure indicators
• Protective safety enclosure with doors covering the folding section
• Height-adjustable legs for a working height between 600 and 850 mm; fitted with castors
• Air filter equipped with water separator and oil lubricator

Operating instructions for the AUTO&FOLD-5050 carton sealing machine

1. Connect to single-phase 220 V power and supply compressed air at 6 bar; empty the water separator and check the oil level in the lubricator.
2. Insert a roll of Kraft or BOPP tape, 48–60 mm wide, into both the upper and lower tape heads, centre it, and thread it with the adhesive side facing outward.
3. Adjust the pressure settings for the side drive belts, lifting cylinder, and flap folding mechanism using the regulators.
4. Open the folding rods to match the width of your cartons, ensuring both sides are symmetrical, and set the length switch for the required carton length.
5. Press ON and feed the carton in with the top flaps open and upright. The belts will draw it in, the machine will close the flaps in sequence, and apply tape to both the top and bottom.
6. Remove the sealed carton at the outfeed; you may now process a carton of a different size.

Operator tasks and workflow with the AUTO&FOLD-5050

To prevent jams or poor sealing, operators should check that cartons are within the specified size range, not overfilled, and that the flaps are properly folded. Regular cleaning of the tape heads and drive belts, along with draining the water separator, will help ensure reliable operation.

Adjustments, routine maintenance, and troubleshooting

• Cylinder operating pressure. Set as low as the carton strength permits – excessive pressure may crush lightweight cartons.
• Minimum carton length. Adjust the micro switch along the slot in the frame to alter the timing of the rear flap folding.
• Tape tension too high or too low. Adjust the main spring on the tape head; thicker tapes such as Kraft require increased tension.
• Tape leg too long or too short. Adjust the blade support for the front leg and the limit block for the rear leg accordingly.
• Poor cut or creased tape. Replace a blunt blade or fit it correctly; clean the rubber roller and ensure the tape holder is secure.
• Maintenance. Always disconnect power and air before carrying out any work. Regularly drain the water separator and use only pneumatic oil in the lubricator; clean the cylinder rods; lubricate the screw rods and chain every three months; keep the blade clean and oiled, and ensure the machine remains dry. The belts may become slightly tighter over time – this is normal.

Choosing and preparing for the AUTO&FOLD-5050 automatic box taper

Before choosing the AUTO&FOLD-5050, confirm that your carton sizes are within the machine’s specified range and that your tape type and width are compatible. Check the available floor space and ensure you have access to a 220 V single-phase power supply and compressed air at 6 bar. The machine should be set up on a level surface with enough space for loading cartons and changing tape rolls.

Frequent issues include using cartons with damaged or uneven flaps, running tape that is too thick or thin for the set tension, or forgetting to adjust the pressure regulators for lightweight cartons. To minimise downtime, keep spare blades and tape rolls available, and arrange regular servicing for the pneumatic and drive systems. If sealing cartons of very different sizes in succession, check that both the smallest and largest cartons will pass through without manual adjustment.

Points to consider before purchasing a carton sealing machine with automatic size adjustment

The price is displayed on this page. Several factors determine whether this machine is suitable for your cartons: please review them before requesting a quotation, or provide the details to us and we will discuss them with you.

• Carton dimensions. Accepts cartons from L200 × W150 × H150 mm up to L600 × W500 × H500 mm. Let us know the sizes you use and we will confirm compatibility.
• Varied or single carton sizes. AUTO&FOLD-5050 automatically adjusts to each carton. For operations using only one carton size, RUBBER offers the same function with manual hand-wheel adjustment.
• Carton requirements. Only dry, clean, undamaged corrugated cartons are suitable; cartons with a plastic coating cannot be sealed with tape.
• Tape specification. Kraft or BOPP tape, 48–60 mm wide, used one width and thickness at a time.
• Electrical and air supply. Requires a single-phase 220 V, 50–60 Hz socket and compressed air at 6 bar, 100 Nl/min.
• Space requirements. The machine is approximately 1780 × 1080 × 1400 mm and weighs around 280 kg; supplied in a crate measuring 1920 × 1100 × 1750 mm, total weight about 310 kg.
