ASTRA High-speed Automatic Strapper 9-12mm

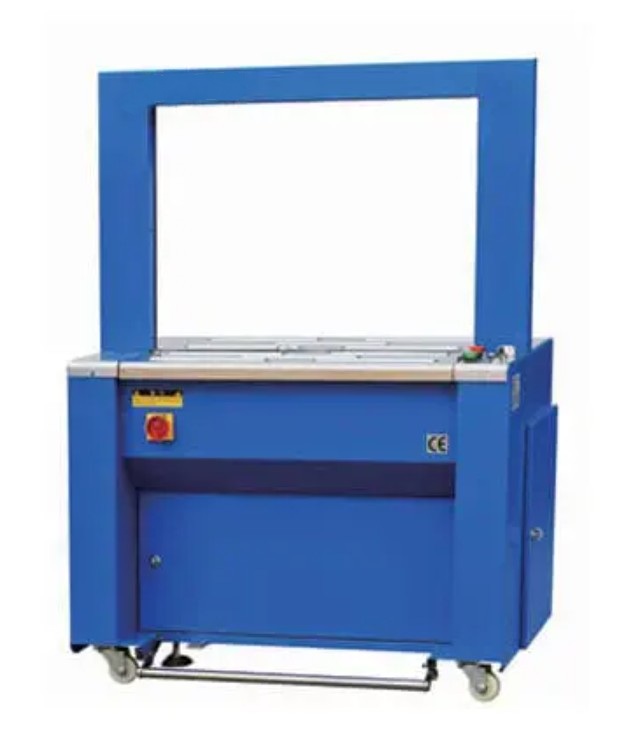

ASTRA automatic strapper for parcels and cartons

ASTRA is an automatic strapper: simply place your parcel on the table beneath the arch and press the start button. The machine automatically feeds the strap around the item, applies tension, heat-seals the strap and trims it. The operator does not need to thread the strap manually or handle the weld.

It operates with 9–12 mm wide PP strap from a reel with a 200 mm core. The strap is heat-sealed at a preset temperature, and tension is adjusted via a dial, from gentle for cartons to firm for heavier packs.

The arch is available in three dimensions: 600 × 400 mm, 800 × 600 mm or 1000 × 800 mm, which determines the maximum parcel size that can be strapped. The minimum package size is 80 mm wide by 30 mm high. The table height is 800 mm, matching standard conveyors and packing benches.

Each cycle is completed in less than two seconds, so the strapper keeps pace with the packing line. The machine is constructed on a steel chassis, measuring 1250 × 600 × 1510 mm and weighing approximately 185 kg, fitted with castors and floor-lock bolts. It operates on either single-phase 220 V or three-phase 380 V power supply.

ASTRA automatic strapper: uses and integration

The ASTRA automatic strapper is widely used in logistics, manufacturing, warehousing, e-commerce fulfilment, pharmaceuticals and automotive assembly. It is ideal for high-throughput packing lines where parcels, cartons or pipe bundles require reliable strapping at a steady rate. The strapper is usually positioned at the end of a conveyor, at a packing point or within a dedicated strapping area.

Technical details

How the strapper improves your packing process

• One button per strap. The strapper automatically feeds, tensions, seals and cuts the strap; the operator simply positions and removes the parcel.
• Cycle time under two seconds. Your packing line keeps moving, even with continuous use throughout the day.
• Consistent tension every cycle. Set the tension once on the dial and it remains constant, so light boxes are protected and heavy loads are secure.
• Arch sized for your goods. Choose from 600 × 400 mm, 800 × 600 mm or 1000 × 800 mm, depending on your load dimensions.
• Standard conveyor height. The 800 mm table height aligns with conveyors and packing benches.
• Stable and mobile. Fitted with castors for easy movement and floor bolts to secure the strapper during operation.

Controls, arch options and safety features

• Automatic operation with 9–12 mm PP strapping
• Arch sizes: 600 × 400 mm, 800 × 600 mm or 1000 × 800 mm (W × H)
• Minimum pack size: 80 mm wide, 30 mm high
• Cycle time less than 2 seconds
• Heat-seal weld, heater temperature preset at the factory
• Tension control dial on the panel, maximum tension exceeds 90 kg
• Single-button strap insertion

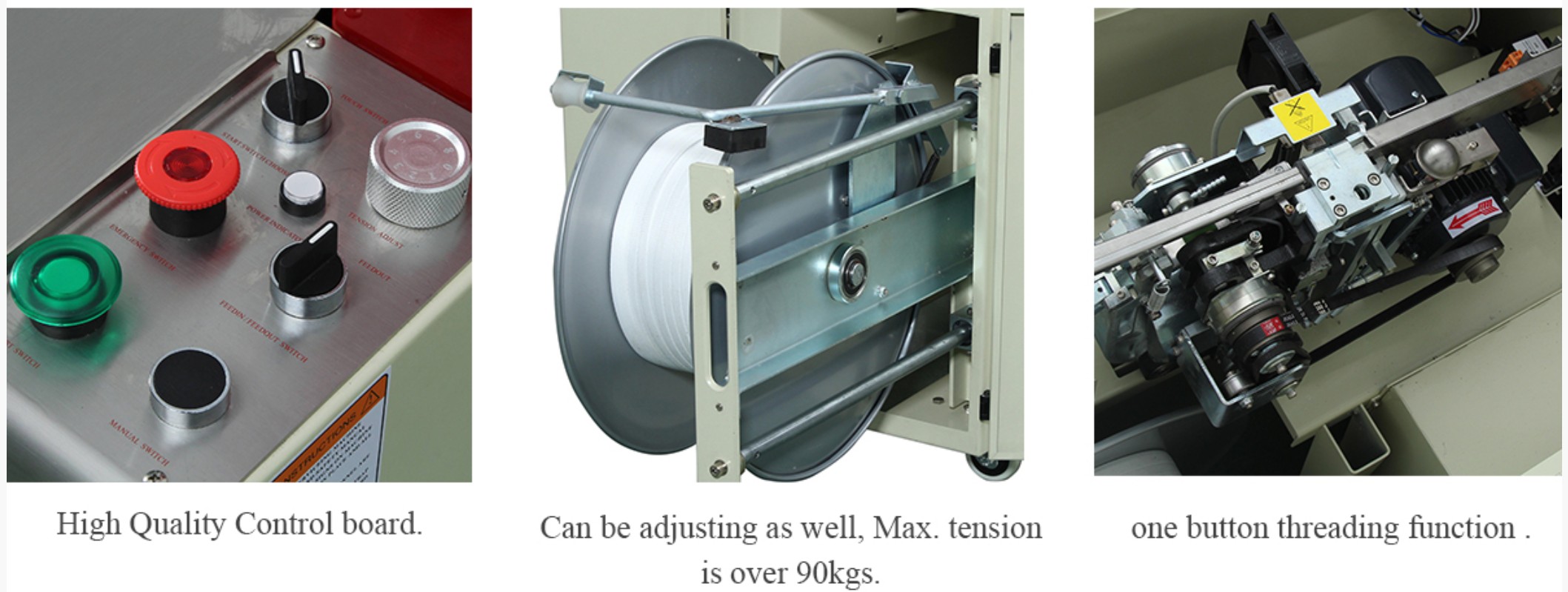

• Green start button, red stop button, black jog for sealer and reverse feed for strap
• Strap reel with 200 mm core located beneath the table
• Motor automatically switches off 15 seconds after the last operation
• Steel chassis on castors with floor-fixing bolts, table height 800 mm
• Single-phase 220 V or three-phase 380 V, 50–60 Hz, 5 A

How to operate the ASTRA strapping machine

1. Fit the strap coil onto the reel under the table and feed the strap into the machine until the start button illuminates.
2. Switch on the machine and allow the heater to reach temperature; the smoke extraction fan runs while the machine is powered.
3. Adjust the strap tension using the dial: use a lower setting for cartons, higher for heavier items.
4. Position your package on the table beneath the arch and press the green start button.
5. The machine feeds the strap around the package, applies tension, heat-seals and cuts it. Remove the package; if unused for 15 seconds, the motor stops automatically.

Settings and maintenance

• Tension. Adjust the tension dial to your preferred setting, higher numbers give greater tension; maximum is over 90 kg.
• Weld temperature. Factory-set for the strap we supply, normally no adjustment required.
• Strap width. Designed for 9–12 mm strap. Using a different width requires changing several components, so please confirm your strap width before ordering.
• Strap out of guide. Use the reverse feed switch to withdraw the strap and re-thread, or use the jog switch to return the sealer to its home position.
• Maintenance. Always switch off the machine before maintenance. Keep the strap path clean; the machine does not require lubrication and the feed rollers must remain dry and free from oil.

Before purchasing a strapping machine

Prices are displayed on this page. A few key details determine which model is right for your packaging: please check these before requesting a quotation, or send them to us and we will review them with you.

• Package size. The arch size sets the maximum package: 600 × 400 mm, 800 × 600 mm or 1000 × 800 mm. The minimum is 80 mm wide by 30 mm high.
• Strap. PP strap, 9–12 mm wide, supplied on a 200 mm core coil.
• Speed. Each cycle takes less than 2 seconds.
• Power supply. Operates on either single-phase 220 V or three-phase 380 V, 50–60 Hz, 5 A.
• Dimensions. The strapper is 1250 × 600 × 1510 mm, with a table height of 800 mm and an approximate weight of 185 kg.
