RUBBER Automatic Box Taping Machine 48–60mm (Kraft or BOPP Tape) – 16m/min – Maximum Carton Size: W500×H500mm – Minimum Carton Size: W120×H120mm

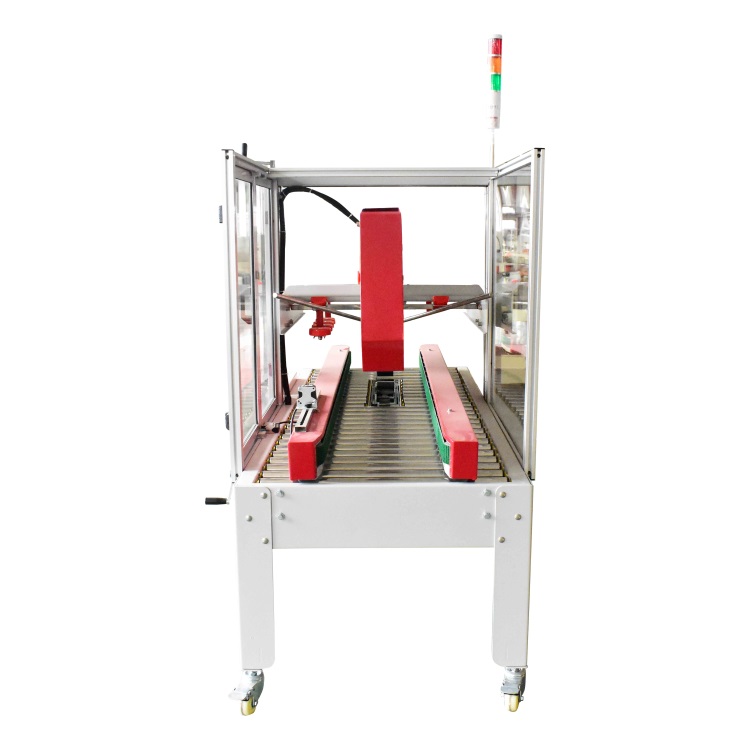

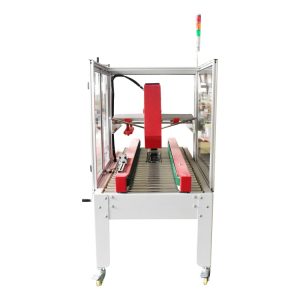

RUBBER automatic carton sealer: folds upper flaps and applies tape to both top and bottom surfaces

RUBBER is an automatic carton sealer that closes the top flaps of cartons automatically: a sensor detects the carton, the flap folding mechanism turns in the front, rear and both side flaps, and the side belts convey the carton through the upper and lower tape heads, applying tape to both the top and the base in one pass. The belts operate at 16 metres per minute, so there is no need to hold the flaps down by hand.

It handles cartons from W120 × H120 mm up to W500 × H500 mm and takes Kraft or BOPP tape 48–60 mm wide. Width and height are adjusted using hand wheels, making the machine ideal for batches of cartons of the same size.

The machine operates on single-phase 220–240 V, 50–60 Hz and uses 240 W; the flap folding unit is pneumatic, so compressed air is also required. A clear safety guard with doors encloses the folding and taping area, and an emergency stop is fitted to the frame.

You can use the machine on its own at the end of a packing bench, or integrate it into a line following a case erector and conveyor: the carton enters, is closed and taped, and exits at the other end.

Where the RUBBER automatic carton sealer is used in production

The RUBBER automatic carton sealer is suitable for businesses packing products in standard corrugated cartons, including the food and drink sector, electronics, household items, textiles and light industry. It is commonly employed to close and seal filled cartons after manual or automated packing, prior to palletising or placing in storage.

Cartons that are misshapen, overpacked or have damaged flaps may not seal properly and could lead to jams or poor tape application. The operator should keep an eye on the tape level.

Technical details

RUBBER carton sealer in operation

▶

How the automatic flap folder improves your packing process

• Hands-free flap closure. The folder automatically folds the front, rear, and side flaps, so there is no need to hold the carton closed during sealing.
• Seals top and bottom in a single pass. Both tape heads apply tape to the upper and lower sides of the carton simultaneously.
• Consistent speed. Side belts move each carton at 16 m/min, ensuring the tape length is uniform on every box.
• Handles a variety of carton sizes. Accepts cartons from W120 × H120 mm up to W500 × H500 mm, adjusted once using the hand wheels.
• Suitable for integration. Cartons are fed automatically, allowing the machine to operate after a case erector or conveyor without requiring an operator.
• Standard electrical supply. Operates on single-phase 220–240 V, 240 W – no need for a three-phase connection.

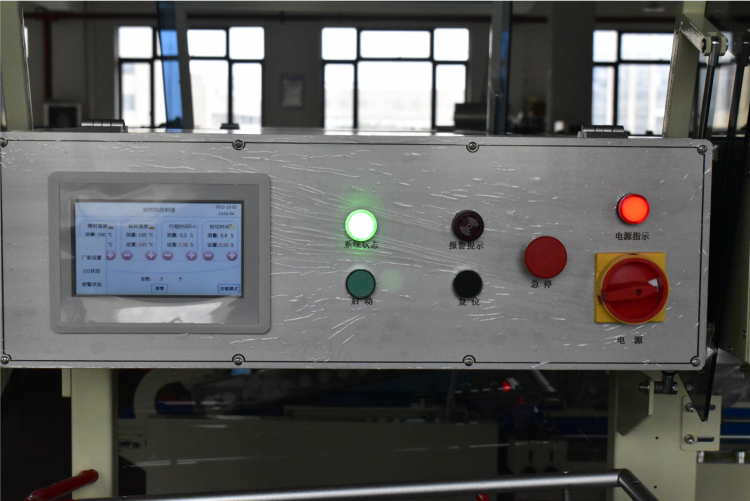

Control system, drive mechanism and safety features

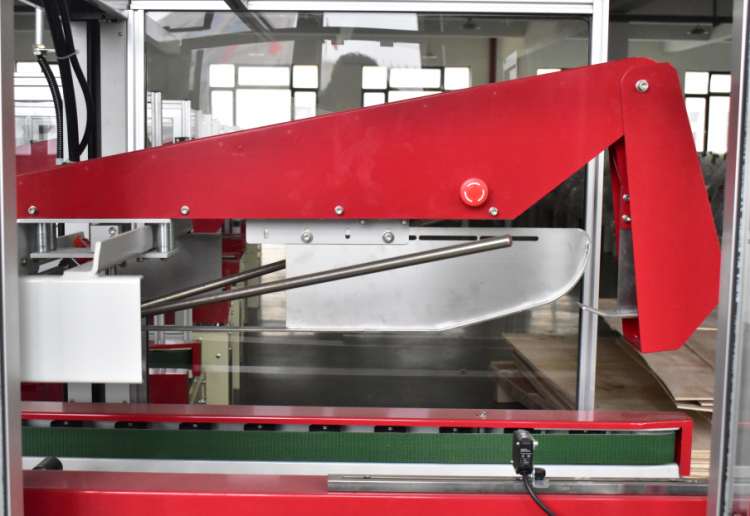

• Automatic top flap folder: folds the front flap, then the rear, followed by the side flaps
• Interchangeable upper and lower tape head cassettes
• Side drive belts, 16 metres per minute
• Width and height adjusted using hand wheels
• Photoelectric sensor identifies the carton and activates the flap folder
• Flap folder operated by pneumatic cylinder, complete with air filter and pressure regulator
• Clear safety enclosure with doors above the folding and taping section

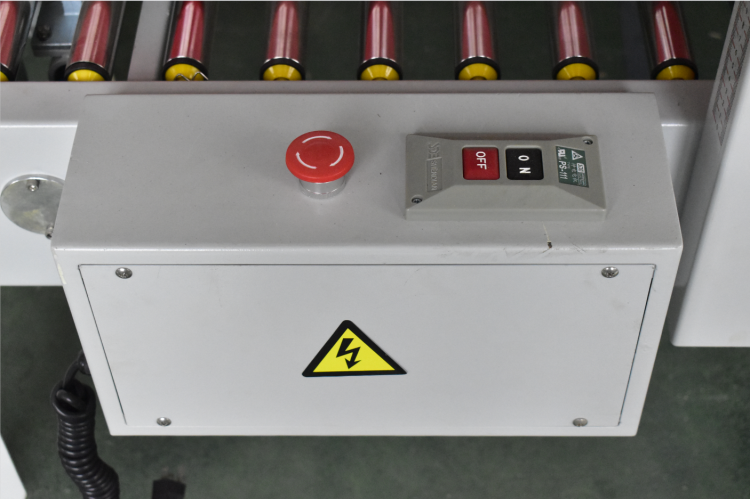

• Emergency stop button mounted on the frame
• Legs allow working height adjustment over 350 mm range; fitted castors for repositioning
• Tape overlap at carton ends adjustable from 5 to 50 mm

Operating instructions for the RUBBER box taping machine

1. Connect to single-phase 220–240 V supply and compressed air; ensure the air filter is drained of water.
2. Adjust the side belt width and upper tape head height to match your carton using the hand wheels.
3. Place a roll of Kraft or BOPP tape, 48–60 mm wide, into both the upper and lower cassettes and centre it.
4. Press the ON button to start the side drive belts.
5. Insert the carton with the top flaps open and facing upwards. The sensor triggers the folder, the flaps are closed in sequence, and the carton passes through the tape heads.
6. Remove the sealed carton at the outfeed. If the carton size changes, readjust the width and height settings.

Tape heads: maintenance and troubleshooting

• Tape applied too tightly or too loosely. Adjust the pull spring tension on the tape head; thicker tapes such as Kraft require greater tension.
• Uneven tape cut. The blade may be blunt or incorrectly fitted: reverse or replace as needed.
• Tape overlap too long or too short. Adjust the blade support for the front overlap and the limit block for the rear overlap.
• Tape creases or shifts to one side. Clean the rubber roller, adjust the tape holder or its spring, and ensure the tape sits close to the carton.
• Pneumatic unit. Regularly empty water from the air filter and keep the lubricator topped up with pneumatic oil; wipe dust from the cylinder rod.
• Servicing. Always disconnect the power and air supply before carrying out any work. Lubricate the adjustment screws every three months, keep the blade clean and oiled, and ensure the machine remains dry. The side belts will gradually tighten over time – this is normal.

Before purchasing an automatic carton sealing machine

The price is displayed on this page. A few key details determine whether the machine is suitable for your cartons: please check these before requesting a quotation, or send them to us and we will review them with you.

• Carton dimensions. From W120 × H120 mm up to W500 × H500 mm. Provide us with the length, width, and height of your cartons and we will confirm compatibility.
• Single or multiple sizes. RUBBER is manually adjusted for each carton size. If your cartons vary in size, the AUTO&FOLD-5050 model automatically sets the width and height.
• Cartons. Dry, clean, undamaged corrugated cartons; cartons with a plastic coating cannot be sealed with tape.
• Tape. Kraft or BOPP tape, 48–60 mm wide, one width and thickness at a time.
• Electrical and air requirements. Requires a single-phase 220–240 V, 50–60 Hz socket and compressed air for the flap folding unit.
• Space required. The machine is approximately 1780 × 950 × 1400 mm and weighs around 240 kg; it is supplied in a single crate measuring 1920 × 1000 × 1640 mm, with a total weight of about 330 kg.
