Automatic Wrapper SMARTWRAP X20 2000kg

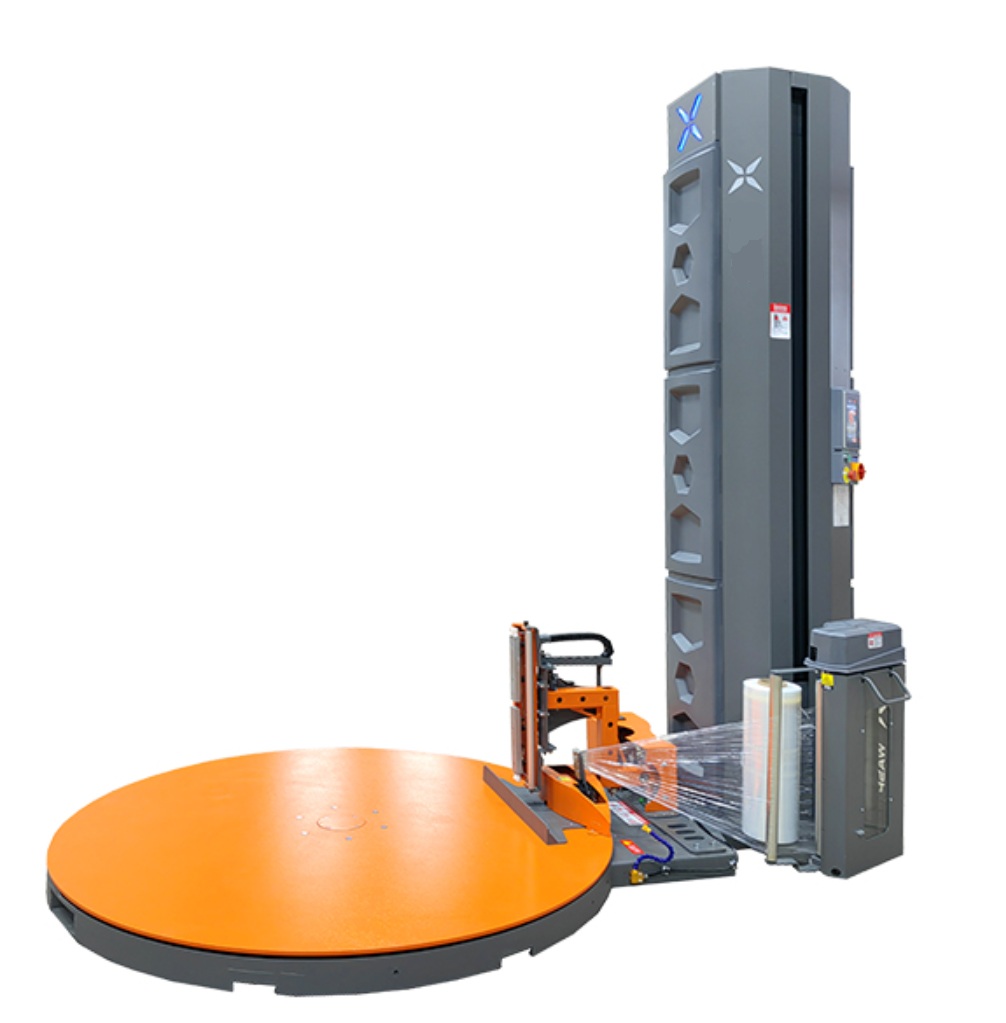

SMARTWRAP X20 Automatic Pallet Wrapper

SMARTWRAP X20 Automatic Pallet Wrapper offers a modern and efficient method for wrapping pallets. Capable of managing pallets up to 2000kg, this machine is well-suited for sectors such as manufacturing, logistics, and warehousing. Its fully automatic function allows the operator to simply load the pallet and select a wrapping programme, after which the machine completes the process independently. Advanced sensors and controls guarantee a uniform and dependable wrap, even for loads that are irregularly shaped or unstable.

Safety is a key consideration in the design of the SMARTWRAP X20. The machine is fitted with various safety mechanisms, such as emergency stop buttons, protective barriers, and automatic shut-off features. These measures help to reduce the risk of accidents and injuries, making the SMARTWRAP X20 a dependable and secure option for any workplace. Furthermore, the SMARTWRAP X20 offers extensive customisation. Customers can tailor the machine with different wrapping programmes, film types, and other adjustable settings, ensuring the machine meets a broad range of operational requirements.

A significant advantage of the SMARTWRAP X20 is its potential to reduce time and labour expenses. Thanks to its automatic operation, the machine wraps pallets swiftly and efficiently, allowing staff to focus on other duties. This can lead to increased productivity and lower labour costs, making the SMARTWRAP X20 a cost-efficient choice for businesses. Additionally, the SMARTWRAP X20 enhances the quality of wrapped pallets by using advanced sensors and controls to deliver consistent and reliable wrapping, resulting in a secure and tightly wrapped load. This minimises the likelihood of damage during storage and handling, improving supply chain performance.

Ease of use is central to the SMARTWRAP X20’s design. Its intuitive interface enables operators to quickly select wrapping programmes and make adjustments as required. The machine is also equipped with diagnostic and troubleshooting features, simplifying the process of identifying and resolving any issues. Built with robust components and a sturdy frame, the SMARTWRAP X20 is engineered for durability and reliability, ensuring consistent performance in demanding warehouse or manufacturing environments.

The SMARTWRAP X20 is engineered for energy efficiency, incorporating features that help lower energy use and reduce waste. An automatic film cutting and clamping system minimises film wastage and boosts operational efficiency. The machine also features an energy-saving mode to decrease power consumption when idle. Maintenance is straightforward, with a selection of maintenance and cleaning tools, as well as comprehensive instructions for routine care, helping to keep the machine in top condition and reducing the risk of downtime or expensive repairs.

In summary, the Automatic Pallet Wrapping Machine SMARTWRAP X20 provides an advanced and adaptable solution for efficient pallet wrapping. Its automatic operation, comprehensive safety features, and capacity to save time and labour make the SMARTWRAP X20 an excellent option for businesses aiming to enhance the efficiency and reliability of their pallet wrapping processes. Suitable for both small enterprises and large organisations, the SMARTWRAP X20 is a versatile and dependable asset for streamlining operations and supporting business growth.

SMARTWRAP X20 Automatic Pallet Wrapper demonstration video

▶

Key features of the SMARTWRAP X20 Automatic Pallet Wrapper

• Electric motorised film carriage with adjustable speed, mounted laterally.

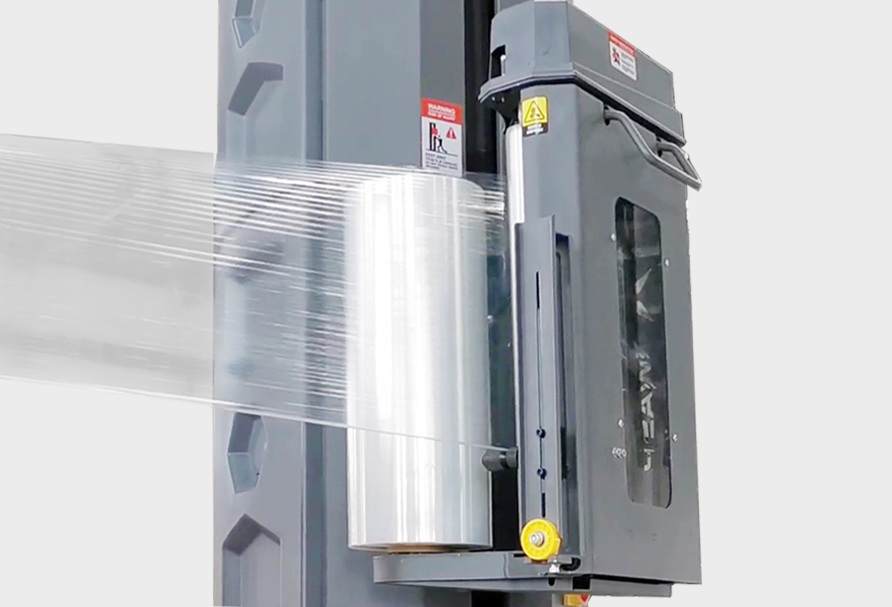

• Electric motorised pre-stretch up to 300% with integrated roping system

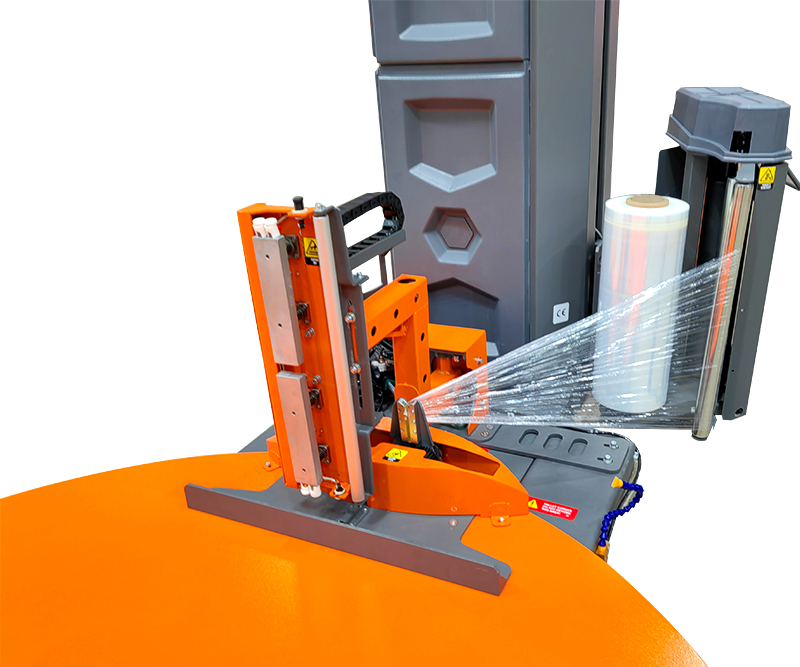

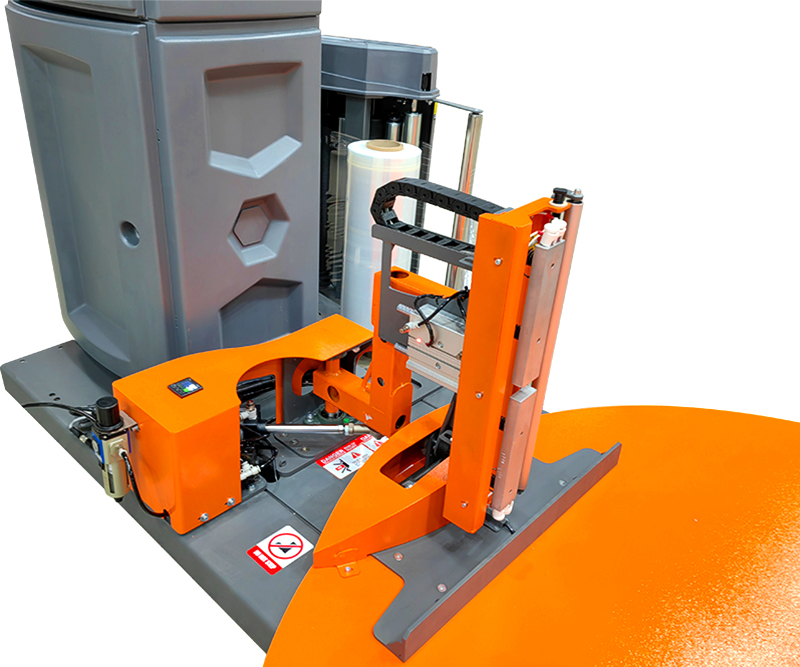

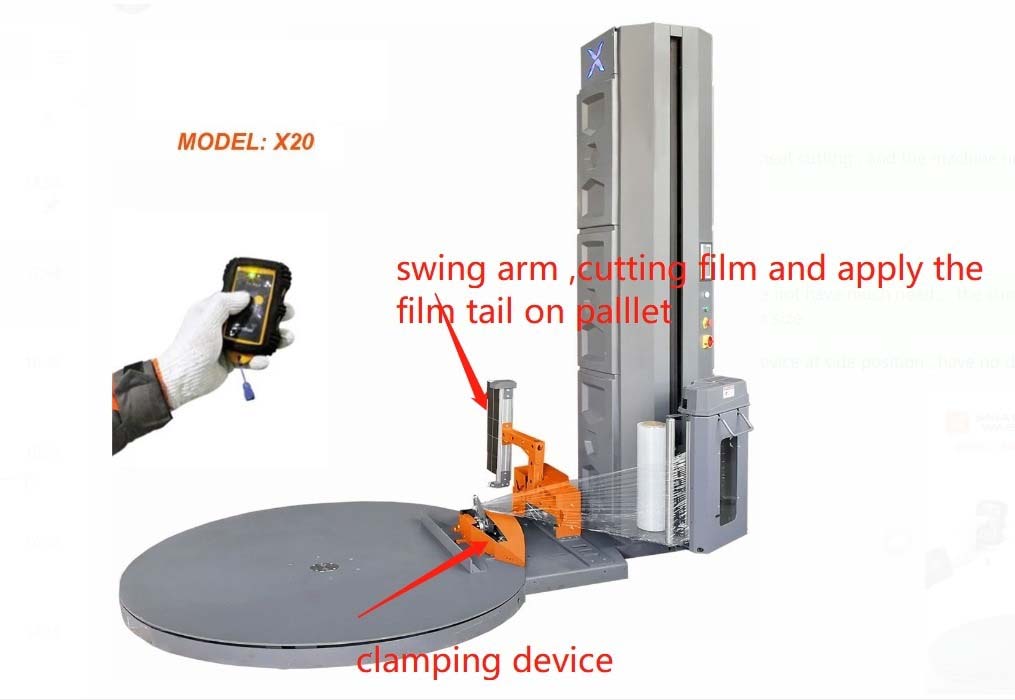

• Film is clamped, cut and applied automatically
• Initial tail film blower included
• Automatic load height sensing via photocell
• The X20 model uses heat to cut the film and requires an air compressor

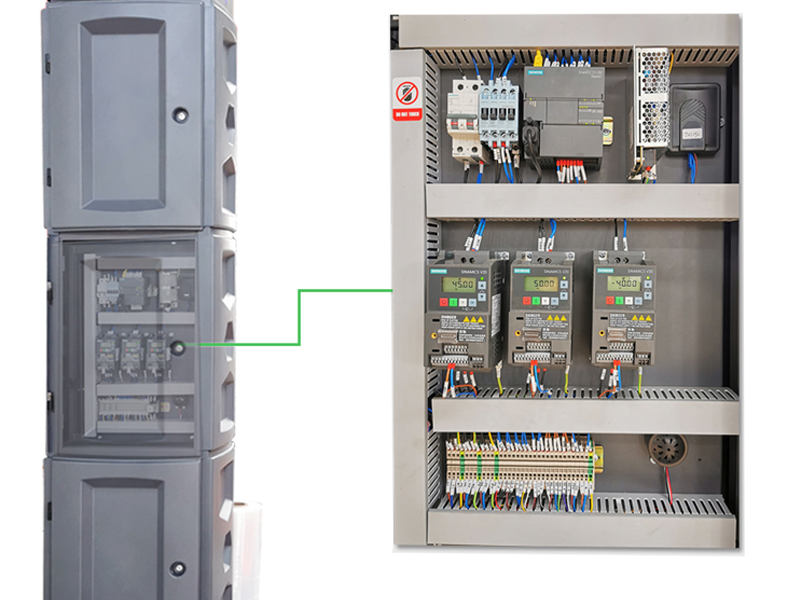

• Soft start and stop with frequency inverter, returns to home position
• Counter for number of wrapping cycles
• Top and bottom reinforcement wraps can be set independently

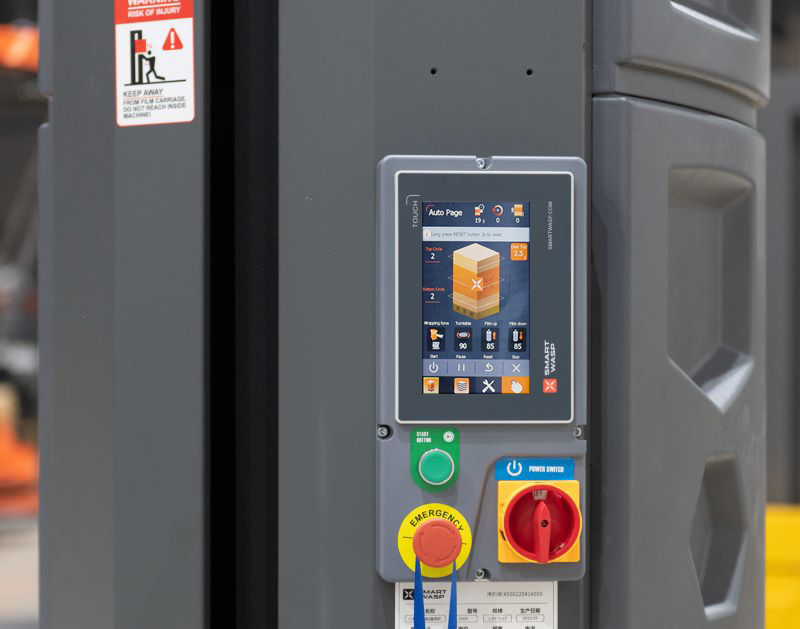

• Control panel with colour LCD touch display
• Reinforcement wraps can be added at any stage of the cycle
• Panel controls designed for ergonomic operation
• Wrapping cycle counter
• Option to include initial tail film blower
• Top and bottom reinforcement wraps can be set independently
• Reinforcement wraps can be added at any stage of the cycle
• The initial tail film blower option helps prevent film tails from flagging at the top of the wrap
• Electric motor output: 2,2 kW
• Power supply: 220/110V/50HZ

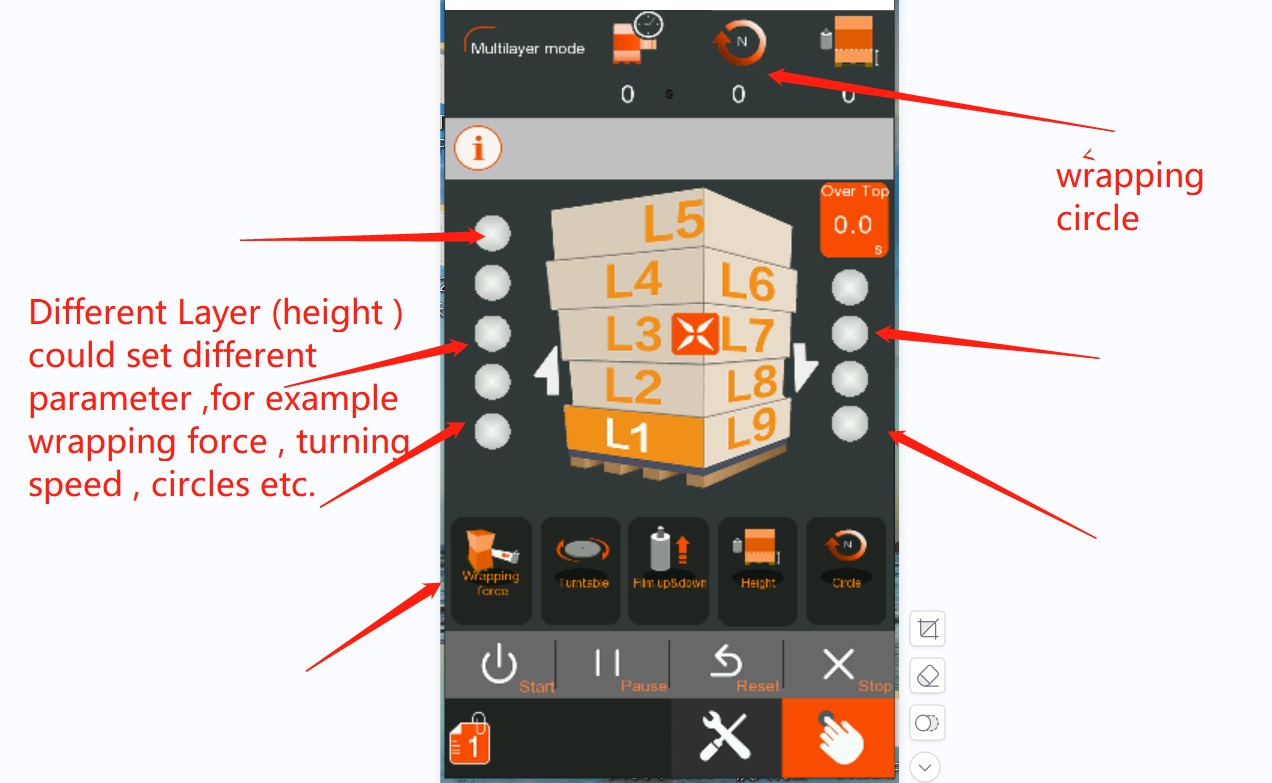

• 12 user-configurable wrapping programmes: initial wraps, top and bottom, overwrap duration, and more
• Wrapping throughput: 30–40 pallets per hour
• Maximum wrapping height: 2350mm (options for 2800mm/3200mm available)
• Turntable diameter 1800mm (alternatives: 2000mm/2400mm or larger)
• Permissible maximum pallet load: up to 2000 kg
• Side entry ramp with a overall length of 2000 mm

Technical details for the Automatic Pallet Wrapping Machine SMARTWRAP X20

Advantages of the Box wrapping machine Automatic Pallet Wrapping Machine SMARTWRAP X20 2000kg

The Automatic Pallet Wrapping Machine SMARTWRAP X20 also offers the benefit of lowering film expenditure. By employing advanced sensors and controls to ensure the film is applied evenly and efficiently, the machine reduces the quantity of film required for each pallet. This leads to ongoing savings on film costs, making the SMARTWRAP X20 a cost-effective solution for businesses of any size.

The SMARTWRAP X20 contributes to greater supply chain efficiency. By consistently and securely wrapping pallets, the machine helps to decrease the risk of damage during handling and storage. This reduces the need for reworking or replacing damaged goods, cutting costs and enhancing customer satisfaction.

Additionally, the SMARTWRAP X20 can enhance workplace safety by reducing the likelihood of injuries associated with manual pallet wrapping. Manual wrapping can be physically strenuous and may result in injuries such as back strain or repetitive motion disorders. Automating the process with the SMARTWRAP X20 helps to mitigate these risks, fostering a safer and more comfortable environment for staff.

The SMARTWRAP X20 is extremely versatile, suitable for a wide variety of applications. It can be configured to wrap pallets of various sizes and shapes and is compatible with different film types and thicknesses. This adaptability ensures the SMARTWRAP X20 can be tailored to the unique requirements of each customer.

Overall, the Automatic Pallet Wrapping Machine SMARTWRAP X20 is a highly advanced and flexible solution for efficient pallet wrapping. With its ability to reduce film usage, boost supply chain efficiency, improve workplace safety, and adapt to numerous applications, the SMARTWRAP X20 is an excellent choice for businesses seeking to enhance the reliability and productivity of their pallet wrapping operations.

Operation of the Automatic Pallet Wrapping Machine SMARTWRAP X20

The Automatic Pallet Wrapping Machine SMARTWRAP X20 operates by automatically applying stretch film to pallets. Designed to accommodate pallets weighing up to 2000kg, it is well-suited for a range of industrial uses.

The SMARTWRAP X20 functions in a fully automatic manner. After the pallet is positioned on the machine, the operator chooses the required wrapping programme and the machine completes the process. Advanced sensors and controls ensure a consistent and reliable wrap, even for loads that are irregular or unstable.

The wrapping cycle starts with the pallet being placed on the machine’s turntable. The turntable spins the pallet while the film is applied, guaranteeing even and consistent film coverage. The film is dispensed from a roll mounted on the machine and is stretched as it is wrapped around the pallet.

The SMARTWRAP X20 is equipped with numerous features to ensure secure and efficient film application. These include an adjustable film tension system for precise tensioning and an automatic film cutting and clamping mechanism to minimise film waste and enhance efficiency.

Safety is a priority in the SMARTWRAP X20’s design. The machine is fitted with various safety features, such as emergency stop buttons, safety barriers, and automatic shut-off systems. These help to prevent accidents and injuries, making the SMARTWRAP X20 a safe and reliable option for any workplace.

In summary, the Automatic Pallet Wrapping Machine SMARTWRAP X20 is a highly advanced and adaptable solution for efficient pallet wrapping. With fully automated operation with advanced sensors and control features, and the capacity to handle pallets up to 2000kg, the SMARTWRAP X20 is an excellent choice for businesses seeking to improve the efficiency and dependability of their pallet wrapping processes.
