Shrink Wrapper with Tunnel T5040

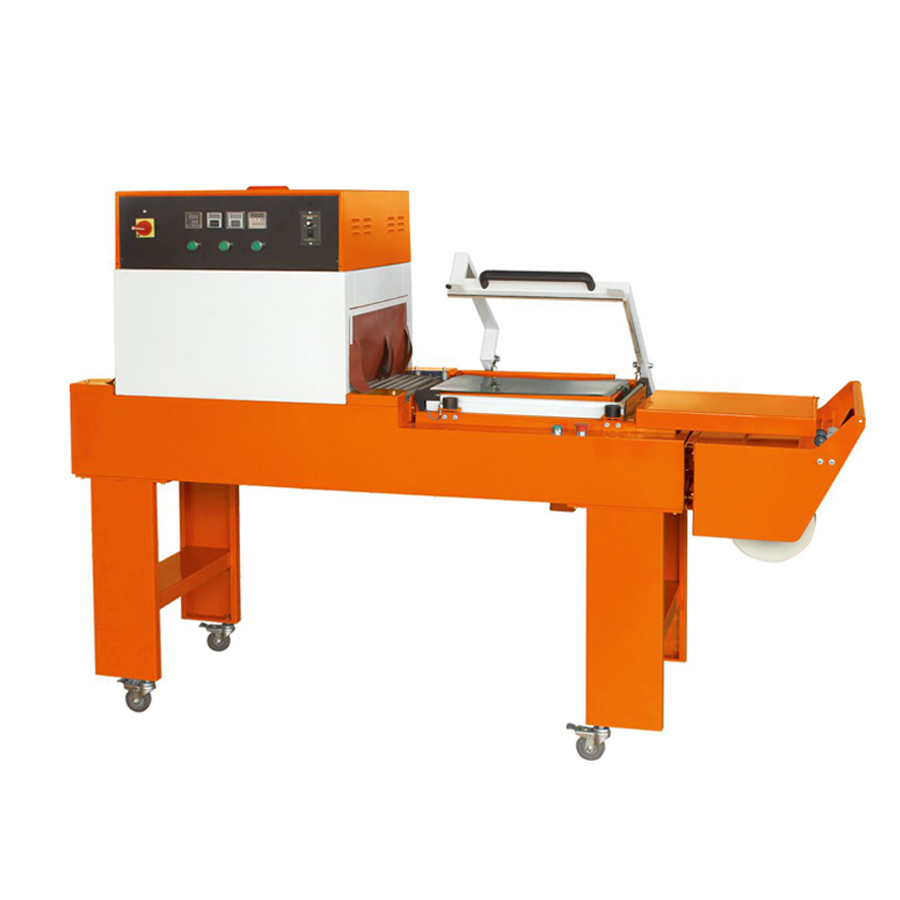

Semi-automatic shrink-wrapping machine T5040 with L-sealer and integrated shrink tunnel

The T5040 shrink wrapping machine is a compact, semi-automatic monoblock L-sealer with an integrated shrink tunnel. The tunnel measures 700 mm in length and has entrance dimensions of 450 x 230 mm. The sealing area is 500 mm by 400 mm, and the maximum pack height is 150 mm. The machine is capable of wrapping up to 15 items per minute. This shrink wrapping machine is well-suited for industrial packaging of food items such as bread and biscuits, as well as non-food goods including gifts, magazines, and gadgets, providing protection from dust and external factors. The T5040 heat shrink wrapper is straightforward to operate and features control panels for ease of use. The design of the T5040 is both practical and modern. The overall dimensions are W775 x L2200 mm x H1500 mm, with a weight of 270 kg.

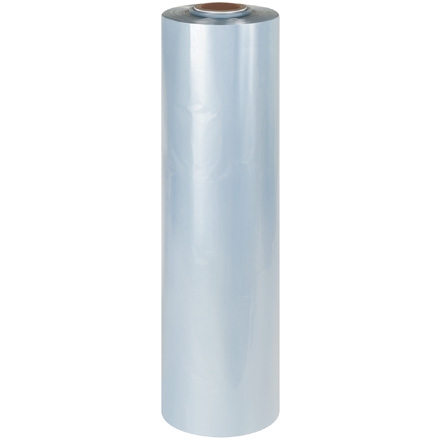

Film specifications for Shrink wrapper T5040

• Film specification: single-layer, centre-folded POF film
• Film thickness: 0.015–0.019 mm
• Maximum film width: 570 mm

Benefits of the Shrink wrapper T5040

• The T5040 is a semi-automatic shrink-wrapping unit with an L-sealer and shrink tunnel combined in one frame.
• This unit separates the sealing and shrinking stages to enhance operational speed.
• The operator first places the product into the centre-folded shrink film; sealing is completed by the L-sealer, followed by shrinking in the compact tunnel.
• The heated lower conveyor within the tunnel ensures a high-quality finish on every side of the package.

Key attributes of the Shrink wrapper T5040

• Exceptional performance
• An external air compressor is required and is not supplied with the equipment
• Film tension can be adjusted
• Seal jaws operate independently
• Seal jaws are easy to clean and can be rotated 180 degrees
• Human Machine Interface (HMI) accessible via the control panel
• The equipment is supplied with a separate electrical cabinet

Technical details for the Shrink wrapper T5040:

Applications for Shrink wrapper T5040

Our T5040 Combination Shrink Wrap Machines serve as an intermediate solution between manual stand-alone sealers and chamber (or ‘Tunnel’) models and fully automatic shrink wrapping systems. Two clamps are positioned at the front of the sealer to maximise sealing pressure, which is crucial for effective sealing. The Shrink wrapper T5040 is designed for ease of use and accommodates various package sizes. Temperature settings can be adjusted simply to achieve the required level. The chamber is linked to a tunnel by a conveyor belt, which initiates the shrinking of the film around the product. The machine requires a compressed air supply to function, with an operating pressure of 5–8 kg/cm².

How does the Shrink wrapper T5040 operate?

To begin, the product is placed inside the film. The operator holds the film with the left hand, positions it in the chamber, and uses the right hand to press the handle and close the chamber, cutting the film. The film then encloses the product, which is moved into the tunnel where the film shrinks tightly around it. The vacuuming process is straightforward and efficient. The T5040 packing machine is capable of processing up to 15 items per minute.
