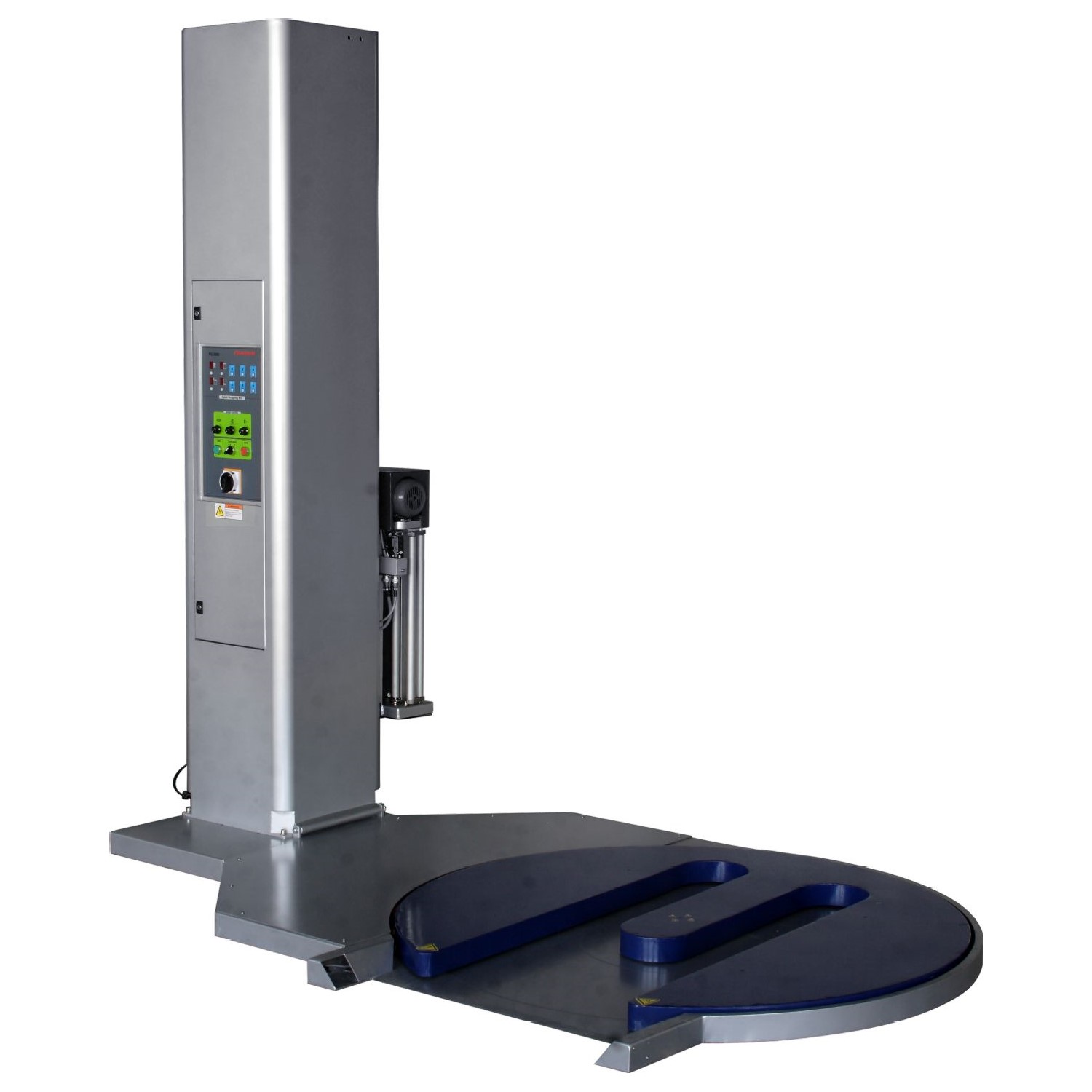

Pre-Stretch Turntable Pallet Wrapper EASY-IN PRE-STRETCH

Pallet Wrapper EASY-IN PRE-STRETCH

The Automatic Pallet Stretch Wrapper EASY-IN PRE-STRETCH is an M-type pallet stretch wrapping machine designed for use with pallet trucks. Its unique M-type configuration removes the need for handling or loading the wrapper with a forklift. Additionally, it conserves space, as pallets can be positioned using a hand pallet truck without the requirement for a ramp. The turntable diameter of the Automatic Pallet Wrapper EASY-IN PRE-STRETCH is 1500 mm, with a maximum wrapping height of 2000 mm. The pallet wrapper offers stability, and the turntable speed is adjustable up to 10 r/min. It features a soft start/stop function as well as a home position function that automatically returns the wrapper to its starting point. The machine is fitted with PLC controls and a sensor for detecting pallet height. The opening in the turntable allows straightforward loading with a hand pallet truck. This pallet wrapping machine utilises PLC control, and its electrical components are sourced from renowned brands such as Japanese “OMRON,” Korean “LG,” and French “TE.” The Automatic Pallet Stretch Wrapper EASY-IN is thoughtfully designed for smooth operation, reliability, and ease of use. It can improve production efficiency and helps protect goods from damage during handling. The machine is also resistant to dust and moisture, ensuring cleanliness. This pallet stretch wrapper is suitable for a wide range of industries, including chemical fibre, bakery, pharmaceuticals, publishing, refrigeration, and ceramics. Please note, this machine is not compatible with pallets featuring a crossbar.

The wrapping programme is simple to configure using a user-friendly and dependable interface. Thanks to its M-type turntable, the EASY-IN PRE-STRETCH pallet wrapper is well-suited to businesses employing hand pallet trucks, as pallets can be positioned without lifting. Various wrapping options can be set to suit your requirements.

Key Features of the Pallet Wrapper EASY-IN

• Pre-stretch capability up to 300%: secures loads tightly while reducing film consumption.
• M-shaped platform design makes loading and unloading straightforward for operators.
• Tension can be adjusted, allowing use with various packaging films
• Gentle start and stop
• Home position, initial starting point, and automatic return after wrapping
• PLC control panel integrated within the mast
• Single-button display for initiating the wrapping cycle.
• Consistent and dependable operation
• Turntable and film carriage speeds are regulated by inverters, reducing engine wear and prolonging the machine’s service life.
• Forklift slot provided, allowing straightforward movement using a manual pallet truck
• Straightforward to use
• Automatic height sensor identifies the top of goods, eliminating the need for manual input.

EASY-IN Pallet Stretch Wrapper technical specifications

Operating procedure for Pallet Stretch Wrapper EASY-IN

The process is generally separated into these main stages:

1. 1. Place the pallet and its tray onto the turntable;
   2. The operator should take the stretch film and secure it around the load.
   3. The operator then starts the machine; the wrapping process will proceed automatically.

Automatic wrapping cycle

You can select the high and low rotation speeds and the up and down settings according to the pallet height using the PLC control. Start the automatic cycle with the appropriate selector, and the machine will be ready to accept items for wrapping. Ensure the items are properly arranged on the platform, and confirm that their weight and height are within the machine’s specified limits.

The steps of the automatic cycle are as follows:

• Position the items or pallet on the turntable and activate the photoelectric switch.
• The turntable begins to rotate clockwise. After the first full turn, the film carriage moves upwards until the sensor detects the top of the pallet;
• The pre-set high speed is engaged, and the film carriage moves downwards;
• When the carriage reaches the bottom, the rotation slows, then decelerates and stops in the correct position;
• Once the wrapped load has been removed, the wrapping machine is immediately ready for the next pallet.

Where is the Pallet Stretch Wrapper EASY-IN available?

• PRE-STRETCH reduces film usage by 36%, making it ideal for sectors with high film consumption.
• Looking to optimise your workspace? No ramp is necessary.
• suitable exclusively for euro pallets (800 x 1200 mm)
• handles pallets weighing up to 1000 kg
• Who requires a dependable and robust pallet wrapper?
