Pre Stretch Pallet Wrapping Machine SMARTWRAP X2 with Scale and Printer | 2000 kg, up to 3000 mm wrapping height

Overview

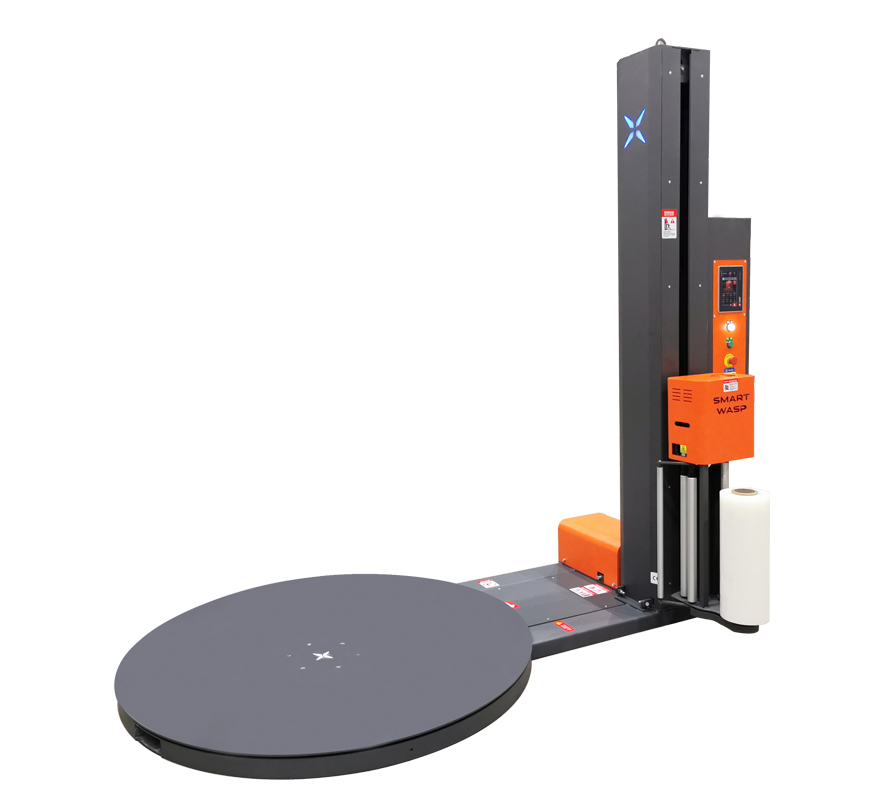

SMARTWRAP X2 PRE-STRETCH Pallet Wrapping Machine with Scale and Printer

The SMARTWRAP X2 PRE-STRETCH is a specialist pallet wrapping machine with integrated scale, ideal for warehouses, logistics centres and production environments where goods are palletised and dispatched daily. It streamlines the process by combining automated pre-stretch film application, weighing and label printing at a single station, allowing you to secure, weigh and label each pallet efficiently.

This is a modular system rather than a single fixed size. You can select the turntable diameter — 1500, 1650, 1800, 2000 or 2200 mm — and the wrapping height — 2200, 2600 or 3000 mm — to suit your pallet sizes and load requirements, while the core mechanical design, controls and safety features remain consistent across all models. This ensures a dependable solution for sites handling varied pallet dimensions but seeking a unified platform.

As a pallet wrapping machine with integrated scale, it eliminates the need for a separate weighbridge or manual weighing process. The pallet is wrapped, weighed and labelled in one location, reducing handling time and minimising the risk of data entry errors. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.

Technical details for the SMARTWRAP X2 PRE-STRETCH Pallet Wrapping Machine with Scale

Main Features and Advantages of the SMARTWRAP X2 Pallet Wrapper with Integrated Scale

• Built-in weighing scale — weigh each pallet during wrapping, removing the need for a separate weighing process and streamlining despatch.
• Label printing facility — produce and attach pallet identification at the wrapping point for precise, traceable handling.
• Customisable specifications — five turntable sizes (1500–2200 mm) and three maximum wrap heights (2200, 2600, 3000 mm) to suit your pallet base and load height.
• Powered pre-stretch 250% (up to 350%) — stretches film ahead of application, reducing film use per pallet while maintaining secure wrapping.
• Extruded aluminium mast with lifetime guarantee — robust, long-lasting frame with double chain lift for smooth and dependable carriage movement.
• SICK (Germany) photoelectric height detection — automatically senses load height so the film covers the entire pallet efficiently.

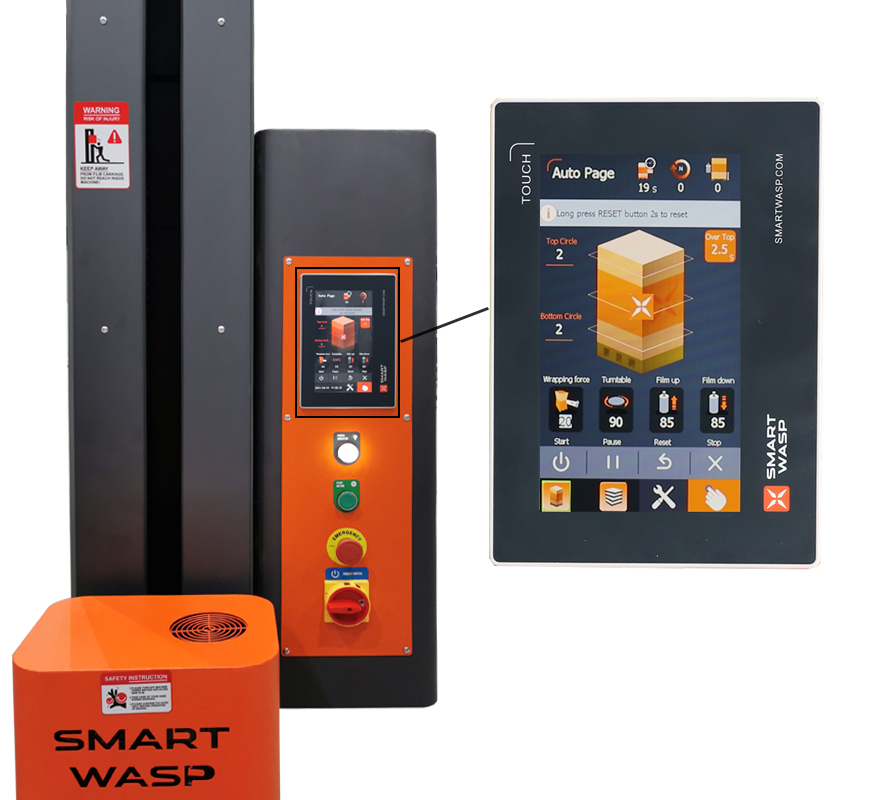

• Touchscreen interface with 6 programmable memories — save settings for repeat loads and begin wrapping at the touch of a button.
• 2000 kg maximum load — ideal for heavy-duty industrial pallets.
• Variable turntable and carriage speeds — adjust the cycle to match the stability and dimensions of each pallet.

Operating the SMARTWRAP X2 PRE-STRETCH

• Position the pallet on the turntable, which is 81 mm above floor level.
• Secure the start of the 500 mm film (76 mm core) to the pallet load.

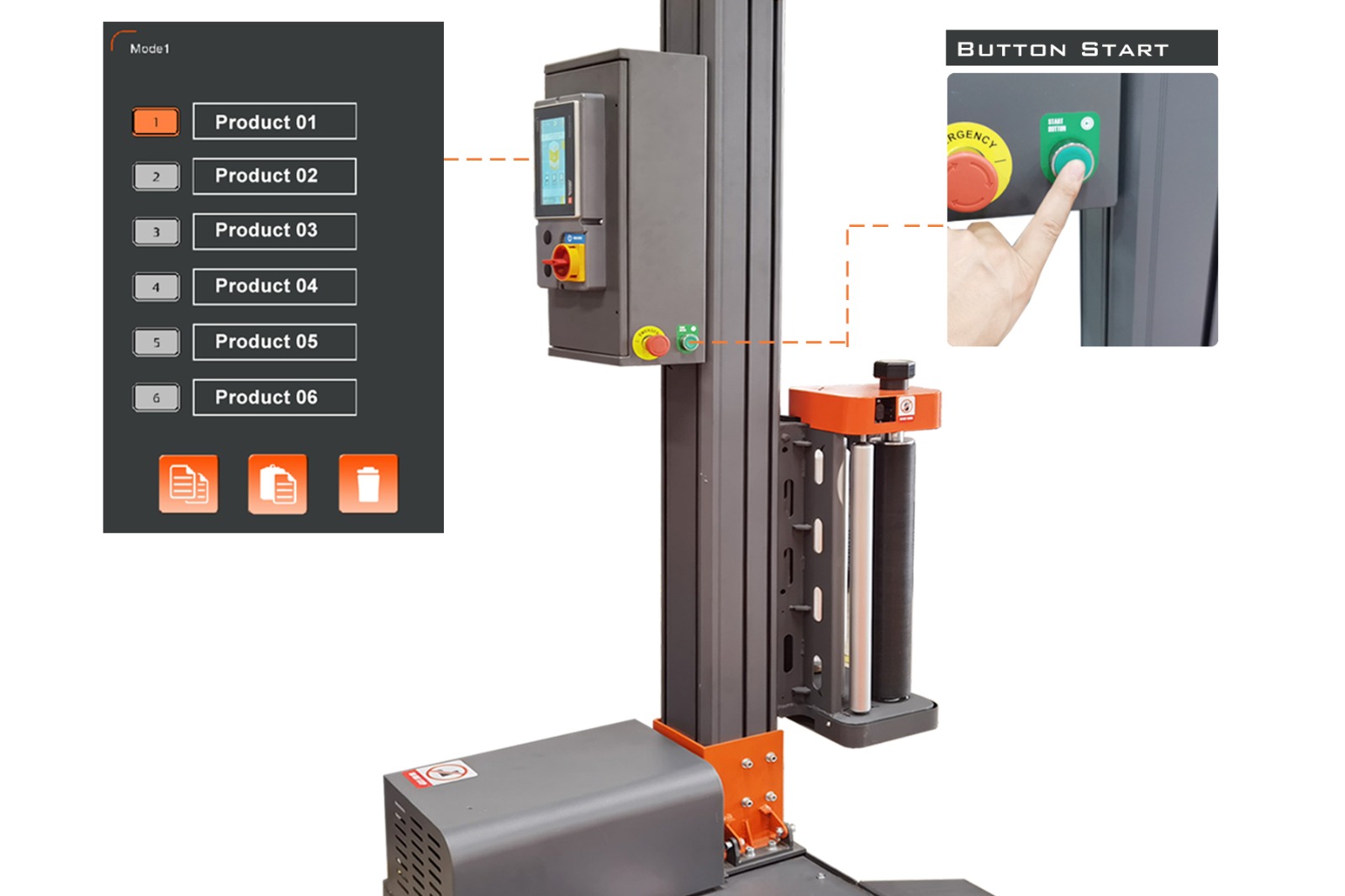

• Choose one of the 6 stored wrapping programmes or manually set the turntable and carriage speeds.
• Start the process with a single button; the SICK height sensor automatically detects the height of the load.
• Allow the machine to carry out the pre-stretch wrapping cycle while the integrated scale measures the weight.
• Check the measured weight, print the label, and attach it to the wrapped pallet.
• Take away the pallet once it has been wrapped, weighed, and labelled, ready for delivery.

Ideal applications for the SMARTWRAP X2 Stretch Wrap Machine with Scale

The SMARTWRAP X2 PRE-STRETCH is well suited to warehouses, distribution centres, logistics operations, and manufacturing sites where finished goods are palletised. Compared to a standard pallet stretch wrap machine, the powered pre-stretch system extends the film before it is applied, allowing each roll to wrap more pallets. Common uses include food and drink facilities preparing bulk shipments, producers of building materials and chemicals handling heavy pallets, and third-party logistics firms needing to record each load by weight. With integrated weighing and labelling, it is particularly valuable where pallets must be weighed before leaving the premises or where precise transport data is required for documentation. As a pre-stretch pallet wrapping machine with scale and printer, it logs the weight and prints the label in the same cycle. Optional top pressure and ramp accessories make it suitable for unstable loads and for sites using pallet trucks or manual loading without a forklift.

Construction and compatibility

The machine features an extruded aluminium column (4000 t) with double chain lifting and is supported by a lifetime warranty on the column. Control is managed by a PCB integrated circuit with four separate chips and a touch-screen interface. It is compatible with 500 mm wide stretch film with a 76 mm core and operates from a standard 220 V, 50/60 Hz single-phase supply at 1.5 kW. The available turntable diameters and wrapping heights allow you to match the platform precisely to your most common pallet sizes.

Performance and features of the stretch wrap machine with scale

The turntable operates at 0–12 rpm and the film carriage at 0–5.9 m/min, both adjustable, achieving a throughput of approximately 30 loads per hour. Powered pre-stretch delivers film at 250% as standard and up to 350% maximum, reducing the amount of film used per pallet. The platform supports loads up to 2000 kg, and the operating noise is a low 75 dB. As a stretch wrap machine with scale, it records the pallet weight during the same cycle that secures the load, eliminating the need for a separate weighing step.

Safety and longevity

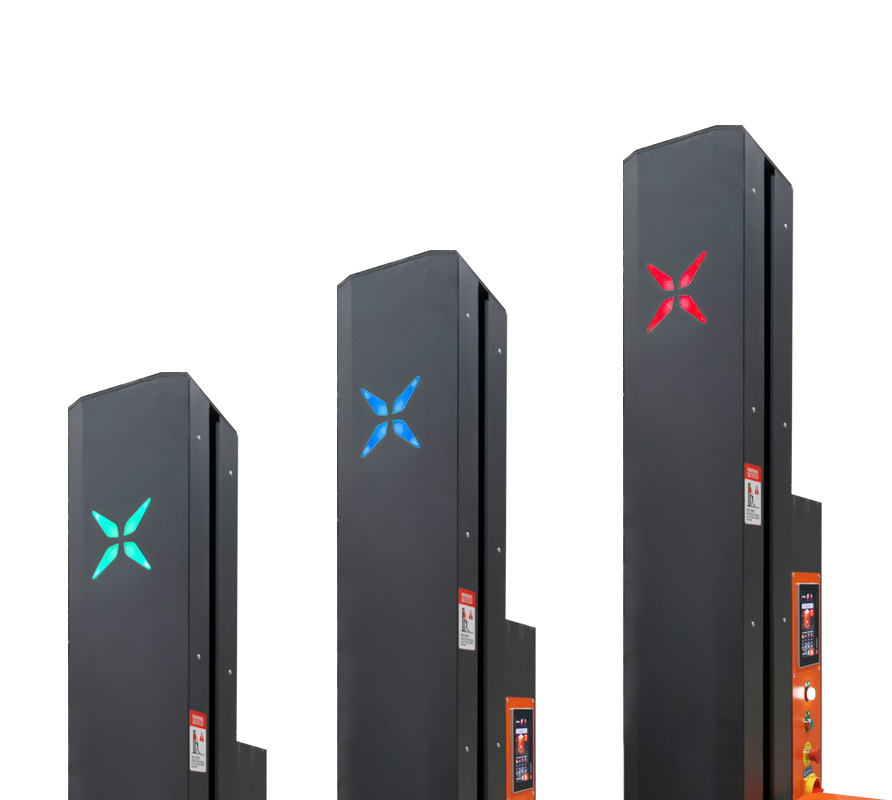

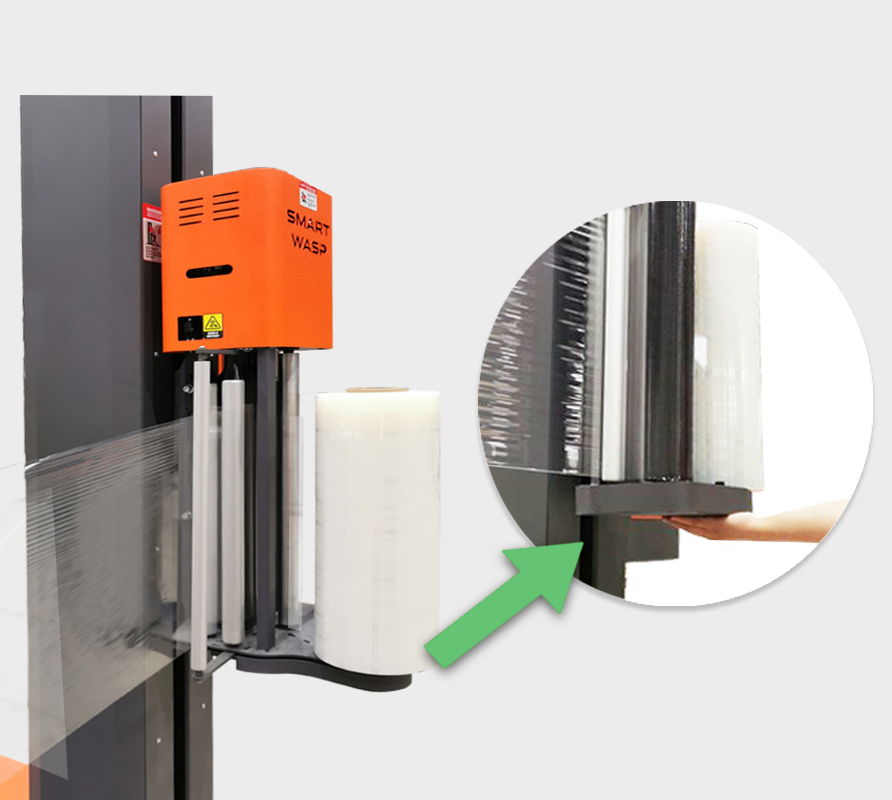

Safety features include soft start and stop, an intelligent alarm, anti-pressure and anti-fall protection at the base of the film carriage, an emergency stop, and a three-colour LED status indicator. The machine is CE certified (2006/42/EC, 2014/35/EC, 2004/30/EC), and the aluminium column is covered by a lifetime warranty for lasting reliability.

Adjustments and servicing

Turntable and carriage speeds can be set via the touch screen, and six memory programmes allow operators to recall established settings for repeat load types. The double chain lifting system moves the film carriage along the extruded aluminium column, which is protected by a lifetime warranty. Routine maintenance involves keeping the carriage and film path clear and replacing 500 mm, 76 mm-core film rolls as needed.

Order the SMARTWRAP X2 PRE-STRETCH Stretch Wrap Machine with Scale

The SMARTWRAP X2 PRE-STRETCH combines wrapping, weighing, and labelling in a single CE-certified stretch wrap machine with scale, available in five turntable diameters and three wrapping heights. Select this pre-stretch stretch film wrapping machine with scale and printer to standardise your end-of-line packaging. Contact us to arrange your preferred configuration; the machine is supplied with a 12-month warranty. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.
