Cordless Banding Tool PET GT SMART Plus 9-16mm (3/8″-5/8″) for PET/PP Strap with Battery & Charger

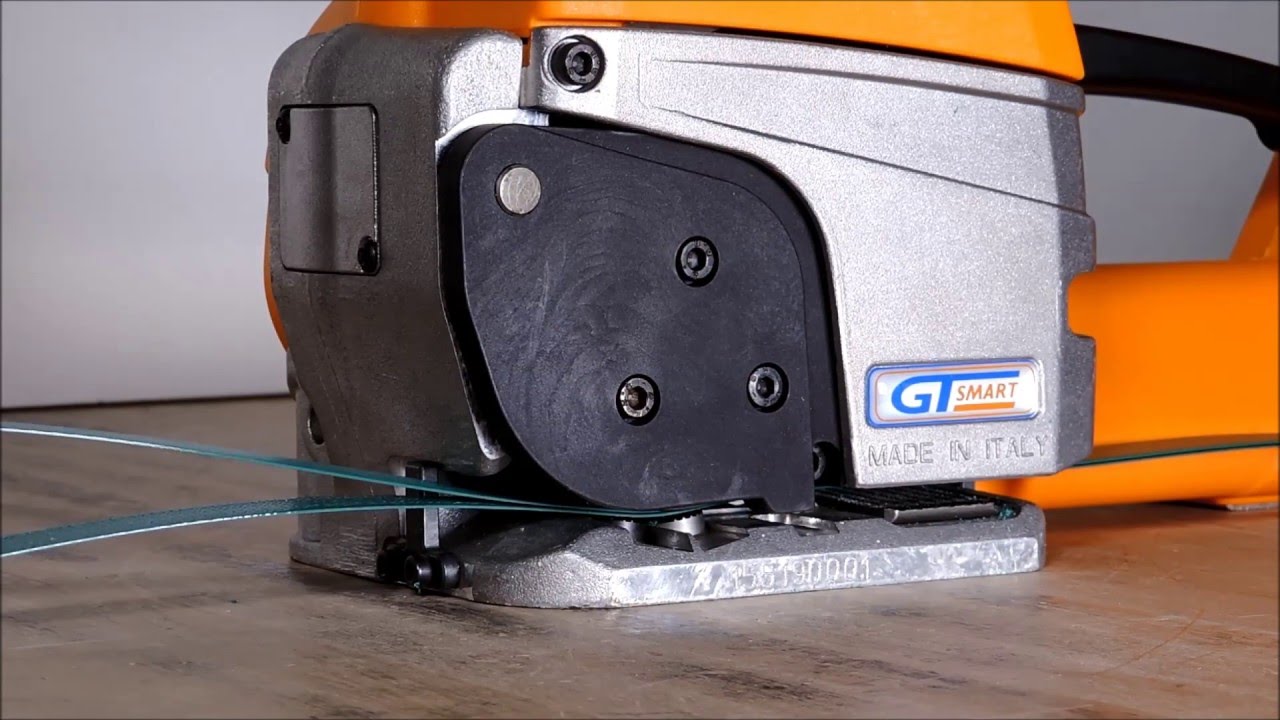

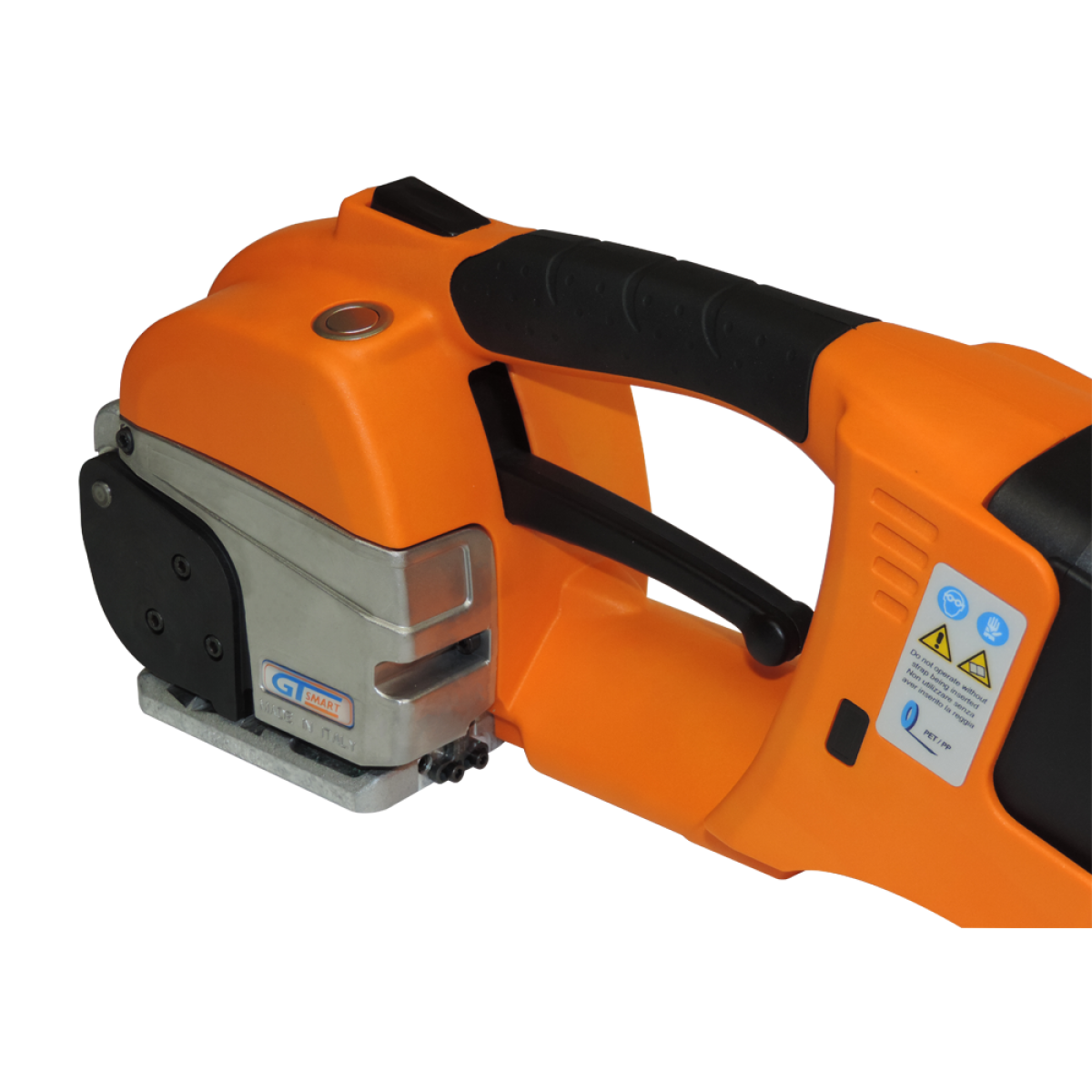

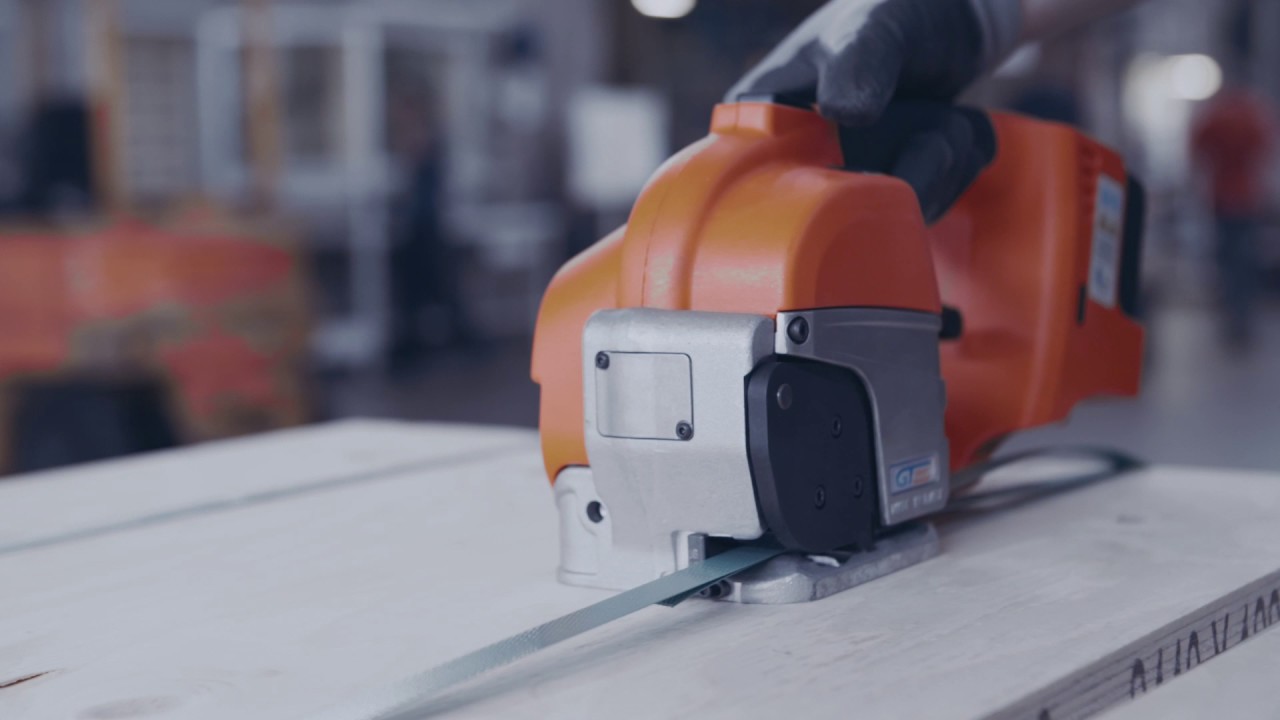

SIAT GT-SMART Plus battery-powered strapping tool

SIAT GT SMART Plus is a next-generation, lightweight and fast battery strapping tool. The GT ONE battery banding strapping tool offers a high degree of customisation and accommodates 9-16mm or 3/8″ to 5/8″ wide suitable for use with polyester (PET) or polypropylene (PP) strapping. Designed for one-handed use, this battery strapping tool is cost-effective. The strapping tension can be adjusted up to 1800 N (400 lbs). The GT SMART Plus battery strapping tool is supplied with one rechargeable battery as well as a charger, enabling you to begin your bundling process upon delivery. Its manoeuvrability and straightforward operation make it suitable for both vertical and horizontal strapping tasks. The GT SMART Plus battery banding tool also produces a high-quality friction weld seal. It is serviced in Europe and includes a 12-month warranty. The GT SMART Plus 9-16mm (3/8″ to 5/8″) battery strapping tool is widely utilised across various industries and warehouses. It provides one of the most straightforward and secure methods for strapping pallets. Operation can be manual or soft. Tensioning is initiated with the tension button, and welding is started with a separate button. The tool is easy to operate and adjust. It is also well-balanced and relatively light. The brushless motor is powered by the latest Li-Ion battery. With this battery strapping tool, you can streamline operations and increase packing efficiency. The tool offers adjustable operating modes to suit your application: manual and soft. Simple to use and adjust, it is perfectly balanced for both vertical and horizontal strapping. The brushless motor is powered by the latest Li-Ion battery. This battery strapping tool is engineered for durability and to withstand demanding use in factories or warehouses.

Key characteristics of the GT-SMART Plus battery-powered strapping tool:

• POWER SUPPLY:
  • 14.4V Li-Ion battery manufactured in Germany by AKKU POWER using high-performance LG cells
• PRIMARY MOTOR:
  • AMETEK 14.4V motor (brushless, sensorless, high-speed)
  • The motor’s counterclockwise rotation is used for tensioning, while clockwise rotation is used for welding
  • Motion is transmitted via mechanical one-way clutch bearings
  • The main electronic board’s Microchip CPU controls the main motor
• MAIN ELECTRONIC BOARD
  • The Microchip CPU-controlled board manages the main motor, stepper linear actuator, tool settings and adjustments, and tool error notifications
• USER INTERFACE ELECTRONIC BOARD
• Mechanical drive with speed reduction gearbox for the tensioning mechanism
• Welding system with semi-automatic lowering mechanism on the carriage support
• Aluminium frame

Technical details for the SIAT GT-SMART Plus battery-powered strapping tool

GT SMART Plus battery strapping tool technical details:

• Maximum tension: 1800N
• Net weight: 3.2kg without battery (the lightest tool available)
• Operating modes: manual/soft
• Maximum tensioning speed: 14 metres per minute
• SP3 battery (Akku Power) 14.4V – 4.0Ah Li-Ion
• Brushless electric motor
• Excellent handling (superior to other models)
• Durable plastic housing with natural rubber grip
• Front and rear guides are adjustable to suit all strap sizes
• An innovative solution for changing strap size. There is no need to swap guides. Only a very simple adjustment is required, taking less than 30 seconds.
• With this feature, both distributors and end users can quickly adjust the strap size without replacing the guide, saving significant time
• The GT SMART Plus design instantly conveys a sense of modernity and durability
• Intuitive touch control panel
• Highly ergonomic strapping tool
• The plastic housing provides a pleasant tactile experience and an immediate impression of “premium quality”

GT-SMART Plus battery strapping tool – brushless motor

Brushless DC motors offer several benefits over traditional brushed DC motors. The absence of brushes and a physical commutator means there are fewer components that can wear out or require replacement. As a result, brushless DC motors (BLDC) are generally more reliable, have a longer service life, and are more efficient. BLDC motors typically last over 10,000 hours. Additionally, they can operate at speeds above 10,000 rpm, whether under load or not. Their enclosed design allows them to function with reduced noise and less electromagnetic interference compared to DC motors. For these reasons, we estimate an energy saving of approximately 25% in our applications compared to AC motors.

Benefits of the GT SMART Plus battery strapping tool

• Feed-wheel with a unique opening mechanism allows for a shorter base plate and requires less force to open
• Natural rubber handle – double “die-casting” ensures precise alignment of the rubber with the plastic housing. The handle is shaped to provide optimal grip in any position (vertical or horizontal).
• Exceptional handling – the centre of gravity is precisely centralised – enables operation with just one finger
• Simple to use with rapid strapping
• Highly reliable operation
• Intuitive user interface featuring a key lock function
• Compatible with various PET strap widths (from 9mm up to 16mm)
• Consistent performance due to advanced Li-Ion battery technology (no “memory effect”)
• A professional-grade industrial device designed for continuous use, weighing only 3.2kg without the battery (the lightest tool available)
• Economical battery strapping tool with low ongoing costs
• Durable construction & reduced maintenance requirements thanks to the brushless motor
• Effective manual operation (perfectly balanced)
• Versatile applications made possible by the compact design
