AUTOSHRINK automatic shrink wrapping machine with sealer and shrink tunnel, up to 50 packs per minute

AUTOSHRINK automatic shrink wrapping machine

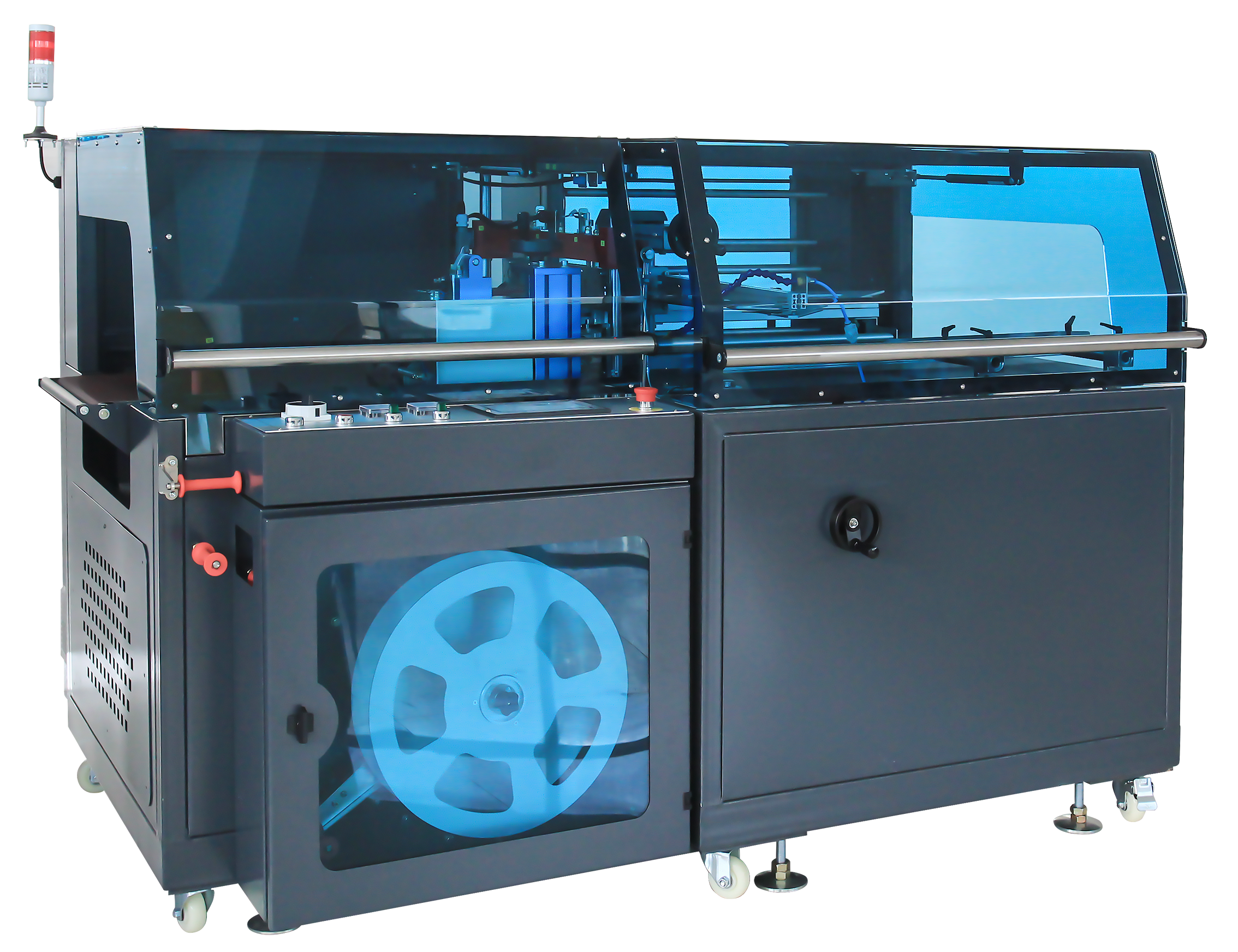

The AUTOSHRINK is a fully automatic shrink wrapping machine made up of two units: an automatic side sealer wraps each item in centre-folded film and seals it, then the shrink tunnel applies heat to tighten the film, processing up to 50 packs per minute depending on the product.

It handles products from 90 × 90 × 10 mm up to 500 × 400 × 120 mm (length × width × height), with the sum of width and height up to 400 mm. Designed for single, regular items with a flat base.

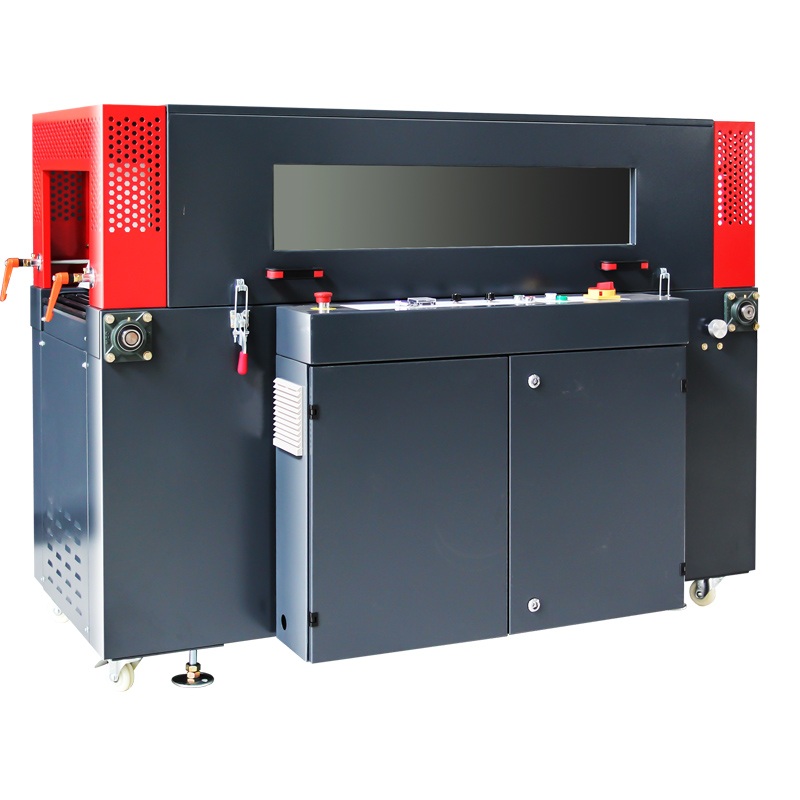

The sealer operates in under one second per cycle, using a Teflon-coated stainless steel blade at 180–230 °C. The shrink tunnel runs at approximately 150 °C, with an entrance measuring 450 × 250 mm and a tunnel length of 1500 mm.

Both units require 3-phase 380 V power; the sealer also needs compressed air. The machine uses POF film, thickness from 0.01 to 0.03 mm. A Siemens PLC with touch screen manages the sealer, which is driven by a Siemens servo motor.

Industries and applications: AUTOSHRINK automatic shrink wrapping machine

The AUTOSHRINK is widely used in food, cosmetics, print, publishing, household goods, electronics, and logistics. It wraps individual retail items such as books, magazines, boxes, trays, cartons, and consumer products. The machine is ideal for items that require a clear, tight film for display or protection in storage and transit. It is typically positioned at the end of a packing line, after filling or cartoning, to create a finished retail pack or a dust- and tamper-resistant wrap for distribution.

Technical specifications

AUTOSHRINK demonstration video

▶

How the line improves your packaging process

• Wrapping and shrinking in a single process. The sealer wraps and seals, then the tunnel shrinks the film, so your product is ready at the end.
• Handles up to 50 packs per minute. Products are loaded onto the conveyor and wrapped automatically, with no operator required between stages.
• Quick, clean sealing. Each cycle takes less than a second, using a Teflon-coated blade that prevents sticking.
• Touch screen operation. Choose automatic or manual mode, adjust settings and view shift output directly on the display.
• Automatic safety stop. If a product is detected under the blade, the sealer pauses until the item is cleared and the system is reset.
• Reputable components. Siemens PLC and servo drive, plus electrical parts from Schneider, OMRON and FOTEK.

Sealer, shrink tunnel and controls

• Automatic shrink wrapping system: side sealer and shrink tunnel included
• Processes up to 50 packs per minute, depending on product type
• Accepts products from 90 × 90 × 10 mm up to 500 × 400 × 120 mm, with a combined width and height of up to 400 mm
• Sealing and cutting cycle under 1 second, blade temperature 180–230 °C, Teflon coated
• Shrink tunnel operates at approx. 150 °C, entrance size 450 × 250 mm, tunnel length 1500 mm
• POF film 0.01–0.03 mm thick, film rolls up to 250 mm in diameter and 550 mm wide
• Siemens PLC with touch screen, Siemens servo motor, Schneider frequency inverter
• Conveyor speed 30 metres per minute, working height 850 mm
• Waste film collected on a take-up roller
• 3-phase 380 V supply, compressed air up to 0.3 MPa

Operator duties and workflow: AUTOSHRINK automatic shrink wrapping machine

The operator monitors the film supply and waste removal, and checks the finished packs for proper sealing and shrink. When changing product size or film type, adjust the film length and knife temperature as needed.

Operating the AUTOSHRINK

1. Switch on the main power and set the temperatures for both the horizontal and vertical knives.
2. Mount the film roll on the holder, guide the film through the separator plates and pressure rollers, and feed the waste strip to its take-up roller.
3. Adjust the separator plate and knife unit height to suit the product, with the knife line positioned 10–20 mm below the centre of the product height.
4. Set the belt width, check the compressed air supply, and start automatic mode via the touch screen.
5. Place products on the infeed belt along the side guide; the sealer wraps and seals, and the tunnel shrinks the film.

Settings and maintenance

• Film length per pack. Set on the touch screen as the delay before cutting; start at about 0300 for short items and 0500 for taller ones, then fine-tune after a few packs.
• Knife temperature. 180–230 °C. If the seal tears, the temperature may be too low, the cutting time too short, or the knife may be worn.
• Compressed air. Keep below 0.3 MPa and regularly drain water from the air filter regulator.
• Daily maintenance. After each shift, wipe film residue from the knife with a soft cloth, ideally just after switching off at 90–100 °C.
• Cleaning. Clean plastic parts with a soft cloth and suitable cleaner, never with water or solvents.
• Do not wrap. Loose or damp products, unpackaged liquids, flammable or explosive items, and aerosol cans. For food, always use food-grade film.

Selecting and preparing for AUTOSHRINK

Frequent errors include using film that is too thick or thin for the item, incorrect knife temperature, or feeding uneven or unstable products. To prevent jams, ensure correct product spacing and set the infeed belt to the right width. For optimal results, trial the film and settings with your actual products before starting full production.

Before purchasing a shrink wrapping line

The price is displayed on this page. Several factors determine whether this line is suitable for your packaging requirements: please review them before placing your order, or send your details to us and we will discuss them with you.

• Product size. Accepts items from 90 × 90 × 10 mm up to 500 × 400 × 120 mm, with a combined width and height of up to 400 mm; for single products with a flat base.
• Output. Handles up to 50 packs per minute, depending on the item.
• Film. Uses POF film, thickness 0.01–0.03 mm, on rolls up to 550 mm wide and 250 mm diameter.
• Utilities. Requires 3-phase 380 V supply for both units (sealer 3 kW) and compressed air.
• Space. Sealer measures approximately 2000 × 1325 × 1300 mm, tunnel 1800 × 1000 × 1320 mm; total length about 3.8 metres.
• Collection. Two units: sealer weighs 500 kg, tunnel 300 kg, supplied with a set of spare parts. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.
