AS600F Vertical Band Sealer – 13mm Seal Width, 0–15m/min, 20kg Capacity – Maximum Bag Height: 60cm

AS600F Vertical Band Sealer

This AS600F Vertical Band Sealer is a specialist packaging machine developed for businesses seeking reliable and continuous sealing operations. It is widely used in sectors such as food processing, pharmaceuticals, chemicals, consumer products, and agriculture. Its main role is to deliver secure and consistent seals for plastic film pouches, safeguarding the contents and ensuring the durability and reliability of the packaging. The vertical band sealer features an electronic constant temperature system as well as variable speed adjustment, enabling precise settings to suit different materials and thicknesses. With a sealing speed of up to 15 metres per minute and temperature control adjustable from 0–300°C, it offers the flexibility required for industrial use. The conveyor can accommodate up to 20 kilograms, making it ideal for larger or heavier items. By implementing this equipment, companies can boost productivity, minimise waste from inconsistent sealing, and maintain a high standard of product presentation, while ensuring workplace safety and compliance with packaging regulations.

AS600F Vertical Band Sealer demonstration video

▶

AS600F Vertical Band Sealer frequently asked questions

1. What is a vertical band sealer and how does it operate? A vertical band sealer is a machine designed to seal plastic film bags in a continuous process. Bags are moved along a conveyor through heated copper blocks, which soften the film. Pressure and cooling then produce a consistent and reliable seal.
2. Which sectors commonly use a vertical band sealer? Sectors such as applications in food packaging, pharmaceuticals, agriculture, chemicals, and consumer products frequently utilise a vertical band sealer. It is well suited to medium and large-scale production lines that require uniform sealing quality.
3. Which materials are suitable for use with a vertical band sealer? This vertical band sealer is suitable for LDPE, HDPE, PP, laminated, and composite films. The adjustable temperature spans 0–300°C allows for use with films of various thicknesses from 0.04–0.20 mm.
4. What is the sealing performance of the AS600F Vertical Band Sealer? This AS600F vertical band sealer offers sealing speeds of up to 15 metres per minute and supports a conveyor load of 20 kilograms. The width of the seal is 13 mm, providing robust and dependable seals.
5. What safety features are included with the vertical band sealer? The machine is equipped with an emergency stop button, appropriate earthing requirements, protective covers for heated components, and a managed shutdown sequence. These features help to maintain operator safety during industrial use.
6. How is the vertical band sealer serviced? Routine servicing involves cleaning the sealing conveyor belts, inspecting the guide belts, checking carbon brushes for the motor, and monitoring the heating tubes. Regular checks help maintain reliable sealing and extend the machine’s working life.
7. Is the vertical band sealer suitable for demanding packaging tasks? Yes, AS600F vertical band sealer is engineered for industrial applications and accommodates a conveyor load of up to 20 kg, making it ideal for robust packaging needs in manufacturing and distribution settings.
8. Can the vertical band sealer be adjusted for various bag heights? height of the conveyor on the vertical band sealer can be set between 120–600 mm, enabling the machine to seal bags of different sizes without the need for extra modifications.
9. What is the typical service life of the vertical band sealer? With proper servicing, the vertical band sealer is built for extended use in industrial settings. Key parts such as heating elements, conveyor belts, and motors are replaceable at recommended intervals to maximise operational lifespan.
10. How do businesses obtain the AS600F Vertical Band Sealer? Businesses may obtain the AS600F vertical band sealer by choosing ADD TO BASKET for immediate purchase or by requesting a tailored quotation via GET OFFER. Both methods provide secure ordering and supplier assistance.

Technical Details for AS600F Vertical Band Sealer

Return on Investment – How This Machine Streamlines Your Packaging Process

Utilising the AS600F Vertical Band Sealer improves operational efficiency and return on investment by reducing manual intervention and standardising the sealing process. Manual methods often lead to inconsistent results, increased downtime, and higher rejection rates. The vertical band sealer addresses these issues by providing continuous, uniform sealing. Thanks to its adjustable speed as well as accurate temperature management, production can be increased without sacrificing quality. The ability to handle up to 20 kilograms on the conveyor allows for efficient packaging of larger items. These advantages result in lower energy consumption, less material wastage, and a reduced need for reworking products. Over time, these improvements lead to tangible cost savings, quicker processing, and more effective use of staff. The AS600F is therefore a practical investment for firms aiming for sustained productivity and dependable sealing performance.

Main Features and Advantages of the AS600F Vertical Band Sealer

This AS600F Vertical Band Sealer is equipped with features tailored to industrial requirements. Its constant temperature control ensures accurate sealing for a range of packaging films, including LDPE, HDPE, and PP films. 13 mm seal width provides robust and secure closures, and the adjustable conveyor height from 120–600 mm allows for use with bags of different dimensions. The sturdy build supports a 20 kg conveyor capacity, delivering reliable results for heavy-duty packaging. Key benefits include consistent seal quality, reduced reliance on manual labour, fewer packaging faults, and improved protection of goods during handling and storage. The machine can be integrated into existing production lines, supporting business growth and increased output. These combined features enable organisations to achieve efficiency, reliability, and enhanced packaging standards with every use.

Operating Instructions for the AS600F Vertical Band Sealer

To operate the AS600F Vertical Band Sealer, follow a straightforward procedure to ensure both safety and efficiency. Place the machine on a stable, well-ventilated surface and connect it to an AC220V power supply with proper earthing. Switch on the main power and activate the heating function. Set the sealing temperature according to the bag material. Position the bags on the conveyor, which will carry them through the heated copper elements for sealing. The plastic film is softened and bonded under pressure, then cooled by copper cooling blocks before passing under the embossing wheel to finish the seal. Adjust the speed control dial as needed to achieve the desired sealing quality. When shutting down, turn off the heating first, allow the fan to cool the system, and finally disconnect the power for safe handling.

Typical Applications for the AS600F Vertical Band Sealer

This AS600F Vertical Band Sealer is suitable for industries requiring ongoing and precise sealing of plastic packaging. Typical users include manufacturing sites, contract packers, food processors, pharmaceutical firms, chemical manufacturers, and distribution centres. It is particularly beneficial for businesses packaging dry foods, powders, medical items, agricultural goods, or industrial products. Companies with medium to high output benefit from its ability to perform repetitive sealing tasks with consistent results. The machine is also valued by those in logistics, retail supply, and wholesale packaging, as it improves both the appearance and protection of goods. It is intended for professional use where reliability, durability, and uniformity are essential, rather than for occasional or small-scale applications.

Construction and Suitability of the AS600F Vertical Band Sealer

This AS600F Vertical Band Sealer is engineered for stability, longevity, and versatility. Built from durable materials, it is designed to withstand demanding industrial environments. Its compact footprint of 1195 × 500 × 1245 mm makes it suitable for use in restricted spaces while still offering industrial performance. Weighing 85 kg, the machine remains stable during operation but can be repositioned if necessary. The adjustable bag height of 120–600 mm allows for use with a wide range of bag sizes. This adaptability means businesses can seal various packaging formats without needing extra equipment. The machine is compatible with most heat-sealable films, such as polyethylene, polypropylene, and laminated films. This efficient design ensures the AS600F meets diverse production needs while delivering consistent sealing results.

Output and Functions of the AS600F Vertical Band Sealer

This AS600F Vertical Band Sealer is built for high-volume packaging operations. With a sealing speed of up to 15 metres per minute, it is well-suited to demanding production lines. Its temperature range from 0 to 300°C ensures reliable sealing for films of varying thickness, including 0.04–0.20 mm. The machine maintains continuous operation, supported by constant temperature regulation as well as variable speed control. The conveyor can handle items weighing up to 20 kg, making it effective for sealing heavier products. The 13 mm seal width produces strong, uniform seals that protect goods during storage and transport. With its precise settings and adaptability to different films, the AS600F is suitable for a broad range of packaging tasks, from lightweight consumer items to bulk industrial goods.

Safety Features and Robustness of the AS600F Vertical Band Sealer

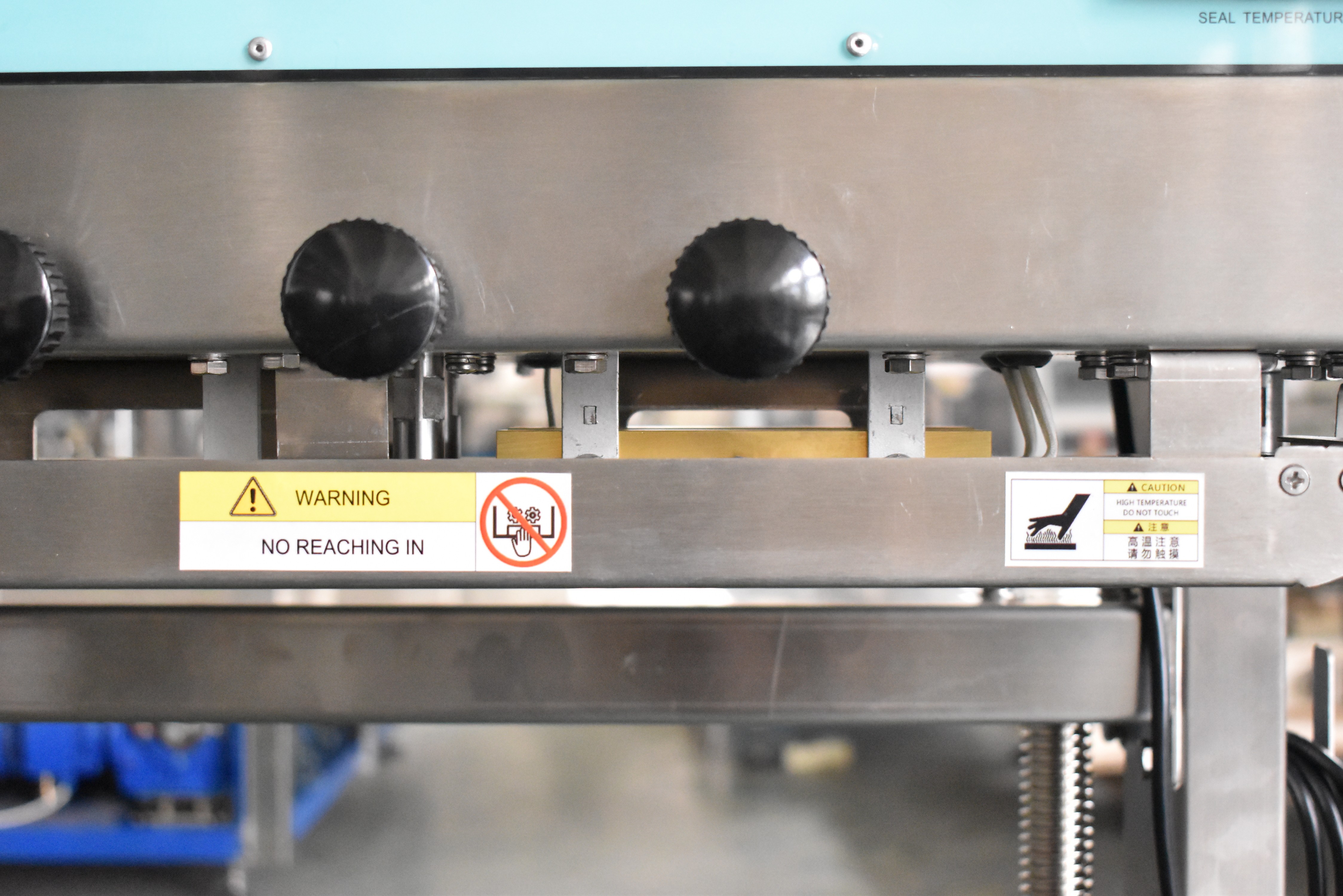

This AS600F Vertical Band Sealer prioritises operator safety and long-term durability. Safety is enhanced by features such as an emergency stop button, earthing requirements, and protective covers to prevent accidental contact with hot parts. The copper heating elements as well as cooling components are designed for continuous use while maintaining consistent performance. The machine’s robust construction resists wear, supporting extended service life in industrial settings. Safety instructions include disconnecting the power before maintenance and ensuring correct earthing to reduce risk. Key parts such as the motor, drive belts, and heating tubes are engineered for durability, with regular checks and replacements recommended. This combination of safety measures and sturdy build ensures dependable operation even in challenging production environments.

Settings and Upkeep for the AS600F Vertical Band Sealer

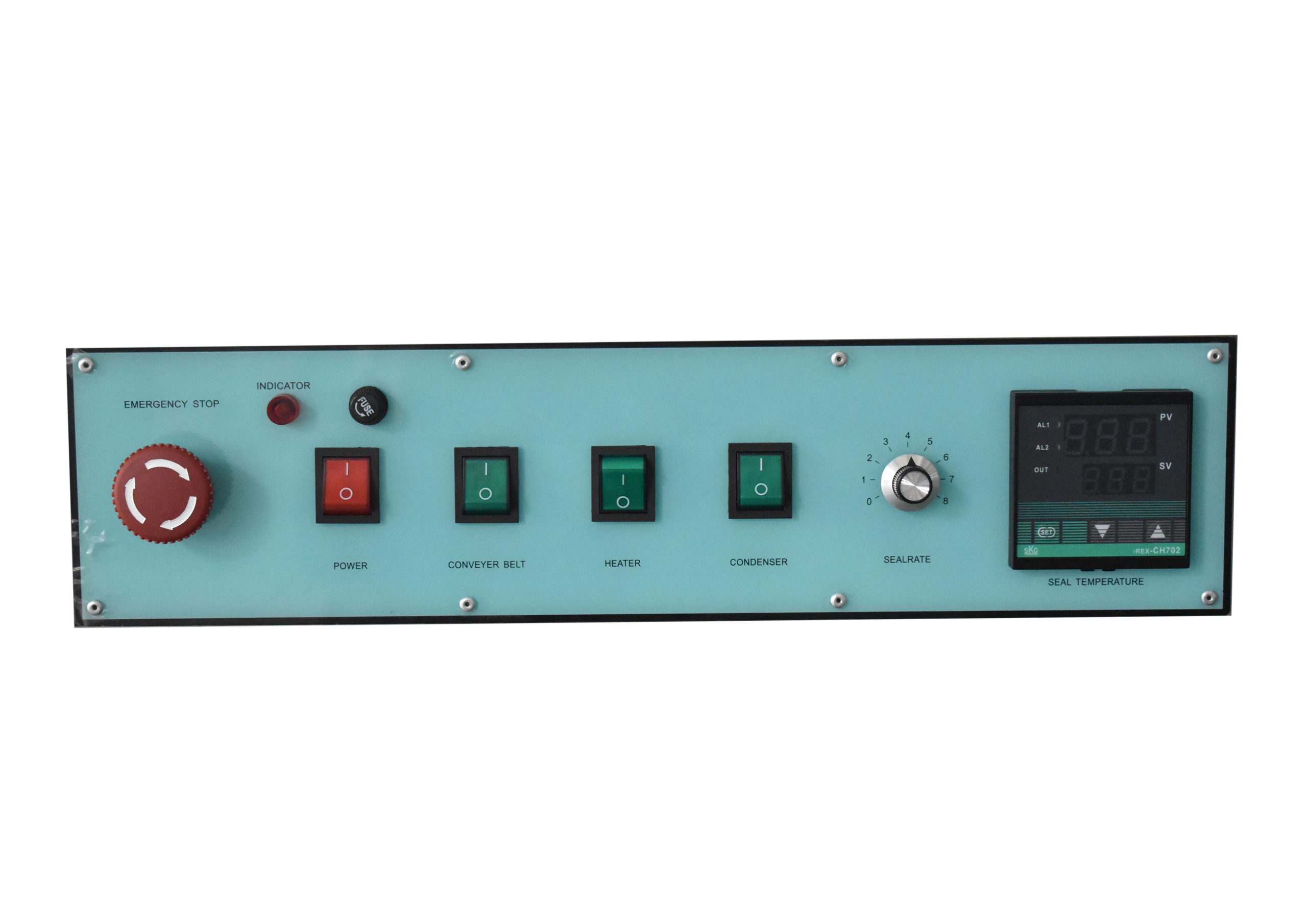

This AS600F Vertical Band Sealer offers a range of adjustable settings to maximise efficiency. Operators can set the sealing temperature setting, sealing speed setting; and height of the conveyor to suit the bag material and thickness. Routine adjustments include changing sealing conveyor belts, correcting belt tracking, and checking conveyor alignment. Regular maintenance is vital for maintaining performance and extending the machine’s lifespan. Recommended routines include daily cleaning of sealing conveyor belts, monthly checks of toothed guide belts; and regular replacement of carbon brushes for the motor. Annual servicing should cover inspection of heating tubes, rubber rollers, and temperature controllers. Following these schedules helps prevent unnecessary stoppages and ensures consistent sealing quality. The machine is designed for reliable long-term use, provided maintenance is carried out as advised.

Environmental Considerations for the AS600F Vertical Band Sealer

This AS600F Vertical Band Sealer helps promote sustainability by reducing packaging waste and encouraging efficient use of materials. By delivering consistent and secure seals, it lessens product loss caused by faulty packaging. This leads to less reworking, reduced use of packaging films, and fewer rejected batches. The machine’s energy-saving heating system as well as adjustable temperature controls help optimise energy consumption, in line with current industrial expectations for energy efficiency. In addition, its suitability for recyclable materials such as polyethylene and polypropylene film materials allows businesses to comply with environmental standards and support recycling efforts. With these features, the AS600F enables companies to implement packaging methods that are both efficient and environmentally conscious.

AS600F Vertical Band Sealer – Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer

This AS600F Vertical Band Sealer offers businesses a robust, dependable, and efficient packaging solution that directly supports productivity and cost management. Its ability to process multiple film types, substantial loads, and a range of bag sizes makes it a valuable asset for industries that require reliable and high-standard sealing. For organisations aiming to improve packaging efficiency while safeguarding product quality, this machine is a sound investment. To proceed, please click ADD TO BASKET or choose GET OFFER to request a quotation tailored to your specific requirements. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer. The AS600F ensures your packaging operations comply with industrial standards and supports ongoing efficiency and reliability.
