F150PM Band Sealer with Inkjet Printer for Bags up to 3kg – 0–13m/min, 600W

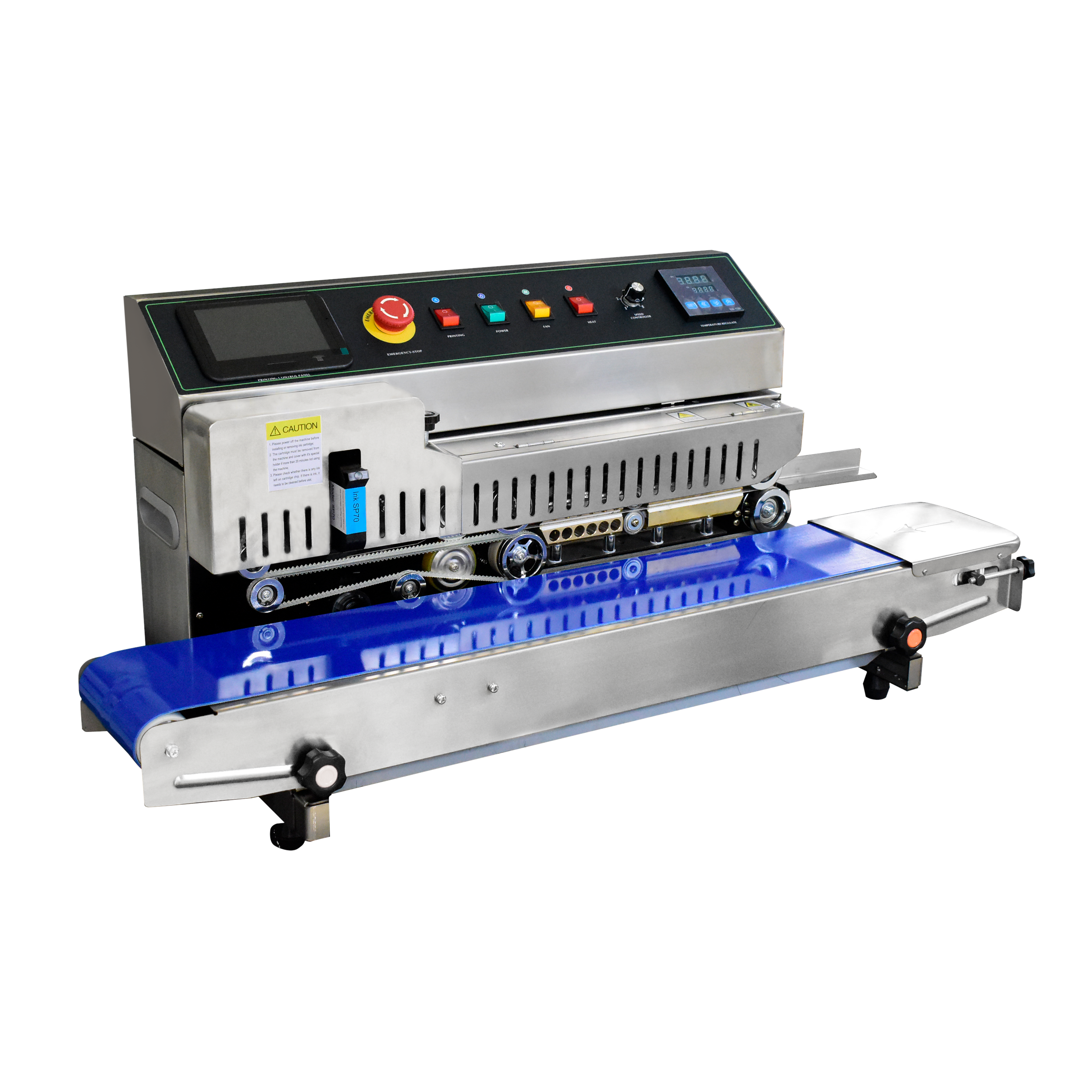

F150PM band sealer with inkjet printer

The F150PM is a continuous band sealer with inkjet printer. The belts guide the bag opening through the heated and cooling blocks, and the printer applies the date, batch or lot code directly onto the bag as it exits.

This means sealing and coding are completed in one step. Bags are sealed and marked in a single operation, so there is no risk of missing or incorrect codes, and there is no need to manually stamp filled bags.

The belt speed is adjustable from 0 to 13 metres per minute, and the sealing temperature can be set anywhere between 0 and 300 °C. The conveyor supports bags weighing up to 3 kilograms and film thickness up to 0.08 mm in a single layer.

The machine size is 1000 × 400 × 450 mm, the weight is approximately 33 kilograms, and it operates from a standard 220 V mains socket, with a 50 W drive motor and 2 × 300 W heating elements.

Typical applications for the F150PM band sealer with inkjet printer

The F150PM is used for food, pharmaceutical, chemical, agricultural and industrial packaging. It is selected where a reliable seal and printed code are both needed on plastic film bags. Typical products include dry foods, powders, granules, hardware, medical items and chemicals. The machine is suitable for packing rooms, small production lines and contract packing. It is designed for tabletop use.

Technical details

F150PM band sealer video demonstration

▶

Why the printer should be integrated with the sealer

• Seal and print in a single operation. The code is applied to the bag as it is sealed, ensuring every bag is marked with a date.
• The code your customer requires. Date, batch, lot or best-before information is printed directly onto the bag, not on a label that could detach.
• No pauses between bags. The belts operate continuously, so output depends on the operator’s speed.
• Adjustable sealing. Temperature can be set from 0 to 300 °C and speed from 0 to 13 metres per minute, suitable for both lightweight PE and thicker films.
• Embossed seal. The embossing wheel presses a pattern into the seal, improving strength and confirming the bag was sealed by machine.
• Single power connection. 220 V, approx. 33 kg, 1000 × 400 × 450 mm. Designed to sit on a packing bench.

Equipment

• Continuous band sealer with integrated inkjet printer
• Prints date, batch or lot code as bags are sealed
• Sealing speed adjustable from 0 to 13 metres per minute
• Temperature adjustable from 0 to 300 °C
• 50 W motor, 2 × 300 W heating elements
• Handles film thickness up to 0.08 mm, single layer
• Conveyor supports up to 3 kg per bag
• Embossed sealing
• Power supply: 220 V, 50–60 Hz (110 V, 60 Hz model also available)
• Machine dimensions: 1000 × 400 × 450 mm, weight approximately 33 kg
• 12-month guarantee

How to seal and print a bag

1. Switch on the band sealer, set the sealing temperature and allow the heating block to reach temperature.
2. Choose what the printer will mark: date, batch number or lot code.
3. Adjust the belt speed, then set the print position, which depends on the speed selected.
4. Insert the filled bag with its open end between the two belts.
5. The bag is sealed, cooled, embossed and printed in a single pass through the band sealer.

Settings and maintenance

• Temperature. Increase gradually from low to high until the seal is secure. Raising it too quickly can burn the film and the belt.
• Speed. Adjustable from 0 to 13 metres per minute. Set the temperature first, then adjust the speed and print position.
• Print position. Where the code appears along the bag. This changes with belt speed, so check after each speed adjustment.
• Seal position. 10 to 20 mm from the bag edge.
• Daily. Brush any film residue from the sealing belt and wipe down the conveyor table.
• Wear parts. The sealing belt, guide belt and printer ink are consumables. Replace a damaged belt promptly to avoid marking the seal.

Before purchasing

The price is shown on this page. The band sealer with printer is chosen as much for its coding as for its sealing, so please check the following before purchasing:

• Required print. Date, batch, lot or best-before. Let us know the format and number of characters for your code.
• Bag weight. Handles up to 3 kg per bag on the conveyor. For heavier bags, see the AS600F, which supports up to 5 kg per bag.
• Film type. Accepts single-layer film up to 0.08 mm thick, including PE, PP or multi-layer materials.
• Without printer. The FS150 is the equivalent model without a printing unit and is lower in price.
• Power. 220 V, 50–60 Hz from a standard socket; 110 V version available.
• Space required. 1000 × 400 × 450 mm on a worktable, approximately 33 kg, plus clearance for the bag output.
