FS150 Bag Sealing Machine, Vertical Type, up to 3kg, 0–13m/min

FS150 continuous band sealer

The FS150 is a continuous band sealer: bags are fed through without stopping. Twin belts grip the top of the bag, guide it through a heated section, press the film together and cool the seal, all while the operator prepares the next bag.

The belts operate at 0 to 13 metres per minute, with adjustable speed, so the machine matches the operator’s pace. The sealing temperature can be set anywhere from 0 to 300 °C to suit the film in use.

This is the vertical type: bags remain upright during sealing, which prevents powders, granules and loose contents from entering the seal area. The conveyor supports up to 3 kilograms per bag.

Handles film up to 0.08 mm thick in a single layer, measures 820 × 350 × 590 mm for table-top use, weighs 23 kg and plugs into a standard 220 V mains socket.

FS150 vertical band sealer in production

The FS150 vertical band sealer is widely used in food production, pharmaceuticals, chemicals, household products and agriculture. Typical applications include sealing bags containing powders, granules, seeds, dried foods and small hardware items.

This model integrates into batch packing lines and is commonly positioned after a filling station. Operators fill and close the bag, then present it to the sealer. The machine is ideal for small and medium upright bags, especially where spillage or contamination must be avoided.

Technical specifications

How a continuous sealer improves your packing area

• No waiting between bags. The belts move non-stop, so output depends on the operator’s pace, not the machine’s speed.
• Bags remain upright. The vertical design keeps powders and granules at the base of the bag, away from the seal, helping to prevent leaks.
• Adjustable seal. Set the temperature from 0 to 300 °C and the speed from 0 to 13 metres per minute to suit both thin PE and thicker laminates.

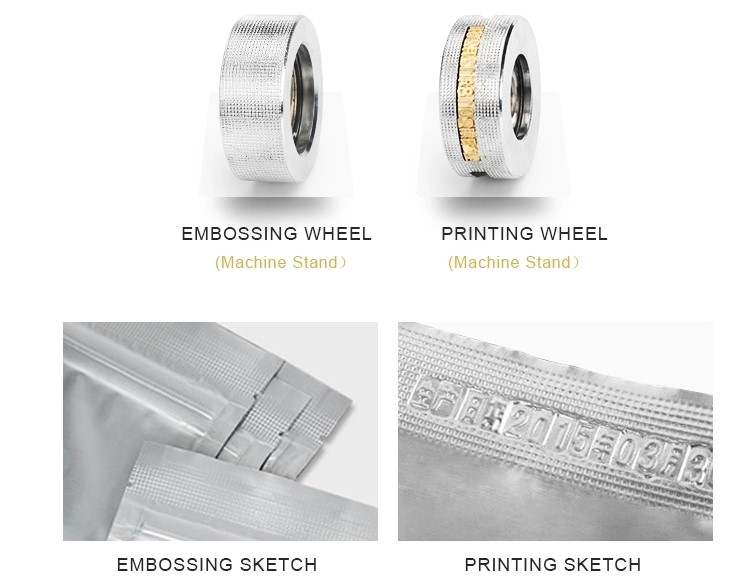

• Embossed seal. The embossing wheel imprints a pattern into the seal, making it both stronger and clearly machine-sealed.
• Table-top machine. 820 × 350 × 590 mm and 23 kg, fits on a packing bench and plugs into a standard socket.
• Easy maintenance. The sealing and guide belts are consumables and can be replaced by a service engineer without tools.

Equipment

• Continuous band sealer, vertical type
• Sealing speed adjustable from 0 to 13 metres per minute
• Temperature adjustable from 0 to 300 °C
• Motor 50 W, heating elements 2 × 300 W
• Film thickness up to 0.08 mm, single layer
• Conveyor supports up to 3 kg per bag
• Embossed sealing
• Power supply 220 V, 50–60 Hz (110 V, 60 Hz version on request)
• Machine dimensions 820 × 350 × 590 mm, weight 23 kg
• Suitable for PE, PP and multi-layer film
• 12-month guarantee

How to use the FS150 vertical bag sealer

For optimal sealing, test the seal on any new bag type at a slower speed before increasing output. The seal should look even and withstand a simple peel or burst check. Regularly inspect the sealing and guide belts, and clean the conveyor to ensure reliable performance.

Bag sealing process

1. Switch on the sealer, select the correct temperature for your film, and allow the heating block to reach temperature.
2. Adjust the belt speed so that the bag exits sealed and cool.
3. Hold the filled bag upright and insert the open end between the two belts.
4. The belts move the bag through the heated block, then the pressure wheel and cooling block.
5. Remove the bag at the end; feed the next one in straight after without stopping the belts.

Settings and maintenance

• Temperature. Increase gradually from low until the seal is secure. Setting the temperature too high at once can damage both film and belt.
• Speed. 0 to 13 metres per minute. A slower speed applies more heat to the seal; a faster speed applies less. Set the temperature first, then adjust the speed.
• Seal position. 10 to 20 mm from the bag edge. Too close and the seal may curl; too far and the bag holds less.
• Film. Up to 0.08 mm thick in a single layer, PE, PP or multi-layer.
• Daily. Brush off any film residue from the sealing belt and wipe down the conveyor surface.
• Wear parts. The sealing belt and toothed guide belt. Inspect monthly and replace any belt immediately if torn, to avoid damaging the seal.

Before purchasing

The price is shown on this page. Choose a bag sealer based on your bag type and required speed; please check these points before purchasing:

• Bag weight. Handles up to 3 kg per bag on the conveyor. For heavier bags, consider the AS600F, which supports 20 kg on the table and 5 kg per bag.
• Bag height. The vertical model is ideal for bags that need to remain upright. The AS600F accepts bags from 120 to 600 mm tall.
• Film. Up to 0.08 mm single layer. For thicker films, the larger AS600F is recommended.
• Printing. This model seals only. For date or batch coding, choose the F150PM with inkjet printer.
• Power supply. 220 V / 50–60 Hz from a standard socket; a 110 V version is also available.
• Space required. 820 × 350 × 590 mm on a worktop, 23 kg, plus clearance for the bag to exit.
