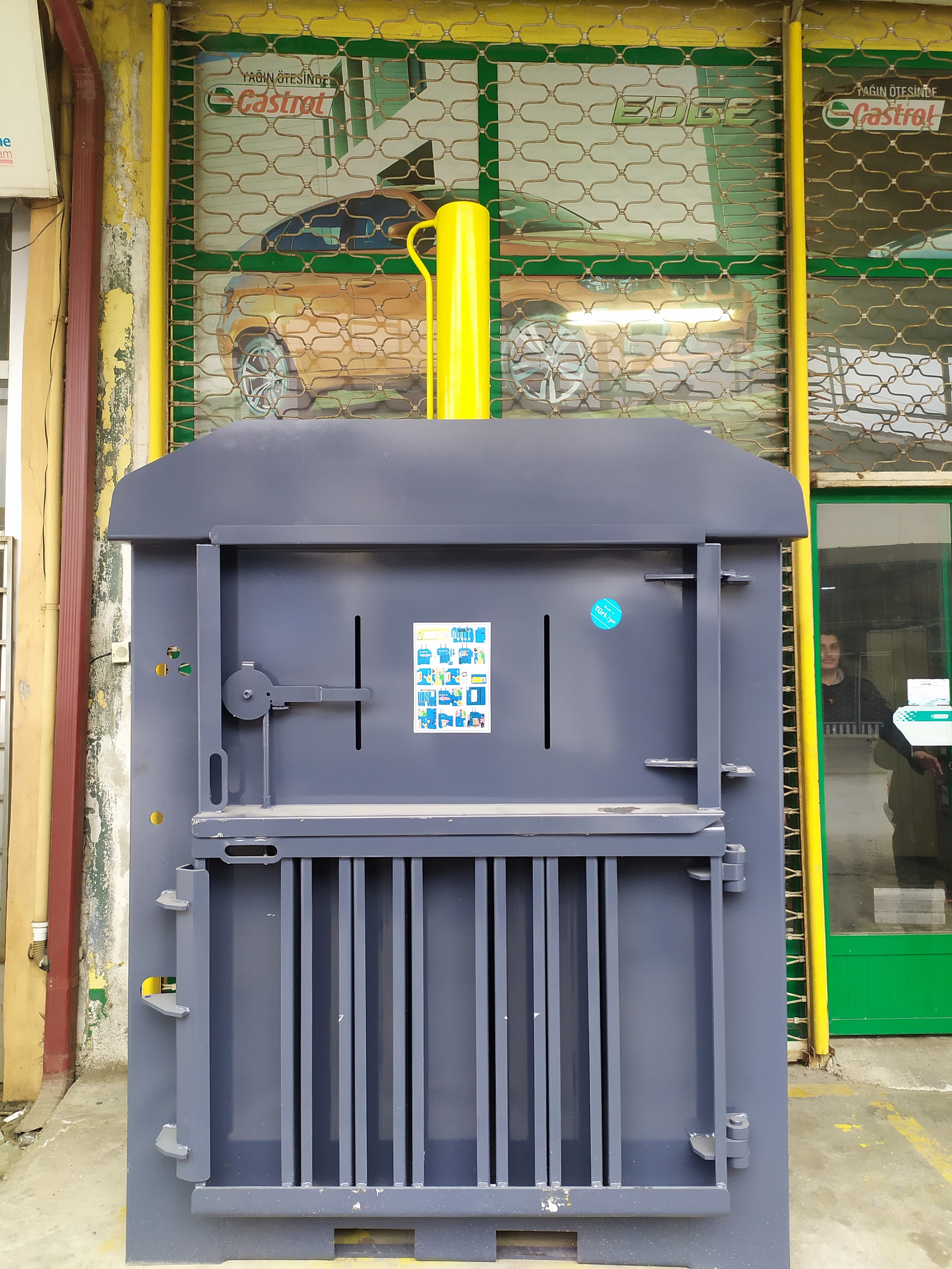

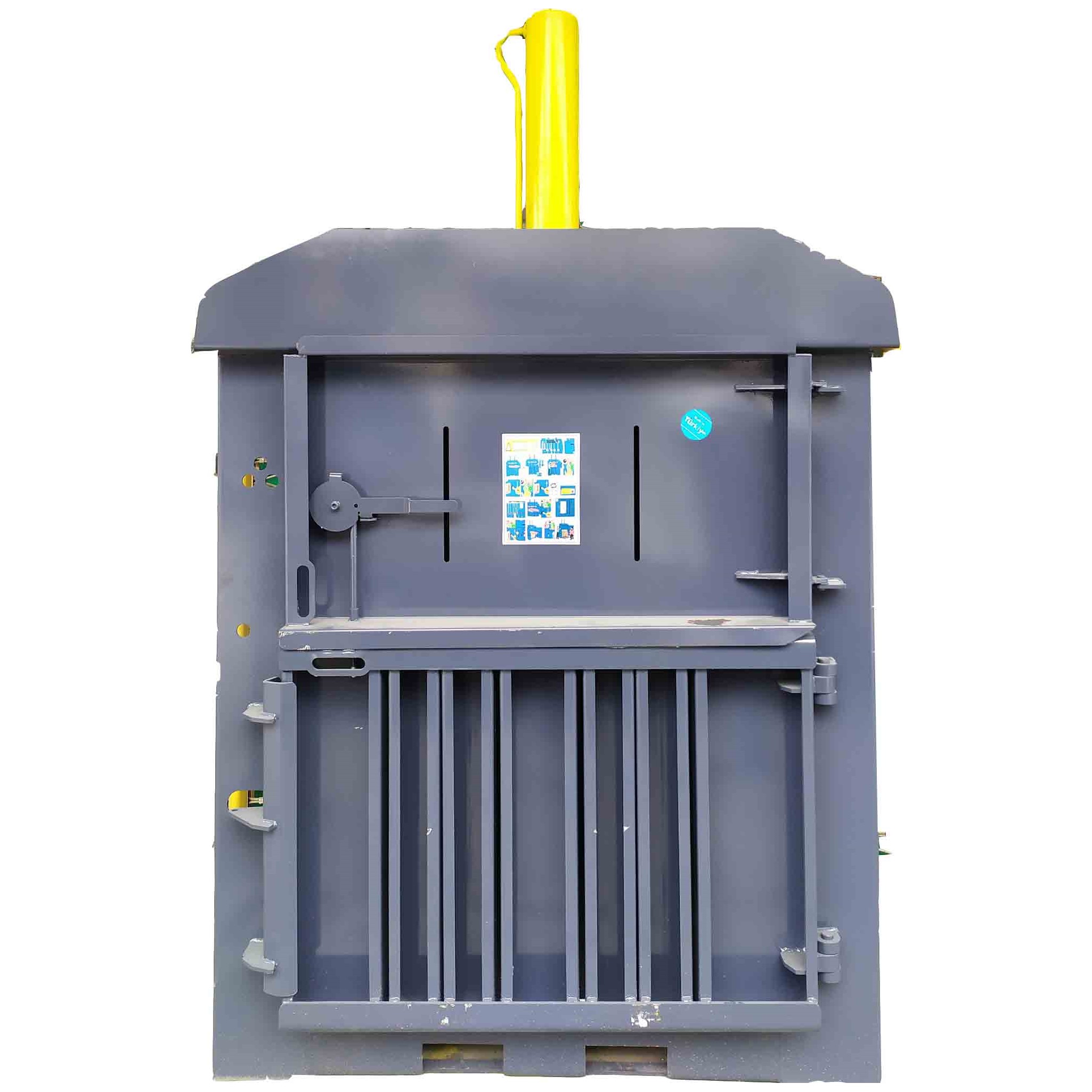

    Vertical baler 20 tonnes TONNA20

    Vertical baler TONNA20, 20 tonnes, 200 kN, bale 150 kgThe TONNA20 vertical baler, offering 20 tonnes of pressing force, provides significant savings in waste management costs and storage space at your site. This machine is commonly used in warehouses, retail outlets, hotels, restaurants, and manufacturing facilities across a range of sectors, and is also chosen by landfill operators due to its robust construction and distinctive features. With a pressing capacity of 20 tonnes, the TONNA20 vertical baler is suitable for compacting a variety of materials, including paper, cardboard, plastics, plastic bottles, stretch film, and more. Depending on the material, each bale can weigh up to 150 kg. The TONNA20 vertical baler is equipped with an advanced automatic bale ejection system, making bale removal from the recycling baler effortless. Thanks to its wire-tying system, each bale can be securely fastened for a compact, tidy result. The TONNA20 is engineered for both indoor and outdoor use. This vertical baler is built for longevity, with a service life of 20 years or more. The recycling baler measures 2600 mm (H) x 1560 mm (W) x 1030 mm (D) and has a weight of 780 kg. It comes with a 1-year warranty. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.



    Vertical baler 20 tonnes TONNA20

    Key features of TONNA20 cardboard balers

    • An automatic bale ejection system
    • Capable of compacting up to 150 kg of waste material per bale
    • Bale size: 975 mm x 800 mm x 1000 mm (W x D x H)
    • 6–8 bales per hour
    • Overall dimensions: 1560 mm x 1030 mm x 2600 mm (W x D x H)
    • Well suited to areas with limited space or headroom
    • Straightforward operation and uncomplicated installation
    • Sound Level: 72 decibels
    • Cycle Duration: 40 seconds
    • Electronic control panel
    • Motor: 2,2 kW, single oil cylinder



    Technical details for TONNA20 vertical baler, 20 tonnes

    TONNA20 vertical baler, 20 tonnes
    Overall Height 2600 mm
    Overall Width 1560 mm
    Overall Depth 1030 mm
    Total Weight 780 kg
    Height for Transport 1955 mm
    Electrical Connection 220 – 240 V (single phase)
    Drive Motor 2.2 kW, 16 amp
    Compaction Force Maximum 20 tonnes
    Sound Level 72 decibels
    Bale measurements
    Overall Height 1000 mm
    Overall Width 975 mm
    Overall Depth 800 mm
    Total Weight Up to 150 kg – varies with the type of material processed
    Cycle duration 40 seconds
    Loading opening dimensions
    Overall Height 470 mm
    Overall Width 975 mm
    Overall Depth 800 mm



    Vertical baler TONNA20 demonstration video



    Vertical baler 20 tonnes TONNA20 electric control systemBenefits of the Vertical baler 20 tonnes TONNA20

    • Bale output weight 150 kg
    • A medium-capacity baler designed for straightforward loading of larger cardboard cartons
    • Holding claws minimise material rebound inside the baler chamber
    • Automatic bale ejection system: assists with bale removal



    Operation of the Vertical Baler TONNA20

    Vertical baler 20 tonnes TONNA20Site requirements

    When selecting a location for the TONNA20 vertical baler, please consider the following points:

    • The machine requires a suitable floor surface. This surface must be capable of bearing the machine’s weight, as well as supporting pallet trucks and vehicles used for transporting loads.
    • There should be ample space around the machine to allow for loading, supervision, maintenance, and removal of bales.
    • An electrical supply (220v / 240v) should be positioned near the machine.
    • Lighting in the area where the machine is installed must comply with local occupational health and safety regulations.
    • Adequate ventilation should be provided in the area where the machine is located.

    Loading waste material into the machine

    Once the cardboard compactors are in place, the machine is ready to be loaded. Begin by closing the lower door and filling the machine. When starting a new bale, place a large sheet of cardboard (or another suitable material) at the bottom of the hopper. This will ensure that all ties, tapes, and solid waste are retained. Only waste material should be placed in the machine. When full, the waste can be compacted again.

    Compacting

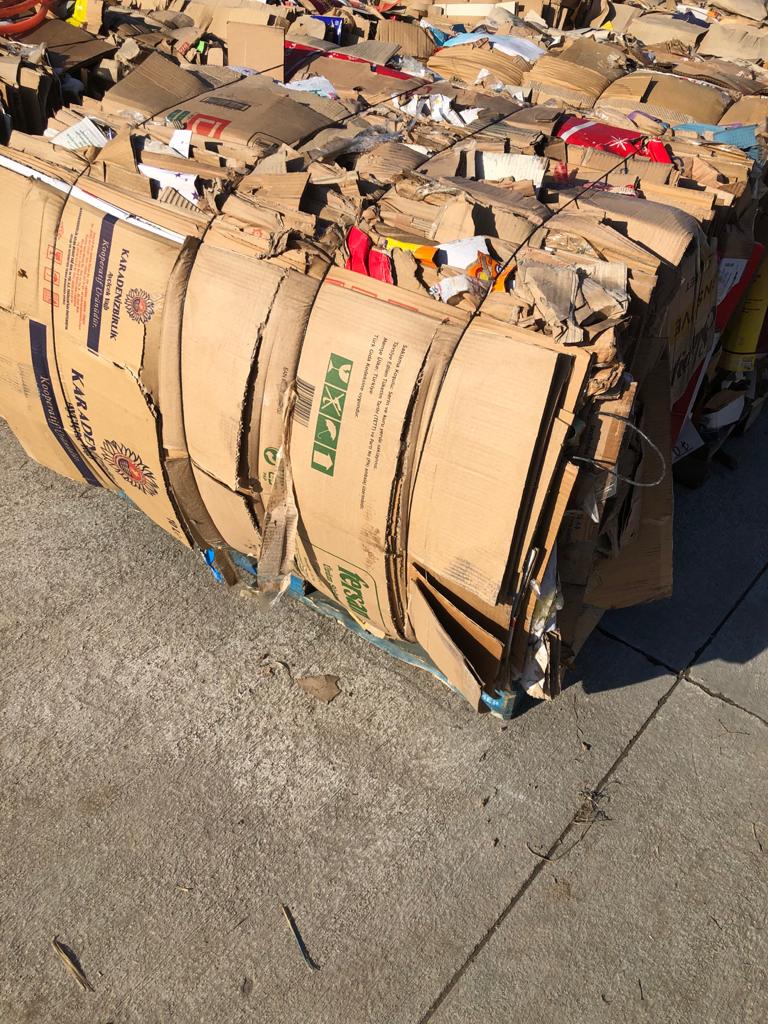

    Vertical baler TONNA20, 20 tonnes, bale

    The hydraulic hoses provide the clamping force needed to compact the waste. The material is compressed to minimise its volume. The baling process is as follows:

    1. The bale chamber should be filled to the top of the machine.
    2. To begin compaction, select the required compression setting on the control panel, then press the green button and activate the “compress” function. The machine will carry out the compression cycle and will automatically stop when finished. (The pressing plate can remain in position until the machine is refilled.)
    3. To return the pressing plate to the upper position, press the green button and move it to the “pinch” setting. During this cycle, the machine will stop automatically and the plate will return to its starting position.
    4. The machine will stop immediately if the red button is pressed.
    5. Repeat this process until the required number of bales has been produced and compacted.



    TONNA waste baler baling process video





    TONNA waste baler – faster bale strapping with textile strap – video



    Additional information

    Weight 780.0 kg
    Dimensions 1.01 × 1.44 × 2.4 m

    Summary

    • A vertical baler featuring 20 tonnes of pressing force TONNA20 is supplied with significantly reduce waste disposal costs as well as save valuable space within your premises.
    • Fitted with an automatic bale ejection system
    • Capable of compacting up to 150 kg of waste material per bale
    • Bale size: 975 mm x 800 mm x 1000 mm (W x D x H)
    • 6–8 bales per hour
    • Overall dimensions: 1560 mm x 1030 mm x 2600 mm (W x D x H)
    • Well suited to areas with limited space or headroom
    • Simple operation and straightforward installation
    • Sound level: 72 dB
    • Cycle duration: 40 seconds
    • Electronic control panel
    • Motor: 2,2 kW, single oil cylinder
