Vertical Cardboard Baler TONNA25, 25 Tonnes, 250kN, 250kg Bale

Vertical baler 25 tonnes TONNA25

The TONNA25 vertical baler, offering 25 tonnes of pressing force, significantly reduces waste disposal costs and maximises available space at your premises. This machine is commonly found in warehouses, retail outlets, hotels, restaurants, and manufacturing sites across a range of sectors, and is also suitable for use at landfill sites due to its robust construction and distinctive features. With a pressing force of 25 tonnes, the Vertical baler TONNA25 is capable of compacting a variety of materials, including paper, cardboard, plastics, plastic bottles, stretch film, and more. The finished bale can weigh up to 250 kg, depending on the material processed. The TONNA25 vertical baler features an advanced automatic bale ejection system, making it easy to remove the bale from the recycling baler. Utilising wire technology, the waste bale can be securely tied, resulting in a compact and stable output. The TONNA25 vertical baler is suitable for both indoor and outdoor use and is designed for long-term reliability, with an expected service life of 20 years or longer. The recycling baler measures 2650 mm (height) x 1500 mm (width) x 1100 mm (depth) and has a weight of 750 kg. Supplied with a 1-year warranty. The transport height of the vertical baler is 1955 mm. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.

Key specifications of cardboard baler TONNA25

• An automatic bale ejection system
• Able to compact 250 kg of waste material per bale

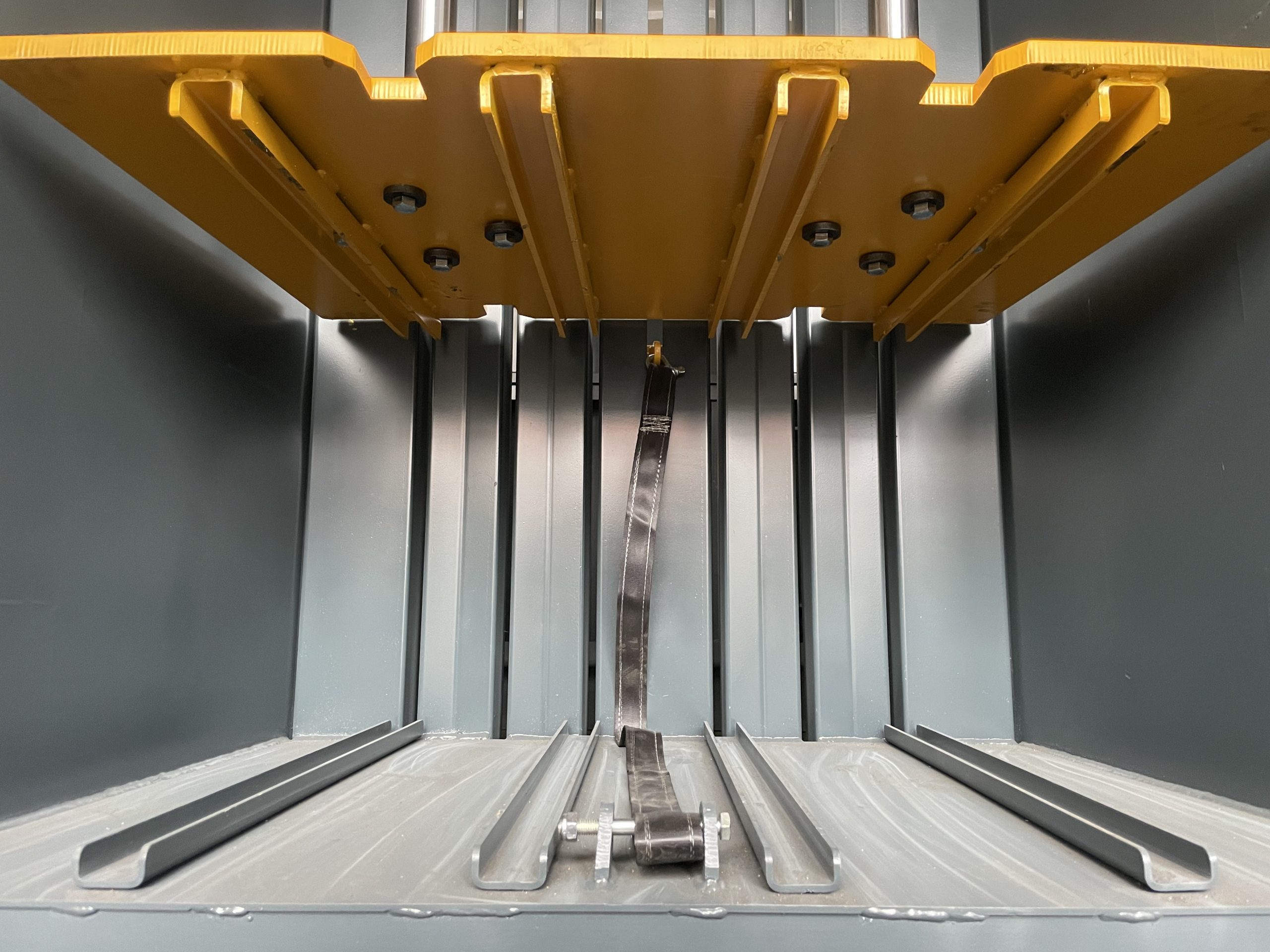

• Bale size: 1000 mm x 800 mm x 800 mm (W x D x H)
• 6–8 bales per hour
• Overall machine dimensions: 1500 mm x 1100 mm x 2650 mm (W x D x H)
• Well suited for areas with limited space or low ceilings
• Straightforward operation and uncomplicated installation
• Sound Level: 72 dB
• Cycle Duration: 40 seconds
• Electronic control panel
• Motor: 2.2 kW 16 Amp Single oil cylinder
• Electrical Connection: 220-230V
• Transport height: 1955 mm

Technical details for Vertical baler 25 tonnes TONNA25

How recycling operates with the Vertical baler TONNA video

▶

Features of the Vertical baler 25 tonnes TONNA25

• Bale output weight 250 kg
• A medium-capacity baler designed for straightforward loading of large cardboard cartons
• Holding claws minimise material spring-back within the baler chamber
• Automatic bale ejection system for straightforward bale removal

Operation of the Vertical Baler TONNA25

Site Requirements

When selecting a location for the Vertical baler TONNA25, please consider the following points:

• The installation area must be able to bear the weight of the machine, as well as accommodate pallet trucks and vehicles used for transporting loads.
• There should be adequate space around the machine to allow for loading, supervision, servicing, and removal of bales.
• A 230 V electrical supply should be positioned near the machine.
• Lighting in the area where the machine is installed must comply with local health and safety regulations.
• The machine should be situated in a well-ventilated area.

Loading waste material into the machine

Once the cardboard compactors are in place, the machine is ready to be loaded. Begin by closing the lower door and then start filling the machine. When preparing a new bale, place a large sheet of cardboard (or another suitable material) at the bottom of the hopper. This will ensure that all ties or tapes used for securing the bale, as well as any solid waste, are collected. Only waste material should be placed in the machine. Once the waste baler is full, a new compaction cycle can commence.

Compacting

The hydraulic hoses provide the clamping force required to compress the waste material. The material is compacted to minimise its volume. The baling process is as follows:

1. Fill the bale chamber to the top of the machine.
2. To begin compaction, select the required compression setting on the control panel, then press the green button and activate the “compress” function. The machine will carry out the compaction cycle and will automatically stop once finished. (The pressing plate may remain in position until the next load is added.)
3. To return the pressing plate to the upper position, press the green button and move it to the “pinch” setting. During the clamping cycle, the machine will stop automatically and the plate will return to its starting position.
4. The machine will halt immediately if the red button is pressed.
5. Repeat this process until the required number of bales has been produced and compacted.

TONNA waste baler baling process demonstration video

▶

TONNA waste baler: strapping bales quickly with textile strapping – demonstration video

▶
