Cardboard Box Baler HSM V-Press 504 4T, 40 kN, Bale Weight 60kg

40 kN Pressing Force
4 Tonne Bale Capacity
Discharge Trolley Supplied

Product specifications

Package size

1.02 x 0.81 x 1.92 m

Package weight

290 kg

Bulk purchase discounts

Buy 3 – 5	3% OFF	Applied automatically at checkout
Buy 6 – 10	5% OFF	Applied automatically at checkout
Buy 11+	7% OFF	Applied automatically at checkout

Product demonstration video

This item is not in stock. You can reserve it by paying 30% now — delivery in 14 working days. The remaining amount is invoiced when the goods arrive.

Available with 30% deposit · delivery in 14 working days

SKU: 440130

5.999 €

Price excl. VAT • VAT is added at checkout if no validated VAT number is entered

Available with 30% deposit · delivery in 14 working days

🔒 Secure checkout • PCI‑DSS compliant

Availability Available with 30% deposit · delivery in 14 working days
12-month warranty Register it in the customer portal · service and spare parts from us
Returns and complaints No fee if the product is faulty, damaged in transit or not as ordered
Export price without VAT Goods delivered for export are invoiced without VAT
Tested before shipping CE-compliant · ISO
Secure payment Card, PayPal or bank transfer

10,000+ products sold across Europe 30+ years of experience

Textile strap for waste bales 16mm - 340m - 4 units

89,20 €

Quantity Get a quote or buy Add to quote

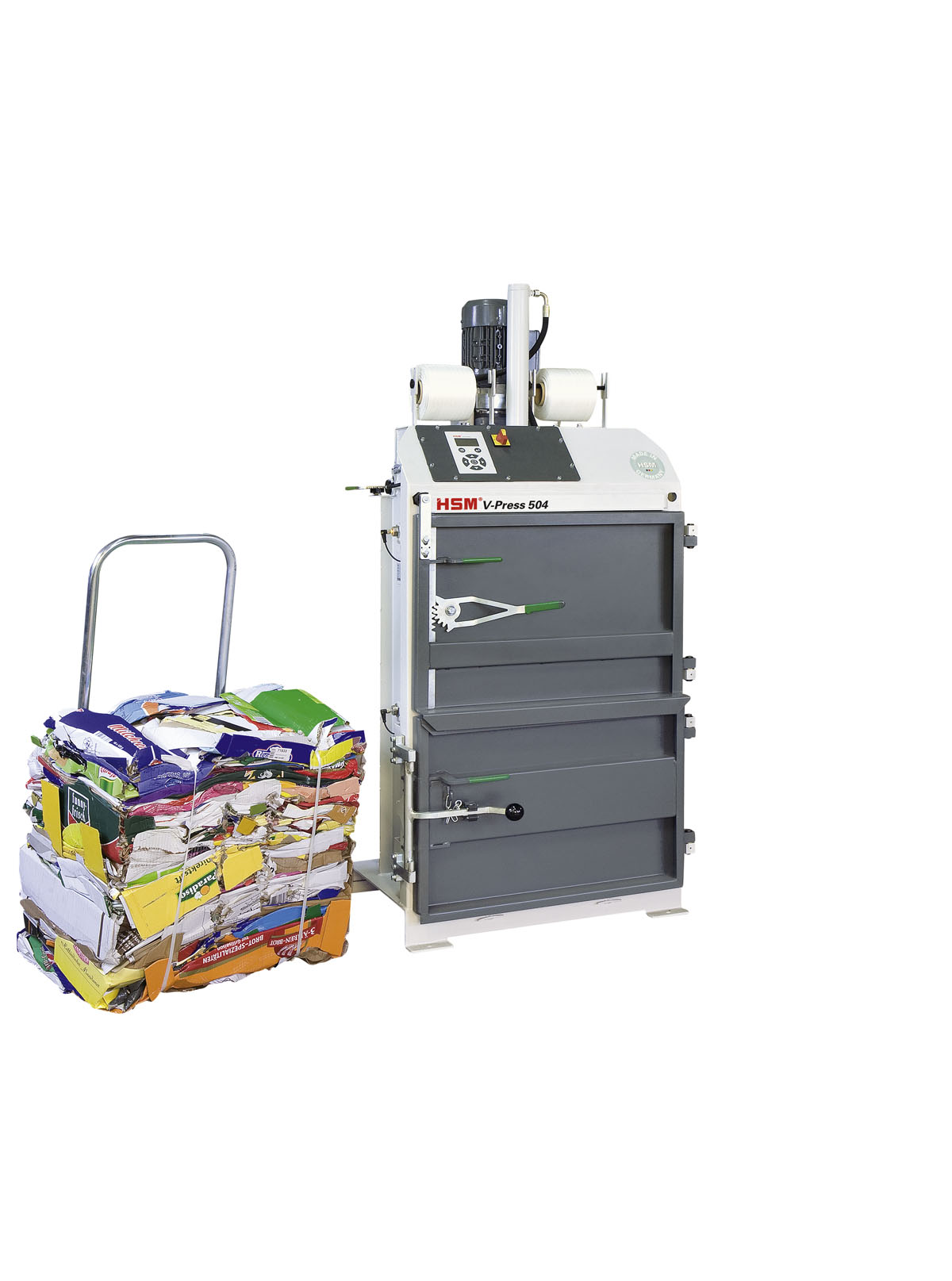

HSM V-Press 504 cardboard box baler 4T, 40 kN, bale weight 60kg

The HSM V-Press 504 cardboard box baler provides a pressing force of 4 tonnes, helping your business to reduce waste costs and save valuable space. This waste baler is commonly found in warehouses, retail outlets, hotels, restaurants, and manufacturing sites across a range of sectors, and is also used by landfill operators due to its robust build and distinctive features. With a pressing capacity of 4 tonnes, the HSM V-Press 504 is suitable for compacting a variety of materials, including plastic, paper, cardboard, and stretch film. The finished bale can weigh up to 60 kg, depending on the material being compacted. Once compressed, recyclables are much easier to handle and transport, which can significantly lower handling expenses and simplify waste management. If your business generates substantial waste and aims to reduce its environmental footprint, this baler is an excellent solution.

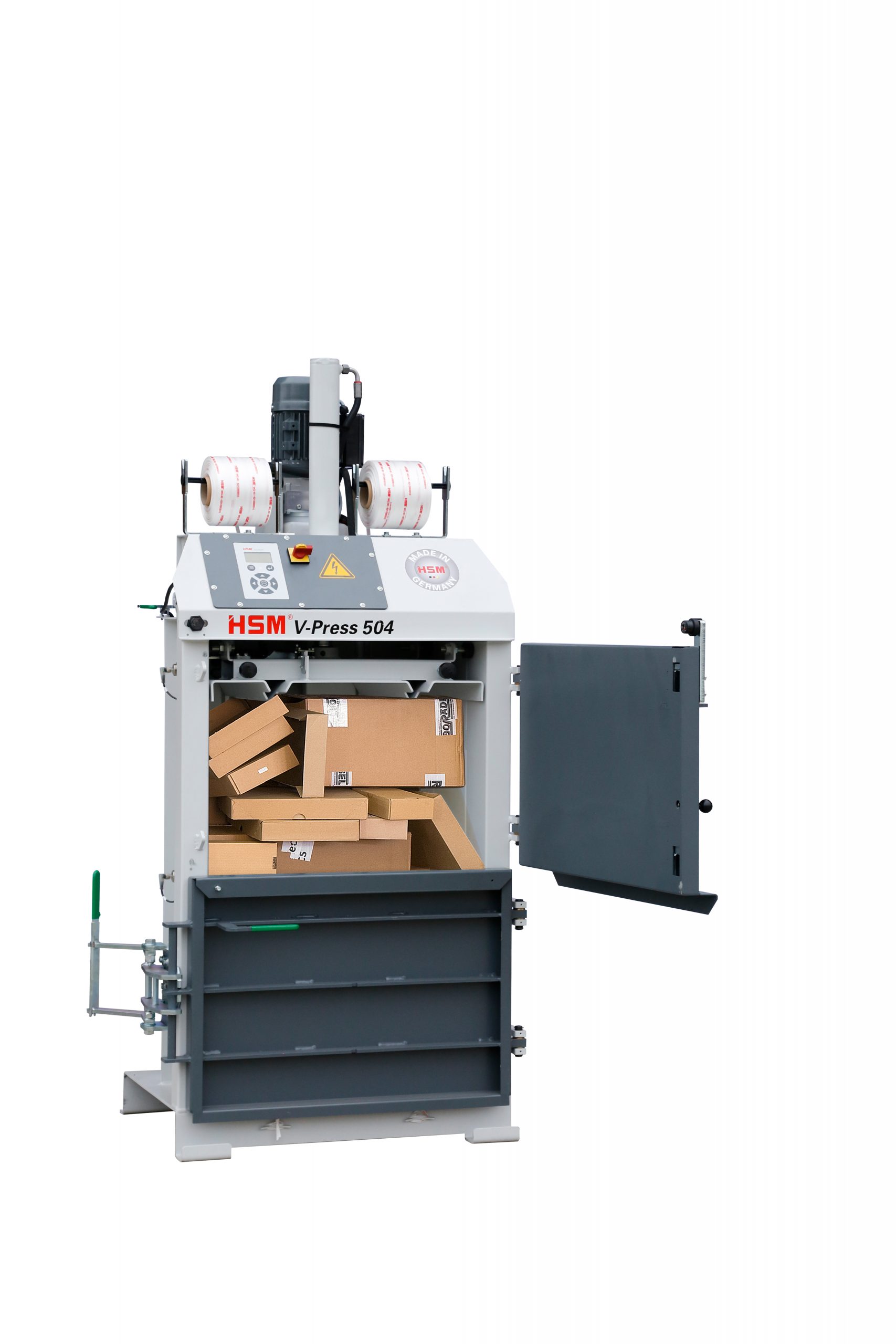

The HSM V-Press 504 cardboard box baler features a double door with a bell-crank lever, and is equipped with a modern microprocessor control system, membrane keypad, and text display. You can choose between different settings for compacting cardboard or plastic film. Thanks to its strapping system, bales are securely bound for a compact, tidy result. Bales are easily removed and moved using the discharge trolley supplied as standard. The compact design of the HSM V-Press 504 means it fits well in confined areas and is suitable for use both indoors and outdoors. This vertical baler is built for durability and can reliably operate for 20 years or more. Its dimensions are 1922 mm (H) x 1020 mm (W) x 812 mm (D), and the machine weighs 290 kg. The baler comes with a 1-year warranty. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.

Key features of the HSM V-Press 504 cardboard box baler

Double doors with bell-crank handle
Includes operating instructions and declaration of conformity
Robust, space-saving construction
Minimal floor space required
Advanced microprocessor control with membrane keypad and text screen
Programme selection for compressing cardboard or plastic film
Bale ejection and movement using discharge trolley
Bales are removed manually using the supplied discharge trolley
HSM TCS (TorsionControlSystem) for monitoring the movement of the press ram
Automatic return of the press ram
Standard equipment: 2 rolls of polyester strapping

Dimensions and space requirements for the HSM V-Press 504 eco

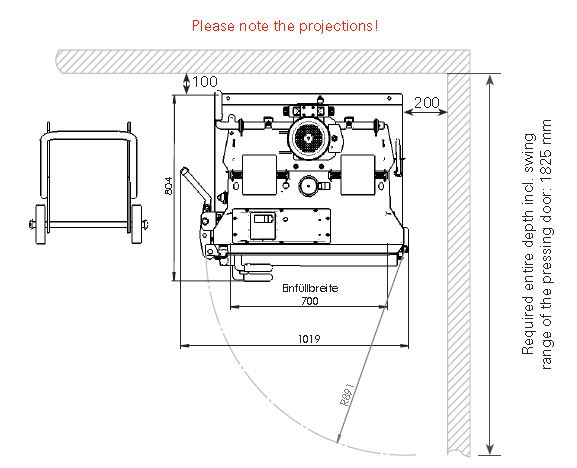

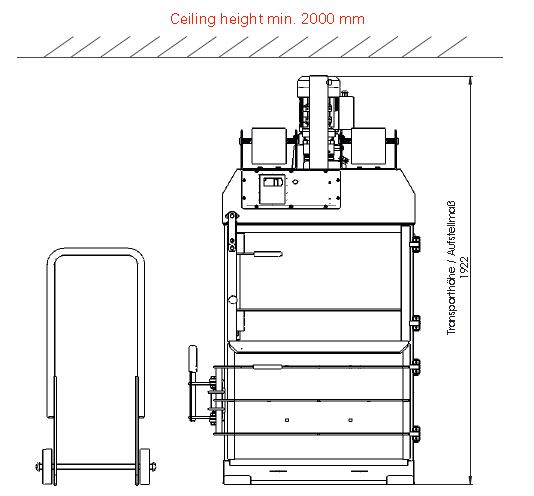

The HSM V-Press 504 cardboard box baler stands 1922 mm tall, so a minimum ceiling height of 2000 mm is necessary. The width and depth are 1020 x 812 mm, but the total depth required, including the swing of the pressing door, is 1825 mm.

HSM V-Press 504 4T, 40 kN, bale weight 60kg dimensions

Technical data for the HSM V-Press 504

Model	HSM V-Press 504
Pressing force in kN	40
Motor output in kW	1.1
Voltage / frequency	1 x 230 V / 50 Hz
Loading opening W × H in mm	700 x 470
Maximum bale weight in kg (material dependent)	60
Bale dimensions L × W × H in mm	700 × 500 × max. 600
Cycle time in idle mode (theoretical) in seconds	27
Sound level in dB(A)	64.3
Press chamber dimensions W × D × H in mm	700 x 500 x 1020
Machine dimensions* W × D × H in mm	1020 x 812 x 1922
Transport dimensions W × D × H in mm	1020 x 812 x 1922
Machine mass in kg	290
Strapping method	Double strapping with polyester band

Additional information

Weight	290,0 kg
Dimensions	1,02 × 0,81 × 1,92 m

Parameter	Specification
Model	HSM V-Press 504
Pressing power in kN	40
Motor in kW	1.1
Voltage/frequency	1 x 230 V / 50 Hz
Loading aperture W × hin mm	700 x 470
Bale weight in kg (depending on material) up to	60
Bale size L × W × H in mm	700 x 500 x max. 600
Cycle time in idle operation (theor.) in sec.	27
Acoustic level in dB(A)	64.3
Press chamber size W × D × H in mm	700 x 500 x 1020
Dimensions of machine W × D × H in mm	1020 x 812 x 1922
Transport dimensions of machine W × D × H in mm	1020 x 812 x 1922
Machine weight (kg)	290
Strapping	2-fold with polyester tape

What is the pressing force of the HSM V-Press 504 baler?

This baler delivers a pressing force of 4 tonnes, or 40 kN.

What is the maximum bale weight this baler can achieve?

It produces bales weighing up to 60 kg.

Is the HSM V-Press 504 baler suitable for materials other than cardboard?

Yes, it offers selectable settings for compacting both cardboard and plastic film.

How is the bale removed from the machine?

There is no automatic ejection; the bale is manually placed onto the included discharge trolley.

What type of control panel does the baler have?

It is fitted with a modern microprocessor control, membrane keypad, and text display.

Is the HSM V-Press 504 suitable for use in restricted spaces?

Yes, its compact and robust construction makes it ideal for areas with limited space.

How are bales moved after compacting?

Bales are removed and transported using the discharge trolley supplied with the baler.

Which safety mechanisms are fitted to the baler?

The baler features a double door with a bell-crank lever to promote safe handling.

What kind of strapping does the baler use to secure the bales?

Supplied with standard equipment, including two rolls of polyester tape for securing bales.

Summary

HSM V-Press 504 cardboard box baler
Pressing force of 4T or 40 kN
Bale weight 60kg
Double doors with bell-crank lever
Robust, space-saving construction
Minimal floor space required
Advanced microprocessor control featuring a membrane keypad and text screen
Programme selection for compressing cardboard or plastic film
Bale extraction and movement using the discharge trolley
Supplied with 2 rolls of polyester strapping
Warranty. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.
