Vertical baler for cardboard HSM V-Press 503 eco 3T, 30kN, bale weight 50kg

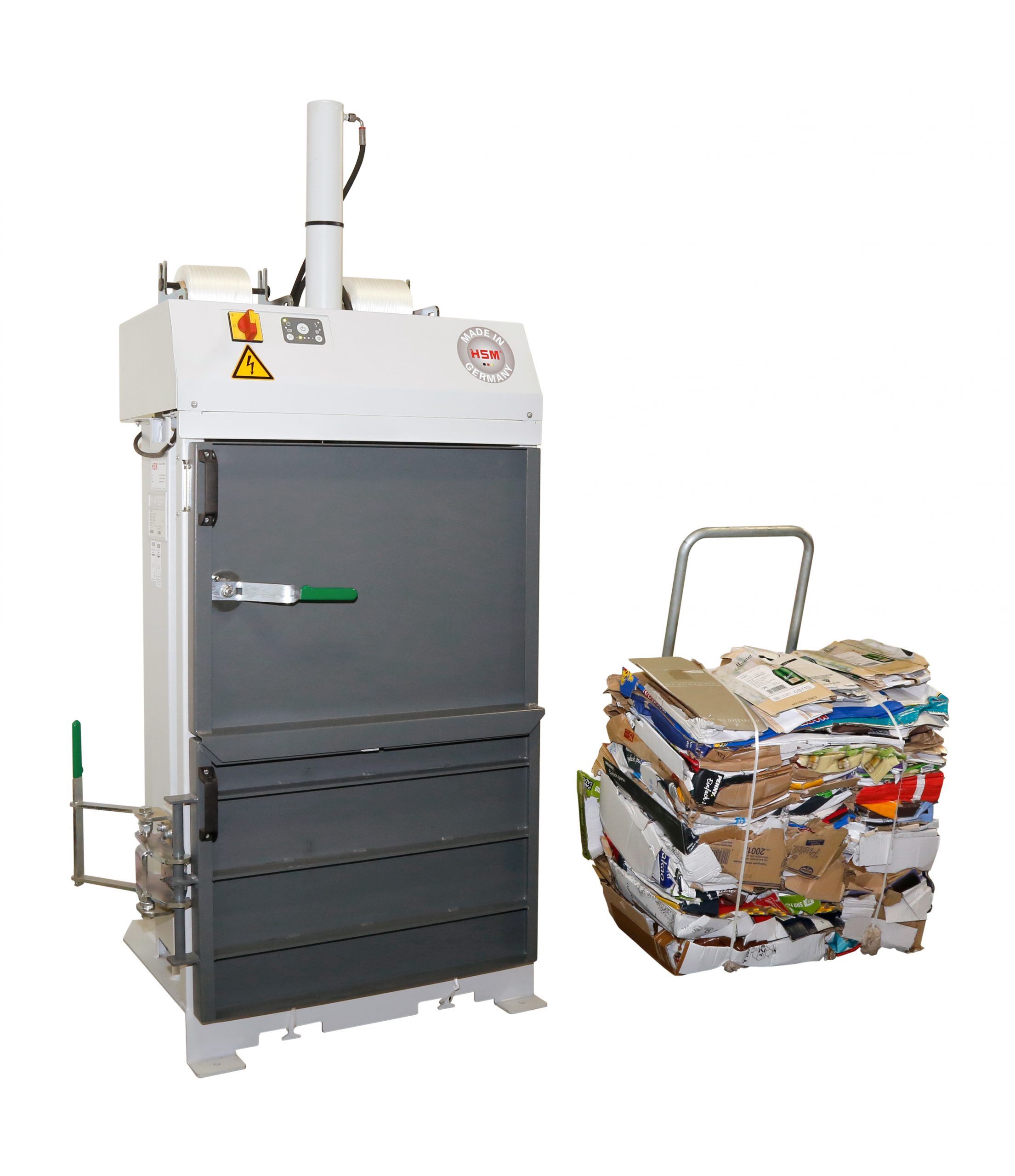

Vertical cardboard baler HSM V-Press 503 eco

The HSM V-Press 503 vertical baling press is designed to compact film, mixed paper, and cardboard to a minimum. This model is ideal for handling small quantities of material in the printing and packaging sector, logistics and freight forwarding, retail, as well as in industrial and manufacturing environments. By using this waste compactor, you can significantly reduce the volume of waste, saving both time and some disposal costs.

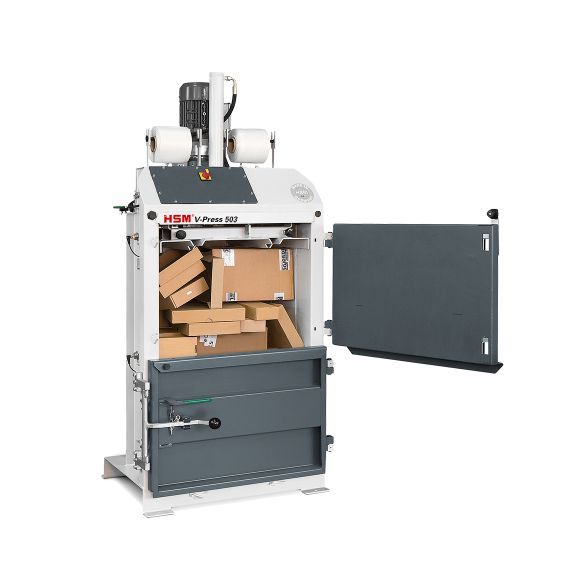

The HSM V-Press 503 vertical baling press features a double door, allowing you to open only the upper section for loading. This makes handling much easier, as waste cannot fall out. The lock engages automatically when you close the press door. A knee lever is used to fully close the hatch, enabling you to begin the pressing cycle. This lever ensures safe operation and is positioned at an ergonomic height for ease of use.

• Pressing force: 3 tonnes or 30 kN
• Produces bales weighing up to 50 kg
• Manufactured in Germany – premium quality
• Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer
• Ready to use on arrival – straightforward installation and operation

Features of the vertical cardboard baler HSM V-Press 503 eco

• Designed for use with both cardboard and plastic film
• Bales are removed and moved using a discharge trolley
• Standard features: supplied with 2 rolls of polyester strapping
• User-friendly, space-saving design with compact dimensions
• Easy to use with single-button operation
• Machine door type: double door configuration
• To load the press, the upper section of the doors swings open to the right
• Door locking system: bell-crank lever mechanism
• Self-latching closure technology
• Pressing cycle begins automatically when the door is closed
• Door can be opened quickly and safely
• When the door is opened, a safety switch ensures the pressing cycle stops automatically
• Automatic return of the press ram

Technical details for the HSM V-Press 503 eco vertical cardboard baler

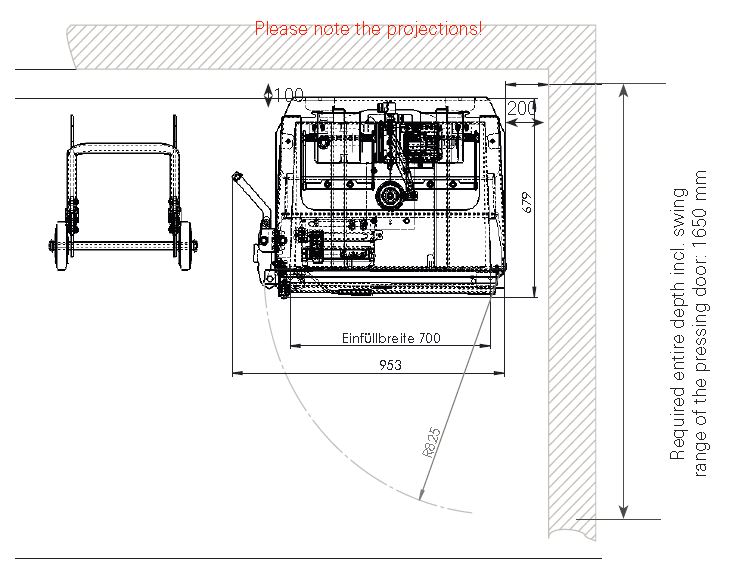

HSM V-Press 503 dimensions and required space

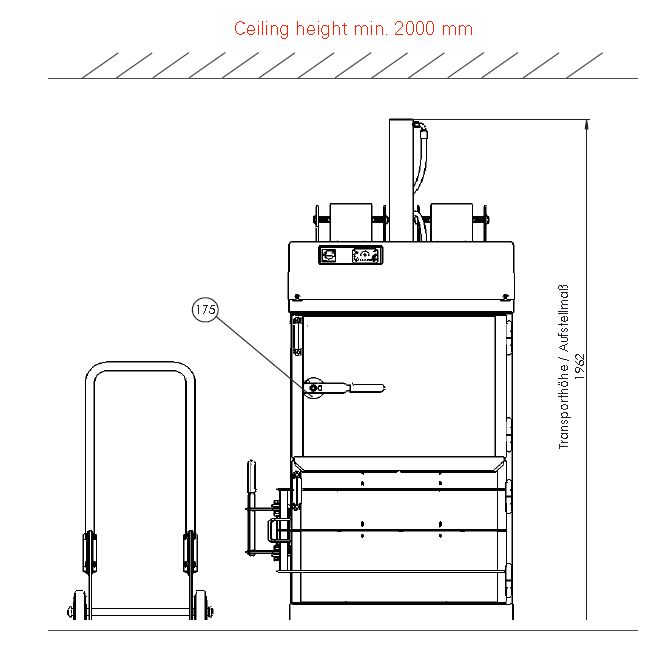

The HSM V-Press 503 eco vertical cardboard baler stands 1962 mm tall, and requires a minimum ceiling height of 2000 mm. The width of the HSM V-Press 503 vertical baler is 953 mm, with a depth of 678 mm.

Operation of the HSM V-Press 503 eco vertical cardboard baler

To prepare the HSM V-Press 503 vertical cardboard baler, insert the strap and engage the strap brake. Next, select automatic mode and load the machine with waste. The pressing cycle will commence automatically once the door is closed. When pressing is complete, the bale ready indicator will activate. Release the strap, pull it out, and cut it. Open the lower door and tie the straps together. Use the trolley to remove the bale. Please refer to the video below for a demonstration of the bale pressing procedure.

Strapping method a waste bale with the HSM V-Press 503 vertical cardboard baler:

• Activate the illuminated button
• The press ram returns to its initial position
• Release the tape brake (move the lever to the left)
• Open the loading door (angle of opening greater than 90°)
• Draw the tapes on the rear wall forwards (towards the bale ejection door)
• Extend the tapes approximately 400 mm over the bale ejection door and cut them
• Shut the loading door
• Activate the illuminated button
• The press ram advances onto the material again and halts
• Open both the loading door and the bale ejection door (with an opening angle greater than 90°)
• Detach the end of the tape from the securing hook and tie it securely to the strapping tape (at the top of the bale)
• Repeat these steps for each of the strapping tapes
• Shut both the bale ejection door and the loading door
• Activate the illuminated button
• The press returns to its initial position
• Open both the loading door and the bale ejection door (with an opening angle greater than 90°)
• Remove the bales using the bale removal trolley
• Secure the tapes in the press chamber back onto the fixing hooks
• Shut both the bale ejection door and the loading door
• The press is now ready for use again

HSM V-Press 503 eco vertical cardboard baler demonstration video

▶
