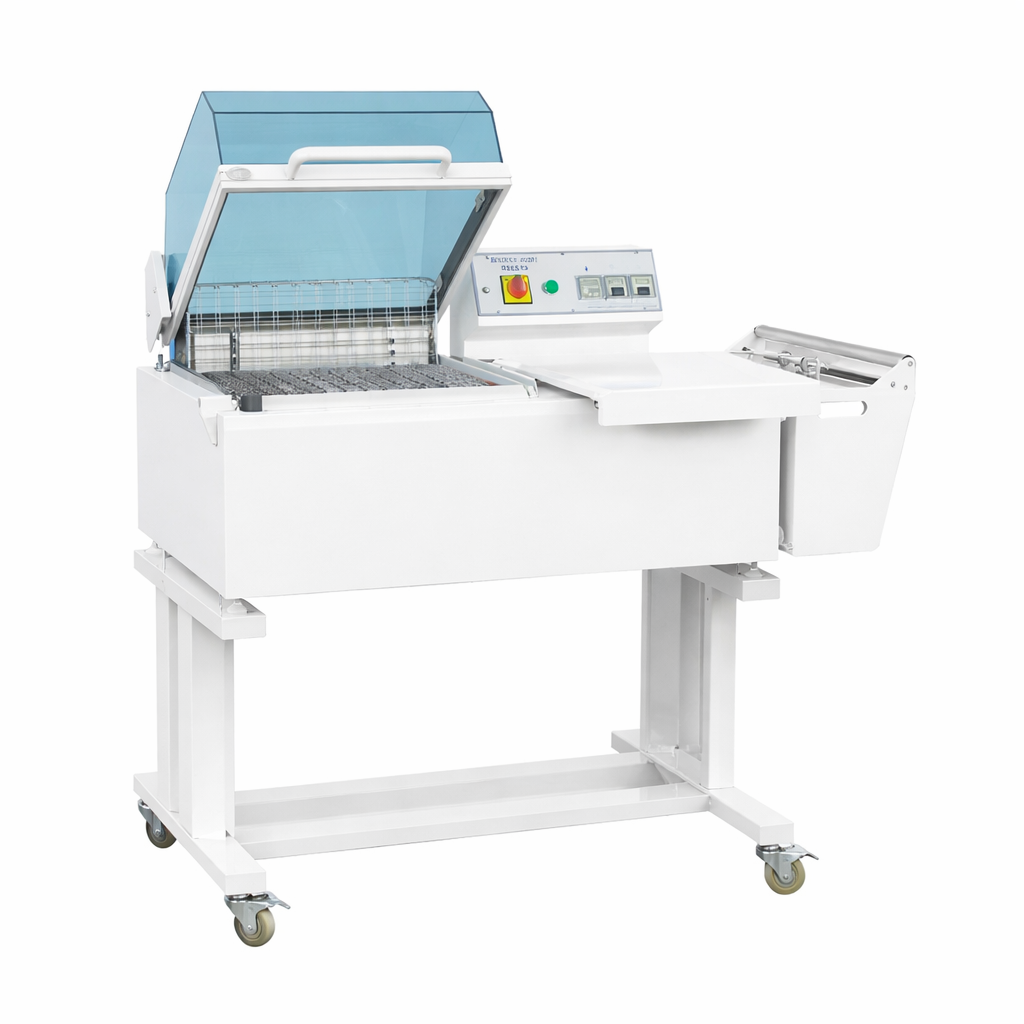

Shrink Wrapping Machine B4255

Shrink Wrapping Machine, Integrated Cutting, Shrinking and Wrapping System B4255

Shrink wrapping machine B4255 is a chamber shrink wrapping machine. It is engineered for straightforward use, combining sealing and shrinking in a single operation within one chamber. The sealing area measures W420mm x L550mm, and products should not exceed 200mm in height. The working platform height (with stand) is 920mm, making it easy to integrate into your packing process. The Shrink wrapping machine B4255 weighs 89kg, with a width of 750mm and a length of 1230mm. This ensures a compact footprint and user-friendly operation, delivering a professional finish. The machine can wrap up to 8 units per minute, making it well suited for businesses aiming to optimise production and consistently meet high demand. The chamber shrink wrapping machine is a valuable addition to your equipment. Our shrink wrap machine uses POF film to enclose products and cartons by heating the shrink film. This method enhances the appearance and perceived value of items. Additionally, the machine helps protect goods from external impacts and prevents breakage, particularly for containers.

Shrink Wrapping Machine B4255 – Key Benefits

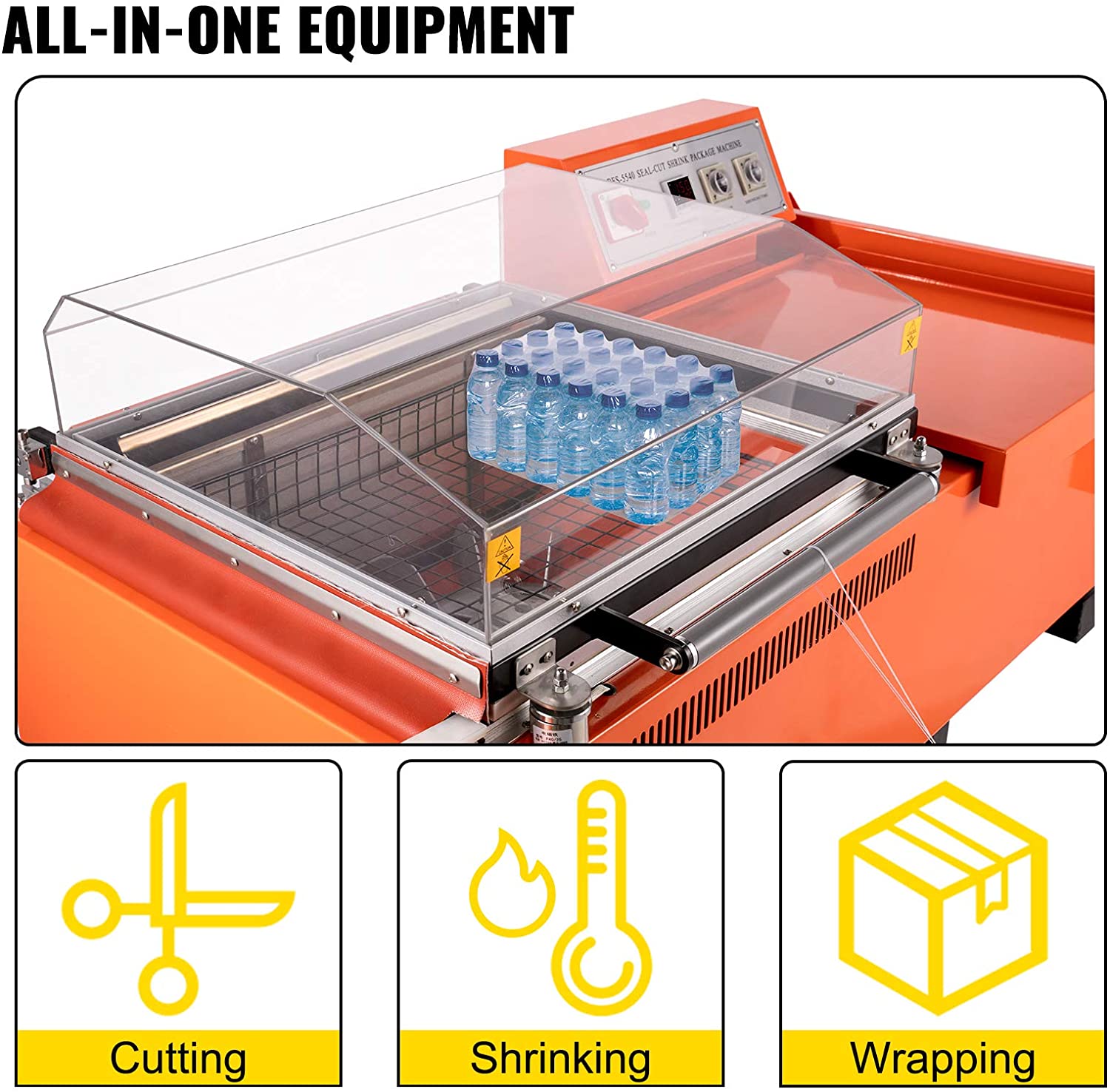

• 3-in-1 Shrink Wrapper – This machine is capable of cutting, shrinking, and wrapping in a single operation, streamlining the process and reducing manual intervention.
• Adjustable Control Panel – All shrink and wrap settings are managed through the main modules on the panel: Temperature Adjustment, Sealing Time, and Shrinking Time.
• High Wrapping Performance – With a maximum package size of W420mm x L550mm, the machine achieves a top throughput of 420 pcs/h, supported by a robust alloy cutting blade and a powerful fan.
• Advanced Technology – The heat shrinking process is clearly visible through the transparent plexiglass hood during operation. The film separation template ensures efficient film handling.
• Exceptional Versatility – Suitable for shrink packaging metal items, beverages, consumer goods, and books across the chemical, drinks, pharmaceutical, and stationery sectors.
• High Productivity – Only one operator is needed to complete both the sealing and shrinking stages

Shrink Wrapping Machine B4255 – Technical Specifications

Key characteristics of Shrink wrapping machine B4255

• Clear Wrapping Process – The transparent chamber lid, made from organic glass, allows you to observe the heat shrink process during packaging. Once the cycle is complete, the hood lifts automatically.
• Robust Packing Performance – With a maximum pack size of W420mm x L550mm x H200mm, this machine can process up to 420 items per hour, utilising an alloy cutting blade and large fan blades.

The chamber shrink wrapping machine operates semi-automatically; once the operator lowers the hood and starts the sealing process, a solenoid activates and the rest of the sealing and shrinking cycle is completed automatically. (Please refer to the video below). Due to the low turbulence design, these machines are compatible with both polyolefin and PVC shrink films. This versatility is another reason why the shrink wrap chamber machine is ideal for efficient production in business settings.

How does the Shrink wrapping machine B4255 operate?

Wrapping products in film is straightforward. Begin by covering the item with film and placing it inside the chamber. When the chamber is closed, any surplus film is automatically trimmed. Inside the chamber, the film is shrunk around the product, which can be observed through the clear lid. The film contracts to form a protective covering. Once the cycle is finished, the operator lifts the lid and removes the packaged item.

Shrink wrapping machine B4255 demonstration video

▶
