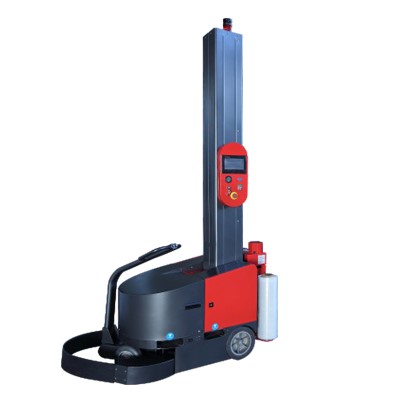

ROBI-600B Robotic Pallet Wrapper PRESTRETCH

12% OFF

ROBI-600B robot pallet wrapper with pre-stretch

Rapid Wrapping Capability
Pre-stretch Film
Robust Construction

Product demonstration video

Available with 30% deposit · delivery in 90 working days

Variation SKUs: 330800, 330802

Price range: 5.999 € through 6.999 €

Price excl. VAT • VAT is added at checkout if no validated VAT number is entered

Add to basket Add to quote

🔒 Secure checkout • PCI‑DSS compliant

Availability Available with 30% deposit · delivery in 43 working days
12-month warranty Register it in the customer portal · service and spare parts from us
Returns and complaints No fee if the product is faulty, damaged in transit or not as ordered
Export price without VAT Goods delivered for export are invoiced without VAT
Tested before shipping CE-compliant · ISO
Secure payment Card, PayPal or bank transfer
Assembly and annual service available See options below

10,000+ products sold across Europe 30+ years of experience

Add Assembly

The machine will be assembled at our site and delivered ready for use. You will require a forklift to unload it from the lorry.

Assembly Fee: €280.00

SKU

wrapping-height

Unit Price

Quantity discounts

Qty

Actions

330800

2400mm

3+	6+	11+
3% OFF	5% OFF	7% OFF

Available with 30% deposit · delivery in 43 working days

330802

2800mm

3+	6+	11+
3% OFF	5% OFF	7% OFF

Available with 30% deposit · delivery in 90 working days

ROBI-600A/B Robot Pallet Wrapper PRESTRETCH

Versatile and easily repositioned robot stretch wrapper suitable for all types of loads in any workplace or sector

The highly versatile, self-propelled robot stretch wrapper ROBI-600A/B is perfectly suited for wrapping pallet loads and items of any dimension or form. Its innovative design enables the wrapping machine to move and rotate around the load itself. Unlike fixed wrapping machines, this approach eliminates the need to lift and place loads onto the machine, saving time and effort. It also allows for wrapping items that would not fit conventional machines, as it moves smoothly around loads of all shapes, sizes, and weights.

Thanks to its compact build, the wrapper delivers excellent results even in confined areas, while its high manoeuvrability ensures precise control throughout the wrapping process. It is a reliable solution for most workplaces and industries, operating efficiently in ambient temperatures from -10°C to 40°C to achieve optimal film tension and durability.

The ROBI-600A/B robot stretch wrapper offers both automatic and manual modes, providing flexibility and efficiency for your workflow. The straightforward and secure film threading system saves time and guarantees the correct film tension. With adjustable settings based on the task and load, the robot wrapper allows for fine-tuning to achieve the best wrapping outcome.

The ROBI-600A/B wrapper operates on a strong, long-lasting battery with a lifespan of up to 800 charging cycles. Its user-friendly control panel features start and stop controls, reset and emergency stop buttons, and battery status indicators. After an 8-hour charge, it is capable of wrapping 200 pallets.

Key features of the ROBI 600A/B Robot Pallet Wrapper PRESTRETCH

Film pre-stretch capability: 300% and 230% selectable in two stages using the handle
One full charge allows wrapping of up to 200 pallets
Precise control over the wrapping process
Digital parameter display
Highly manoeuvrable and easily adjustable
Long-lasting battery

Simple operation and rapid pallet wrapping with the ROBI 600A/B Robot Stretch Wrapper PRESTRETCH

The ROBI 600A/B is engineered to streamline the packing process while delivering excellent results in every situation. Its operation and steering are equally intuitive.

Begin by positioning the robot stretch wrapper next to the item. Then, pull the film from the machine and attach it to the load. Finally, set the desired number of wraps on the control panel and start the process. The wrapper will automatically move around the item and apply the film as programmed.

ROBI 600A/B Robot Stretch Wrapper PRESTRETCH

technical details

Model designation	ROBI-600A/B
Power supply	Battery specification
Battery type	Charging power	1P AC220V/110V 50/60Hz
	Model designation	6-GVF-120A
	Machine weight	43 + 1kg
	Dimensions	(L x W x H) 407 x 174 x 216 (209) mm
	Service life	Up to 800 charging cycles
Wrapping rate	Maximum speed: 90 metres per minute
Maximum pallet dimensions	Unlimited
Minimum pallet dimensions	600x600mm
Maximum wrapping height	2400 / 2800 mm
Film elongation (%)	ROBI-600A Mechanical stretch system
Film elongation (%)	ROBI-600B Powered pre-stretch: 300% and 230% selectable in two stages via handle
Film type	LLDPE film, width up to 500mm, outer diameter up to 280mm
Film tensioning	Variable
Maximum film specification	∅250x500mm
Elevator movement speed	Variable
Gross/Net weight	450kg/430kg
Machine specification	PLC controller	German “Siemens”
	Battery unit	CHILWEE
	LCD display text	Chinese “MEIWA”
	Limit switch	French “Schneider”
	Push-button switch	French “TE”
	Electrical connector	French “TE”
	Detection sensor	German “P+F”
	Electric motor	Chinese “MEIWA”
Overall machine dimensions	(L x W x H) 1583 x 1233 x 2770 / 3170 mm
Sound level	≦ 75dB
Operating environment	Relative humidity ≤ 98%	Temperature range: -10 to 40°C
Transport dimensions	(L x W x H) 1950 x 1250 x 3000 / 3000 x 2000 x 1400 mm

Key characteristics of the ROBI-600A/B Battery-Powered Robot Stretch Wrapper

Multiple operating modes make it straightforward to adapt to a variety of applications and settings, always achieving excellent results.
User-friendly control panel provides dependable operation and helps to maximise productivity for every use.
The digital display offers a clear summary and control of selected settings, allowing you to tailor the process to the load’s size, weight, and shape.
The chain-driven film carriage enhances stability and maintains the correct tension of the wrapping film.

Video demonstration of the ROBI-600A/B Battery-Powered Robot Stretch Wrapper

Additional information

Weight	430,0 kg
Dimensions	1,44 × 1 × 2,75 m
Wrapping height	2400mm, 2800mm

Parameter	Specification
Model	ROBI-600A/B
Power source	Battery
Battery configuration	Charge power
	Model
	Weight
	Size
	Lifetime
Wrapping speed	90m/min
Maximum pallet size	No limit
Minimum pallet size	600x600mm
Maximum wrapping height	2400 / 2800 mm
Film stretch (%)	ROBI-600A Mechanical stretch
Film material	LLDPE film, width ≦ 500mm, outer diameter ≦ 280mm
Film tension	Adjustable
Maximum film spec.	∅250x500mm
Elevator unit speed	Adjustable
Gross weight/net weight	450kg/430kg
Machine configuration	PLC
	Battery
	LCD text
	Travel switch
	Button switch
	Connector
	Sensor
	Motor
Machine size	(L x W x H) 1583 x 1233 x 2770 / 3170 mm
Noise	≦ 75dB
Environment	Humidity ≦ 98%
Packing size	(L x W x H) 1950 x 1250 x 3000 / 3000 x 2000 x 1400 mm

Which types of loads is the ROBI-600B Robot Stretch Wrapper suitable for?

It can wrap pallets of any shape, size, or weight, making it appropriate for a wide range of load types.

How many pallets can the ROBI-600B wrap on a single battery charge?

A full battery charge allows the wrapping of up to 200 pallets.

What is the battery performance of the ROBI-600B?

It is equipped with a robust, long-life battery capable of up to 800 charging cycles, providing dependable performance over time.

How does the height detection sensor assist during wrapping?

The sensor enhances height accuracy, delivering precise and uniform wrapping for loads of different heights.

Is the ROBI-600B straightforward to move between work areas?

Yes, it is designed for easy relocation from one load to another, supporting flexible use.

Which control interface is featured on the ROBI-600B?

The machine utilises PLC controls and an LCD text display, providing dependable and straightforward operation.

In what way does the chain-driven film carriage enhance wrapping quality?

It regulates the tension of the wrapping film, ensuring pallets are securely and consistently wrapped.

Which features of the ROBI-600B support energy efficiency?

Soft start, gentle positioning, and an efficient battery system all help to achieve significant energy savings.

Is the ROBI-600B suitable for different workplace settings?

Yes, it is designed for use in a wide range of environments, including areas with limited space.

Is the ROBI-600B difficult to maintain?

No, the design allows for straightforward maintenance, helping to reduce downtime.

Summary

Rotates around loads, suitable for any shape, size, or weight
Space-saving design is effective in confined areas
One full charge enables wrapping of up to 200 pallets
Equipped with a sturdy and long-lasting battery supporting up to 800 charge cycles
Excellent battery life with charger and charge level indicator
Simple to move between different loads
Adaptable to various working conditions and environments
Height sensor enhances control of wrapping height
Chain-driven film carriage ensures optimal film tension
Operated via PLC controls and LCD text for dependable use
Pre-set modes and adjustable parameters as required
Consistent wrapping with gentle start and precise positioning
Highly efficient and conserves energy
Simple to maintain
