Portable Strapping Machine TES EXTREME 19-25mm – DD25A/0.5 to 1.2mm – 5000N (3.0Ah Lithium) with 1 Charger and 2 Batteries

Battery-powered strapping tool for 19-25mm PET/PP strapping TES EXTREME supplied with 2 batteries and a charger

The TES EXTREME Battery Strapping Tool brings together advanced features and robust construction, making it an excellent choice for demanding industrial strapping tasks. Engineered to accommodate PET polyester PP polypropylene strap size compatibility covers widths from 19 mm up to 25 mm as well as thicknesses between 0.8 mm and 1.2 mm, making it suitable for a wide range of uses. Featuring an adjustable tension setting of 400 to 5000 N, this tool allows for accurate load securing, regardless of the package size.

Fitted with a 14.8 V – 4.0 Ah lithium-ion battery, the TES EXTREME delivers extended use and rapid performance, achieving a Tensioning operates at a rate of 180 mm per second. Its ergonomic shape, weighing just 4.32 kg, helps reduce operator fatigue while ensuring strong results. The friction weld sealing method provides secure seals with up to 75% bond strength, making it suitable for intensive use in logistics, storage, and production environments.

This strapping tool is designed for productivity, offering a quick 90-minute recharge time and supporting a broad input voltage range (100 – 240 VAC, 50/60 Hz, DC 16.8 V – 3.0 A). Its compact size of L 350 mm × W 135 mm × H 170 mm makes it easy to handle in confined areas, and the total package weight of 7 kg ensures safe and straightforward collection.

Whether you are securing goods for distribution or fastening heavy materials, the TES EXTREME Battery Strapping Tool is crafted to provide dependable performance with exceptional simplicity. The TES EXTREME Battery Strapping Tool represents a top-tier solution for fastening your loads with outstanding accuracy and efficiency. Suitable for both PET (polyester) and PP (polypropylene) strapping, this advanced tool is built to satisfy the rigorous demands of industrial environments. Thanks to its sturdy build, powerful tensioning, and intuitive controls, the TES EXTREME is the preferred choice for professional strapping applications.

Main features of the Battery strapping tool for 19-25mm PET/PP strapping

1. Strap Size Compatibility:

• Width: 19 – 25 mm
• Thickness: 0.8 – 1.2 mm
• Strap Type: PET and PP

This extensive compatibility ensures the TES EXTREME is well-suited for a wide range of uses, from light packaging tasks to robust industrial strapping.

2. Tension Adjustment Range:

• Tension: 400 – 5000 N

With its adjustable tension feature, the tool accommodates various load requirements, guaranteeing each strapping job is completed with the appropriate force to secure the goods without risk of damage.

3. Rapid Tensioning Capability:

• Speed: 180 mm/sec

Efficiency is central to the TES EXTREME. Its rapid tensioning speed enables swift and consistent operation, helping to minimise downtime and boost productivity.

4. Bonding Strength:

• Typical Bonding Strength: Up to 75%

The friction weld sealing method delivers strong and lasting joins, maintaining load stability during storage and handling. The strength of the seal depends on the type of strap used, providing flexibility for different applications.

5. Modern Battery System:

• Battery: 14.8 V – 4.0 Ah Lithium-ion cell
• Time to Recharge: 90 minutes
• Input Voltage for Charging: 100 – 240 VAC, 50/60 Hz, DC 16.8 V – 3.0 A

The durable lithium-ion battery offers prolonged usage, making it particularly suitable for high-volume strapping work. With a recharge time of only 90 minutes, interruptions are kept to a minimum.

6. Space-saving and Lightweight Build:

• Dimensions: L 350 mm × W 135 mm × H 170 mm
• Total Weight (including battery): 4.32 kg

Its ergonomic shape and lightweight build help to reduce operator fatigue, ensuring the TES EXTREME remains comfortable to use even during long shifts.

7. Packaging Size:

• Carton Size: L 440 mm × W 280 mm × H 185 mm
• Carton Volume: 0.023 CBM
• Total Gross Weight: 7 kg

The tool is supplied in secure and compact packaging, providing protection during handling and storage.

Technical details for battery-powered strapping tool for 19–25 mm PET/PP strap

Why Choose a 25 mm Wide PET Strap Rather Than a 16 mm, 19 mm PET Strap, or Steel Strap?

Selecting the correct strapping material and width is vital for maintaining load security and operational effectiveness. Below are the main reasons why a 25 mm PET strap surpasses narrower options such as 16mm or 19mm, as well as conventional steel strapping:

1. Increased Load Support

• 25mm PET straps provide a larger contact area, helping to spread tension more evenly across your goods. This reduces the likelihood of deformation or damage, which is especially important for heavy or delicate items.
• When compared with 16mm or 19mm straps, the 25mm alternative delivers greater strength, maintaining stability for bigger and heavier pallets.

2. Lower Chance of Damaging Loads

• PET straps are less abrasive than steel and do not rust, so they help prevent scratches or corrosion on your goods. This makes 25mm PET straps well-suited to sensitive or valuable items.

3. Economical and Long-Lasting

• PET straps are more economical than steel, providing similar performance without the risk of breaking or losing tension over time.
• The 25 mm wide offers robust durability and a longer service life, so you will need to replace straps less often than with narrower options.

4. Suitable for a Range of Uses

• A 25 mm PET strap gives you the versatility to manage a broad spectrum of tasks, from lighter packaging to securing industrial loads, providing a practical solution for various strapping requirements.

5. Greater Operator Safety

• Steel straps can be hazardous due to sharp edges and the risk of recoil. PET straps, particularly in 25 mm wide, are lighter and safer to use, helping to minimise the risk of injury during strapping.

Choosing 25mm PET straps delivers enhanced performance, safety, and cost-effectiveness, making them the preferred option for contemporary strapping requirements.

Instructions for Using the Battery Strapping Tool with 19-25mm PET/PP Straps

Operating the TES EXTREME Battery Strapping Tool is simple and designed for user convenience. Please follow these instructions to achieve the best results:

1. Ready the Tool

• Check that the battery is fully charged and fit it into the tool until it locks in place.
• Choose the correct strap width (19mm to 25mm) and confirm it matches the tool’s settings.

2. Place the Straps

• Loop the PET or PP strap around your load, making sure the ends overlap.
• Feed the overlapping strap ends into the guide slot of the tool.

3. Set the Tension

• Adjust the tension setting using the control dial or digital panel, depending on your specific model.
• Increase the tension for heavier consignments; decrease it for lighter items.

4. Tensioning the Strap

• Hold down the tension button. The tool will automatically draw the strap tight to the selected tension.
• Let go of the button once the required tension is reached.

5. Sealing the Strap

• Start the friction welding process by pressing the seal button. The tool will weld and trim the strap at the same time, providing a secure join.
• Wait for the tool to signal that welding has finished (typically by a beep or an LED indicator).

6. Removing the Tool

• Lift the tool away from the strap. Check the weld to confirm it is secure and properly fused.

7. Repeat as Necessary

• Continue strapping further loads, and recharge the battery when needed.

By adhering to these guidelines, you can ensure your strapping operations are always safe, efficient, and dependable.

Where is the Battery Strapping Tool for 19-25mm PET/PP Straps used?

The TES EXTREME Battery Strapping Tool is suitable for a broad spectrum of sectors and uses. Its adaptable and sturdy construction makes it a popular option for securing loads reliably and efficiently. Here are some practical examples where this tool performs particularly well and the reasons why:

1. Logistics and Storage
   • Practical Example: Securing pallets containing assorted goods for onward transport.
   • Reason: The adjustable tension range of 400-5000 N allows each pallet to be firmly strapped, reducing the risk of items shifting during handling. The lightweight build helps warehouse teams use the tool comfortably throughout extended periods.
2. Manufacturing
   • Practical Example: Strapping finished products for distribution to various retail outlets.
   • Reason: Compatibility with 19-25mm PET/PP straps means it suits a range of product dimensions, and the robust friction welds keep loads secure during movement.
3. Construction
   • Practical Example: Strapping heavy construction materials such as bricks, timber, or steel rods. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer
   • Reason: With the capacity to apply up to 5000 N of tension, the tool ensures even substantial loads are firmly strapped, helping to prevent hazardous movement during transit.
4. Retail and Supply Chain
   • Example Application: Securing bulk products such as drinks or electronic goods for supply to retail outlets.
   • Reason: PET strapping does not corrode or mark, making it well suited for securing valuable or delicate items.
5. Agriculture
   • Example Application: Securing hay bales, fresh produce, or fertilisers for transport from farms to wholesalers.
   • Reason: The tool’s fast tensioning rate of 180 mm/sec helps save time on large strapping jobs, which is especially important during busy harvest periods.

These examples demonstrate how the TES EXTREME Battery Strapping Tool addresses the varied requirements of different industries, ensuring safety, efficiency, and reliability in every use.

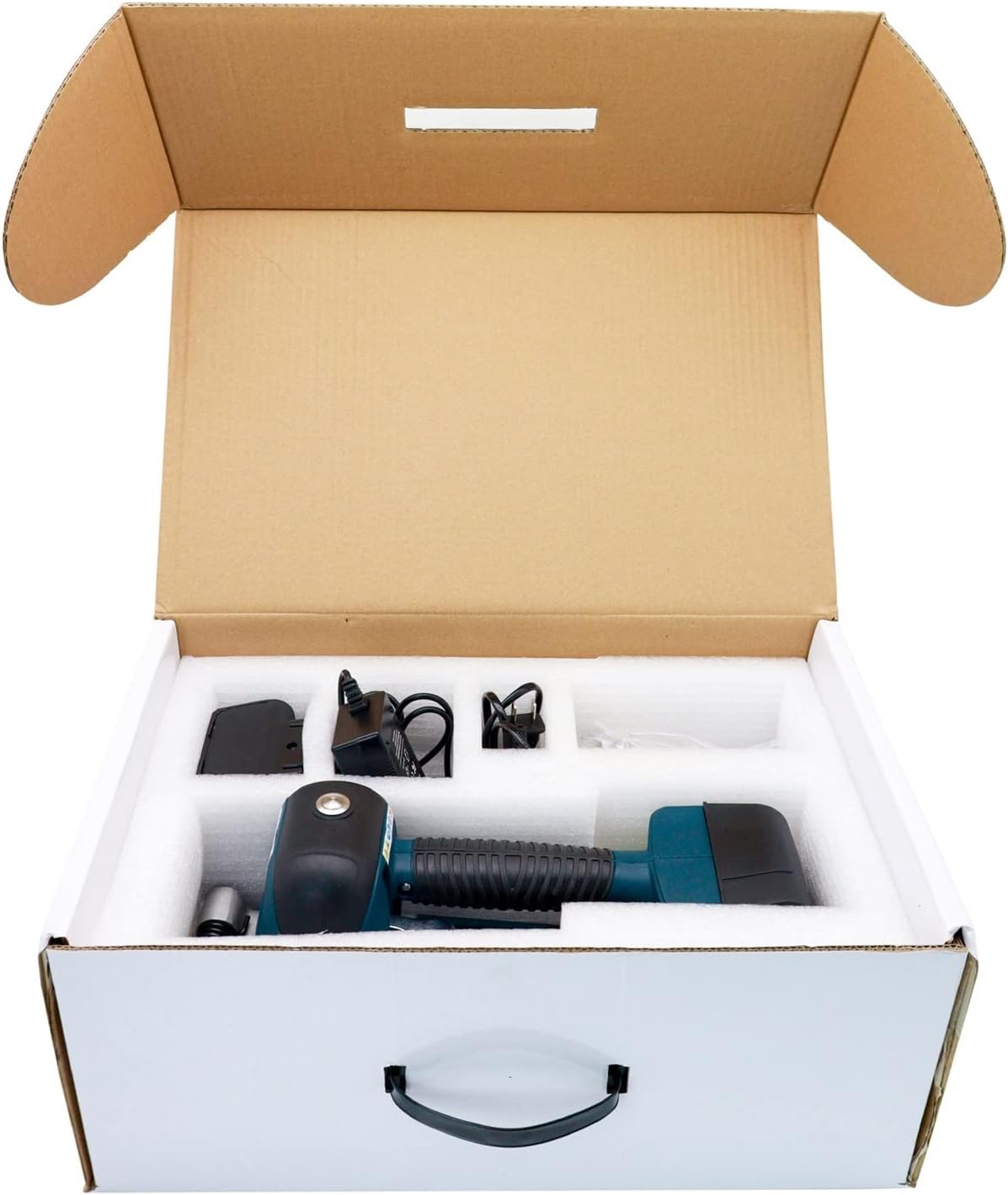

What is included with the battery-powered Strapping Tool for 19-25mm PET strap?

The TES EXTREME set comprises:

• TES EXTREME Battery-Powered Strapping Tool
• 2 Lithium-ion Batteries (14.8 V – 4.0 Ah)
• Battery Charger (100 – 240 VAC, 50/60 Hz, DC 16.8 V – 3.0 A)
• Operating Instructions
• Warranty Documentation
