Pallet Wrapper SMARTWRAP X2 PRE-STRETCH

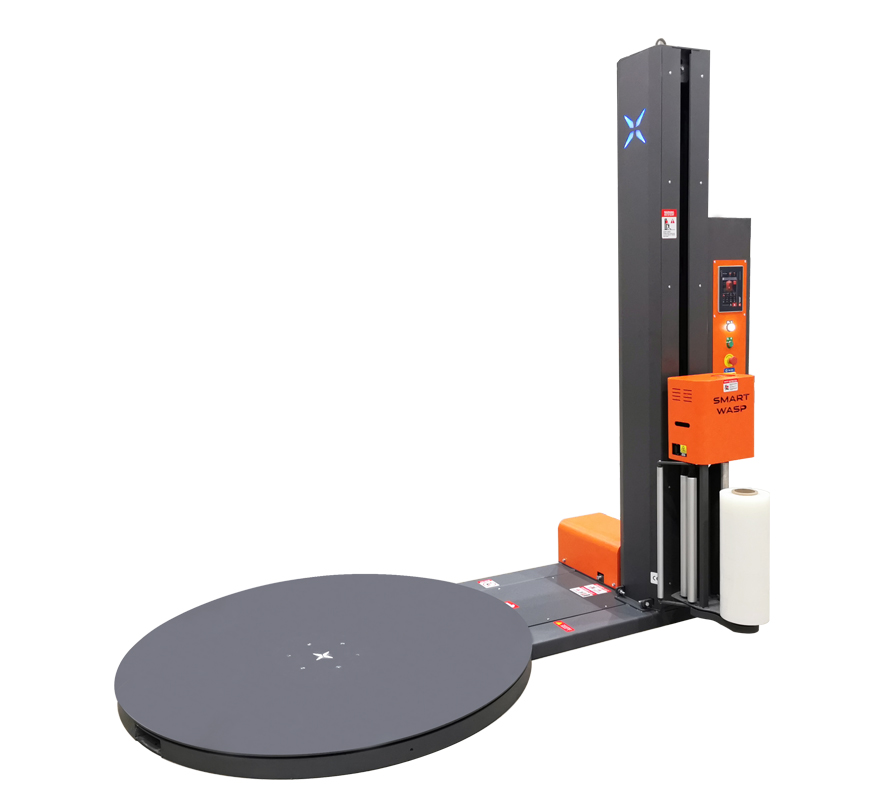

The SMARTWRAP X2 PRE-STRETCH Pallet Wrapper is a vertical smart packaging machine, well-suited for efficiently securing bulk goods on pallets. It offers a high film stretch rate, variable speed, substantial capacity, and an advanced control panel. Outstanding packaging efficiency and a robust safety system provide excellent value, quicker and more reliable operation, and reduced film usage overall.

The SMARTWRAP X2 PRE-STRETCH Pallet Wrapper features a turntable design, enabling straightforward operation and management—either automatically via the smart control panel or manually for tailored settings. With a 250% pre-stretch capability, it delivers secure wrapping at reduced film usage while maintaining top performance. The 2200 mm wrapping height and 1500 mm diameter turntable accommodate tall and bulky loads, supporting a maximum weight of 2000 kg. The constant force film system ensures even film application, and the pre-fix film mechanism maximises packaging efficiency.

Pallet Wrapper SMARTWRAP X2 PRE-STRETCH overview:

• 1500mm diameter turntable
• 2200mm maximum pallet height
• Maximum pallet weight: 2000kg
• 250% pre-stretch ratio, reduces packaging material usage
• Constant tension film system
• Pre-fix film mechanism, enhanced packaging efficiency
• X-Line control panel
• Integrated safety system

Technical details for Pallet Wrapper SMARTWRAP X2 PRE-STRETCH

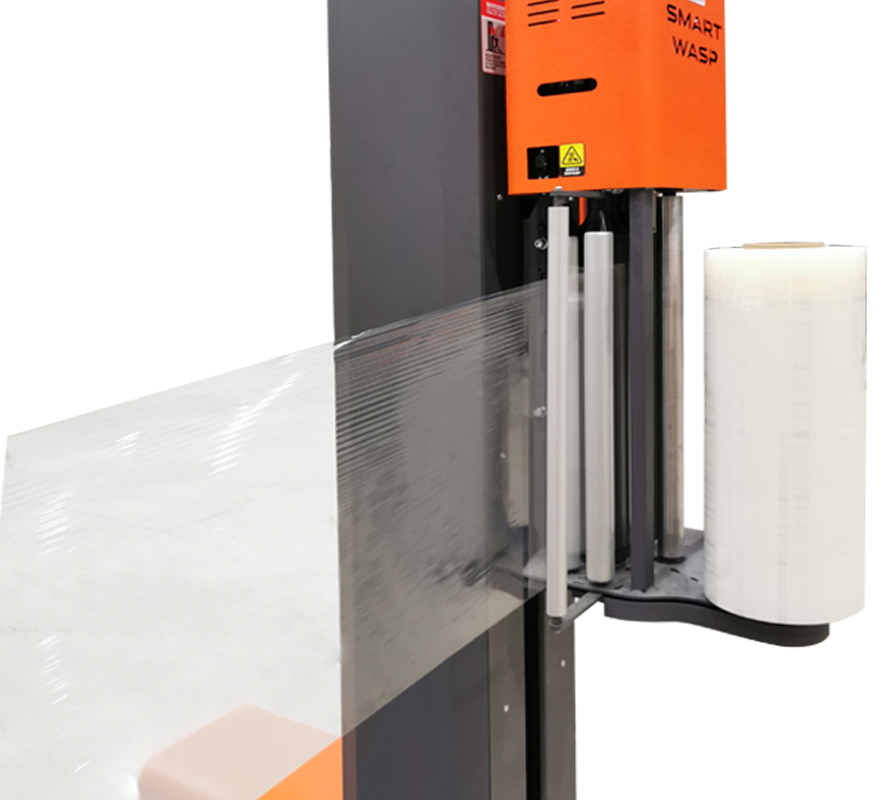

Reduces film usage

• Pre-stretch capability up to 350%
• Maximises the efficiency of each metre of stretch film
• Standard film release at a constant rate

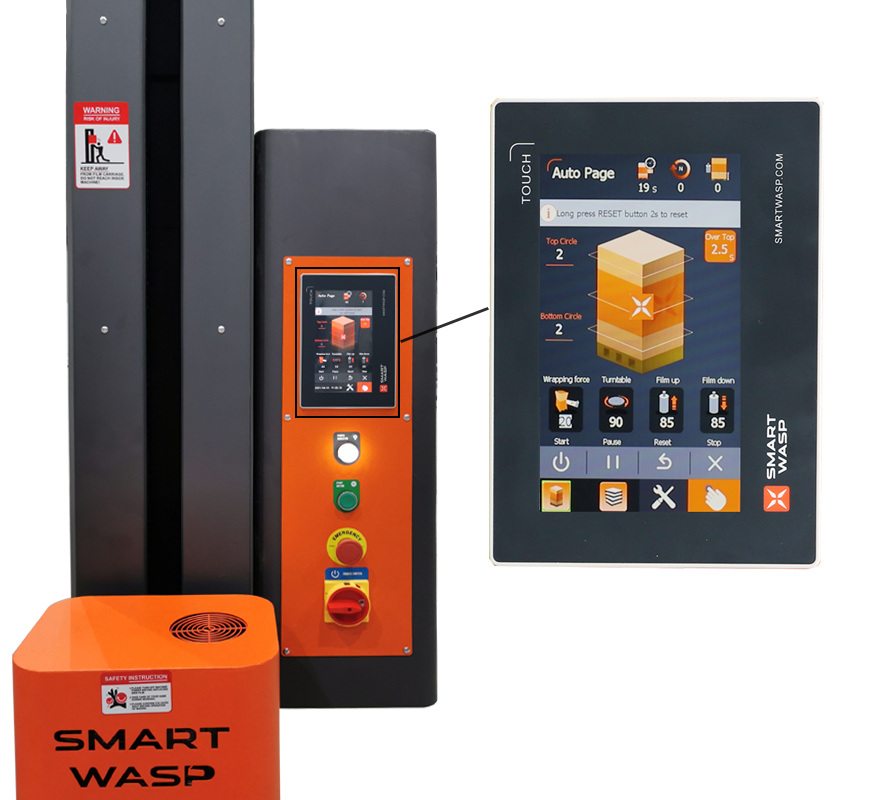

Smart touchscreen interface

This machine is designed in-house and incorporates remote maintenance, diagnostics, and start-up features. Operation is more straightforward, and upkeep is simplified. SMART WASP places strong emphasis on operator safety.

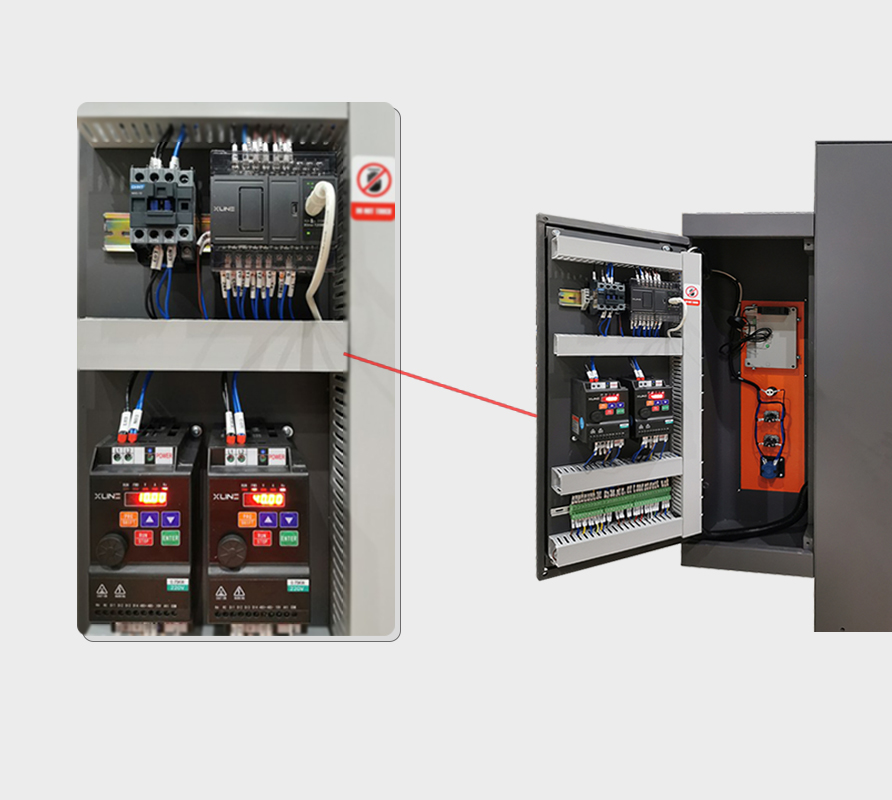

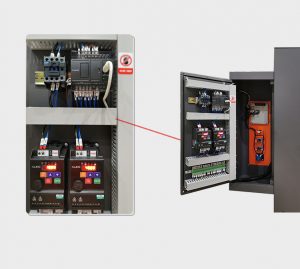

Pallet Wrapper constructed using premium-grade components

• X-Line TOUCHSCREEN
• X-Line PLC
• X-Line Inverter
• SICK proximity sensor
• AUTONICS photoelectric sensor
• WEIDMULLER terminal block

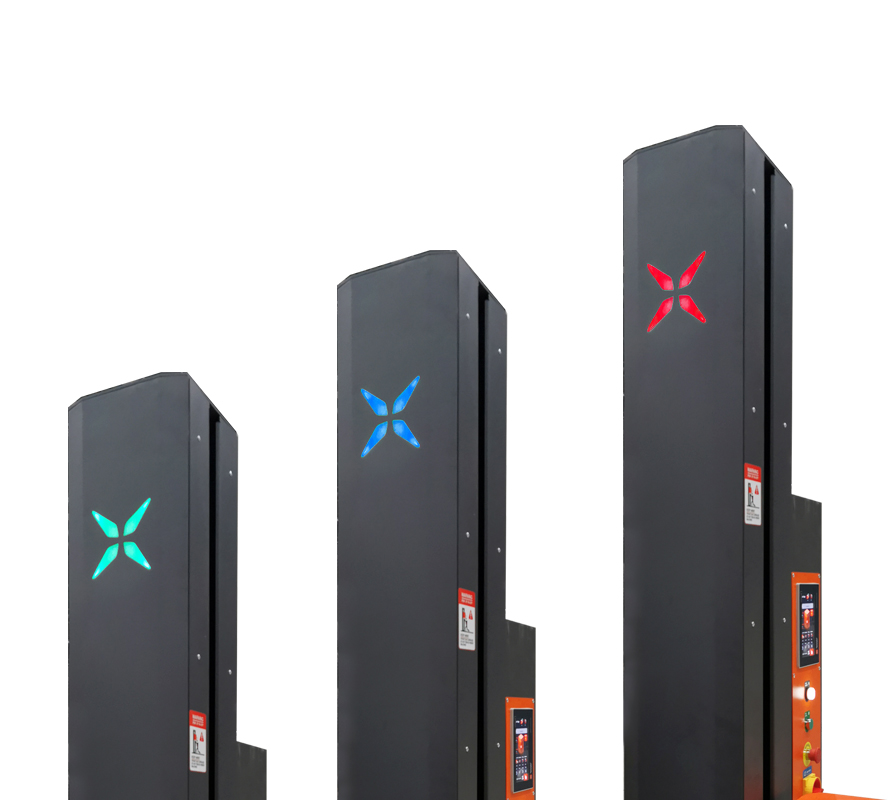

Three-colour LED safety indicator

Ready for operation – Blue
In use – Green
Alert – Red

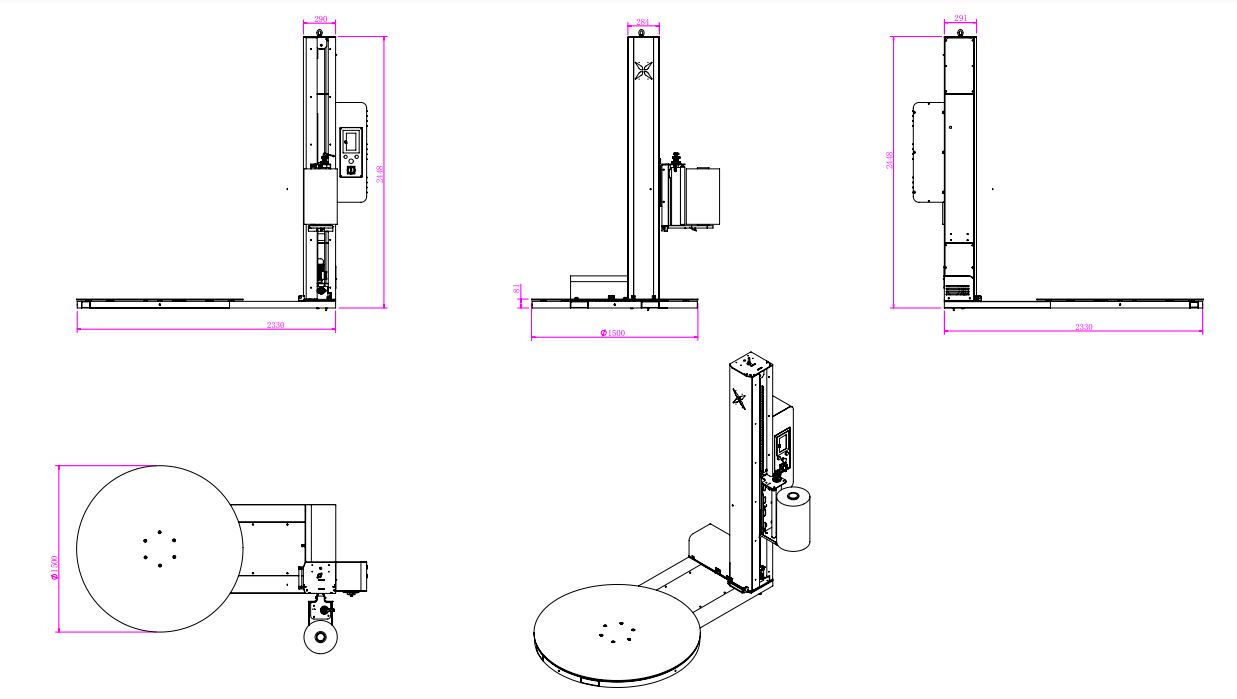

Floor-level view of SMARTWRAP X2 PRE-STRETCH Pallet Wrapper

Key benefits of the SMARTWRAP X2 PRE-STRETCH Pallet Wrapper

• 250% pre-stretch ratio delivers a more secure wrap for your load, reducing film usage while maintaining top performance
• Smart touchscreen control panel
• Manufactured with premium-grade components
• Three-colour LED safety indicator – displays machine status
• Reduced film usage
• Consistent force film system
• Meets leading safety standards, CE certified
• Enhanced safety features
• 12-month warranty from installation

Key characteristics of the SMARTWRAP X2 PRE-STRETCH Pallet Wrapper

• Operates with a single-phase earthed electrical connection
• Straightforward installation and loading of pallets
• Remote or manual control and fault diagnosis
• Enhanced sensor technology and access control
• Simple to clean and maintain

Safety compliance for stretch wrapping equipment

This machine meets the Machinery Directive 2006/42 / EC and the relevant statutory requirements:

• Machinery Directive: 2006/42/EC
• Low Voltage Directive: 2014/35/EU
• EMC Directive: 2014/30/EU

Warranty

The SMARTWRAP X2 PRE-STRETCH Intelligent Pallet Wrapper is supplied with a 12-month warranty from installation, excluding parts and electrical components subject to normal wear.

Safety elements of the SMARTWRAP X2 PRE-STRETCH Pallet Wrapping Machine

The turntable packaging machine is equipped with the following safety features:

• Emergency stop control
• Safety labels and user guidance

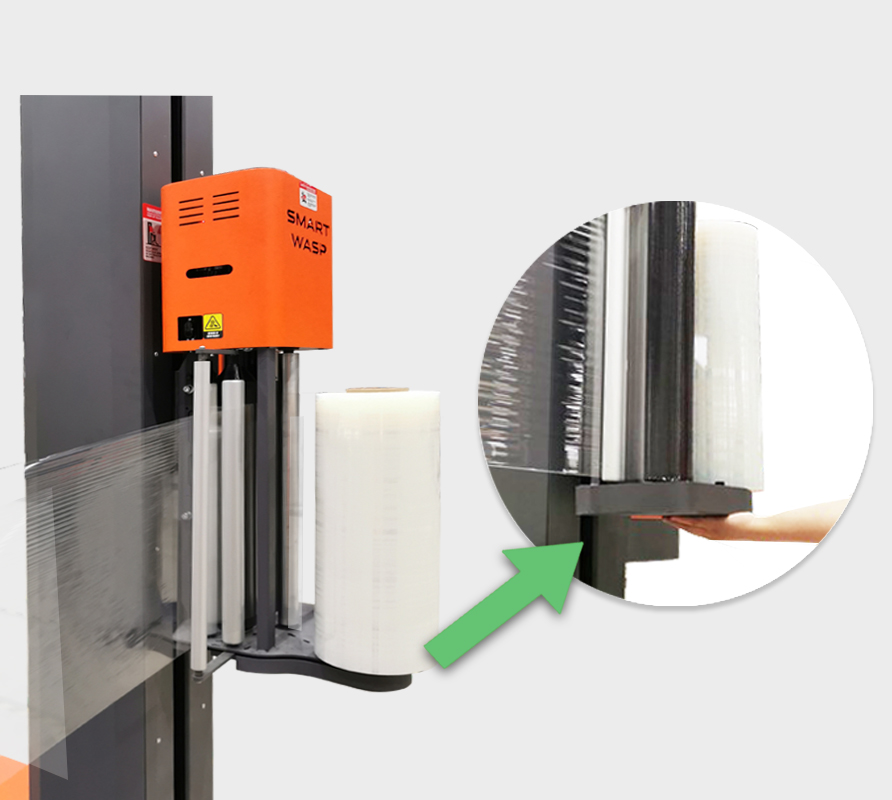

• Anti-drop switch for the film carriage
• Earth wire
• Anti-drop locking mechanism

Operating method of the SMARTWRAP X2 PRE-STRETCH Pallet Wrapping Machine

The pallet wrapping machine operates according to the following basic principle:

1. Pallets are brought to the machine using a forklift
2. After the film is manually secured to the pallet, the machine is started and the load begins to rotate.
3. As the wrapping process takes place, the film ascends around the items being wrapped.
4. Once the film carriage reaches the base, the turntable slows down and halts after finishing the wrapping cycle.
5. After the wrapping sequence is complete, the machine returns to standby mode.

Handling, storage, and preparation of the SMARTWRAP X2 PRE-STRETCH Stretch Wrap Machine

To relocate the machine, please use a forklift to lift it from underneath and move it to the desired position.
Ensure the machine is kept in a clean and dry environment. Do not place any items on top of the machine.

Ground confirmation
The floor must be capable of supporting the equipment, its maximum load, and any impact:
Floor load capacity should be at least (total equipment weight + weight of goods) x 1.5.

Electrical connection
A dedicated single-phase earthed power supply is required for operation:
220V/AC 10A 50/60Hz 1PH

Cleaning
Clean the SMARTWRAP X2 PRE-STRETCH Stretch Wrap Machine using a dry cloth or a mild cleaning agent. Do not use solvents, petrol, or similar substances for cleaning.
To clean the rollers on the film carriage, wipe the roller surface with alcohol to maintain proper adhesion between the roller and the film.

Operation of the SMARTWRAP X2 PRE-STRETCH Stretch Wrap Machine

In addition to a variety of automatic functions, the machine also supports manual operation and adjustment of administrator settings:

• Machine status (Device details, Production data)
• Parameter configuration (Soft start duration, Initial wrapping force, Turntable starting speed, Descent pause time, Film break alarm delay, Film break shield alarm, and more)
• Multi-option interface (I/O monitoring, Language options, Help section)
• System clock
• User password configuration
• Main page
