SMITH AS-X1012 electric scissor lift, 12 m working height, 10 m platform, 320 kg capacity

AS-X1012 electric scissor lift

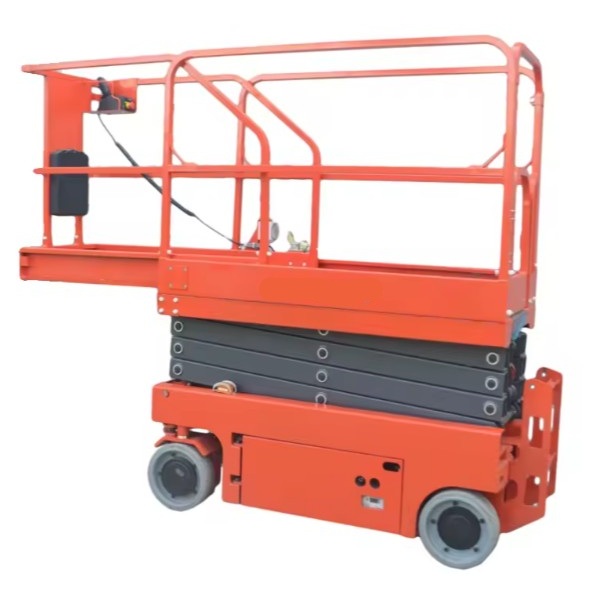

The AS-X1012 is a self-propelled electric scissor lift. It transports two people and their equipment to the required height and moves independently between work areas, eliminating the need to reposition ladders or scaffold towers.

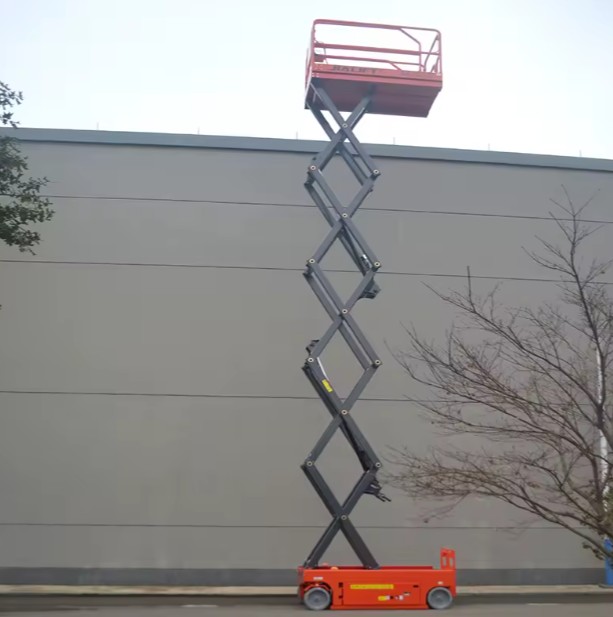

This model achieves a maximum working height of 12 m and platform raised to 10 metres, supporting a total load of 320 kg, with a maximum of 120 kg on the extension deck. Indoors, it accommodates two people; outdoors, one person.

When folded, the machine measures 2.40 m in length, 1.15 m in width, and 1.84 m in height with the guardrails down, allowing access through standard factory doors and aisles. The platform measures 2.25 × 1.15 m and extends by an additional 1.0 m.

The lift operates on batteries: 4 × 6 V, 200 Ah. It travels at 3.2 km/h when stowed and 0.8 km/h with the platform elevated, with a total weight of 2820 kg. Ground clearance is 95 mm when folded and 20 mm when raised.

Where the AS-X1012 electric scissor lift is used

The AS-X1012 electric scissor lift is commonly employed in warehouses, manufacturing plants, logistics hubs and retail premises for working at height on installation, maintenance and inspection tasks. Typical applications include installing lighting, laying cable trays, fitting HVAC ductwork, maintaining fire safety systems and accessing storage racking. It is also well suited to use in exhibition centres, sports venues and large commercial environments where frequent movement of the platform is required.

This platform is designed for indoor and outdoor use on flat, solid ground. Indoors, its compact dimensions and electric drive make it ideal for areas where engine-driven lifts are not suitable. Outdoors, it is used for façade works, installing signage and general maintenance, provided wind speeds are within safe limits and the surface is stable and level.

Technical details

What this platform enables

• Working height reaches up to twelve metres. Access roof lights, cable trays, storage racking and ventilation in a tall building, using a platform with safety rails rather than a ladder.
• Self-propelled. Moves under its own power, with smooth proportional controls from the platform, so reaching a spot 20 metres away is simply a drive, not a manual reposition.
• 320 kg platform load. Accommodates two persons with their equipment and supplies; of the total 320 kg, a maximum of 120 kg may be placed on the extension deck when extended.
• Fits through standard doors. With folded rails, the width is 1.15 metres and the height is 1.84 metres, suitable for a typical industrial doorway and able to turn in an aisle.
• Battery powered, emission-free. Electric drive and lifting functions allow operation inside warehouses, production areas or food facilities without exhaust gases.
• Built-in safety features. Includes tilt warning, pothole protection, limit switches and emergency lowering from ground level as standard equipment.

Specification

• Self-propelled electric scissor lift, model JS1012
• Maximum working height of 12 metres, platform height 10 metres
• Rated load 320 kg, extension deck 120 kg
• Two persons indoors, one person outdoors
• Platform dimensions 2.25 × 1.15 metres, extension deck 1.0 metre
• Machine dimensions 2.40 × 1.15 metres, height 1.84 metres with rails folded
• Total height 2.46 metres with guardrail raised
• Batteries: 4 × 6 V, 200 Ah; lithium option 25.6 V / 230 Ah available
• Travel speed 3.2 km/h when lowered, 0.8 km/h when elevated
• Maximum gradient when lowered: 25% (14°)
• Controls on both ground and platform, emergency descent, tilt warning, pothole protection
• Mass 2820 kg
• 12-month guarantee

A typical working shift

1. Inspect the equipment before use: check guardrails, tyres, battery level, all controls, and the emergency stop at both control points.
2. Move the machine to your work area with the platform lowered, at speeds up to 3.2 km/h.
3. Ensure the surface is solid and level before raising the platform using the platform controls.
4. Extend the deck for additional reach as required; the extension deck supports up to 120 kg.
5. Lower the platform before moving more than a short distance, and recharge the machine at the end of the shift.

Safety and servicing

• Use only on stable, level surfaces. Do not elevate the platform elsewhere. If the tilt warning sounds while elevated, lower the platform with care and reposition the machine.
• Outdoor use and wind. Outdoors, this is a single-operator machine and the platform must not be raised if wind speeds may exceed 12.5 m/s.
• Never a crane. This equipment is designed to lift people and their tools only. It must not be used to push, pull, or lift materials, and nothing should extend beyond the platform.
• Inclines. The 25% gradient rating applies only with the platform lowered. When elevated, drive at no more than 0.8 km/h.
• Safety support arm. Before any work is carried out beneath the raised platform, deploy the safety arm and lower the platform onto it.
• Batteries act as ballast. The battery tray must have a minimum mass of 180 kg, with each battery weighing 28 kg. Do not fit lighter batteries, as this affects the machine’s stability.

Before purchasing

The price is displayed on this page. Choose your platform based on the required working height and the width of any access doors – please check these details before purchasing:

• Maximum working height. Reaches up to 12 metres, with the platform itself rising to 10 metres. Measurements are taken from the floor surface where the equipment is positioned, not from outside ground level.
• Access and dimensions. Measures 1.15 metres in width, 2.40 metres in length, and 1.84 metres in height when the guardrails are folded. This compact scissor lift fits through a standard industrial doorway.
• Maximum load. Supports a total of 320 kilograms, with a limit of 120 kilograms on the extension platform; suitable for two persons indoors, or one person outdoors.
• Floor loading. The total weight is 2820 kilograms distributed over four wheels. Please verify the floor’s load capacity, particularly on upper floors or ramps.
• Indoor and outdoor use. Outdoors, the platform must remain lowered if wind speeds exceed 12.5 metres per second, and only one person is permitted on the platform.
• Battery charging. Requires a mains socket at its parking location; batteries should be recharged after each working shift.
