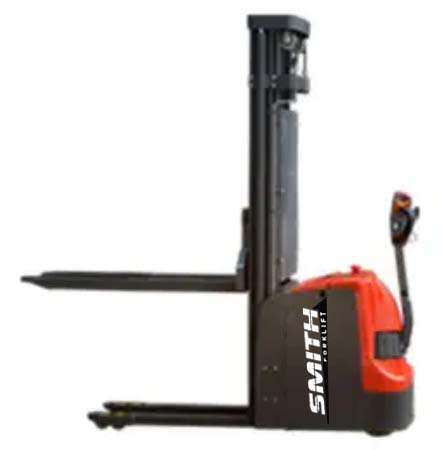

    SMITH Heavy-duty Electric stacker 2000kg, 2 tonnes, 4500mm, 4,5mSMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m

    This SMITH Heavy-duty Electric Stacker is a durable and effective solution for material handling, built to withstand the requirements of demanding industrial settings. Featuring a maximum load of 2000kg as well as a maximum lift height of 4500mm, this electric stacker is designed to deliver consistent performance across a range of material handling tasks. Featuring advanced components and reliable construction, the SMITH Heavy-duty Electric Stacker ensures excellent lifting power, accurate handling, and improved safety, making it well suited for warehouses, production sites, and distribution centres.



    Main Features of Heavy-duty Electric stacker SMITH 2000kg 450cm

    1. High-Performance AC Motor and ZF Friedrichshafen Gearbox: This stacker is equipped with a powerful AC motor and ZF Friedrichshafen gearbox, delivering excellent acceleration, enhanced productivity, and energy efficiency. This pairing ensures smooth, effective operation for handling substantial loads.
    2. High-Power MOSFETS Driver: The stacker utilises a high-power MOSFETS driver for efficient, quiet, high-frequency operation. It provides variable speed control and reverse braking to support safe and precise handling. Enhanced temperature protection and compensation functions offer thermal safeguarding and consistent performance, contributing to the machine’s reliability.
    3. Integrated Control Handle: The control handle brings together all key functions, including the key switch, electric meter, horn, lift and lower buttons, and turtle speed switch, for straightforward operation. Its extended, ergonomic design ensures comfortable and intuitive use for the operator.
    4. Side Drive Configuration: The side-mounted drive arrangement minimises the width required for operation, making it suitable for use in restricted spaces. With a compact turning circle and enhanced visibility, this stacker is ideal for working efficiently in tight environments.
    5. YONGCI electric drive system: Fitted with a YONGCI motor drive, this stacker benefits from a compact build, reduced weight, minimal energy loss, and excellent efficiency. The system delivers dependable and responsive performance throughout operation.



    Technical details for the SMITH Heavy-duty Electric Stacker 2000kg, 2 tonnes, 4500mm, 4,5m

    • SMITH Heavy-duty Electric stacker 2000kg, 2 tonnes, 4500mm, 4,5mManufacturer: SMITH
    • Model: CXL20GF
    • Power Source: Electric
    • Operation Type: Pedestrian
    • Maximum Load: 2000 kg
    • Lowered mast height: 2100 mm
    • Maximum lift height: 4500 mm
    • Free lift height: 1686 mm
    • Load centre distance: 600 mm
    • Fork size: 570 × 1150 mm
    • Curtis control system
    • Load capacity at maximum height: 550 kg
    • Distance from axle centre to fork face: 672 mm
    • Wheelbase: 1384 mm
    • Service weight including battery: 1126 kg
    • Wheel material: PU
    • Continuous operating time: 5–6 hours
    • Battery: 24V/210 Ah
    • External Charger: 24V/30A



    Video of SMITH electric stacker, 450cm lift, 2000kg



    Advantages of SMITH electric stacker 2t 4,5m

    The SMITH Heavy-duty Electric Stacker is engineered for the tough requirements of industrial material handling, providing outstanding performance, accurate manoeuvrability, and enhanced safety features. Its advanced motor and transmission, integrated control handle, and compact build make this electric stacker a dependable and efficient choice for a variety of handling operations. Whether working in confined areas or challenging conditions, the SMITH Heavy-duty Electric Stacker supplies the strength, control, and dependability required to maximise productivity and maintain safety.

    • Heavy-duty Electric Stacker: Durable choice for demanding industrial handling tasks.
    • Robust AC motor: Delivers excellent acceleration and energy-saving operation.
    • Precise Control: MOSFET driver allows smooth speed adjustment and reverse braking.
    • Integrated Operation Handle: Easy-to-use controls for straightforward handling.
    • Ergonomic Design: Extended handle ensures comfortable and natural operation.
    • Space-efficient: Side-mounted drive system for use in confined areas and tight turning circles.
    • YONGCI motor unit: Compact, lightweight, and highly efficient drive motor.
    • Advanced Safety Features: Waterproof micro-switches for dependable use in challenging environments.
    • Impressive lifting strength: Efficient pump station for handling heavy loads.
    • Low-speed manoeuvring switch: Allows careful manoeuvring for precise tasks.
    • Slim and agile design: Well-suited for working in restricted warehouse spaces.
    • Versatile Applications: Appropriate for warehouses, production, and distribution facilities.



    Specifications for SMITH heavy-duty electric stacker 2000kg, 2 tonnes, 4500mm, 4,5m

    Manufacturer SMITH
    Model CXL20GF
    Power system Electric
    Control method Pedestrian-operated
    Maximum lifting capacity 2000 Q (kg)
    Capacity at full lift height 2000 Q (kg)
    Load centre distance 600 c (mm)
    Distance from axle to fork face 672 x (mm)
    Wheelbase 1384 y (mm)
    Total weight with battery 1126 kg
    Wheel material (PU)
    Drive wheel diameter Φ230×75 Φ×w(mm)
    Load wheel diameter Φ80×70 Φ×w(mm)
    Additional wheel (dimensions) Φ150×58 Φ×w(mm)
    Number of wheels, front/rear (x = drive wheel) 1x+1/4
    Front track width b10 526 b10 (mm)
    Rear track width b11 390/515 b11 (mm)
    Height with stacker lowered 2100 h1 (mm)
    Free lift height 1686 h2 (mm)
    Lifting capacity 4500 h3 (mm)
    Mast height, fully raised 5024 h4 (mm)
    Total height (including handle 870/1200 h14 (mm)
    86 h13 (mm)
    Total length 2022 l1 (mm)
    Length to front of forks 872 l2 (mm)
    Total width 795 b1/ b2 (mm)
    Fork size 60/180/1150 s/e/l (mm)
    Fork width 570 b5 (mm)
    Minimum ground clearance 26 m2 (mm)
    Aisle width with 1000 x 1200 mm pallet (across forks) 2435 Ast (mm)
    Aisle width with 800 x 1200 mm pallet (along forks) 2412 Ast (mm)
    Minimum turning radius 1550 Wa (mm)
    Travel speed, loaded/unloaded 4.0/4.2 (km/h)
    Lifting speed, with and without load 80/210 (mm/s)
    Lowering speed, with and without load 152/160 (mm/s)
    Maximum gradient, loaded/unloaded 4/10 (%)
    Braking system Electromagnetic
    Drive motor, 60-minute rating 1,5 (kW)
    Lift motor output at S3 15% 3,0 (kW)
    Battery in line with DIN 43531/35/36 A, B, C, no no
    Battery voltage / nominal capacity 24/210 (V/Ah)
    Battery mass (± 5%) 195 (kg)
    Type of drive regulation AC
    Sound level at operator’s position ≤70 (dB(A))
    Manual



    Lifting diagram for electric stacker SMITH 2000kg

    SMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m lifting curve

    Order an electric stacker 2000kg, 450cm, or request a quotation

    Discover the capability and strength of the Electric Stacker 2000kg with a lifting height of 450cm – an ideal option for demanding material handling applications. Improve your workflow with rapid acceleration, precise handling, and advanced safety systems. If you wish to purchase this sturdy electric stacker or request a tailored quotation, simply use the ADD TO CART button or the GET OFFER button to suit your needs. Benefit from smooth operation, ergonomic controls, and a compact design, making it suitable for a range of industrial environments. Enhance your material handling efficiency – order the Electric Stacker 2000kg, 450cm online or request a quotation to match your requirements. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.

    Additional information

    Weight 1200.0 kg
    Dimensions 1.6 × 1 × 1.9 m
    Parameter Specification
    Manufacturer

    SMITH

    Model

    CXL20GF

    Power unit

    Electric

    Operation

    Pedestrian

    Load capacity

    2000

    Load capacity at max height

    2000

    Load center

    600

    Axle center to fork face

    672

    Wheelbase

    1384

    Weight with battery

    1126

    Wheels type

    (PU)

    Driving wheel size

    Φ230×75

    Bearing wheel size

    Φ80×70

    Additional wheels (dimensions)

    Φ150×58

    Wheels, number front/rear (x = driven)

    1x+1/4

    Track b10

    526

    Track b11

    390/515

    Height of lowered stacker

    2100

    Free lift

    1686

    Lift

    4500

    Height of mast, extended

    5024

    Overall height (with handle)

    870/1200

    86

    Overall length

    2022

    Length to fork face

    872

    Overall width

    795

    Fork dimensions

    60/180/1150

    Fork width

    570

    Minimum ground clearance

    26

    Aisle width with pallet 1000 x 1200 across forks

    2435

    Aisle width with pallet 800 x 1200 along forks

    2412

    Minimum turning radius

    1550

    Travel speed, laden/unladen

    4.0/4.2

    Lifting speed, with/without load

    80/210

    Lowering speed, with/without load

    152/160

    Maximum climbing ability, with/without load

    4/10

    Service brake

    Electromagnetic

    Drive motor, 60 minute rating

    1.5

    Lift motor rating at S3 15%

    3.0

    Battery according to DIN 43531/35/36 A, B, C, no

    no

    Battery voltage/rated capacity

    24/210

    Battery weight (± 5%)

    195

    Type of drive control

    AC

    Noise level at operator's ear

    ≤70

    Mechanical

    What is the maximum load the SMITH Heavy-duty Electric Stacker can handle?

    The stacker is rated for a maximum load of 2000kg (2 tonnes).

    What is the highest lifting point for this electric stacker?

    It is capable of lifting loads up to 4500mm (4.5 metres).

    How long will the stacker run on a single battery charge?

    It will operate continuously for between 5 and 6 hours.

    Is the stacker appropriate for use in confined aisles or restricted spaces?

    Yes, it has a compact turning radius specifically designed for manoeuvring in limited spaces.

    What sort of motor and transmission does the stacker have?

    It comes fitted with a robust AC motor and a ZF Friedrichshafen transmission to ensure dependable operation.

    Are there any features on the stacker to support accurate load handling?

    Yes, it is equipped with a turtle speed function for careful manoeuvres, as well as a MOSFETS driver offering stepless speed adjustment and reverse braking.

    Is this stacker appropriate for demanding or damp working conditions?

    Yes, it is fitted with German waterproof micro-switches, making it suitable for challenging environments.

    What are the fork measurements on this electric stacker?

    The forks measure 570mm in width and 1150mm in length.

    Which control system is used in the stacker?

    It utilises a Curtis Controller for responsive and efficient handling.

    How does the lifting system perform when handling substantial weights?

    The stacker features a high-power and high-performance lifting pump station to deliver strong lifting power.

    Summary

    • This SMITH Heavy-duty Electric Stacker offers a maximum load capacity of 2000kg
    • Maximum lift height: 4500mm
    • Free lift: 1686mm
    • Fork dimensions: 570 × 1150mm
    • Curtis control system
    • Continuous operating time: 5–6 hours
    • Fitted with a high-performance AC motor as well as ZF Friedrichshafen gearbox
    • Designed for use in confined areas thanks to a compact turning radius
    • YONGCI drive motor system delivers dependable and responsive handling
    • German-made waterproof micro-switches provide suitability for demanding conditions
    • Fitted with a high-power and high-performance lifting pump station
    • Heavy-duty Electric Stacker: Durable solution for industrial materials handling
    • Accurate Control: MOSFETS driver with variable speed adjustment and reverse braking
    • Large Lifting Capacity
    • Low-speed manoeuvring switch: Allows for careful manoeuvring during sensitive tasks
