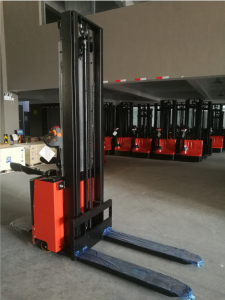

Pallet Lift Stacker SMITH S-Ride with Stand 2.6m 260cm 1500 kg

SMITH Electric Stacker with Stand S-Ride 2,6m 260cm 1500 kg

The ergonomic and sturdy build of this electric pallet stacker featuring a standing platform SMITH S-Ride ensures excellent operator comfort during use. The robust standing platform offers convenience, as the operator can remain on the stacker rather than walking alongside. This feature increases efficiency and supports employee wellbeing. The electric stacker SMITH S-Ride is fitted with side arms on both sides, providing safe and comfortable driving. Mode of operation is straightforward, and the two-handed control system enables precise lifting. The Electric stacker SMITH S-Ride is suitable for lifting and moving heavy loads and pallets. With continuous use, the battery lasts around 6 hours. Charging is rapid. The machine is assembled in China, with components sourced from Japan, Germany, and Taiwan. If we do not have service in your country and a fault occurs during the warranty period, we will arrange a local team and cover the cost of the repair. Components are standard and can be replaced easily. It uses a car battery, which can be replaced at low cost if required. Most spare parts are readily available. The electric stacker is a practical, lightweight, and powerful forklift for your workplace. This electric pallet stacker with platform is designed for two-handed operation and is the most stable in its class of electric pallet stackers with stand. The S-Ride electric stacker has a weight of 720 kg, making it highly robust and stable, capable of lifting a variety of loads and pallets. When fully lowered, its height is 1877 mm.  The stacker is equipped with two motors: one for lifting and one for driving. The lifting motor has a power output of 24V/2.2KW, and the drive motor delivers 24V/0.75KW. This electric stacker is supplied with 2 batteries and also a charger. The batteries are high-capacity, rated at 2×12V/120Ah, allowing for several hours of operation without recharging. Recharging is quick, so downtime is minimal. The excellent manoeuvrability and user-friendly controls make this electric stacker ideal for lifting pallets or goods from the floor to shelving or vehicles, or for unloading lorries. The SMITH S-Ride electric stacker is also designed for easy handling and efficient use of space. It is supplied with a 12-month warranty and service is available within the European Union.

What is the price of the SMITH S-Ride electric stacker with platform?

The SMITH electric stacker with stand is among the most competitively priced electric stackers available. However, its cost does not compromise on quality. Despite its affordability, the electric stacker with platform and side arms is constructed from high-grade materials and incorporates the latest technology for lifting and driving. The current price for the electric pallet stacker is shown above. The electric stacker includes a 12-month warranty and is supplied with two batteries 2×12V/120Ah.

Electric stackers are powered by batteries, using a DC motor on the drive wheel to provide movement. The DC motor converts high-speed, low-torque input into low-speed, high-torque output via the gearbox, which is then delivered to the drive wheel. Walking speed is regulated by the accelerator.

Benefits of the SMITH e stacker with stand:

• A durable and stable electric stacker with stand and side arms, designed for efficient and safe lifting and driving. Operators can securely stand on the platform while manoeuvring the stacker.
• The standing platform and side arms are foldable and can be easily attached or removed.
• Although this is an electric stacker with a platform, it features a high-performance lifting pump station to ensure reliable lifting.
• The turtle speed switch on the handle allows for precise low-speed control.
• Waterproof micro-switches imported from Germany are designed for use in cold, damp, dusty, and other demanding environments.
• The YONGCI motor drive system features a compact design, is lightweight, minimises energy loss, and delivers excellent efficiency.

In which settings is the SMITH e-stacker with platform suitable for use?

The SMITH electric stacker with stand offers a cost-effective solution for electric forklift needs, providing clear benefits when integrated into packaging or transport operations across various sectors. It integrates smoothly into daily routines, significantly increasing productivity—often doubling or even tripling user efficiency. Manual handling of heavy loads is no longer required, which helps to reduce workplace accidents in factories or warehouses. Powered by electricity, this electric stacker operates cleanly without emitting harmful gases, making it ideal for indoor environments. There are no trailing cables to manage or trip over, as it is battery-operated and supplied with two batteries as standard. This ensures continuous operation, as recharging is quick and does not interrupt workflow. The electric pallet stacker is engineered for stability and durability, making it well-suited for moving and lifting heavy items of various shapes.

The SMITH electric stacker is commonly utilised in industries such as paper, aluminium, textiles, steel, logistics, agriculture, chemicals, and metals. The SMITH S-Ride electric pallet stacker with stand features a highly durable construction and is straightforward to operate. It moves swiftly yet remains easy to control and manoeuvre. The electric stacker combines robust performance with an attractive appearance. With this electric pallet stacker, you can streamline processes and accelerate lifting and transport tasks. The SMITH electric pallet stacker offers a high level of automation, intuitive controls, and user-friendly operation. Its chassis is constructed from high-strength alloy materials and engineering plastics, ensuring long-lasting durability. The stacker is easy to handle and accommodates packages of varying dimensions.

Technical details for the SMITH S-Ride electric stacker with platform

Platform Pallet Stacker SMITH lifting diagram

How do you operate an electric pallet stacker with stand, SMITH S-Ride?

To begin, turn the key to activate the electric stacker. The handle features two controls: one for raising and lowering the forks, and another for moving the stacker. To collect a pallet, drive the electric stacker beneath the pallet and lift it slightly. Then, use the movement control to drive the stacker to your chosen position. Once in place, use the lifting control to raise the pallet to the required height, then move the stacker forward so the pallet is positioned inside the lorry or on the racking. Lower the forks so the pallet rests on the floor, and then reverse the stacker out. This method can also be used to lift other items. If an item cannot be lifted directly, place it on a pallet and secure it to ensure stability. The SMITH S-Ride electric stacker, weighing approximately 720 kg, is equipped with a powerful lifting and drive motor. It can lift up to 1500 kg to a height of 2.6 metres (2600 mm). The travel speed is about 4.5 km/h. The stacker is fitted with two batteries, each rated at 12V/120AH. The SMITH electric stacker is designed for durability and reliable performance in industrial and warehouse environments. The electric pallet stacker is supplied with a one-year warranty and is serviced within the European Union.

How do you use the operating system on the pallet stacker with platform, SMITH S-Ride?

1) Insert the key and turn to the “on” position to power up the electric stacker. Move the handle into the operating area.
2) Turn the accelerator control to select the desired direction or to reverse.
3) Adjust your speed by using the movement control until you reach the required pace.
4) Steer the stacker carefully to your destination. The speed can be regulated using the Fahrschalter.

Braking system of the Electric Stacker S-Ride:

Braking performance will vary depending on the surface and the load being carried.
The braking function can be engaged as follows:
1 By moving the Fahrschalter to position ‘0’, the stacker will brake until it comes to a stop.
2 Move the travel switch in the opposite direction; the electric stacker will halt and then move in the reverse direction.
3 The stacker will brake if the handle is moved up or down into the braking zone (“B”). If the handle is placed in the braking zone (“B”), the stacker will brake until stationary.
4 The belly switch acts as an emergency stop. If activated, it helps prevent the operator from being trapped or injured.
