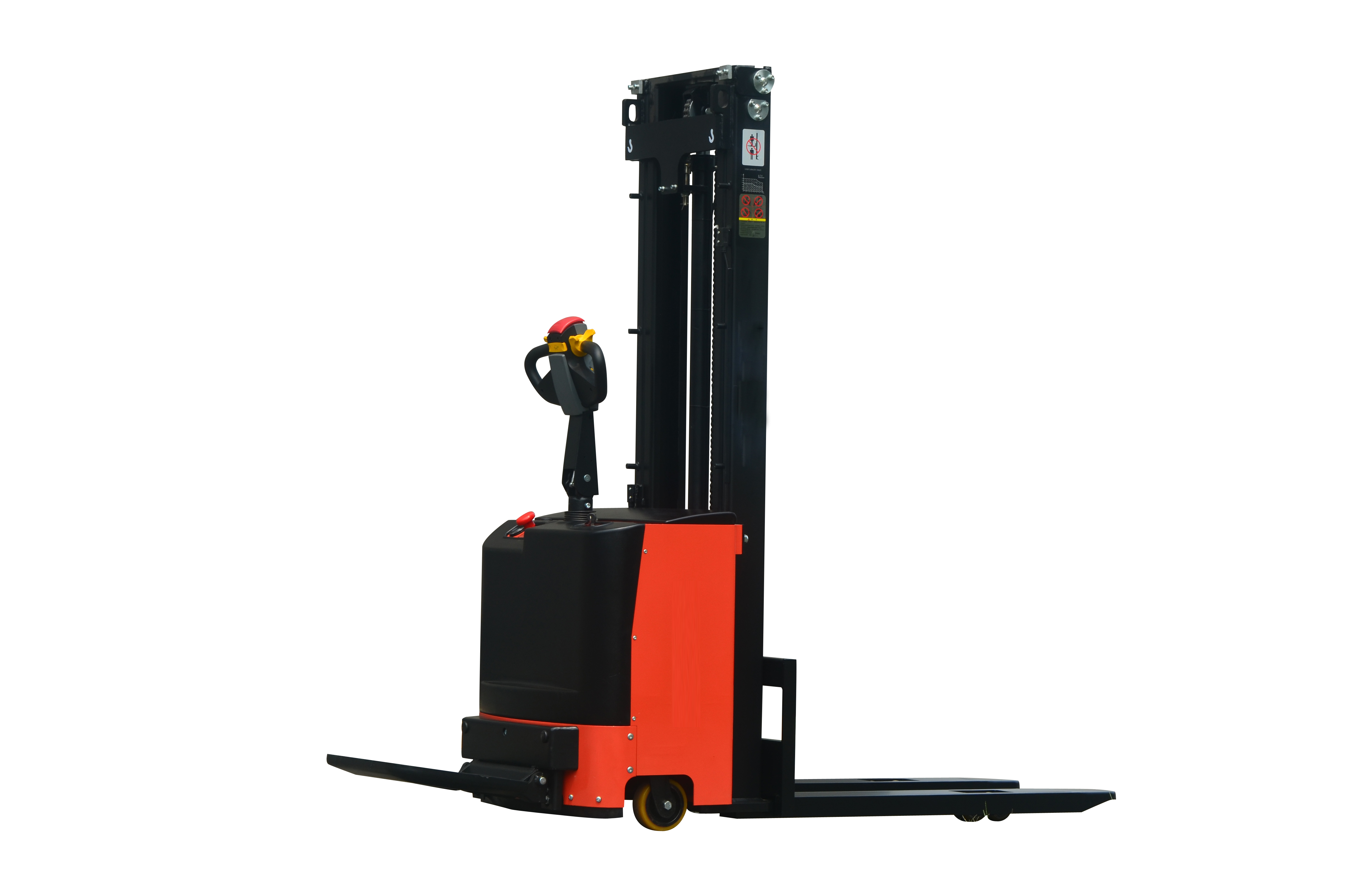

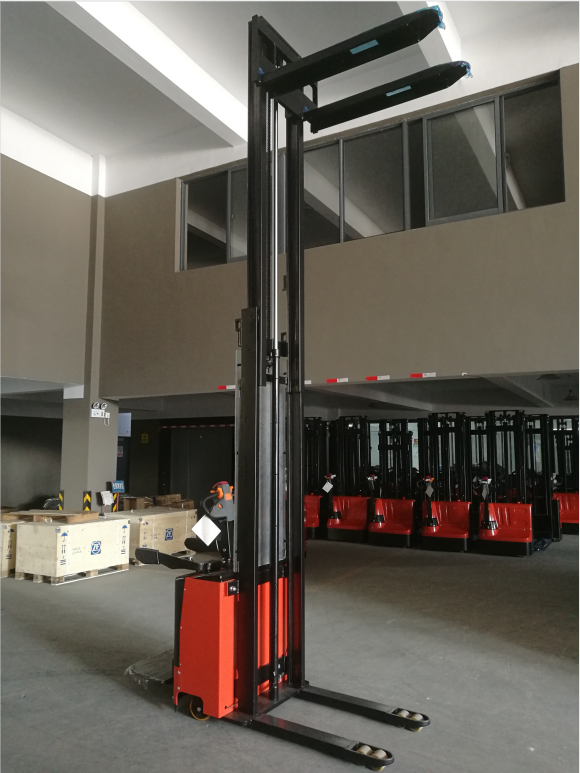

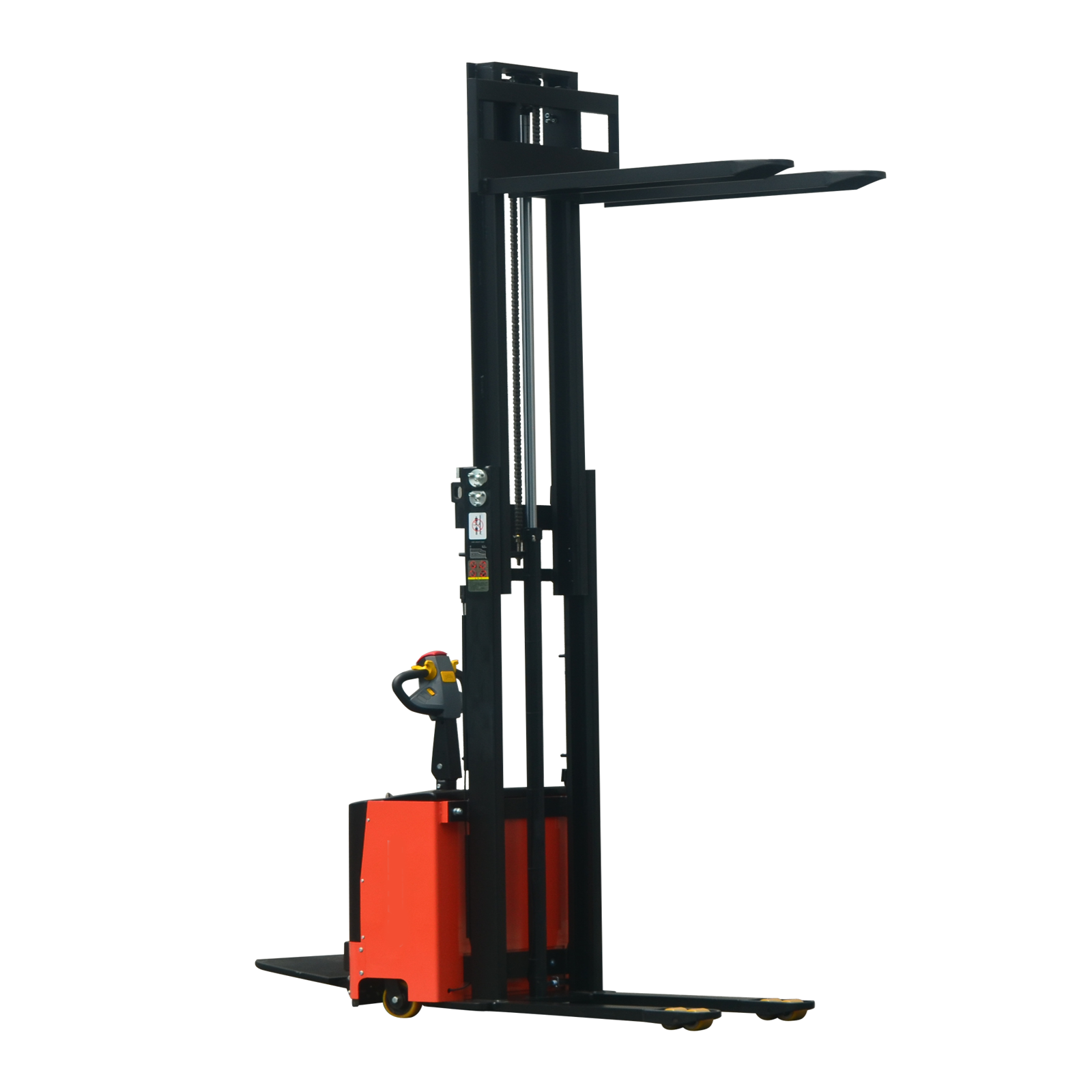

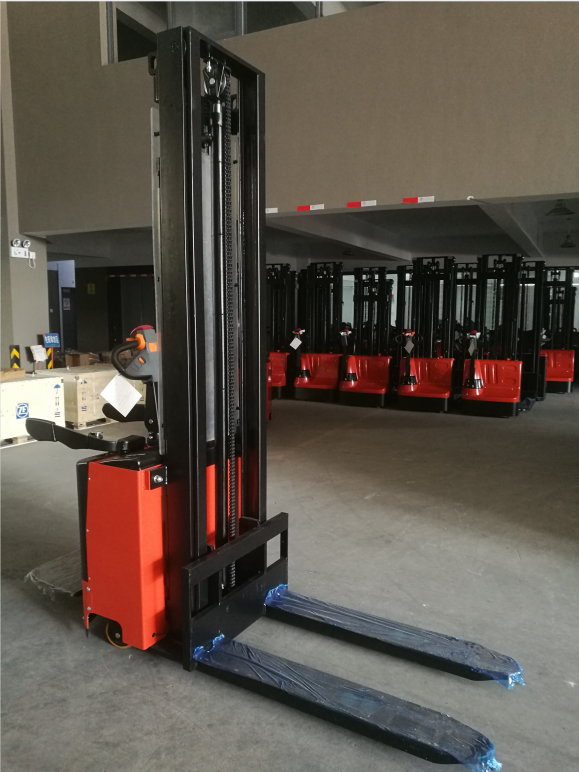

SMITH Electric Stacker Forklift Stand-on S-Ride 3.6m 360cm 1500 kg

SMITH Electric Stand-on Stacker S-Ride 3.6m 360cm 1500 kg

SMITH Electric Stand-on Stacker S-Ride 360cm 1500 kg operates entirely using electric and hydraulic systems, offering agile, efficient, and high-performance handling of goods. The SMITH Electric Stand-on Stacker S-Ride is designed to assist with stacking goods or palletised cargo up to 2 tonnes, featuring smooth operation, a high-capacity battery (5–6 hours per charge), and an advanced control system. It is suitable for a range of working environments and adapts to both the load and the operator. Powered by its battery, this compact yet robust forklift stacker uses electric and hydraulic power for movement, lifting, lowering, steering, and other functions. It is well suited for stacking palletised goods, loading or unloading cargo, and short-distance transport.

The forklift’s software supports driving and loading functions with US-manufactured CURTIS1232E and CURTIS1230E controllers. It features a battery indicator, working time display, and voltage protection data for safer, user-friendly operation. The electric stand-on stacker S-Ride 360cm has a weight of 760 kg, providing excellent stability and allowing it to lift a variety of items and pallets. When fully lowered, its height is 2327 mm. This electric stacker is equipped with two motors: one for lifting and one for driving. The lifting motor is rated at 24V/2,2KW, and the drive motor at 24V/0.75KW. The electric stand-on stacker is supplied with 2 batteries as well as a charger. The batteries have a high capacity of 2×12V/120Ah, enabling several hours of use between charges. Recharging is rapid, so downtime is minimised. The manoeuvrability and straightforward controls make this electric stacker ideal for lifting pallets or items from the floor to shelving or vehicles, or for unloading lorries. The SMITH S-Ride electric stacker is designed for ease of operation and efficient use of space. It is supplied with a 1-year warranty. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.

Key features of the SMITH Electric Stand-on Stacker S-Ride 360 cm 1500 kg

• Sophisticated control system
• Multiple braking options to suit the environment and load conditions
• Telescopic oil cylinder fitted with a safety relief valve
• Hydraulic control lever for precise management of hydraulic power
• Steering wheel angle can be adjusted
• Emergency stop system
• Speakers (front and rear) with proximity audio warnings
• Genuine spare parts, quality tested and approved
• Simple to operate with large load capacity
• Steering motor equipped with control handle and buttons
• Four-way braking system
• Straightforward maintenance and loading
• Robust hydraulic power

Technical details for SMITH Electric Stand-on Stacker S-Ride 3.6m 1500 kg

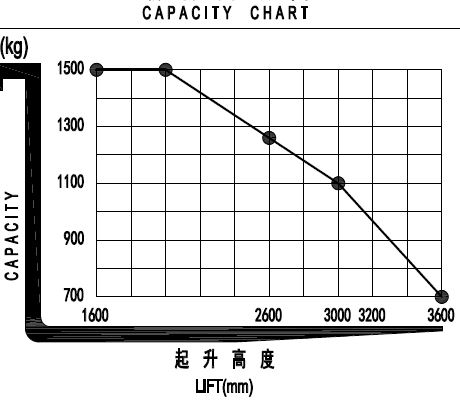

SMITH Platform Pallet Stacker lifting diagram

Key features of the SMITH Electric Stand-on Stacker S-Ride 360 cm 1500 kg

Control system

• Sophisticated control system
• To operate, move the accelerator button forwards or backwards, and use the movement button to regulate speed.
• Multiple braking options adapt to different surfaces and load weights, ensuring operator safety.

• Suitable for stacking palletised goods, loading and unloading cargo, stacking, and short-range transport tasks.

• Stacking is managed via a telescopic hydraulic cylinder, fitted with a safety relief valve for speed regulation and enhanced safety.

Software & electrical components

• The stacker’s electrical system enables both movement and lifting, utilising CURTIS1232E and CURTIS1230E systems manufactured in the USA.
• Features include a battery status display, operational hours counter, and voltage protection information.
• To maintain optimal motor performance, lifting should be carried out in intervals.

Hydraulic operation principle

• Hydraulic power is supplied by an oil gear pump and managed via the handle.

Adjusting the steering wheel angle

• The steering wheel angle can be set to suit the operator’s preferences.

Hydraulic control lever operation

• The hydraulic control lever distributes hydraulic power as needed. The pallet stacker lever raises, holds, or lowers the forks. The tilt lever allows for backward, stationary, or forward movement.
• For improved hydraulic system safety, the valve block is fitted with a pressure relief mechanism.

Emergency power safety switch usage

• To help avoid accidents or uncontrolled use of the forklift, the emergency stop switch enables immediate power cut-off. Activate this if the machine moves unexpectedly, or if you notice smoke or an unusual burning smell during operation. This allows you to check the machine safely, identify the cause, and resolve any issues before resuming work.

Use of warning speakers and reversing alarms

• For enhanced operational safety, the machine features both front and rear speakers, as well as horns, to warn pedestrians and others nearby of its presence.

Battery charge display

• The control panel shows the current battery charge level and can be used to monitor electrical usage times.

Safe operation and environmental responsibility

• All genuine spare parts have been inspected and approved by our quality assurance team.
