Battery Operated Strapping Tool TES PRO 12-16mm (1/2″-5/8″) for PP/PET Strap with 2 Batteries & Charger

TES PRO 12-16mm Battery Operated Strapping Tool for PP/PET – Overview

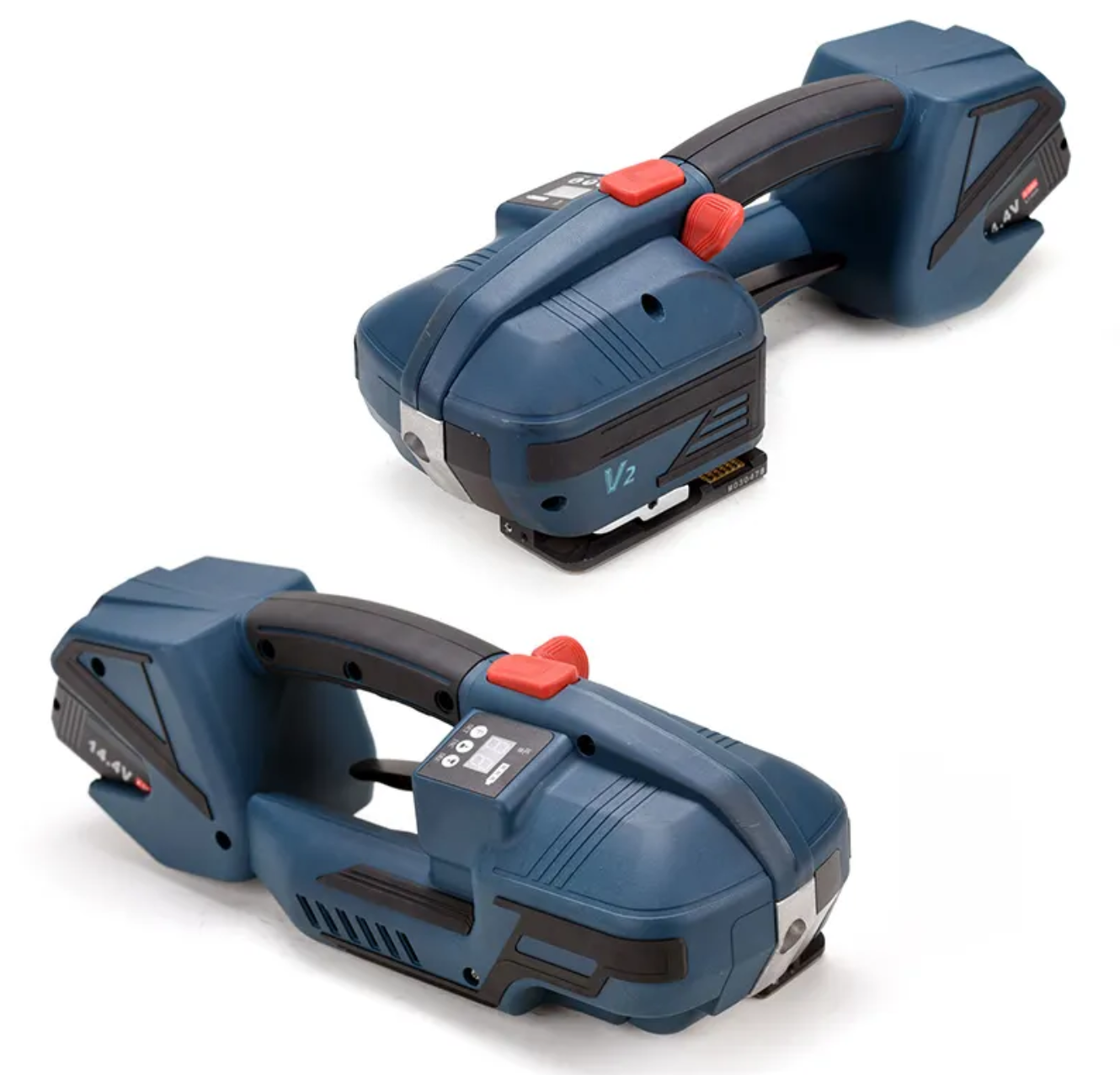

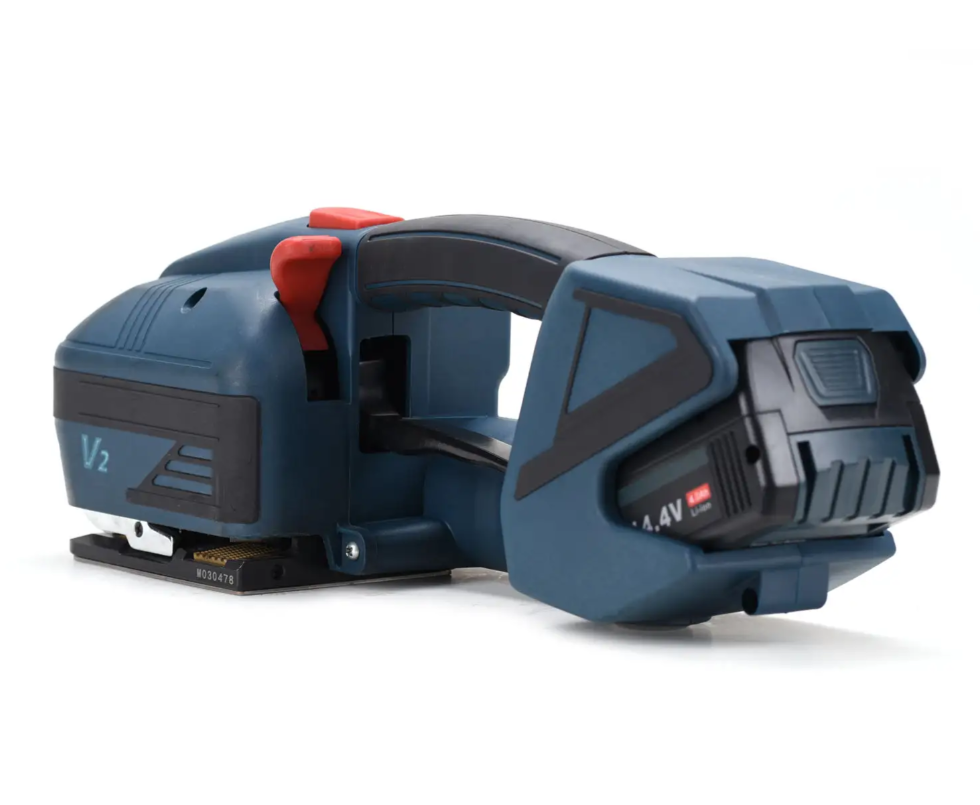

The TES PRO 12-16mm Battery Operated Strapping Tool is a compact, high-performance machine developed to streamline strapping processes for industrial packaging and bundling. It works with PP (polypropylene) as well as PET (polyester) strapping, providing dependable tensioning, sealing, and cutting. The tool features a digital display for straightforward adjustment and monitoring, alongside a motor with brushless technology that improves efficiency and minimises maintenance. It is particularly valued in industries such as logistics, manufacturing, and warehousing, where reliability and efficiency are essential.

This tool has dimensions of 380 mm (length) x 130 mm (width) x 130 mm (height) and a weight of 3.1 kg (excluding the battery). It is equipped with a digital display for easy setting management and a motor with brushless technology for enhanced efficiency and reduced maintenance. Powered by a 14.4V lithium-ion battery with a 4.0Ah capacity, it can complete up to 200 strapping cycles per charge. The tension can be adjusted between 900 and 3200N, and the welding time ranges from 1.0 to 5.0 seconds, accommodating diverse strapping needs. This accuracy, together with robust PP and PET strapping, helps protect goods during handling and storage. The battery’s 200 cycles per charge capability further boosts productivity by limiting downtime.

Engineered for longevity, the TES PRO requires little maintenance and delivers reliable results over extended use. These qualities make it a practical investment, offering tangible savings and improved operational efficiency over time.

Technical Data for TES PRO 12-16mm Battery Operated Strapping Tool

Video demonstration of the battery powered strapping tool TES PRO 12-16mm

▶

Main features of the battery powered strapping tool TES PRO

1. Ergonomic Construction: Designed to be lightweight and compact, making handling straightforward and minimising operator fatigue.
2. Customisable Controls: Enables accurate adjustment of tension force (900-3200N) and welding duration (1.0-5.0 seconds).
3. Reliable Seal Performance: Friction welding technology delivers seals that maintain around 75% of the strap’s strength.
4. Battery Endurance: The 14.4V lithium-ion battery allows for up to 200 strapping operations per charge, reducing downtime for recharging.
5. Flexible Application: Suitable for use with PP and PET strapping in a range of sizes (12-16mm wide, 0.4-1.2mm thick), making it appropriate for various sectors.
6. Easy to Use: Straightforward controls allow for efficient operation with minimal training required.

Instructions for Using the TES PRO 12-16mm Battery Operated Strapping Tool

1. Prepare the Strapping: As illustrated, start by manually looping the PP or PET strapping around your item or pallet. Ensure the welding area is clean and free from contaminants for the best results.
2. Insert the Strapping into the Tool: Raise the handle and position both ends of the strapping into the correct slots on the strapping tool. Confirm that the strapping is straight and parallel for smooth operation.

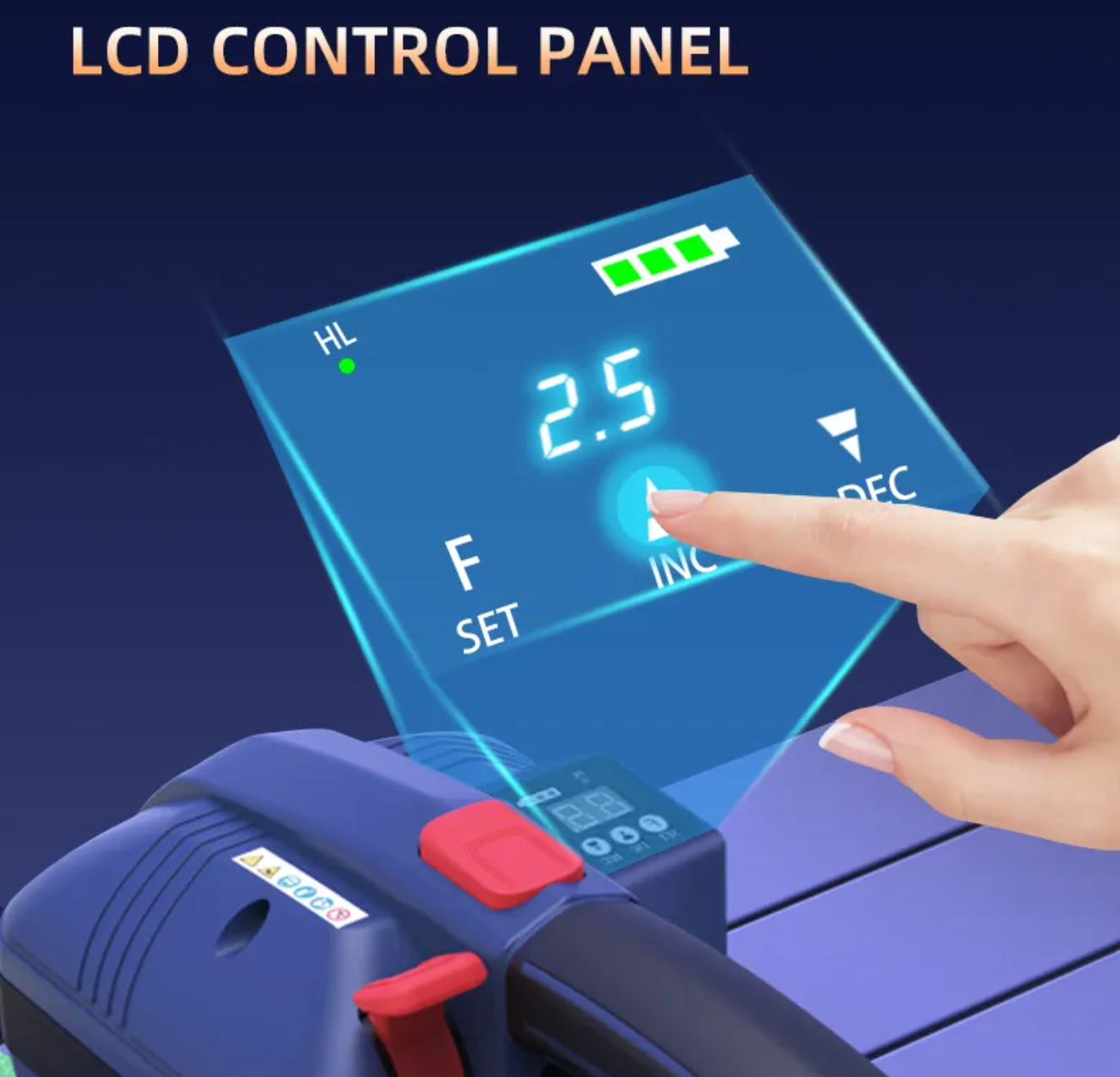

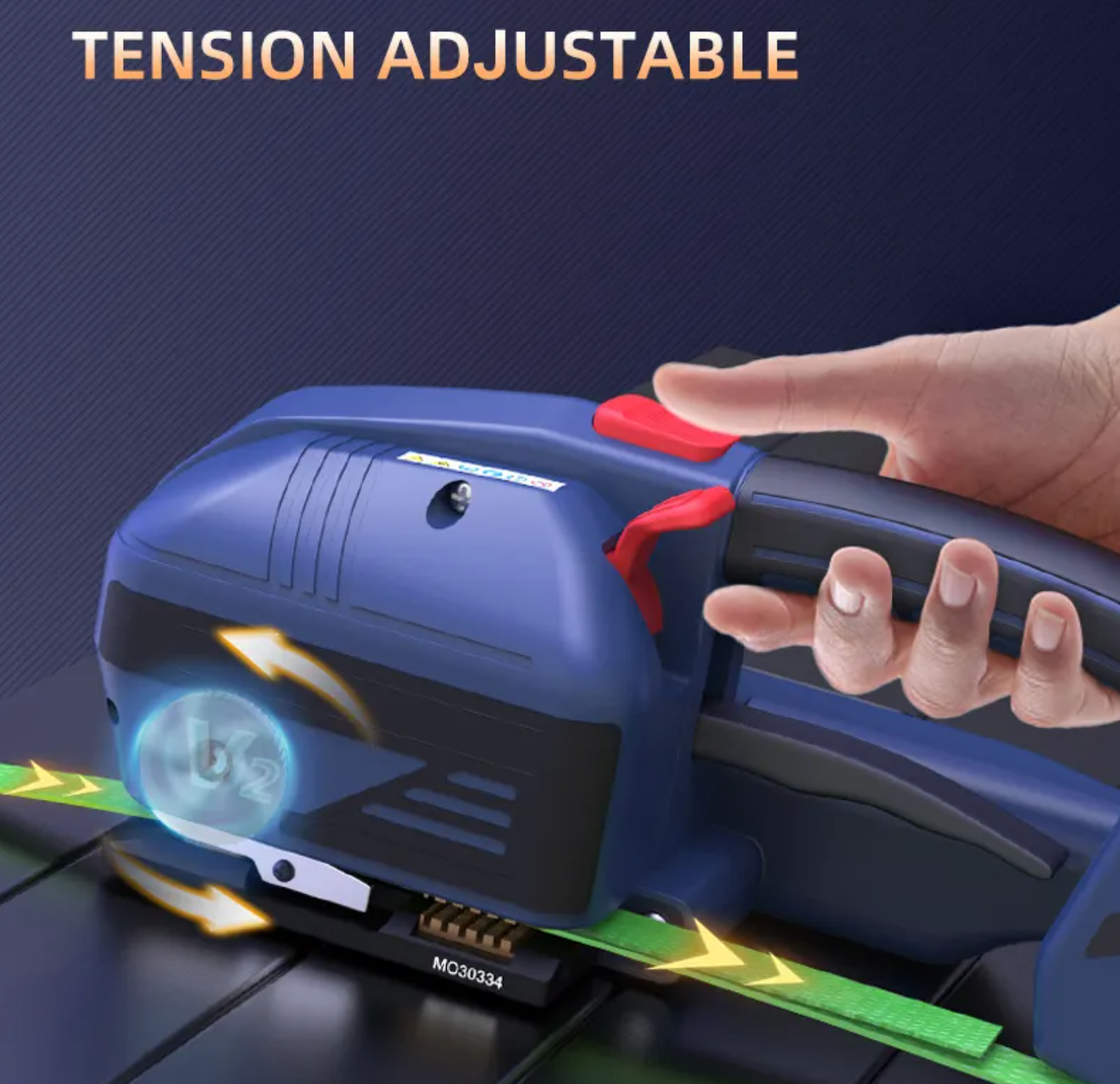

3. Apply Tension: Hold down the tension button until the required tension is achieved. Release the button once the strapping reaches the desired tightness. The tool’s digital display provides accurate feedback during this process.
4. Seal the Strapping: Press the welding button to activate the sealing function. The motor with brushless technology powers the friction welding system to join the strapping securely. The indicator will show green during welding and switch to purple when finished.
5. Remove Excess Strapping: Once welding is complete, the tool automatically trims off any surplus strapping.
6. Detach the Tool: Lift the handle and carefully remove the tool from the strapping. The process is complete, and your item is now securely strapped.

Applications for Battery Operated Strapping Tools

The TES PRO 12-16mm battery operated strapping tool is well suited for use in logistics, warehousing, production and distribution sectors. It performs especially well when securing heavy or bulky loads such as building materials, chemical containers, textile products, as well as palletised items. Its versatility means it is effective for both smaller businesses and large-scale industrial settings where reliability and efficiency are essential.

Design and Suitability

With portability and practicality at its core, the TES PRO has dimensions of 380mm x 130mm x 130mm and a weight of just 3.1 kg. It accommodates a variety of strap sizes, specifically 12-16mm wide as well as 0.4-1.2mm thick, offering flexibility for a range of packaging needs. This adaptability enables companies to optimise their packing operations without the need for several different tools.

Performance of the TES PRO 12-16mm Battery Operated Strapping Tool

The TES PRO provides a tensioning force between 900-3200N, making it suitable for securing even heavy or awkwardly shaped consignments. Its friction-weld sealing system ensures strong and consistent joins, while the adjustable tensioning speed (100-200mm/s) and welding duration (1.0-5.0 seconds) allow for precise control. This level of performance makes it a reliable choice for demanding industrial tasks.

Safety and Robustness

Safety is a key feature of the TES PRO. The automatic tensioning function helps reduce the chance of operator error, and the balanced design improves stability during use. Constructed from robust materials, this tool is engineered to cope with intensive use in industrial environments. Regular checks and replacement of worn components further support safe and dependable operation over the long term.

Settings and Upkeep

Adjusting the tensioning force and welding time is straightforward thanks to the integrated controls. Ongoing maintenance includes replacing wear parts, such as the tensioning toothed plate or welding tooth plate, to keep the tool performing at its best. The lithium battery can be removed easily, and following the recommended charging instructions will help ensure continuous operation.

Environmental Considerations

The TES PRO supports sustainable practices by reducing waste during strapping. It works with recyclable PP and PET strapping, and its efficient use of materials is in line with environmentally conscious approaches. The lithium-ion battery is also suitable for responsible recycling, helping to minimise environmental impact.

Comparison with Alternative Battery Operated Strapping Tools

The TES PRO stands out from similar equipment due to its lightweight build, durable battery, as well as efficient sealing. Unlike many alternatives, it combines advanced features such as adjustable settings and wide strap compatibility with straightforward operation. This makes it an excellent option for industries that require dependable and efficient strapping solutions.

Order the TES PRO 12-16mm Battery Operated Strapping Tool

The TES PRO 12-16mm battery operated strapping tool offers a reliable and efficient way to improve your packaging processes. Its advanced functions, robust construction, and user-friendly design make it a strong choice for businesses aiming to boost productivity. Select “Add to Cart” to order this tool now or request a tailored quotation by selecting “Get Offer.”
