ARCUS automatic arch strapping machine for PET/PP strap 11–12 mm – 0.55–1.0 mm/FI-200 mm – Tension: 0–90 kg – Arch size: W1500×H2200 mm

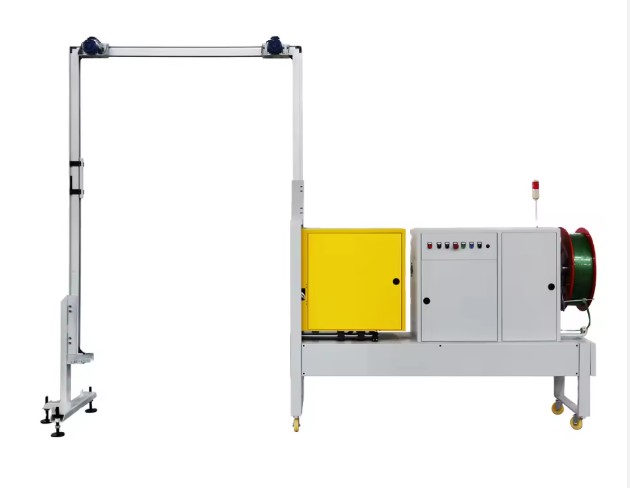

ARCUS automatic pallet strapping machine

The ARCUS automatic pallet strapping machine provides a dependable industrial solution for securing palletised goods, delivering uniform results on high-volume packaging lines. Featuring a sturdy build with PLC-based control, photoelectric sensors, as well as precise pneumatic operation, the machine offers manual operation, fully automatic, as well as continuous modes to suit a range of production requirements. It is compatible with PP or PET strapping in widths of 11–12 mm and thicknesses of 0.55–1.0 mm, with an adjustable tension force up to 90 kg. Each strapping cycle is completed in ≤ 15 seconds, making it ideal for automated palletising and despatch processes. The drive system operates at 380 V / 50 Hz with a rated power of approximately 1550 W, and is equipped with integrated safety features for reliable operation. The machine is designed for seamless integration into packaging lines, with overall dimensions of 3890 × 640 × 2200 mm, an arch clearance of 1500 × 2200 mm, and a net weight of around 350 kg. The frame is constructed from aluminium alloy for strength, low vibration, and resistance to corrosion, while the electronics utilise components from leading international brands to ensure long-term reliability and ease of maintenance in demanding industrial settings.

ARCUS automatic pallet strapping machine demonstration video

▶

Frequently asked questions about the ARCUS automatic pallet strapping machine

Technical details for the ARCUS automatic pallet strapping machine

The technical specifications below outline the operational scope and integration requirements for the ARCUS automatic pallet strapping machine. These figures are based on a configuration suitable for standard end-of-line use, ensuring reliable performance, consistent weld quality, and straightforward connection to electrical and mechanical systems. Actual tolerances may vary depending on installation, strap quality, and site conditions. For best results, maintain stable utilities and follow the recommended procedures for threading the strap, setting tension, and controlling the heater. In multi-shift operations, review maintenance schedules to maintain throughput and minimise unexpected stoppages. When connecting to conveyors, ensure that PLC controllers communicate correctly and that photoelectric sensors confirm pallet presence before starting a cycle. Following these guidelines ensures reliable load securing across a range of products, from consumer goods to industrial items and logistics consignments, while supporting internal standards for quality, safety, and traceability.

Return on Investment and Productivity of ARCUS automatic pallet strapping machine

The ARCUS automatic pallet strapping machine streamlines manual processes into a single automated cycle, reducing labour per pallet and ensuring consistent strap application and joint strength. Automated strap insertion, tensioning, welding, as well as cutting reduce handling time and maintain a steady pace across shifts, supporting efficient dispatch and loading. The ≤ 15 s cycle time is well-suited to high-volume pallet handling, while precise tension adjustment protects product shape and reduces the risk of damage during transport. The machine’s aluminium alloy frame and targeted lubrication points contribute to longer service intervals. When used with conveyors and pallet wrappers, the system enables full automation, turning downtime into productive output. These features help shorten packaging times, increase shipment density, and maximise the use of upstream equipment, providing a clear return in operations with regular pallet throughput.

Main Features and Advantages of ARCUS automatic pallet strapping machine

The ARCUS automatic pallet strapping machine operates with a synchronised mechanism managed by PLC logic and monitored by photoelectric sensors, ensuring reliable cycle starts and strap positioning. The strapping head follows a controlled sequence for feeding, clamping, tensioning, heating, as well as cutting, resulting in uniform joints and consistent securing force. Adjustable strap count allows for single or multiple passes to meet stability requirements, and the emergency stop instantly halts movement if needed. The chassis, made from aluminium alloy, minimises vibration and supports accurate strap tracking at speed. Quiet operation at around ≤ 75 dB enhances workplace comfort. Standard interfaces allow for conveyor integration, and the compact 3890 × 640 mm footprint makes it easy to fit into existing layouts. These features ensure reliable results, reduce the need for rework, and maintain packaging standards across varied product types.

Operating Instructions for ARCUS automatic pallet strapping machine

Start by checking that the 380 V / 50 Hz electrical supply and compressed air are available as required. Fit the strapping reel onto the reel, guide the strap through the designated path, and use the control panel to pre-feed until the arch is loaded. Place the pallet in the detection area so that photoelectric sensors confirm its presence, then select the desired quantity of straps and start the cycle. The machine will automatically tension setting, sealing, as well as cut the strap, readying for the next cycle if multiple straps are set. For different products, adjust the tension setting and check heater settings to suit the strap. Use the reset function after any interruption to return the machine to its starting position. In case of any unexpected situation, press the emergency stop to stop all movement. At the end of the shift, disconnect the power, clean the strap path, and clear any debris from guides and sensors to ensure consistent operation.

Recommended Applications for ARCUS automatic pallet strapping machine

The ARCUS automatic pallet strapping machine is ideal for sites handling regular pallet volumes where consistent securing and reliable cycle times are essential. Common applications include distribution centres, contract packing operations, and manufacturing facilities in sectors such as chemicals, pharmaceuticals, food and drink, ceramics, as well as appliances. The machine can be used as a stand-alone unit for batch processing or as part of an integrated conveyor system with upstream palletising and downstream wrapping. For mixed product lines, adjustable strap counts and tension setting settings accommodate different load weights and shapes. Where compliance or audit requirements exist, consistent strap application and documented procedures help meet internal quality and handling standards, improving readiness for shipment and reducing the need for rework.

Design and Suitability of ARCUS automatic pallet strapping machine

Key design features include a robust structure, easy access to components, and compatibility with standard packaging lines. The chassis is constructed from aluminium alloy sections for strength and low weight, supporting precise strap tracking with minimal deviation. The arch opening of 1500 × 2200 mm suits typical pallet heights and overhangs, while the overall size of 3890 × 640 × 2200 mm allows for straightforward positioning alongside conveyors and turntables. The strapping system is optimised for 11–12 mm PP or PET strap, with guided paths to minimise friction and prevent twisting. The electrical system, managed by PLC control, enables integration with line controls for queue management and fault alerts. The control panel offers separate selectors for strap count and manual operations for diagnostics. These features support reliable integration, reduce setup time, and allow the machine to fit a wide range of standard industrial layouts.

Performance and Functionality of ARCUS automatic pallet strapping machine

Performance is characterised by precise strap handling, stable tension setting, and strong welds. The coordinated cam and actuator system keeps the strap aligned during feeding and return, while adjustable tension adjustable up to 90 kg allows for securement of various load densities without causing damage. The ≤ 15 s cycle time supports high-volume operations and helps prevent bottlenecks in mixed-use environments. The thermal welding process, controlled by calibrated heater timing, ensures consistent joints with minimal variation, improving load security during transport. Electrical and pneumatic components are chosen for durability, and the machine runs at around ≤ 75 dB, meeting workplace standards. Together, these features provide reliable containment, predictable output, and straightforward planning for downstream logistics.

Safety Features and Robustness of ARCUS automatic pallet strapping machine

Safety features include guarded areas around moving parts, an integrated emergency stop, as well as photoelectric checks before starting each cycle. Electrical safety is ensured by a three-phase four-wire system with protective earth, and overcurrent protection and interlocks help prevent faults. The heating and cutting sections are enclosed to reduce the risk of contact, and operators are instructed to keep clear of the strap path during operation. The aluminium alloy frame, selected bearings, and belts designed for continuous use ensure durability. Components from reputable suppliers support maintenance and spare part availability. The machine is rated for 0–40 °C ambient temperature and up to 98 % relative humidity (non-condensing), making it suitable for a range of controlled industrial environments with consistent performance under normal loads.

Adjustment and Servicing of ARCUS automatic pallet strapping machine

Adjustment procedures focus on matching the strap and ensuring joint quality. Use the adjustment mechanism to set the strap thickness spacing so that feeding and return are smooth and slip-free; check that the spring preload at the idler matches the strap profile. Adjust tension setting to suit the product, avoiding damage to lighter goods and ensuring security for heavier loads. Set the heater temperature and dwell time to achieve consistent welds without excessive melting. Maintenance includes regular inspection of fasteners, guides, as well as belts, cleaning the strap path, and lubricating as specified. Replace consumables such as knives, springs, as well as fuses as needed. After long pauses, use the reset function to return assemblies to their starting position. Following these steps helps maintain output quality and reduces the need for corrective maintenance during busy periods.

ARCUS Automatic Pallet Strapping Machine

To purchase the ARCUS automatic pallet strapping machine, follow your organisation’s standard procurement process. For direct orders, select Add to basket to begin a standard transaction. For tailored integration with existing lines, choose Get Offer to receive a proposal based on your site’s utilities, conveyor setup, strap requirements, and throughput goals. The machine’s consistent cycle time, adjustable tension setting, and standard PP or PET strapping compatibility support quick adoption in corporate packaging systems. Using this machine helps stabilise end-of-line operations, protects goods during transport, and improves the efficiency of upstream processes within a controlled, auditable packaging environment.
