SMITH Three Wheel Electric Forklift | 3-Wheel Electric Lift Truck 1500kg, 450cm

SMITH Electric Forklift | 3-Wheel Electric Lift Truck 1500kg, 450cm

SMITH Electric Forklift | 3-Wheel Electric Lift Truck is a versatile forklift, recognised for its long operating time, efficient travel, and rapid lift and lowering speeds. The Three-Wheel Electric Forklift is ergonomically designed and straightforward to maintain, making it suitable for a range of uses, including narrow aisles and restricted spaces. It features advanced elements such as a ring rod lifting system and Curtis AC controller, and is equipped with a high-quality motor, traction battery, as well as hydraulic pump motor. The 3-Wheel Electric Lift Truck is manufactured using advanced techniques and materials that comply with industry standards. Each unit is thoroughly inspected by our experienced quality team to ensure it is free from defects. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer. Key features include:

• excellent visibility
• interlocking rail profiles
• hydraulically cushioned lift cylinders
• quiet hydraulic lifting system
• minimised vibration
• adjustable angled load rollers
• optimal load distribution
• reduced emissions
• and attractive design

This electric forklift is ideal for use on level surfaces within warehouses as well as in outdoor areas. The 3-Wheel Electric forklift is capable of raising heavy items and pallets to a height of approximately 4500 mm (at its maximum lift height of 4500 mm, it can support up to 700 kg) and moving them to a different position. This electric forklift truck offers a cost-effective and robust solution. The 3-Wheel Electric Lift Truck is suitable for handling a range of items and pallets and can be tailored to your requirements. It features two separate motors: one dedicated to driving and the other to lifting. The drive electric motor delivers 24V/2.5 kW of power, while the lifting motor provides 24V/4.5 kW. Supplied with a high-capacity 24V/400 Ah battery together with a charger, the battery enables extended operation of the electric stacker without frequent recharging. Recharging is rapid, so you can minimise downtime. The excellent manoeuvrability and straightforward controls of this 3-Wheel Electric Lift Truck make it well suited for lifting pallets or heavy goods up to 4500 mm from floor level and relocating them. The SMITH 3-Wheel Electric Lift Truck is engineered for ease of use and requires minimal space to operate. A 12-month warranty is included; please note that servicing is only available in Slovenia.

Technical Details for 3-Wheel Electric Forklift

Characteristics of 3-Wheel Electric Lift Truck

Side-extraction batteries. This design allows for quick and straightforward replacement, supporting continuous use and significantly increasing productivity.	The updated chimney structure is both attractive and robust, providing protection for the headlamps and allowing for easy access during maintenance.

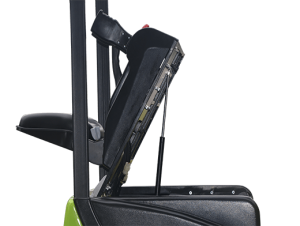

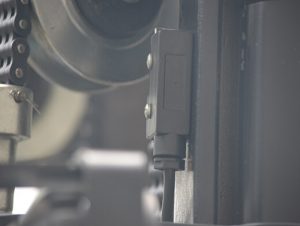

Releasing the snap fastener fully opens the cover. Operators can inspect, test, and service the drive assembly, pump units, controller, batteries, and other key electrical parts.	Lift height restriction feature. When the forks reach their maximum elevation, the system automatically disconnects the lifting power, bringing the movement to a gentle stop. This helps conserve energy, reduce risk, and prolong the lifespan of the hydraulic system and its components.

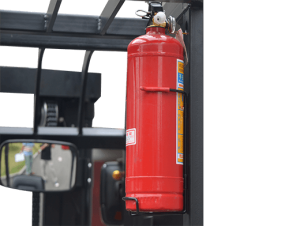

A fire extinguisher bracket is fitted to the rear of the overhead guard at a practical height. This serves as a reminder for users to equip a fire extinguisher and promotes fire safety awareness to safeguard people and assets.	The handbrake and handle are positioned on the right side in line with ergonomic standards, reducing operator fatigue and enhancing comfort during use.

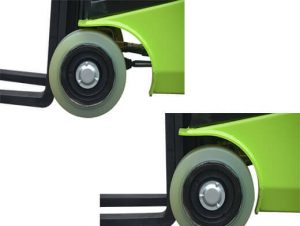

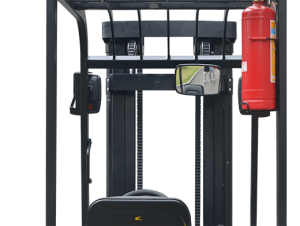

The wide-vision mast and well-placed twin cylinders provide the operator with a clear view, improving both efficiency and operational safety.	Adjustable wheelbase design. Shifting the front axle alters the wheelbase length. When extended, the vehicle is longer, offering safer load handling, improved grip, and smoother travel. When shortened, the vehicle is more compact, making it easier to manoeuvre in confined spaces.

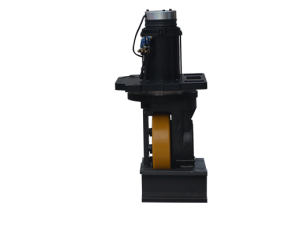

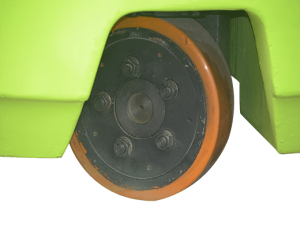

Rear-wheel drive configuration uses less current, reduces energy loss, and extends battery operating time compared to twin front-wheel drive. The rear wheel serves as both drive and steering wheel, resulting in a smaller turning circle.	State-of-the-art vertical AC drive technology. The motor delivers increased power and enhanced braking force for improved performance, acceleration, and climbing ability, ensuring smooth operation on uneven surfaces and inclines.

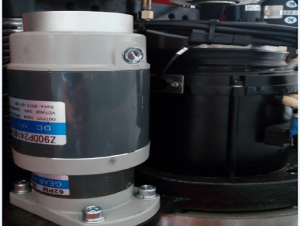

High-frequency MOSFET integrated AC controller enables responsive and accurate speed management. The motor and controller are well matched for regenerative braking, reverse braking, and anti-slip functions on ramps.	All models are fitted with Electric Power Steering (EPS) for effortless and comfortable control, greatly reducing operator effort. EPS allows for easy turning at low speeds and stable handling at higher speeds, making manoeuvring more precise and controlled.

Additional Features of Electric Forklift

• The triplex mast is supplied with a standard full free lift of 1109 mm, allowing the forks to rise 1109 mm before the mast itself extends—ideal for use inside containers or beneath low doorways.
• Height speed limiter: when the mast is raised above 300 mm, the travel speed is automatically reduced to enhance operational safety.
• Audible reversing alarm: the forklift emits a clear, steady sound when reversing, alerting personnel in the vicinity.
• The steering wheel is height-adjustable, the seat can be moved forwards and backwards, and the backrest can be reclined. All adjustments are ergonomically designed to suit different operators and ensure an optimal working position.
• Superior heat management: two cooling fans are fitted to the main unit—one for air intake and one for exhaust. The controller is also treated with a cooling gel. These features help to lower the temperature of the controller, drive units, pump station, and other electrical parts, ensuring system reliability.
• The circular steering design enables the forklift to rotate 360 degrees on the spot, reducing the turning radius and making it particularly effective in confined areas.

What is the cost of the SMITH 3-Wheel Electric Lift Truck?

3-Wheel Electric Lift Truck SMITH is among the most competitively priced electric forklifts available. However, the cost of the electric forklift does not compromise its quality. Although it is attractively priced, the 3-Wheel Electric Lift Truck is constructed from premium materials and incorporates the latest advancements in lifting and drive technology. The price for the electric forklift is shown above. The 3-Wheel Electric Lift Truck is supplied with a 12-month warranty, a high-capacity 24V/400 Ah battery and a charger. Delivered to your address (DAP) · export price without VAT; export customs clearance at a fixed fee; import VAT and duties are paid by the buyer.

How do I operate the SMITH 3-Wheel Electric Forklift?

1. Insert the key into the ignition, turn it to the right, and the emergency power safety switch will reset. Then gently activate the control circuit.
2. The forks lift approximately 10 cm from the ground.
3. Release the parking brake system.
4. Select the desired direction by pressing the forward or reverse switch as needed.
5. Gradually press the accelerator pedal until the required speed is reached.
6. If you encounter any issues during use and need to stop the electric forklift immediately, press the red emergency power switch.
7. Reduce speed when turning the forklift wherever possible.
8. The forklift can manage gradients up to 10%. Operators should assess the incline and fully depress the accelerator pedal to achieve maximum climbing power.
9. When descending a slope, release the accelerator pedal to engage reverse braking current. If this does not sufficiently control the speed, also apply the brake pedal to maintain safety.
10. When stopping, release the accelerator pedal until the forklift comes to a complete halt. Lower the forks to their lowest position, keep your hands inside the cab, press the safety switch, and remove the key.

The control panel on the 3-Wheel Electric forklift features a power indicator, mast lift speed reduction, and a working hours display. If the battery charge becomes too low, the power meter will disconnect the pump motor’s control circuit. In this state, the forklift will not be able to raise the forks but can still be driven, indicating that the battery should be recharged promptly. Hydraulic power is supplied by a motor-driven gear pump. The electric forklift is equipped with two lift cylinders and a tilt cylinder for mast tilting operations.
