20kW Diesel Generator SDG20 – BAUDOUIN Engine – Water-Cooled – Silent

SDG20 silent diesel generator

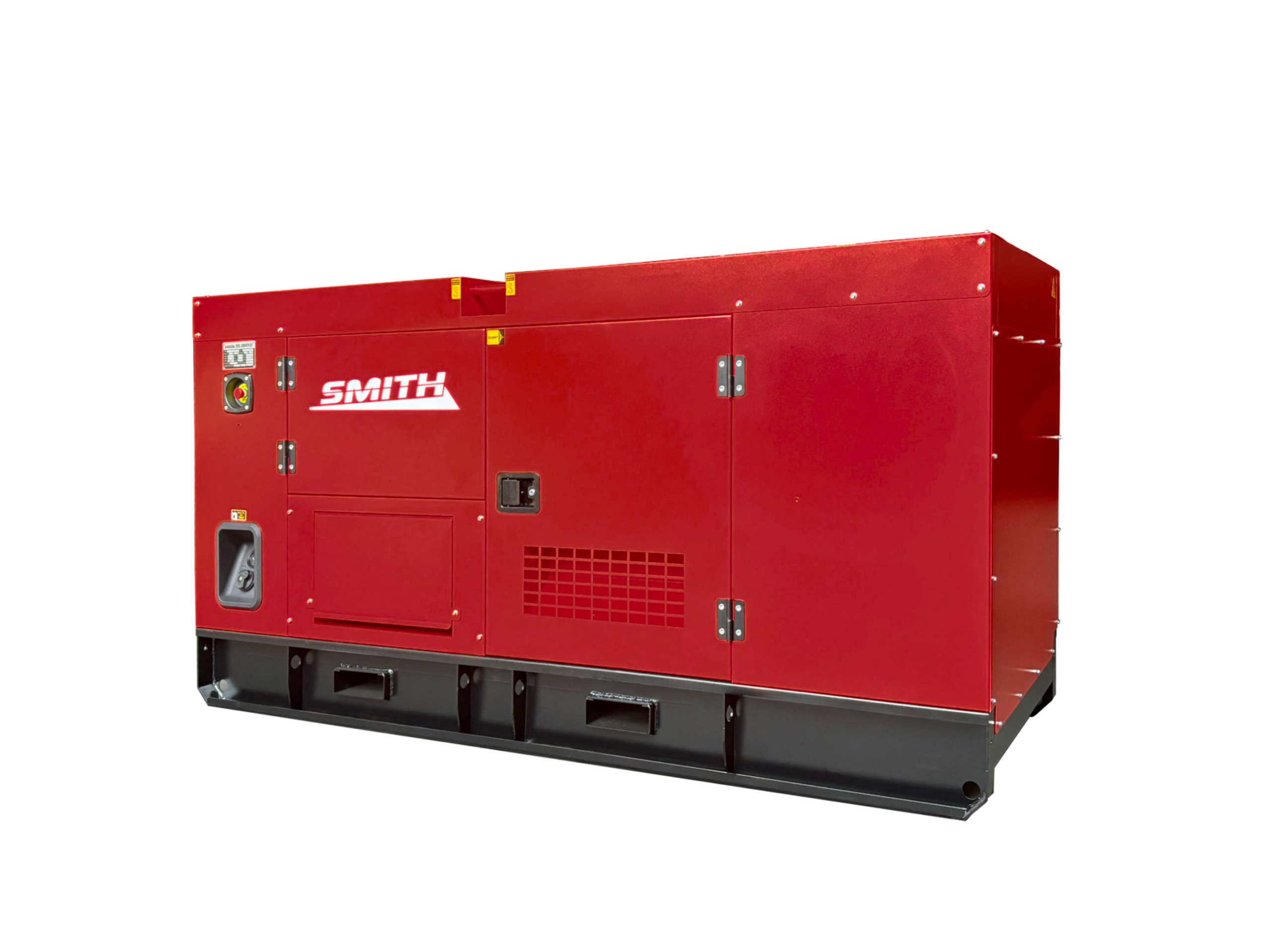

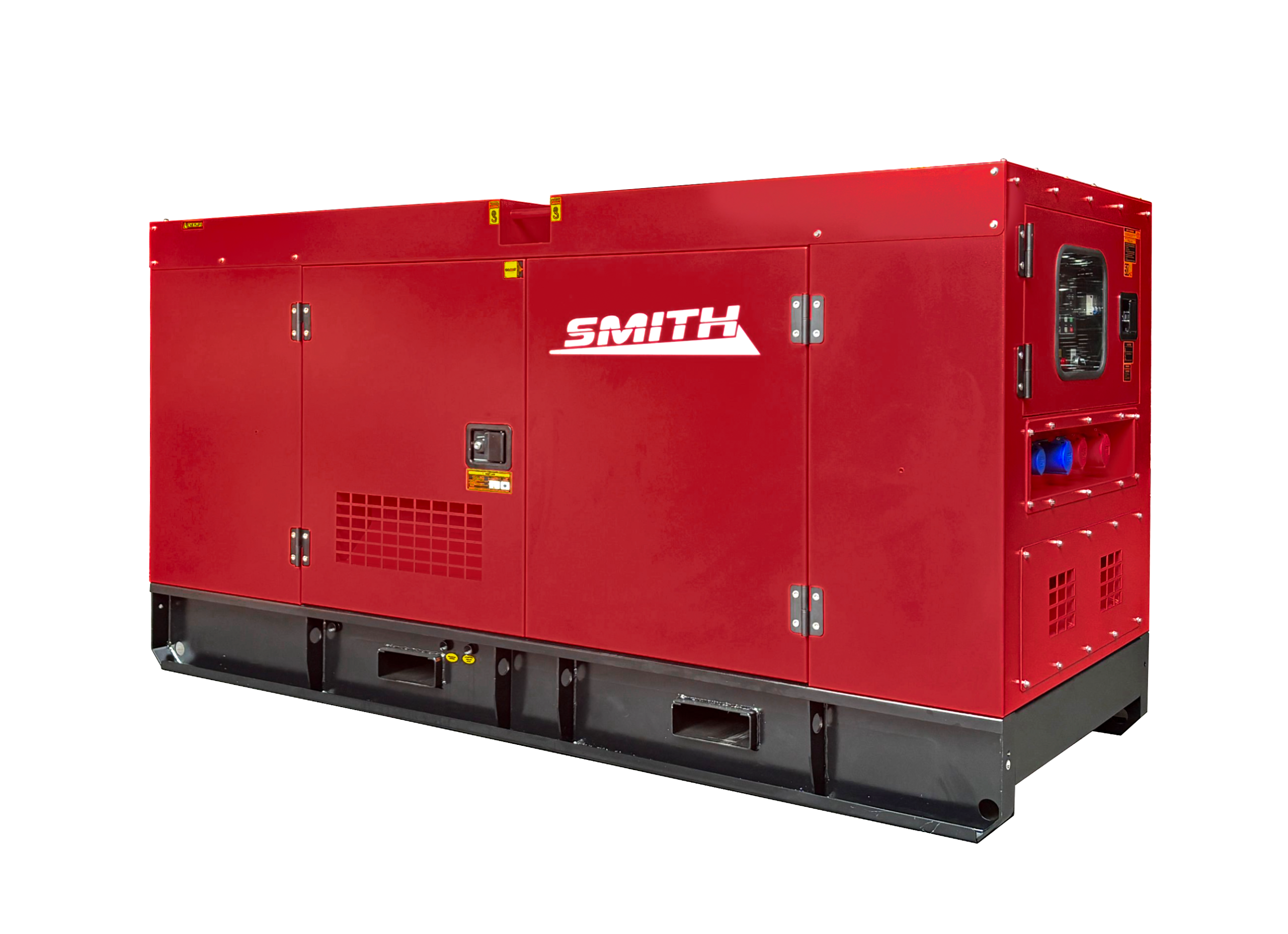

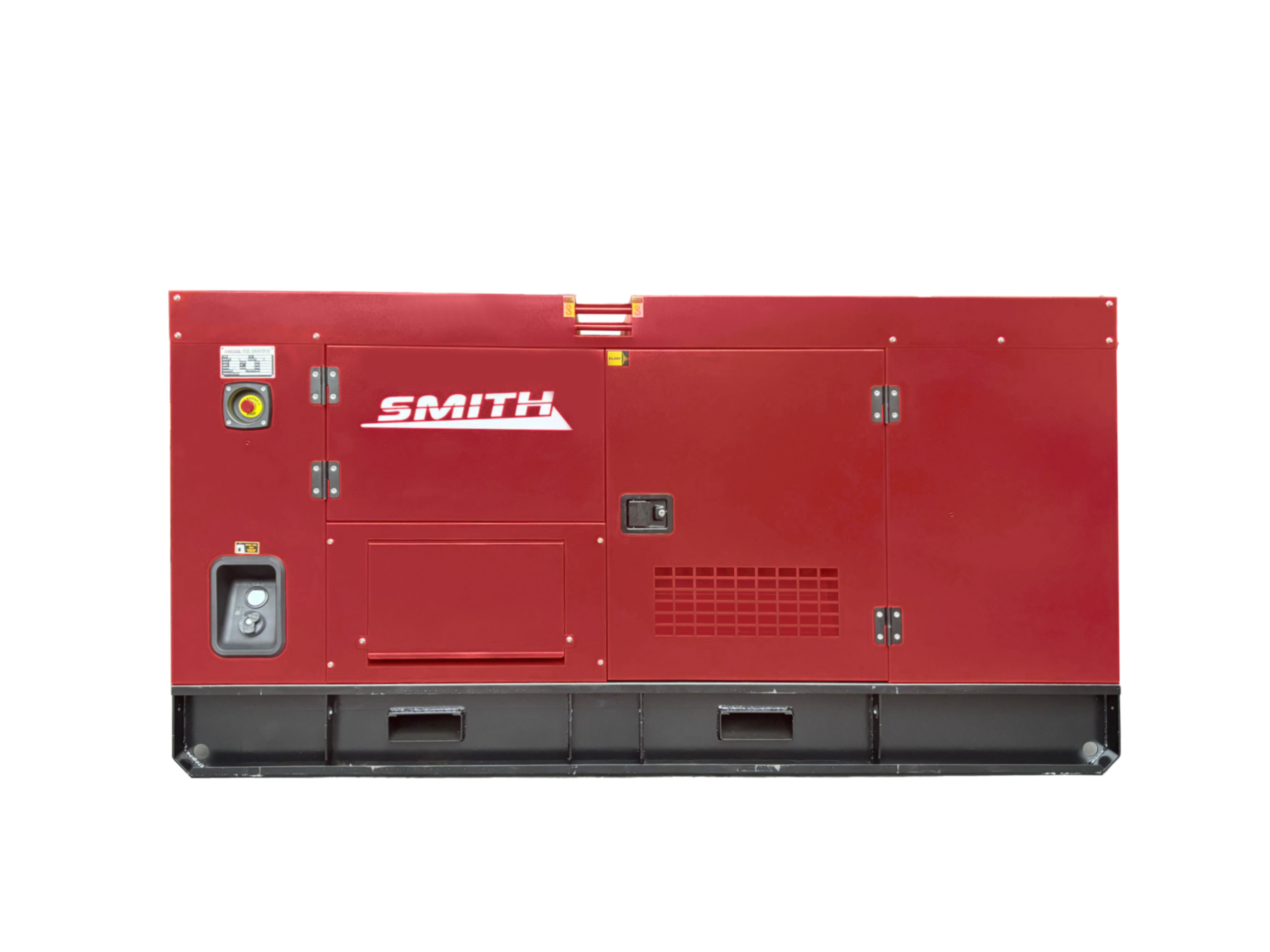

The SDG20 is a 20 kW silent diesel generator designed for buildings or sites that must remain operational during mains power failures. Housed in a sound-insulated enclosure, it starts automatically when the mains supply is interrupted.

SDG20 diesel generator: uses and sectors

The SDG20 is suitable for industrial sites, commercial premises, workshops, construction projects, warehouses, logistics centres and agricultural operations where a reliable backup or independent power source is essential. It supports both single-phase and three-phase equipment, making it ideal for mixed loads such as lighting, pumps, compressors, refrigeration, IT systems and automation. This generator is commonly installed as part of an emergency power system to ensure business continuity during power cuts.

Typical customers are manufacturing facilities, service businesses, farms and organisations that cannot risk downtime from power loss.

It provides 18 kW / 23 kVA prime output and 20 kW / 25 kVA standby output at 230 V and 400 V, 50 Hz, so both single-phase and three-phase loads can be supplied from one generator.

The generator is powered by a BAUDOUIN 4M06G25/5 engine, water-cooled, with a prime rating of 23 kW / 29 kVA. This exceeds the generator’s own maximum demand, so the engine is never running at full stretch even under heavy load.

The SmartGen 6120 controller manages automatic starting, load transfer and protection, with remote monitoring capability. The built-in ATS automatically switches the load, and the oil, water and air heaters ensure reliable cold starting.

Technical details

Purpose of this generator

• Automatic start-up. A 20 kW generator is only effective if it operates independently: the built-in ATS detects a power failure, starts the engine and switches the load, then restores it once mains power is back.
• Prepared for low temperatures. Fitted with oil, water and air heaters, a temperature controller and an electric water pump, the engine starts reliably even in January, first time.
• Single and three-phase supply. Both 230 V and 400 V outputs are available from the same generator, with European sockets for running office equipment and machinery together.
• Water-cooled engine. The water cooling system maintains stable temperatures during extended full load operation, unlike air-cooled alternatives.
• Low noise for outdoor use. The sound-insulated canopy allows the generator to be positioned outside a building, rather than requiring an indoor plant room.
• Remote monitoring from your office. With SmartGen 6120, you can check the generator’s status remotely, without needing to visit the unit in person.

Standard features

• 20 kW silent diesel generator housed in a sound-insulated enclosure
• Continuous output: 18 kW or 23 kVA
• Standby output: 20 kW or 25 kVA
• Supplies 230 V and 400 V, 50 Hz
• BAUDOUIN 4M06G25/5 engine, water cooled
• Engine continuous rating: 23 kW or 29 kVA
• SmartGen 6120 controller with remote monitoring capability
• Built-in ATS (automatic transfer switch)
• Oil, water and air heaters with thermostatic control
• Fitted with an electric water pump

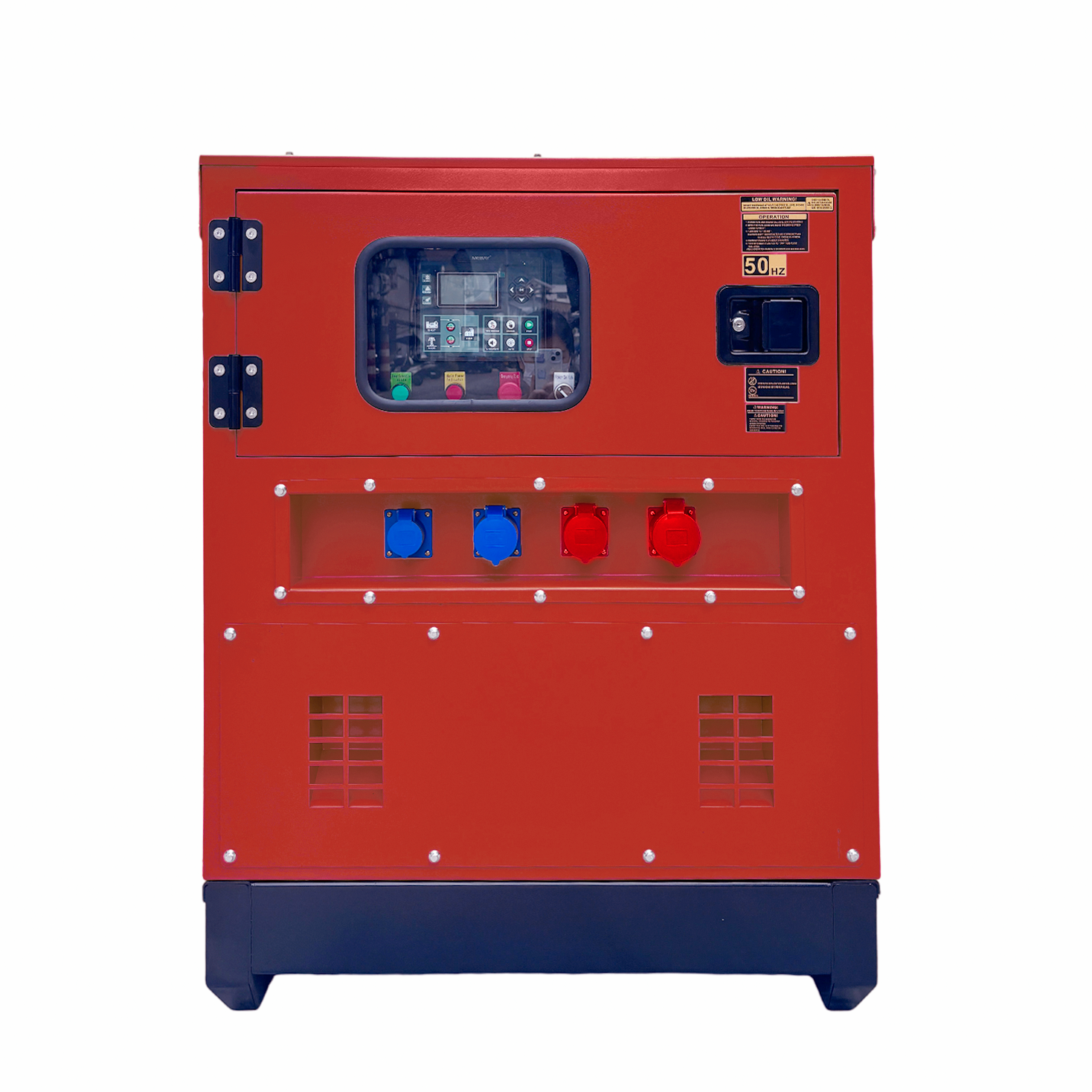

• 1 × 230 V and 1 × 400 V European socket outlets
• Weight: 750 kg, crate dimensions: 205 × 85 × 115 cm
• 12-month guarantee

How the generator takes over the supply

1. The generator should be positioned on a flat surface with clear space around the enclosure for ventilation and maintenance access.
2. The ATS is installed between the mains supply and the building’s distribution board.
3. If the mains fails, the controller starts the engine and allows it to reach operating speed.
4. The ATS switches the load to the generator, so the building continues to run on 230 V and 400 V as normal.
5. When mains power is restored, the load is switched back and the engine runs briefly before shutting down.

Operation and maintenance

• Fuel. The generator is only as reliable as its fuel tank. Plan refuelling for the expected outage period, not just for test runs.
• Test under load. Starting it monthly without a load proves little. Let it run with the actual load for several minutes.
• Oil and coolant. Check both at every test. A water-cooled engine that loses coolant will fail at the critical moment.
• Heaters. Keep oil, water and air heaters powered from the mains, or cold starts will not be possible when needed.
• Air and exhaust. The enclosure must have clear airflow in and out. If the generator is boxed in, it will overheat at full load.
• Servicing. Service intervals should follow engine hours, not the calendar. Filters and belts are inexpensive; a BAUDOUIN engine run dry is not.

Important information before purchasing

The price is displayed on this page. Select a generator based on the electrical load it will support. Please review the following points before placing your order:

• Required load in kW. Delivers 18 kW / 23 kVA continuously, or 20 kW / 25 kVA for standby use. Remember to include the starting current for motors, which can be several times their rated output.
• Number of phases. Both 230 V and 400 V options are available. Please specify which of your loads require three-phase supply.
• Automatic or manual operation. An ATS is built in, providing automatic changeover. Installation into your distribution board must be carried out by a qualified electrician.
• Installation location. Measures 205 × 85 × 115 cm and weighs 750 kg. Ensure there is adequate airflow and space to open the canopy for maintenance.
• Cold weather starting. Oil, coolant and air heaters require a mains connection at the generator site.
• Larger power requirements. For factory or whole-building use, consider the SDG108 model, rated at 108 kW / 135 kVA.
